EN 15659:2009

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Wertbehältnisse - Klassifizierung und Methoden zur Prüfung des Widerstandes gegen Brand - Leichte BrandschutzschränkeUnités de stockage en lieu sur - Classification et méthodes d'essaisde résistance au feu - Meubles ignifuges premier niveauSecure storage units - Classification and methods of test for resistance to fire - Light fire storage units35.220.99Druge naprave za shranjevanje podatkovOther data storage devices13.310Varstvo pred kriminalomProtection against crime13.220.40Sposobnost vžiga in obnašanje materialov in proizvodov pri gorenjuIgnitability and burning behaviour of materials and productsICS:Ta slovenski standard je istoveten z:EN 15659:2009SIST EN 15659:2009en,fr01-oktober-2009SIST EN 15659:2009SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 15659April 2009ICS 13.220.40; 91.060.01 English VersionSecure storage units - Classification and methods of test forresistance to fire - Light fire storage unitsUnités de stockage en lieu sûr - Classification et méthodesd'essaisde résistance au feu - Meubles ignifuges premierniveauWertbehältnisse - Klassifizierung und Methoden zurPrüfung des Widerstandes gegen Brand - LeichteBrandschutzschränkeThis European Standard was approved by CEN on 19 March 2009.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the CEN Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as theofficial versions.CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre:
Avenue Marnix 17,
B-1000 Brussels© 2009 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 15659:2009: ESIST EN 15659:2009

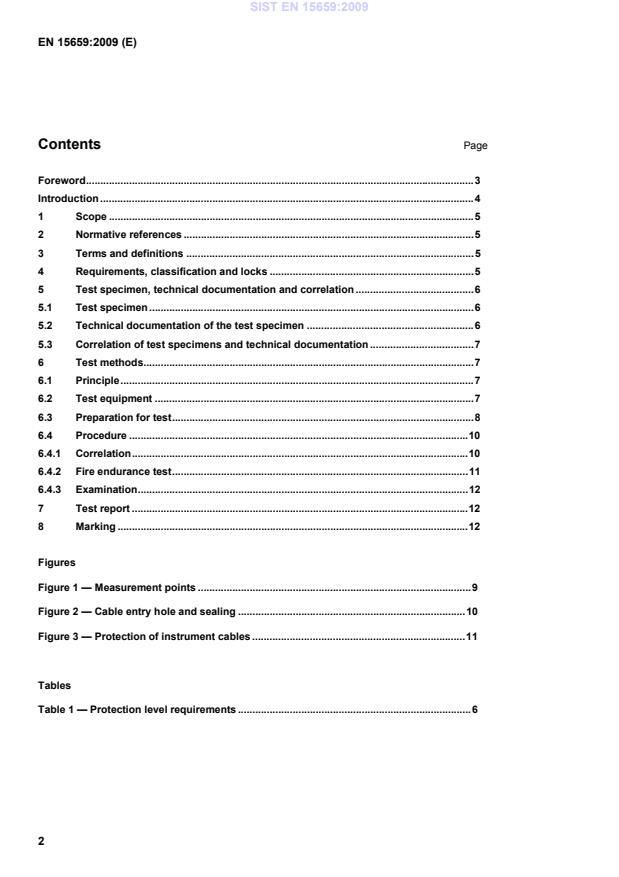

Figures Figure 1 — Measurement points . 9 Figure 2 — Cable entry hole and sealing . 10 Figure 3 — Protection of instrument cables . 11
Tables Table 1 — Protection level requirements . 6
The method of test is specified to determine the ability of light fire storage units to protect paper media from the effects of fire. Two levels of fire exposure periods (LFS 30 P and LFS 60 P) are specified using the maximum temperature increase permitted within the storage space of the light fire storage unit. Requirements are also specified for the test specimen, the technical documentation for the test specimen, correlation of the test specimen with the technical documentation, preparation for type testing and test procedures. A scheme to classify the light fire storage units from the test results is also given (see Table 1). 2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 1363-1:1999, Fire resistance tests — Part 1: General requirements EN 60584-1, Thermocouples — Part 1: Reference tables (IEC 60584-1:1995). 3 Terms and definitions For the purposes of this document, the following terms and definitions apply. 3.1 light fire storage unit storage unit designed to protect paper media, except for paper grades where data loss occurs at temperatures below 172°C, as well as valuables against the effects of temperatures up to 172°C NOTE A light fire storage unit can have doors, drawers, lids, connections and fittings. 3.2 compartment part of a light fire storage unit which can be closed with a separate door, lid or cover NOTE A compartment formed by inserting a shelf board is not a compartment within the meaning of this standard. 3.3 lock device which verifies an entered code and performs a blocking function on the boltwork or the door 4 Requirements, classification and locks 4.1 Light fire storage units shall provide protection against the effects of fire (see Clause 6) and be classified as specified in Table 1. SIST EN 15659:2009

Where LFS is the symbol applied for light fire storage units. NOTE 2
The numerical values in the protection level are the duration of fire exposure during the type test in minutes.
NOTE 3
P represents protection of data on paper, excluding those paper grades which lose data below 172ºC.
4.2 Light fire storage units shall be fitted with a lock. 5 Test specimen, technical documentation and correlation 5.1 Test specimen Of several models of a series (with one door, two doors, drawers, etc.) having the same design, protection and construction features (type and thickness of construction and protective materials, rabbet geometry, etc.) as well as the same base (with a tolerance of ± 15 % each applicable to the internal dimensions of width and depth), the models with the smallest and largest internal height resp. the lowest and highest number of drawers shall be tested.
Light fire storage units with double doors shall be regarded as a separate model range. Where a variety of locking options is available, the test specimen used in the type test shall be coordinated with the testing laboratory. Two identical light fire storage units shall be available: one for the fire endurance test, the other for verifying correlation of the filling material with the technical documentation. The testing laboratory shall decide which test sp
...
