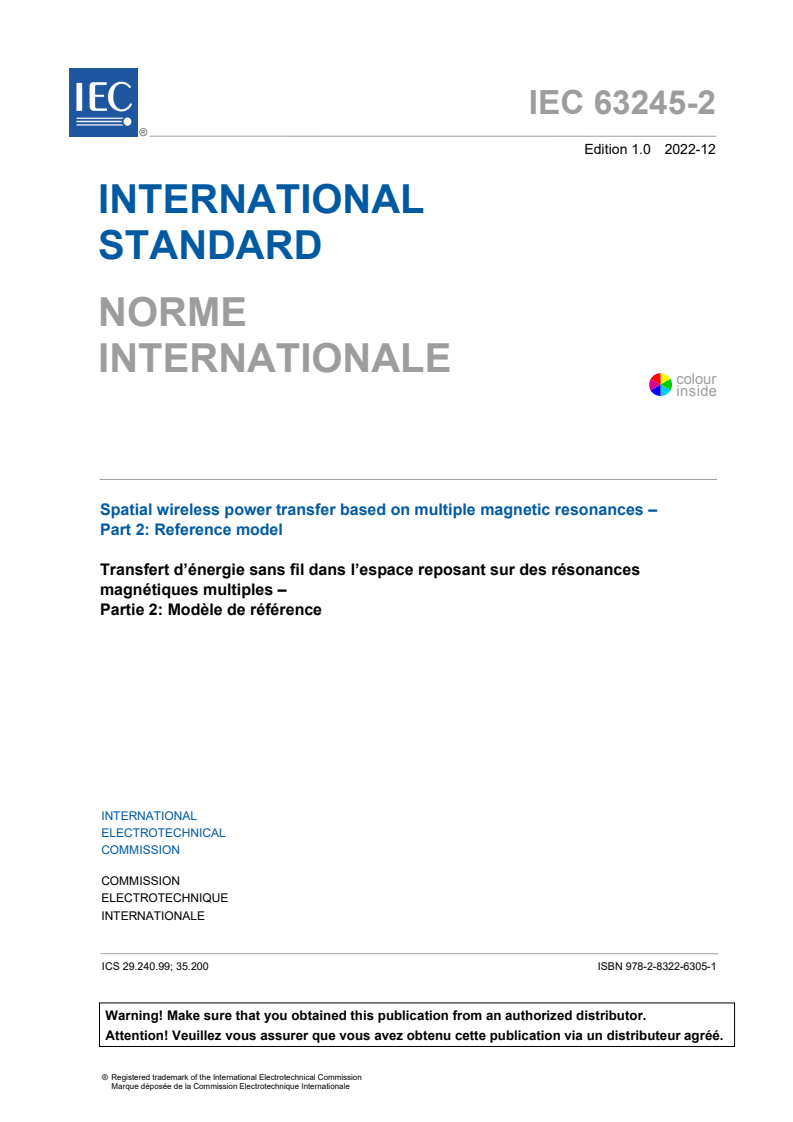

IEC 63245-2:2022

IEC 63245-2 ®
Edition 1.0 2022-12
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Spatial wireless power transfer based on multiple magnetic resonances –
Part 2: Reference model
Transfert d’énergie sans fil dans l’espace reposant sur des résonances
magnétiques multiples –
Partie 2: Modèle de référence

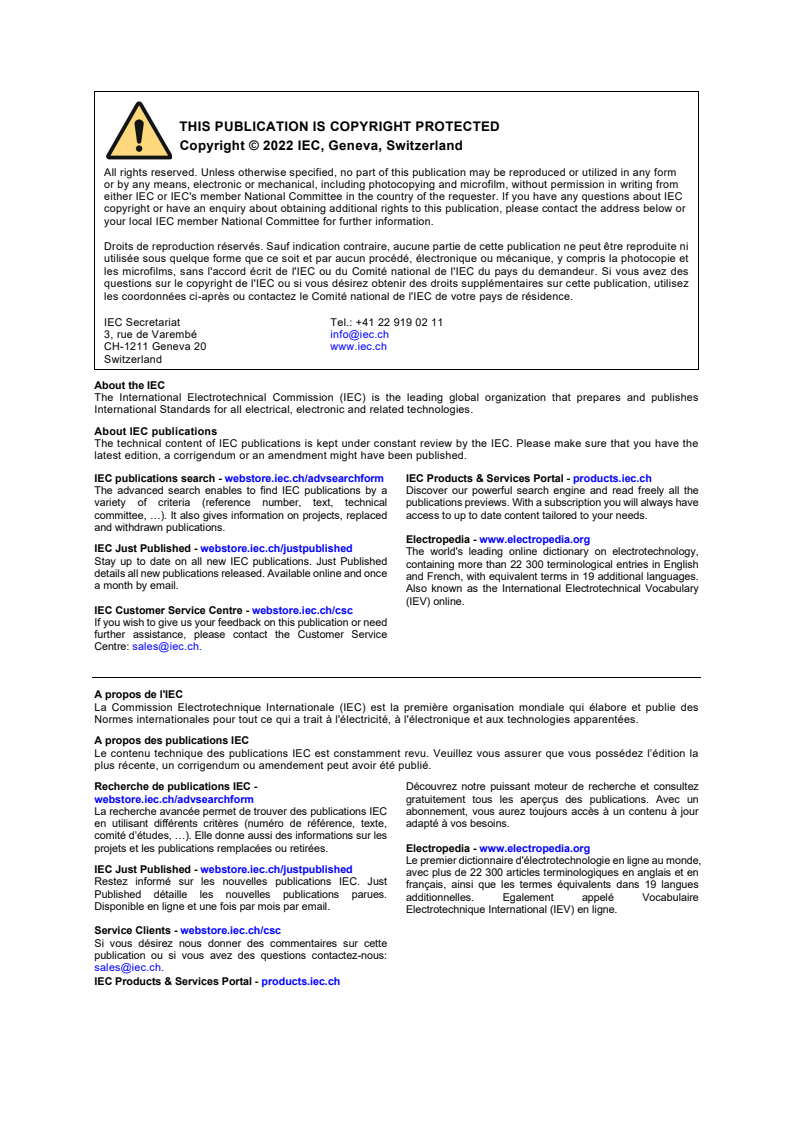

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et
les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always have
committee, …). It also gives information on projects, replaced access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 300 terminological entries in English
details all new publications released. Available online and once
and French, with equivalent terms in 19 additional languages.
a month by email.
Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or need
further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - Découvrez notre puissant moteur de recherche et consultez
webstore.iec.ch/advsearchform gratuitement tous les aperçus des publications. Avec un
La recherche avancée permet de trouver des publications IEC abonnement, vous aurez toujours accès à un contenu à jour
en utilisant différents critères (numéro de référence, texte, adapté à vos besoins.
comité d’études, …). Elle donne aussi des informations sur les
projets et les publications remplacées ou retirées. Electropedia - www.electropedia.org

Le premier dictionnaire d'électrotechnologie en ligne au monde,
IEC Just Published - webstore.iec.ch/justpublished
avec plus de 22 300 articles terminologiques en anglais et en
Restez informé sur les nouvelles publications IEC. Just
français, ainsi que les termes équivalents dans 19 langues
Published détaille les nouvelles publications parues.
additionnelles. Egalement appelé Vocabulaire
Disponible en ligne et une fois par mois par email.
Electrotechnique International (IEV) en ligne.

Service Clients - webstore.iec.ch/csc
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
IEC Products & Services Portal - products.iec.ch

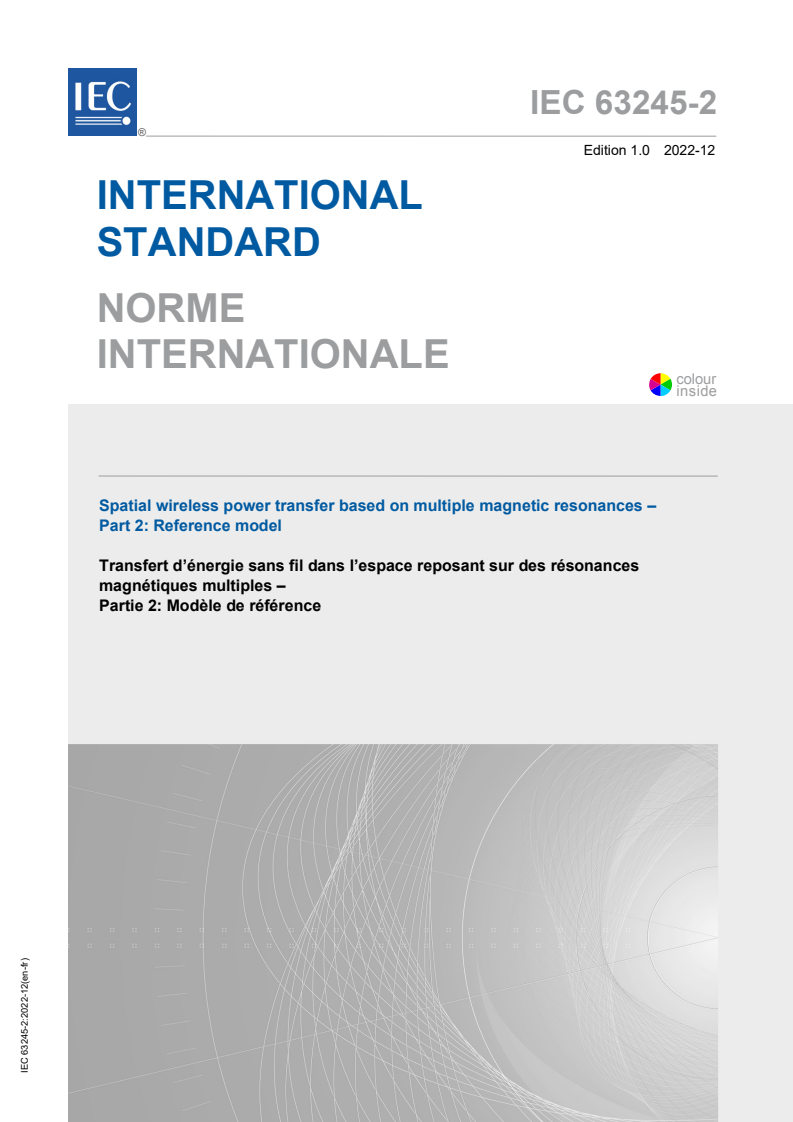

IEC 63245-2 ®
Edition 1.0 2022-12
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Spatial wireless power transfer based on multiple magnetic resonances –

Part 2: Reference model
Transfert d’énergie sans fil dans l’espace reposant sur des résonances

magnétiques multiples –
Partie 2: Modèle de référence
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.240.99; 35.200 ISBN 978-2-8322-6305-1

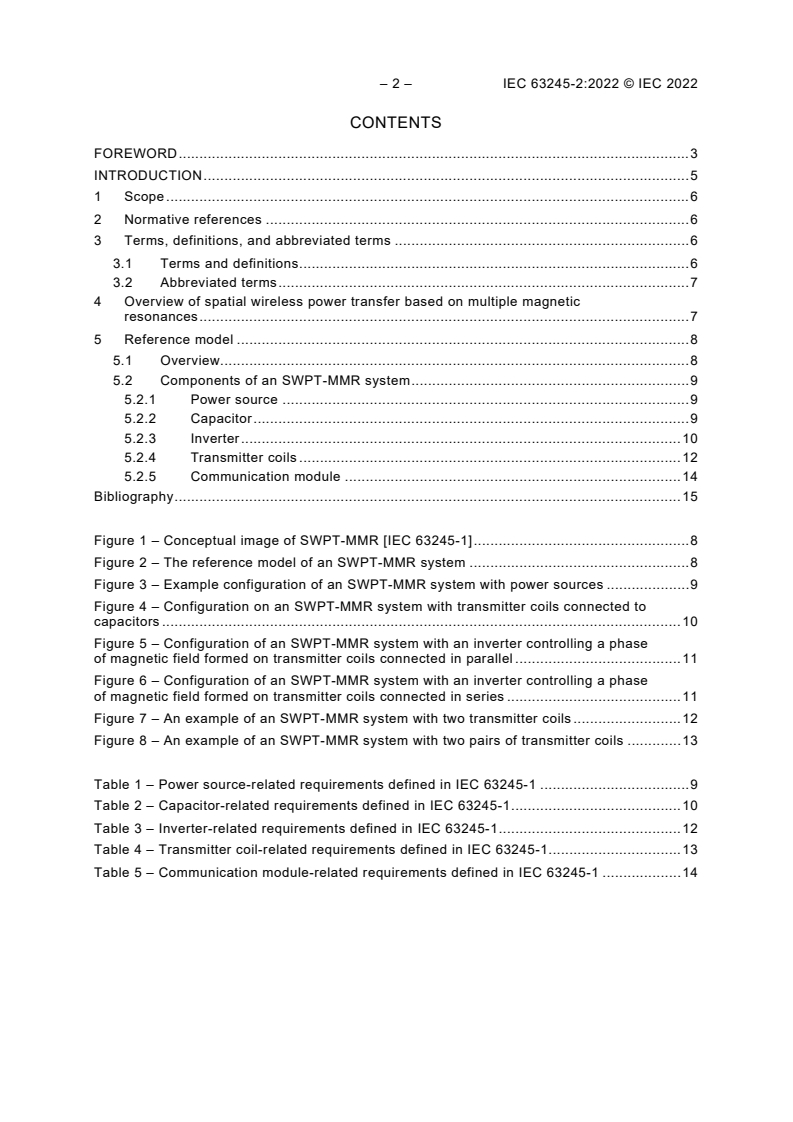

– 2 – IEC 63245-2:2022 © IEC 2022
CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references . 6
3 Terms, definitions, and abbreviated terms . 6
3.1 Terms and definitions . 6
3.2 Abbreviated terms . 7
4 Overview of spatial wireless power transfer based on multiple magnetic
resonances . 7
5 Reference model . 8
5.1 Overview. 8
5.2 Components of an SWPT-MMR system . 9
5.2.1 Power source . 9
5.2.2 Capacitor . 9
5.2.3 Inverter . 10
5.2.4 Transmitter coils . 12
5.2.5 Communication module . 14
Bibliography . 15

Figure 1 – Conceptual image of SWPT-MMR [IEC 63245-1] . 8
Figure 2 – The reference model of an SWPT-MMR system . 8
Figure 3 – Example configuration of an SWPT-MMR system with power sources . 9
Figure 4 – Configuration on an SWPT-MMR system with transmitter coils connected to
capacitors . 10
Figure 5 – Configuration of an SWPT-MMR system with an inverter controlling a phase
of magnetic field formed on transmitter coils connected in parallel . 11
Figure 6 – Configuration of an SWPT-MMR system with an inverter controlling a phase
of magnetic field formed on transmitter coils connected in series . 11
Figure 7 – An example of an SWPT-MMR system with two transmitter coils . 12
Figure 8 – An example of an SWPT-MMR system with two pairs of transmitter coils . 13

Table 1 – Power source-related requirements defined in IEC 63245-1 . 9
Table 2 – Capacitor-related requirements defined in IEC 63245-1 . 10
Table 3 – Inverter-related requirements defined in IEC 63245-1 . 12
Table 4 – Transmitter coil-related requirements defined in IEC 63245-1 . 13
Table 5 – Communication module-related requirements defined in IEC 63245-1 . 14

INTERNATIONAL ELECTROTECHNICAL COMMISSION
_____________
SPATIAL WIRELESS POWER TRANSFER
BASED ON MULTIPLE MAGNETIC RESONANCES –

Part 2: Reference model
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC Publication(s)"). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
IEC 63245-2 has been prepared by technical area 15: Wireless Power Transfer, of IEC technical
committee 100: Audio, video and multimedia systems and equipment. It is an International
Standard.
The text of this International Standard is based on the following documents:
Draft Report on voting
100/3839/FDIS 100/3864/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
A list of all parts in the IEC 63245 series, published under the general title Spatial wireless
power transfer based on multiple magnetic resonances, can be found on the IEC website.

– 4 – IEC 63245-2:2022 © IEC 2022
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/standardsdev/publications.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The "colour inside" logo on the cover page of this document indicates that it
contains colours which are considered to be useful for the correct understanding of its
contents. Users should therefore print this document using a colour printer.

INTRODUCTION
The IEC 63245 series (Spatial wireless power transfer based on multiple magnetic resonances,
SWPT-MMR) provides requirements and a reference model for implementing spatial wireless
power transfer systems. The IEC 63245 series consists of the following parts:
– Part 1: Requirements, and
– Part 2: Reference model
IEC 63245-1 describes requirements of SWPT-MMR.
IEC 63245-2 (this document) describes the reference model of SWPT-MMR.

– 6 – IEC 63245-2:2022 © IEC 2022
SPATIAL WIRELESS POWER TRANSFER
BASED ON MULTIPLE MAGNETIC RESONANCES –

Part 2: Reference model
1 Scope
This document specifies a reference model for spatial wireless power transfer based on multiple
magnetic resonances (SWPT-MMR), which is a type of non-radiative wireless power transfer
(WPT). The document contains an overview of SWPT-MMR and a reference model.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 63245-1:2021, Spatial wireless power transfer based on multiple magnetic resonances –
Part 1: Requirements
3 Terms, definitions, and abbreviated terms
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminology databases for use in standardization at the following
addresses:
• IEC Electropedia: available at https://www.electropedia.org/
• ISO Online browsing platform: available at https://www.iso.org/obp
3.1 Terms and definitions
3.1.1
null point
point or area in the charging zone where the magnetic field cancels out almost entirely or is
below a certain specified minimum
[SOURCE: IEC 63245-1:2021, 3.1.1]
3.1.2
quiet zone
magnetic field having an equalized energy density corresponding to each of the magnetic fields
formed on the transmitter coils
[SOURCE: IEC 63245-1:2021, 3.1.2]

3.1.3
spatial wireless power transfer
concept of wireless power transfer between multiple sources and multiple receiving devices
which are placed at a distance within a spatial space
Note 1 to entry: "Spatial" means that receiving devices will take various positions and postures, and will lead to
variable transfer efficiency including almost zero percent. This situation can occur when receiving devices are placed
far apart from power source and freely rearranged.
[SOURCE: IEC 62827-3:2016, 3.1.2, modified – "placed at a certain distance in various
positions and postures within a space" has been replaced with " which are placed at a distance
within a spatial space"]
3.1.4
spatial wireless power transfer system
group implementing spatial wireless power transfer in which the power source can deliver power
and data to the power-receiving device
Note 1 to entry: In special cases, a spatial wireless power transfer system can consist of only a single power source
and only a single power-receiving device.
Note 2 to entry: Spatial wireless power transfer system includes the case in which a power source has the ability to
access a power-receiving device through a relay from other power sources when the power source attempts to deliver
data to the receiving device. In this document, "data" means control and management data for wireless power transfer.
[SOURCE: IEC 62827-3:2016, 3.1.3]
3.1.5
transmitter coil
component of a wireless power transmitter that converts electric current to magnetic flux
[SOURCE: IEC 63006:2019, 3.48]
3.2 Abbreviated terms
SWPT spatial wireless power transfer
SWPT-MMR spatial wireless power transfer based on multiple magnetic resonances
WPT wireless power transfer
4 Overview of spatial wireless power transfer based on multiple magnetic
resonances
A spatial wireless power transfer (SWPT) system delivers the electronic power to one or more
receivers within a specific space. As a specific implementation of SWPT, spatial wireless power
transfer based on multiple magnetic resonances (SWPT-MMR) includes multiple magnetic
resonances to generate the specific space, namely a charging zone. In the charging zone,
electric power is transferred to one or more receivers regardless of the position and the direction
of the receiver(s). Figure 1 shows a conceptual image of SWPT-MMR.

– 8 – IEC 63245-2:2022 © IEC 2022

Figure 1 – Conceptual image of SWPT-MMR [IEC 63245-1]
5 Reference model
5.1 Overview
The reference model of an SWPT-MMR system provides essential components of an
SWPT-MMR system. Every essential component is based on the requirements of SWPT-MMR
defined in IEC 63245-1. Thus, the reference model defined in this document shall comply with
IEC 63245-1. Figure 2 shows the reference model of an SWPT-MMR system.

Figure 2 – The reference model of an SWPT-MMR system

5.2 Components of an SWPT-MMR system
5.2.1 Power source
As an essential component of a power transfer system, an SWPT-MMR system shall have at
least one power source configured to supply a current to all the transmitter coils. Figure 3 shows
an example configuration of an SWPT-MMR system with two power sources. Table 1 lists the
requirements related to power source, which IEC 63245-1 defines.

Figure 3 – Example configuration of an SWPT-MMR system with power sources
Table 1 – Power source-related requirements defined in IEC 63245-1
Tag Description
REQ-ZONE1 It is required that an SWPT-MMR system be capable of generating a 3D charging zone.
REQ-PROC1 It is recommended that an SWPT-MMR system follow the basic charging procedure
comprised of a standby state, charging zone generation, optimization, power transmission,
and transmission termination.
5.2.2 Capacitor
To reduce the size of transmitter coils or reduce resonance frequencies of transmitter coils, an
SWPT-MMT system shall have one or more capacitors that are in between each transmitter coil
and the power source connected to each transmitter coil. Figure 4 shows an example
configuration of an SWPT-MMR system with transmitter coils connected to capacitors. Table 3
lists the requirements related to the capacitors and which are defined in IEC 63245-1.

– 10 – IEC 63245-2:2022 © IEC 2022

Figure 4 – Configuration on an SWPT-MMR system
with transmitter coils connected to capacitors
Table 2 – Capacitor-related requirements defined in IEC 63245-1
Tag Description
REQ-ZONE1 It is required that an SWPT-MMR system be capable of generating a 3D charging zone.
REQ-ZONE2 It is required that an SWPT-MMR system be capable of generating a quiet zone indicating a
magnetic field having an equalized energy density in the charging zone
REQ-ZONE3 It is required that an SWPT-MMR system be capable of controlling multiple transmitter coils
to generate multiple quiet zones.
REQ-ZONE4 It is required that an SWPT-MMR system be capable of dealing with null points in a charging
zone.
REQ-PROC1 It is recommended that an SWPT-MMR system follow the basic charging procedure
comprised of standby state, charging zone generation, optimization, power transmission,
and transmission termination.
REQ-FREQ1 It is required that an SWPT-MMR system be capable of adjusting resonance frequencies of
the transmitting coils.
REQ-FREQ2: It is required that the transmitting coils of a SWPT-MMR system use the same resonance
frequency.
REQ-FREQ3 It is recommended that an SWPT-MMR system be capable of selecting the resonance
frequency that results in the most efficiency in power transfer.

5.2.3 Inverter
An SWPT-MMR system shall have an inverter to control the phase of a magnetic field formed
on transmitter coils. Figure 5 and Figure 6 show two different example configurations of an
SWPT-MMR system with an inverter included in a power source. The phase of the current
adjusted by the inverter is determined by the angle between the pairs of transmitter coils. When
an SWPT-MMR system has two pairs of transmitter coils that are orthogonally placed, one pair
of transmitter coils is supplied the current that is phase shifted by 90° relative to the other. By
supplying the current with the adjusted phase to the pairs of transmitter coils, a rotating
magnetic field will be formed in the charging zone. Table 3 lists the requirements related to the
inverter and which are defined in IEC 63245-1.

Figure 5 – Configuration of an SWPT-MMR system with an inverter controlling a phase
of magnetic field formed on transmitter coils connected in parallel

Figure 6 – Configuration of an SWPT-MMR system with an inverter controlling a phase
of magnetic field formed on transmitter coils connected in series

– 12 – IEC 63245-2:2022 © IEC 2022
Table 3 – Inverter-related requirements defined in IEC 63245-1
Tag Description
REQ-ZONE1 It is required that an SWPT-MMR system be capable of generating a 3D charging zone.
It is required that an SWPT-MMR system be capable of generating a quiet zone indicating a
REQ-ZONE2
magnetic field having an equalized energy density in the charging zone.
REQ-ZONE3 It is required that an SWPT-MMR system be capable of controlling multiple transmitter coils
to generate multiple quiet zones.
REQ-ZONE4 It is required that an SWPT-MMR system be capable of dealing with null points in a charging
zone.
REQ-PROC1 It is recommended that an SWPT-MMR system follow the basic charging procedure
comprised of standby state, charging zone generation, optimization, power transmission,
and transmission termination.
REQ-CUR1 It is required that an SWPT-MMR system be capable of supplying currents to at least two
pairs of transmitting coils.
REQ-CUR2 It is required that an SWPT-MMR system supply an in-phase current or an out-of-phase
current to each pair of transmitter coils when the SWPT-MMR system has multiple pairs of
transmitter coils.
REQ-CUR3 It is required that an SWPT-MMR system be capable of controlling the phase of the current
supplied to all the transmitting coils included in the wireless charging zone.
REQ-CUR4 It is required that an SWPT-MMR system be capable of controlling a phase of the current
supplied to all the transmitting coils based on the induced current formed on the receiver coil
using the current supplied to all the transmitter coils in the charging zone.

5.2.4 Transmitter coils
An SWPT-MMR system has multiple transmitter coils to generate a quiet zone and to avoid
having null points. The size or shape of the SWPT-MMR system determines the number of
transmitter coils. The system has two transmitter coils when the system is pocket-shaped.
Figure 7 shows an example of a pocket-shaped SWPT-MMR system. The pocket-shaped
SWPT-MMR system allows WPT to a receiver facing any transmitter coil. Table 4 lists the
requirements related to transmitter coils and which are defined in IEC 63245-1.

Figure 7 – An example of an SWPT-MMR system with two transmitter coils
An larger SWPT-MMR system can have four transmitter coils, which allows WPT to one or more
receivers in any position or in any angle. Figure 8 shows an example of an SWPT-MMR system
with a larger space.
Figure 8 – An example of an SWPT-MMR system with two pairs of transmitter coils
Table 4 – Transmitter coil-related requirements defined in IEC 63245-1
Tag Description
REQ-ZONE1 It is required that an SWPT-MMR system be capable of generating a 3D charging zone.
REQ-ZONE2 It is required that an SWPT-MMR system be capable of generating a quiet zone indicating
a magnetic field having an equalized energy density in the charging zone
REQ-ZONE3 It is required that an SWPT-MMR system be capable of controlling multiple transmitter
coils to generate multiple quiet zones.
It is required that an SWPT-MMR system be capable of dealing with null points in a
REQ-ZONE4
charging zone.
REQ-ZONE5 It is recommended that an SWPT-MMR system be capable of generating multiple quiet
zones in different directions.
REQ-PROC1 It is recommended that an SWPT-MMR system follow the basic charging procedure
comprised of a standby state, charging zone generation, optimization, power transmission,
and transmission termination.
REQ-COIL1 It is required that an SWPT-MMR system have at least a pair of transmitter coils for
generating a quiet zone on one axis.
REQ-COIL2 It is required that an SWPT-MMR system have at least two pairs of transmitter coils for
handling null points occurred on each axis of quiet zone.
REQ-COIL3 It is required that an SWPT-MMR system be capable of accommodating transmitter coils
placed at various locations in the system.
REQ-COIL4 It is required that an SWPT-MMR system have a pair of transmitter coils arranged to face
each other in the charging zone.
REQ-COIL5 It is required that an SWPT-MMR system have at least one pair of transmitter coils, which
are connected in parallel or in series.
REQ-COIL6 It is required that an SWPT-MMR system have at least one power supplier.
REQ-CUR1 It is required that an SWPT-MMR system be capable of supplying currents to the at least
two pairs of transmitting coils.
REQ-CUR2 It is required that an SWPT-MMR system supply an in-phase current or an out-of-phase
current to each pair of transmitter coils when the SWPT-MMR system has multiple pairs of
transmitter coils.
It is required that an SWPT-MMR system be capable of controlling the phase of the current
REQ-CUR3
supplied to all the transmitting coils included in the wireless charging zone.

– 14 – IEC 63245-2:2022 © IEC 2022
Tag Description
REQ-CUR4 It is required that an SWPT-MMR system be capable of controlling a phase of the current
supplied to the plurality of transmitting coils based on the induced current formed on the
receiver coil using the current supplied to all the transmitter coils in the charging zone.
REQ-FREQ1 It is required that an SWPT-MMR system be capable of adjusting resonance frequencies of
the transmitting coils.
REQ-FREQ2: It is required that the transmitting coils of a SWPT-MMR system use the same resonance
frequency.
REQ-FREQ3 It is recommended that an SWPT-MMR system be capable of selecting the resonance
frequency that results in the most efficiency in power transfer.
