EUROPEAN STANDARD
EN 60384-1
NORME EUROPÉENNE
December 2009
EUROPÄISCHE NORM
ICS 31.060 Supersedes EN 60384-1:2001 + corr. Oct. 2001

English version
Fixed capacitors for use in electronic equipment -
Part 1: Generic specification
(IEC 60384-1:2008 + corrigendum 2008)

Condensateurs fixes utilisés  Festkondensatoren zur Verwendung
dans les équipements électroniques - in Geräten der Elektronik -
Partie 1: Spécification générique Teil 1: Fachgrundspezifikation
(CEI 60384-1:2008 + (IEC 60384-1:2008 +
corrigendum 2008) Corrigendum 2008)

This European Standard was approved by CENELEC on 2009-10-01. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Cyprus, the
Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: Avenue Marnix 17, B - 1000 Brussels

© 2009 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60384-1:2009 E

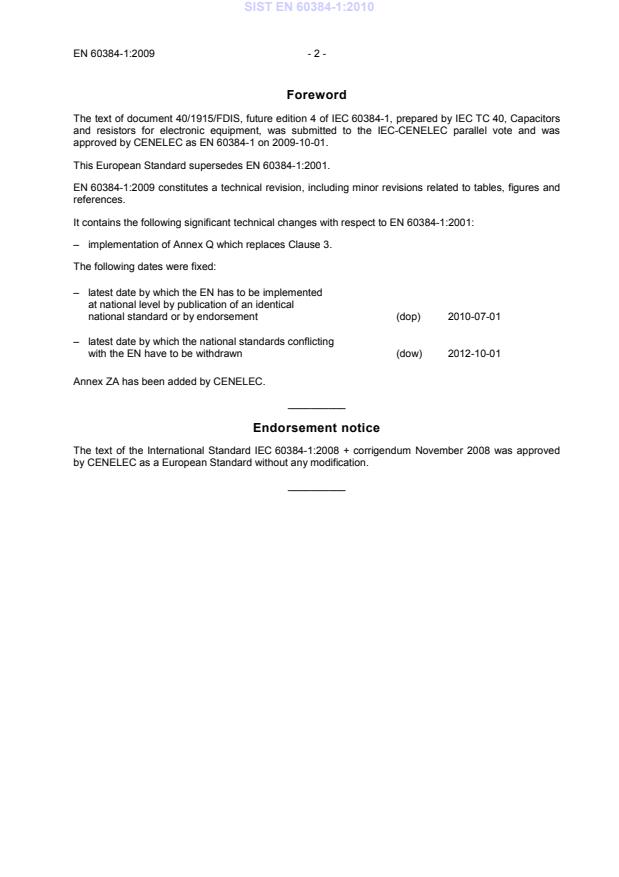

Foreword
The text of document 40/1915/FDIS, future edition 4 of IEC 60384-1, prepared by IEC TC 40, Capacitors
and resistors for electronic equipment, was submitted to the IEC-CENELEC parallel vote and was
approved by CENELEC as EN 60384-1 on 2009-10-01.
This European Standard supersedes EN 60384-1:2001.
references.
It contains the following significant technical changes with respect to EN 60384-1:2001:
– implementation of Annex Q which replaces Clause 3.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
(dop) 2010-07-01
national standard or by endorsement
– latest date by which the national standards conflicting
(dow) 2012-10-01
with the EN have to be withdrawn
Annex ZA has been added by CENELEC.
__________
Endorsement notice
The text of the International Standard IEC 60384-1:2008 + corrigendum November 2008 was approved
by CENELEC as a European Standard without any modification.
__________
- 3 - EN 60384-1:2009
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.

NOTE  When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year

IEC 60027 Series Letter symbols to be used in electrical EN 60027 Series
technology
IEC 60050 Series International Electrotechnical Vocabulary -
(IEV)
1) 2)
IEC 60062 - Marking codes for resistors and capacitors EN 60062 2005
+ corr. January 2007
1)
IEC 60063 - Preferred number series for resistors and - -
capacitors
3)
IEC 60068-1 1988 Environmental testing - EN 60068-1 1994
Part 1: General and guidance
IEC 60068-2-1 2007 Environmental testing - EN 60068-2-1 2007
Part 2-1: Tests - Test A: Cold

IEC 60068-2-2 2007 Environmental testing - EN 60068-2-2 2007
Part 2-2: Tests - Test B: Dry heat

IEC 60068-2-6 2007 Environmental testing - EN 60068-2-6 2008
Part 2-6: Tests - Test Fc: Vibration
(sinusoidal)
IEC 60068-2-13 1983 Environmental testing - EN 60068-2-13 1999
Part 2-13: Tests - Test M: Low air pressure

IEC 60068-2-14 2009 Environmental testing - EN 60068-2-14 2009
Part 2-14: Tests - Test N: Change of
temperature
IEC 60068-2-17 1994 Environmental testing - EN 60068-2-17 1994
Part 2-17: Tests - Test Q: Sealing

4)
IEC 60068-2-20 1979 Environmental testing - HD 323.2.20 S3 1988
Part 2-20: Tests - Test T: Soldering

IEC 60068-2-21 2006 Environmental testing - EN 60068-2-21 2006
Part 2-21: Tests - Test U: Robustness of
terminations and integral mounting devices

IEC 60068-2-27 2008 Environmental testing - EN 60068-2-27 2009
Part 2-27: Tests - Test Ea and guidance:
Shock
1)
Undated reference.
2)
Valid edition at date of issue.
3)
EN 60068-1 includes corrigendum October 1988 + A1:1992 to IEC 60068-1.
4)
HD 323.2.20 S3 includes A2:1987 to IEC 60068-2-20; it is superseded by EN 60068-2-20:2008, which is based on
IEC 60068-2-20:2008.
Publication Year Title EN/HD Year

5)
IEC 60068-2-29 1987 Environmental testing - EN 60068-2-29 1993
Part 2-29: Tests - Test Eb and guidance:
Bump
IEC 60068-2-30 2005 Environmental testing - EN 60068-2-30 2005
Part 2-30: Tests - Test Db: Damp heat, cyclic
(12 h + 12 h cycle)
IEC 60068-2-45 1980 Environmental testing - EN 60068-2-45 1992
Part 2-45: Tests - Test Xa and guidance:
Immersion in cleaning solvents

IEC 60068-2-54 2006 Environmental testing - EN 60068-2-54 2006
Part 2-54: Tests - Test Ta: Solderability
testing of electronic components by the
wetting balance method
IEC 60068-2-58 2004 Environmental testing - EN 60068-2-58 2004
Part 2-58: Tests - Test Td: Test methods for + corr. December 2004
solderability, resistance to dissolution of
metallization and to soldering heat of surface
mounting devices (SMD)
IEC 60068-2-69 2007 Environmental testing - EN 60068-2-69 2007
Part 2-69: Tests - Test Te: Solderability
testing of electronic components for surface
mounting devices (SMD) by the wetting
balance method
IEC 60068-2-78 2001 Environmental testing - EN 60068-2-78 2001
Part 2-78: Tests - Test Cab: Damp heat,
steady state
1)
IEC 60294 - Measurement of the dimensions of a - -
cylindrical component having two axial
terminations
IEC 60410 1973 Sampling plans and procedures for inspection - -
by attributes
IEC 60617 Data- Graphical symbols for diagrams - -
base
IEC 60695-11-5 2004 Fire hazard testing - EN 60695-11-5 2005
Part 11-5: Test flames - Needle-flame test
method - Apparatus, confirmatory test
arrangement and guidance
1)
IEC 60717 - Method for the determination of the space - -
required by capacitors and resistors with
unidirectional terminations
1) 2)
IEC 61193-2 - Quality assessment systems - EN 61193-2 2007
Part 2: Selection and use of sampling plans
for inspection of electronic components and
packages
IEC 61249-2-7 2002 Materials for printed boards and other EN 61249-2-7 2002
interconnecting structures - + corr. September 2005
Part 2-7: Reinforced base materials, clad and
unclad - Epoxide woven E-glass laminated
sheet of defined flammability (vertical burning
test), copper-clad
5)
EN 60068-2-29 is superseded by EN 60068-2-27:2009, which is based on IEC 60068-2-27:2008.

- 5 - EN 60384-1:2009
Publication Year Title EN/HD Year

1)
IEC QC 001002-3 - IEC Quality Assessment System - -
for Electronic Components (IECQ) - Rules of
Procedure - Part 3: Approval procedures

1)
ISO 3 - Preferred numbers - Series of preferred - -
numbers
1)
ISO 1000 - SI units and recommendations for the use of - -
their multiples and of certain other units

1) 2)
ISO 9000 - Quality management systems - EN ISO 9000 2005
Fundamentals and vocabulary
IEC 60384-1
Edition 4.0 2008-07
INTERNATIONAL
STANDARD
QC 300000
Fixed capacitors for use in electronic equipment –
Part 1: Generic specification
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
PRICE CODE
XC
ICS 31.060 ISBN 2-8318-9907-9
