Electromagnetic compatibility and Radio spectrum Matters (ERM) - Land Mobile Service
- Radio equipment for analogue and/or digital communication (speech and/or data) and
operating on narrow band channels and having an antenna connector - Part 2:
Harmonized EN covering essential requirements of article 3.2 of the R&TTE Directive
Ta slovenski standard je istoveten z: EN 301 166-2 Version 1.2.3
ICS:
33.060.99 Druga oprema za radijske Other equipment for
komunikacije radiocommunications
33.070.01 Mobilni servisi na splošno Mobile services in general
33.100.01 Elektromagnetna združljivost Electromagnetic compatibility
na splošno in general
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

Harmonized European Standard (Telecommunications series)

Electromagnetic compatibility
and Radio spectrum Matters (ERM);
Land Mobile Service;
Radio equipment for analogue and/or digital
communication (speech and/or data) and operating on
narrow band channels and having an antenna connector;
Part 2: Harmonized EN covering essential requirements
of article 3.2 of the R&TTE Directive

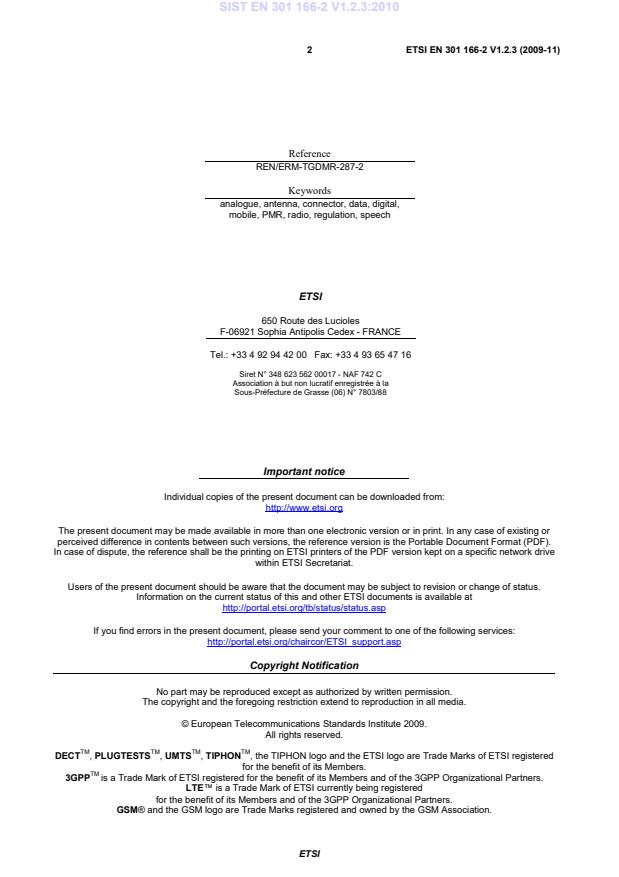

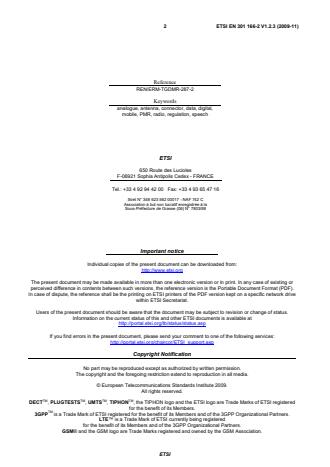

2 ETSI EN 301 166-2 V1.2.3 (2009-11)

Reference
REN/ERM-TGDMR-287-2
Keywords
analogue, antenna, connector, data, digital,
mobile, PMR, radio, regulation, speech
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: +33 4 92 94 42 00  Fax: +33 4 93 65 47 16

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.

© European Telecommunications Standards Institute 2009.
All rights reserved.
TM TM TM TM
DECT , PLUGTESTS , UMTS , TIPHON , the TIPHON logo and the ETSI logo are Trade Marks of ETSI registered
for the benefit of its Members.
TM
3GPP is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners.
LTE™ is a Trade Mark of ETSI currently being registered
for the benefit of its Members and of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
3 ETSI EN 301 166-2 V1.2.3 (2009-11)
Contents
Intellectual Property Rights . 5
Foreword . 5
Introduction . 5
1 Scope . 6
2 References . 7
2.1 Normative references . 7
2.2 Informative references . 7
3 Definitions, symbols and abbreviations . 8
3.1 Definitions . 8
3.2 Symbols . 8
3.3 Abbreviations . 8
4 Technical requirements . 8
4.1 Environmental profile . 8
4.2 Transmitter requirements . 8
4.2.1 Frequency error . 8
4.2.1.1 Definition . 8
4.2.1.2 Limit . 8
4.2.1.3 Conformance . 8
4.2.2 Maximum power (PX) (conducted) . 9
4.2.2.1 Definition . 9
4.2.2.2 Limit . 9
4.2.2.3 Conformance . 9
4.2.3 Maximum effective radiated power . 9
4.2.3.1 Definition . 9
4.2.3.2 Limit . 9
4.2.3.3 Conformance . 9
4.2.4 Adjacent and alternate channel power . 9
4.2.4.1 Definition . 9
4.2.4.2 Limit . 9
4.2.4.3 Conformance . 9
4.2.5 Unwanted emissions in the spurious domain . 9
4.2.5.1 Definition . 9
4.2.5.2 Limit . 9
4.2.5.3 Conformance . 9
4.2.6 Intermodulation attenuation . 10
4.2.6.1 Definition . 10
4.2.6.2 Limit . 10
4.2.6.3 Conformance . 10
4.2.7 Transient power . 10
4.2.7.1 Definition . 10
4.2.7.2 Limit . 10
4.2.7.3 Conformance . 10
4.2.8 Transmitter timeout timer . 10
4.2.8.1 Definition . 10
4.2.8.2 Limit . 10
4.2.8.3 Conformance . 10
4.3 Receiver requirements . 11
4.3.1 Maximum usable sensitivity . 11
4.3.1.1 Definition . 11
4.3.1.2 Limit . 11
4.3.1.3 Conformance . 11
4.3.2 Co-channel rejection . 11
4.3.2.1 Definition . 11
ETSI

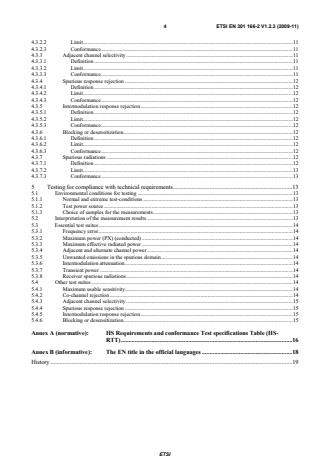

4 ETSI EN 301 166-2 V1.2.3 (2009-11)
4.3.2.2 Limit . 11
4.3.2.3 Conformance . 11
4.3.3 Adjacent channel selectivity . 11
4.3.3.1 Definition . 11
4.3.3.2 Limit . 11
4.3.3.3 Conformance . 11
4.3.4 Spurious response rejection . 12
4.3.4.1 Definition . 12
4.3.4.2 Limit . 12
4.3.4.3 Conformance . 12
4.3.5 Intermodulation response rejection . 12
4.3.5.1 Definition . 12
4.3.5.2 Limit . 12
4.3.5.3 Conformance . 12
4.3.6 Blocking or desensitization . 12
4.3.6.1 Definition . 12
4.3.6.2 Limit . 12
4.3.6.3 Conformance . 12
4.3.7 Spurious radiations . 12
4.3.7.1 Definition . 12
4.3.7.2 Limit . 13
4.3.7.3 Conformance . 13
5 Testing for compliance with technical requirements . 13
5.1 Environmental conditions for testing . 13
5.1.1 Normal and extreme test-conditions . 13
5.1.2 Test power source . 13
5.1.3 Choice of samples for the measurements . 13
5.2 Interpretation of the measurement results . 13
5.3 Essential test suites . 14
5.3.1 Frequency error . 14
5.3.2 Maximum power (PX) (conducted) . 14
5.3.3 Maximum effective radiated power . 14
5.3.4 Adjacent and alternate channel power . 14
5.3.5 Unwanted emissions in the spurious domain . 14
5.3.6 Intermodulation attenuation . 14
5.3.7 Transient power . 14
5.3.8 Receiver spurious radiations . 14
5.4 Other test suites . 14
5.4.1 Maximum usable sensitivity . 14
5.4.2 Co-channel rejection . 14
5.4.3 Adjacent channel selectivity . 15
5.4.4 Spurious response rejection . 15
5.4.5 Intermodulation response rejection . 15
5.4.6 Blocking or desensitization . 15
Annex A (normative): HS Requirements and conformance Test specifications Table (HS-
RTT) . 16
Annex B (informative): The EN title in the official languages . 18
History . 19

ETSI
5 ETSI EN 301 166-2 V1.2.3 (2009-11)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://webapp.etsi.org/IPR/home.asp).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This Harmonized European Standard (Telecommunications series) has been produced by ETSI Technical Committee
Electromagnetic compatibility and Radio spectrum Matters (ERM).
The present document has been produced by ETSI in response to a mandate from the European Commission issued
under Council Directive 98/34/EC [i.4] (as amended) laying down a procedure for the provision of information in the
field of technical standards and regulations.
The present document is intended to become a Harmonized Standard, the reference of which will be published in the
Official Journal of the European Communities referencing the Directive 1999/5/EC [i.3] of the European Parliament
and of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual
recognition of their conformity ("the R&TTE Directive" [i.3]).
The present document is part 2 of a multi-part deliverable covering Land Mobile Service; Radio equipment for analogue
and/or digital communication (speech and/or data) and operating on narrow band channels and having an antenna
connector, as identified below:
Part 1: "Technical characteristics and methods of measurement";
Part 2: "Harmonized EN covering essential requirements of article 3.2 of the R&TTE Directive".
Technical specifications relevant to Directive 1999/5/EC [i.3] are given in annex A.

National transposition dates
Date of latest announcement of this EN (doa): 28 February 2010
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 31 August 2010
Date of withdrawal of any conflicting National Standard (dow): 31 August 2011

Introduction
The present document is part of a set of standards developed by ETSI and is designed to fit in a modular structure to
cover all radio and telecommunications terminal equipment within the scope of the R&TTE Directive [i.3]. The
modular structure is shown in EG 201 399 [i.2].
ETSI
6 ETSI EN 301 166-2 V1.2.3 (2009-11)
1 Scope
The present document applies to radio transmitters and receivers used in stations in the Private Mobile Radio (PMR)
service. It applies to use in the land mobile service capable of operating in all or any part of the frequency bands given
below.
Table 1: Radiocommunications service frequency bands
Radiocommunications service frequency bands
Transmit 30 MHz to 3 000 MHz
Receive 30 MHz to 3 000 MHz
The present document applies to equipment operating with narrow channel separations (CSP) (less than 10 kHz) and
intended for speech and/or data. It is the intention of the present document to cover any Channel BandWidths (CBW)
permitted by National Administrations for such systems e.g. 6,25 kHz.
In the present document different requirements are given for the different radio frequency bands, environmental
conditions and types of equipment where appropriate.
In the present document, data transmission systems are defined as systems which transmit and/or receive data and/or
digitized voice. The equipment comprises a transmitter and associated encoder and modulator and/or a receiver and
associated demodulator and decoder.
The present document covers equipment which may use constant envelope or non-constant envelope modulation.
The types of equipment covered by the present docum
...
