European Standard (Telecommunications series)
Equipment Engineering (EE);
Environmental conditions and environmental tests for
telecommunications equipment;
Part 2-2: Specification of environmental tests;
Transportation

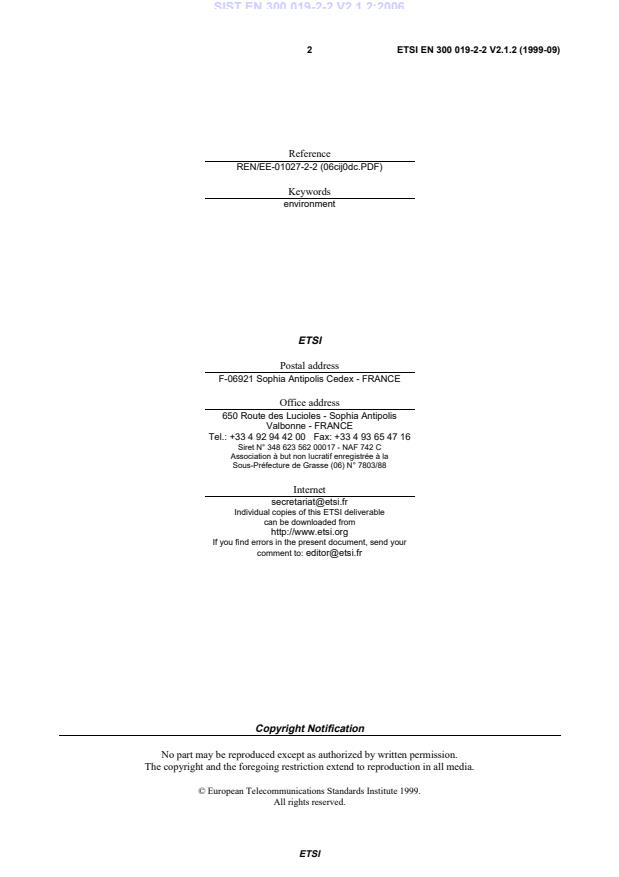

2 ETSI EN 300 019-2-2 V2.1.2 (1999-09)
Reference
REN/EE-01027-2-2 (06cij0dc.PDF)
Keywords
environment
ETSI
Postal address
F-06921 Sophia Antipolis Cedex - FRANCE
Office address
650 Route des Lucioles - Sophia Antipolis
Valbonne - FRANCE
Tel.: +33 4 92 94 42 00  Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Internet
secretariat@etsi.fr
Individual copies of this ETSI deliverable
can be downloaded from
http://www.etsi.org
If you find errors in the present document, send your
comment to: editor@etsi.fr
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 1999.
All rights reserved.
ETSI
3 ETSI EN 300 019-2-2 V2.1.2 (1999-09)
Contents
Intellectual Property Rights . 4
Foreword. 4
1 Scope. 5
2 References . 5
3 Environmental test specifications. 5
3.1 Specification T 2.1: Very careful transportation. 6
3.2 Specification T 2.2: Careful transportation. 9
3.3 Specification T 2.3: Public transportation . 12
3.4 Notes to tables . 15
3.4.1 General note . 15
3.4.2 Notes to tables 1 to 6. 15
Bibliography . 18
History. 19
ETSI
4 ETSI EN 300 019-2-2 V2.1.2 (1999-09)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respect
of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web server
(http://www.etsi.org/ipr).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in SR 000 314 (or the updates on the ETSI Web server)
which are, or may be, or may become, essential to the present document.
Foreword
This European Standard (Telecommunications series) has been produced by ETSI Technical Committee Environmental
Engineering (EE).
The present document consists of 2 parts as follows:
Part 1: "Classification of environmental conditions";
NOTE 1: Specifies different standardized environmental classes covering climatic and biological conditions,
chemically and mechanically active substances and mechanical conditions during storage, transportation
and in use.
Part 2: "Specification of environmental tests".
NOTE 2: Specifies the recommended test severities and test methods for the different environmental classes.
Each part of the standard is divided into sub-parts. Sub-part 2-0 forms a general overview of Part 2.
This sub-part 2-2 deals with transportation.
National transposition dates
Date of adoption of this EN: 3 September 1999
Date of latest announcement of this EN (doa): 31 December 1999
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 30 June 2000
Date of withdrawal of any conflicting National Standard (dow): 30 June 2000
ETSI
5 ETSI EN 300 019-2-2 V2.1.2 (1999-09)
1 Scope
The present document specifies test severities and methods for verification of the required resistibility of equipment
according to the relevant environmental class.
The tests defined in Part 2-2 of this multi-part EN apply to transportation of equipment covering the environmental
conditions stated in ETS 300 019-1-2 [1].
2 References
The following documents contain provisions which, through reference in this text, constitute provisions of the present
document.
• References are either specific (identified by date of publication, edition number, version number, etc.) or non-
specific.
• For a specific reference, subsequent revisions do not apply.
• For a non-specific reference, the latest version applies.
A non-specific reference to an ETS shall also be taken to refer to later versions published as an EN with the same
number.
[1] ETS 300 019-1-2: "Equipment Engineering (EE); Environmental conditions and environmental
tests for telecommunications equipment; Part 1-2: Classification of environmental conditions;
Transportation".
[2] IEC 60068-2: "Environmental testing - Part 2: Tests".
[3] ISO 4180-2 (1980): "Complete, filled transport packages - General rules for the compilation of
performance test schedules - Part 2: Quantitative data".
[4] ETS 300 019-2-0: "Equipment Engineering (EE); Environmental conditions and environmental
tests for telecommunications equipment; Part 2-0: Specification of environmental tests;
Introduction".
3 Environmental test specifications
The detailed descriptions of the environmental conditions are given in clauses 4 and 5 of ETS 300 019-1-2 [1].
ETS 300 019-2-0 [4] forms a general overview of Part 2 of the present document.
If the equipment is normally transported in a packed state then it shall be tested in its packaging.
ETSI
6 ETSI EN 300 019-2-2 V2.1.2 (1999-09)
3.1 Specification T 2.1: Very careful transportation
Specification T 2.1 applies to transportation by air and by road on good quality road surfaces where special care has been taken with respect to low temperatures, handling and type of
vehicle. See tables 1 and 2.
Table 1: Test specification T 2.1: Very careful transportation - climatic tests
Environmental parameter Environmental Environmental test specification T2.1: Very careful transportation
Class 2.1
Type Parameter Detail parameter Characteristic Test severity Duration Reference Method Notes
Severity
low (°C) -25 -25 6 h IEC 60068-2-1 Ab: Cold 1
Air high unventilated (°C) +70 +70 6 h IEC 60068-2-2 Bb: Dry heat
temperature
ventilated or outdoors (°C) +40 none
change air/air (°C) -25/+30 -25/+30 5 cycles IEC 60068-2-14 Nb: Change of 3a
(°C/min) 1,0 t1 = 3h temperature
air/water (°C) +40/+5 none
3b
slow temperature (%) 95 93 4 d IEC 60068-2-56 Cb: Damp heat 4
change (°C) +40 +30 steady state
Humidity relative rapid temperature (%) 95 90-100 2 cycles IEC 60068-2-30 Db: Damp heat 5
change (°C) -25/+30 +40 cyclic Variant 1
rapid temperature (°C) +70/+15 none
absolute
change    (g/m ) 60
low     (kPa) 70 none 6
Air pressure change no
speed (m/s) 20 none 7
rain intensity (mm/min) 6 none 8
Water low temperature (°C) no
other sources (m/s) 1 7
wetness wet surfaces 9
Radiation solar  (W/m ) 1 120 10
heat  (W/m ) 600 10
ETSI
7 ETSI EN 300 019-2-2 V2.1.2 (1999-09)
Environmental parameter Environmental Environmental test specification T2.1:
Class 2.1 Very careful transportation
Type Parameter Detail parameter Characteristic Test severity Duration Reference Method Notes
Severity
sulphur SO2 (mg/m ) 1,0 none 11
H S (mg/m ) 0,5 none 11
salt sea and road salt mist none 11
Chemically chlorine Cl (mg/m )no 11
active HCI (mg/m ) 0,5 none 11
substances nitrogen NO (mg/m ) 1,0 none 11
x
NH (mg/m ) 3,0 none 11
hydrogen fluoride (mg/m ) 0,03 none 11
HF
ozone O (mg/m ) 0,1 none 11
Mechanically dust sedimentation (mg/(m h)) 3,0 none 12
active suspension (mg/m )no
substances sand (mg/m ) 100 none 12
Flora and micro organisms mould, fungus, etc. none 13
fauna rodents, insects rodents, etc. none 13
NOTE 1: no = this condition does not occur in this class.
NOTE 2: none = verification is required only in special cases.
NOTE 3: n = number of note, see subclause 3.4.
ETSI
8 ETSI EN 300 019-2-2 V2.1.2 (1999-09)
Table 2: Test specification T 2.1: Very careful transportation - mechanical tests
Environmental parameter Environmental Environmental test specification T 2.1
Class 2.1 Very careful transportation
Type Parameter Detail parameter Characteristic Test severity Duration Reference Method Notes
Severity
Vibration sinusoidal displacement    (mm) 3,5 none 14
acceleration     (m/s )    10 15
frequency range   (Hz) 2-9   9-200 200-500
axes of vibration
2 3
random ASD          (m /s ) 1 0,3 1,0 IEC Fh: Vibration, 15
(dB/oct) -3 3 x 30 60068-2-64 broad-band
frequency range   (Hz) 10-200  200-2 000 5-20 20-200 minutes random
axes of vibration 3 (digital control)
Shocks shocks shock spectrum
duration         (ms)
acceleration     (m/s ) no
mass            (kg)
number of bumps
direction of bumps
Fall free fall height          (mm)
mass            (kg) no
attitude
toppling around mass            (kg) no
edges
Acceleration steady state          (m/s ) 20 none 19
Load static load           (kPa) 5 none 20
Miscellaneous rolling and angle           (deg) no
pitching period            (s)
NOTE 1: no = this condition does not occur in this class.
NOTE 2: none = verification is required only in special cases.
NOTE 3: n = number of note, see subclause 3.4.
ETSI
9 ETSI EN 300 019-2-2 V2.1.2 (1999-09)
3.2 Specification T 2.2: Careful transportation
Specification T 2.2 applies to transportation by air, by road on good quality road surfaces, by ship and by train with specially designed shock-reducing buffers and where special care
has been taken with respect to low temperatures and handling. See tables 3, 4 and 7.
Table 3: Test specification T 2.2: Careful transportation - climatic tests
Environmental parameter Environmental Environmental test specification T2.2: Careful transportation
Class 2.2
Type Parameter Detail parameter Characteristic Test severity Duration Reference Method Notes
severity
low (°C) -25 -25 72 h IEC 60068-2-1 Ab: Cold 1
Air high unventilated (°C) +70 +70 72 h IEC 60068-2-2 Bb: Dry heat
temperature ventilated or +40 none
outdoors (°C)
air/air (°C) -25/+30 -25/+30 5 cycles IEC 60068-2-14 Nb: Change of 3a
change (°C/min) 1,0 t1 = 3h temperature
air/water (°C) +40/+5 none 3b
slow temperature (%) 95 93 4 d IEC 60068-2-56 Cb: Damp heat 4
relative change (°C) +40 +40 steady state
Humidity rapid temperature (%) 95 90-100 2 cycles IEC 60068-2-30 Db: Damp heat
change (°C) -25/+30 +40 cyclic Variant 1
absolute rapid temperature (°C) +70/+15 none 5
change (g/m ) 60
pressure low (kPa) 70 none 6
Air change no
speed (m/s) 20 none 7
rain intensity (mm/min) 6 none 8
Water low temperature (°C) no
other sources (m/s) 1 7
wetness wet surfaces 9
Radiation solar  (W/m ) 1 120 10
heat  (W/m ) 600 10
ETSI
10 ETSI EN 300 019-2-2 V2.1.2 (1999-09)
Environmental parameter Environmental Enviro
...
