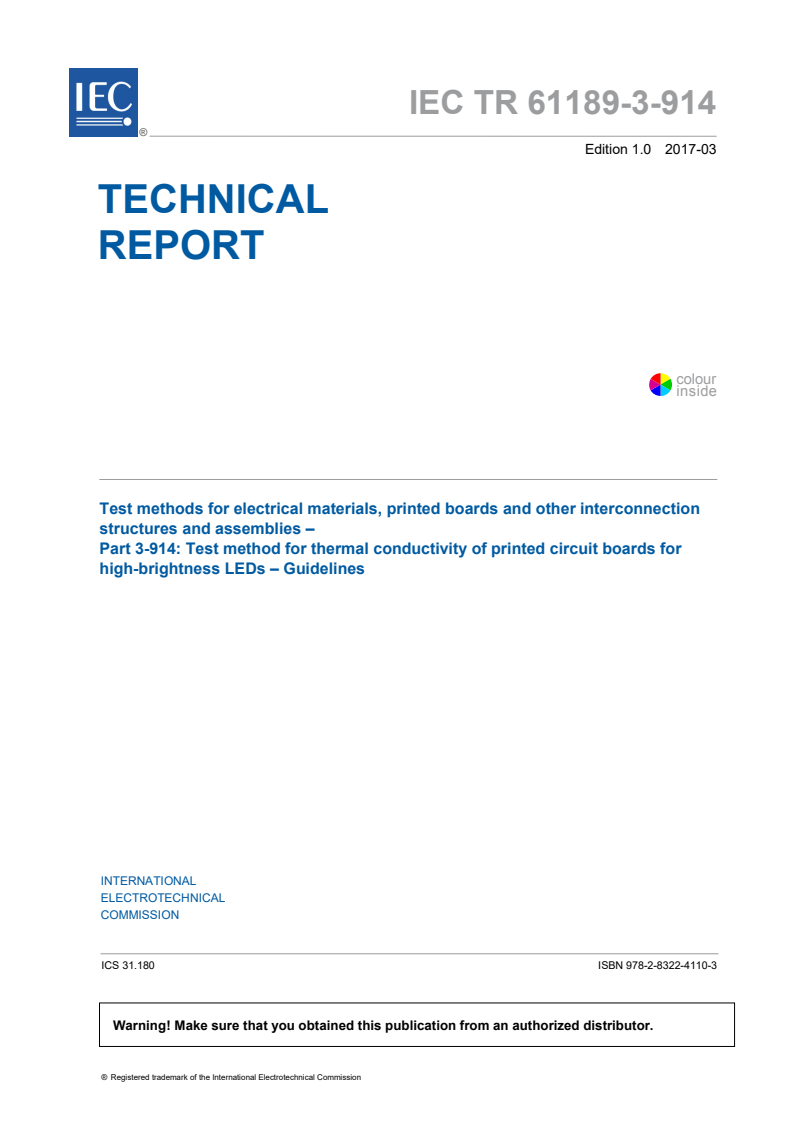

IEC TR 61189-3-914:2017

IEC TR 61189-3-914 ®
Edition 1.0 2017-03
TECHNICAL
REPORT
colour
inside
Test methods for electrical materials, printed boards and other interconnection
structures and assemblies –
Part 3-914: Test method for thermal conductivity of printed circuit boards for
high-brightness LEDs – Guidelines

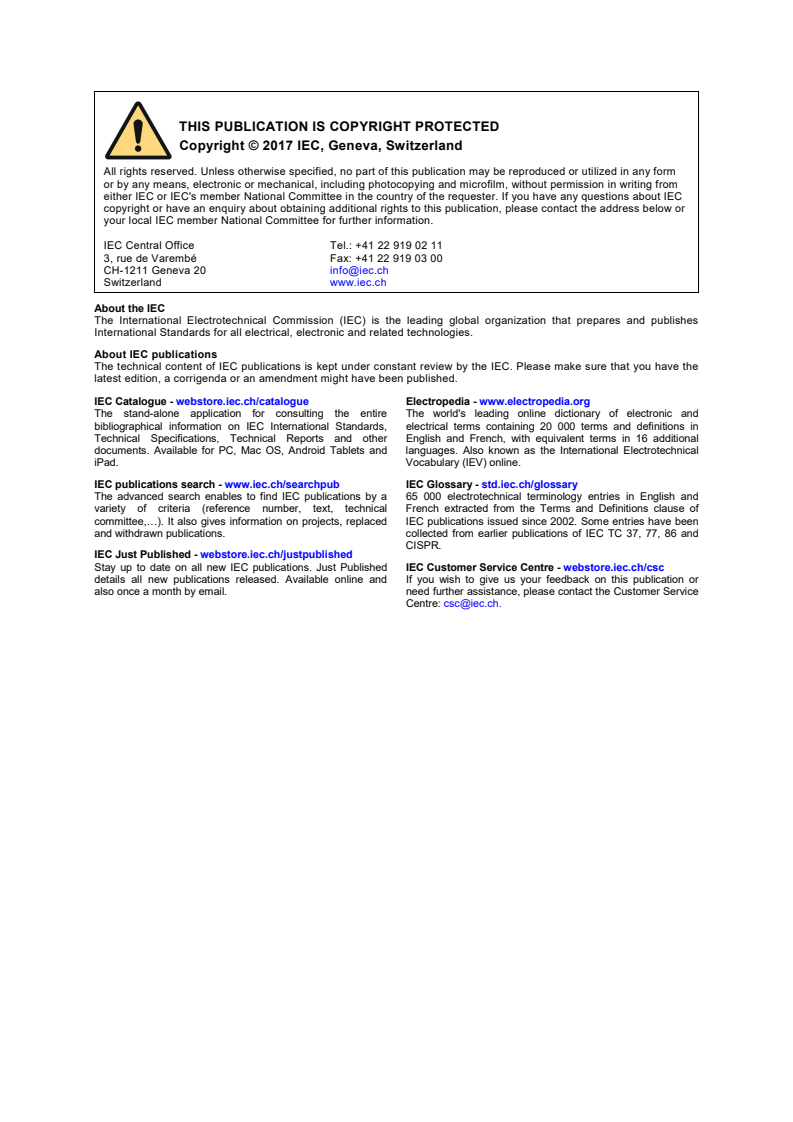

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.

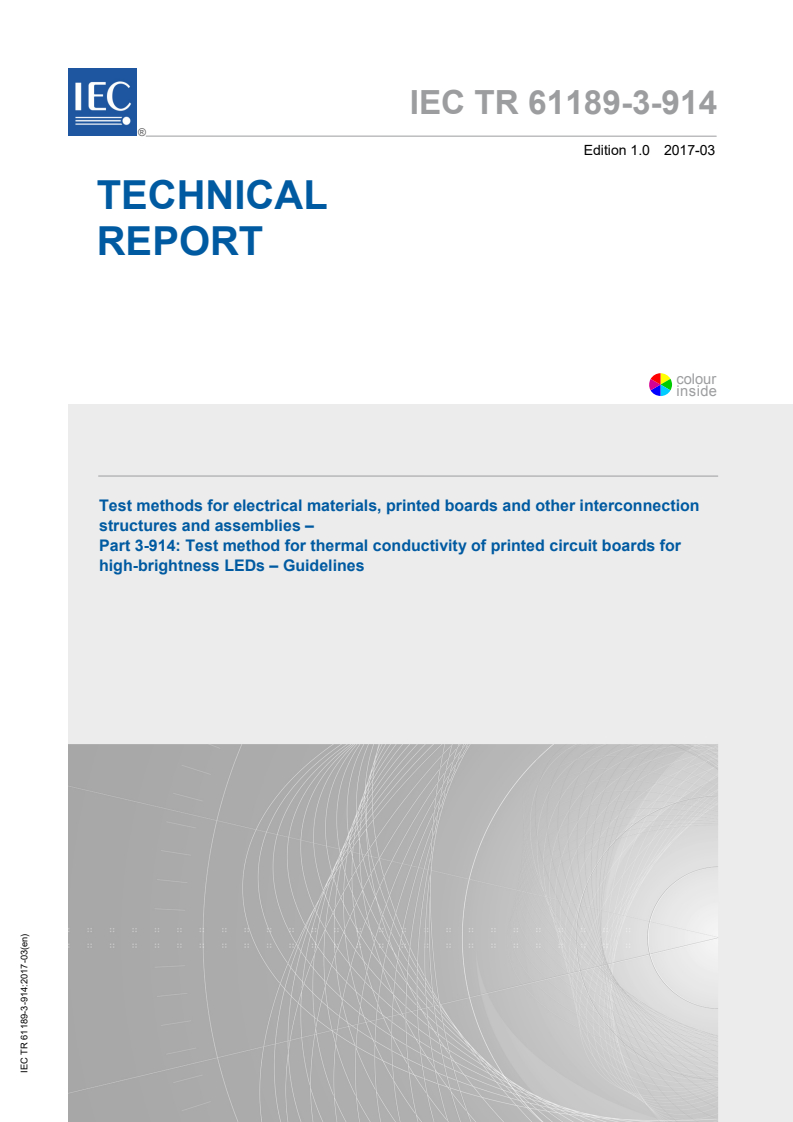

IEC TR 61189-3-914 ®
Edition 1.0 2017-03
TECHNICAL
REPORT
colour
inside
Test methods for electrical materials, printed boards and other interconnection

structures and assemblies –
Part 3-914: Test method for thermal conductivity of printed circuit boards for

high-brightness LEDs – Guidelines

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 31.180 ISBN 978-2-8322-4110-3

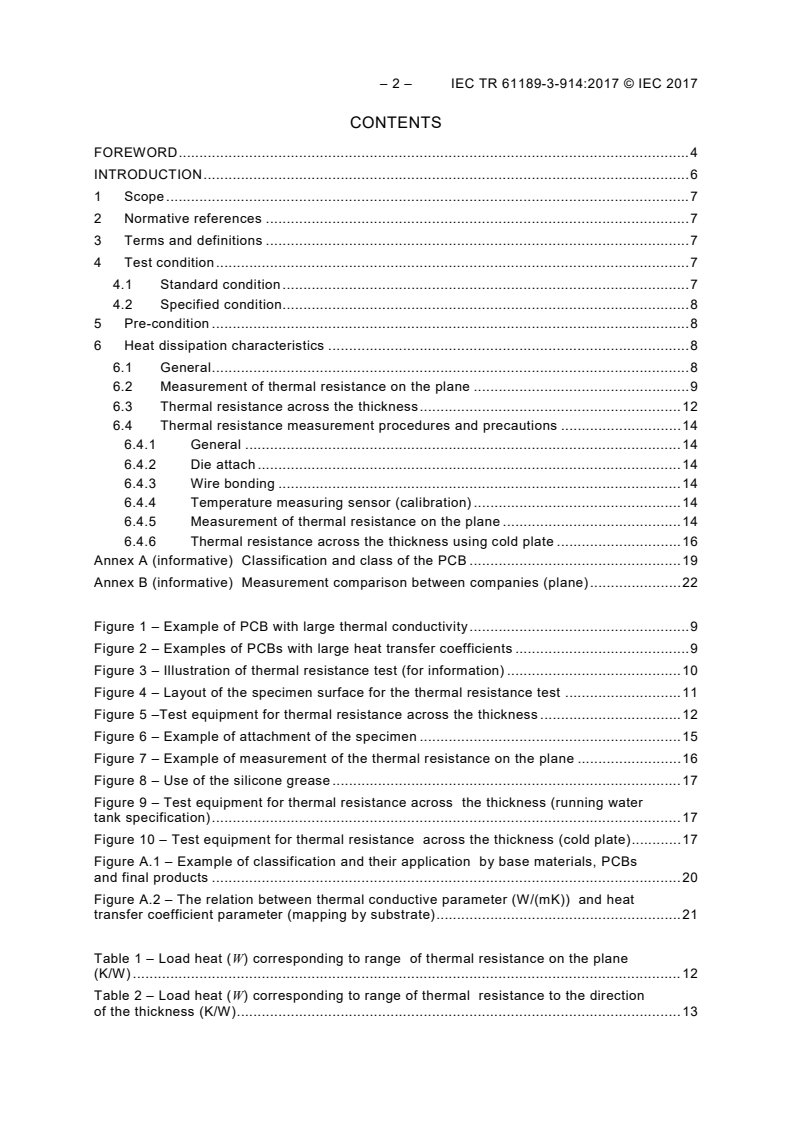

– 2 – IEC TR 61189-3-914:2017 © IEC 2017
CONTENTS
FOREWORD . 4
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 7
4 Test condition . 7
4.1 Standard condition . 7
4.2 Specified condition . 8
5 Pre-condition . 8
6 Heat dissipation characteristics . 8
6.1 General . 8
6.2 Measurement of thermal resistance on the plane . 9
6.3 Thermal resistance across the thickness . 12
6.4 Thermal resistance measurement procedures and precautions . 14
6.4.1 General . 14
6.4.2 Die attach . 14
6.4.3 Wire bonding . 14
6.4.4 Temperature measuring sensor (calibration) . 14
6.4.5 Measurement of thermal resistance on the plane . 14
6.4.6 Thermal resistance across the thickness using cold plate . 16
Annex A (informative) Classification and class of the PCB . 19
Annex B (informative) Measurement comparison between companies (plane) . 22

Figure 1 – Example of PCB with large thermal conductivity . 9
Figure 2 – Examples of PCBs with large heat transfer coefficients . 9
Figure 3 – Illustration of thermal resistance test (for information) . 10
Figure 4 – Layout of the specimen surface for the thermal resistance test . 11
Figure 5 –Test equipment for thermal resistance across the thickness . 12
Figure 6 – Example of attachment of the specimen . 15
Figure 7 – Example of measurement of the thermal resistance on the plane . 16
Figure 8 – Use of the silicone grease . 17
Figure 9 – Test equipment for thermal resistance across the thickness (running water
tank specification) . 17
Figure 10 – Test equipment for thermal resistance across the thickness (cold plate) . 17
Figure A.1 – Example of classification and their application by base materials, PCBs
and final products . 20
Figure A.2 – The relation between thermal conductive parameter (W/(mK)) and heat
transfer coefficient parameter (mapping by substrate) . 21

Table 1 – Load heat (W) corresponding to range of thermal resistance on the plane
(K/W) . 12
Table 2 – Load heat (W) corresponding to range of thermal resistance to the direction
of the thickness (K/W) . 13

Table A.1 – Application and classification . 19
Table A.2 – The relation between thermal conductive parameter (W/(mK)) and heat
transfer coefficient parameter (mapping by zone) . 21

– 4 – IEC TR 61189-3-914:2017 © IEC 2017
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
TEST METHODS FOR ELECTRICAL MATERIALS, PRINTED BOARDS
AND OTHER INTERCONNECTION STRUCTURES AND ASSEMBLIES –

Part 3-914: Test method for thermal conductivity of printed
circuit boards for high-brightness LEDs – Guidelines

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
The main task of IEC technical committees is to prepare International Standards. However, a
technical committee may propose the publication of a technical report when it has collected
data of a different kind from that which is normally published as an International Standard, for
example "state of the art".
IEC TR 61189-3-914, which is a technical report, has been prepared by IEC technical
committee 91: Electronics assembly technology.

The text of this technical report is based on the following documents:
Enquiry draft Report on voting
91/1378/DTR 91/1403/RVC
Full information on the voting for the approval of this technical report can be found in the
report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts in the IEC 61189 series, published under the general title Test methods for
electrical materials, printed boards and other interconnection structures and assemblies, can
be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
– 6 – IEC TR 61189-3-914:2017 © IEC 2017
INTRODUCTION
Development of this technical report has been discussed at TC 91 Plenary meeting in
Dongguan, China, October 30, 2015 as per 91/1343A/RM dated on January 22, 2016.
This document was developed as a supplementary document to the IEC 61189-3-913.
Therefore, this document has been developed as technical report.
This document is given for information only.

TEST METHODS FOR ELECTRICAL MATERIALS, PRINTED BOARDS
AND OTHER INTERCONNECTION STRUCTURES AND ASSEMBLIES –

Part 3-914: Test method for thermal conductivity of printed
circuit boards for high-brightness LEDs – Guidelines

1 Scope
This document specifies the detailed procedures and precautions for IEC 61189-3-913.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
IEC 60194, Printed board design, manufacture and assembly – Terms and definitions
IEC 60068-1:2013, Environmental testing – Part 1: General and guidance
IEC 61189-3-913, Test methods for electrical materials, printed boards and other
interconnection structures and assemblies – Part 3-913: Test method for thermal conductivity
of electronic circuit boards for high-brightness LEDs
EIA/JEDEC STD 51-2, Integrated circuits thermal test method – Environmental conditions –
Natural convection (still air)
3 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 60194 apply, unless
otherwise specified.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
4 Test condition
4.1 Standard condition
Unless otherwise specified, tests should all be operated under the following standardized
conditions in accordance with the IEC 60068-1:2013, Clause 4:
• temperature: 15 °C to 35 °C;
• relative humidity: 25 % to 75 %;
• atmospheric pressure: 86 kPa to 106 kPa.

– 8 – IEC TR 61189-3-914:2017 © IEC 2017
If there is any doubt concerning the testing results under standardized condition, or upon a
request to check the atmospheric condition, the re-examination should be operated under
atmosphere in accordance with IEC 60068-1:2013.
If the standardized atmosphere is difficult to provide, testing under non-standardized
atmosphere is acceptable as long as the atmospheric condition does not affect the testing
results.
4.2 Specified condition
The specified condition should be in accordance with the condition specified in IEC 60068-
1:2013, Clause 4:
• temperature: 20 °C ± 2 °C;
• relative humidity: 60 % to 70 %;
• atmospheric pressure: 86 kPa to 106 kPa.
5 Pre-condition
Pre-conditioning should be in accordance with a) or b) below:
a) leave the specimen for 24 h in the standard condition;
b) leave the specimen for 60 min in a thermostat chamber at 85 °C ± 2 °C and then leave the
specimen for 24 h ± 4 h in the standard atmospheric condition.
NOTE This test element group (hereafter, referred to as TEG) chip includes a heater with a temperature
measuring sensor. In this document, the TEG chip indicates a chip with a temperature measuring sensor.
6 Heat dissipation characteristics
6.1 General
For the test method for thermal conductivity of a printed circuit board (hereafter referred to as
PCB) for high-brightness LEDs, the following factors are considered.
• The test method is applied to evaluate the relativity of both heat transfer and thermal
conductivity of PCBs consist of heterogeneous materials as shown in Figure A.2 in Annex
A which describes the heat transfer coefficient parameter as X-axis and thermal
conductivity parameter as Y-axis.
• The IEC 61189-3-913 employs a TEG chip as the heat source to replicate the heat
generated by LED chips.
• Heat dissipation characteristics of PCBs depend not only on the thermal conductivity of
the material properties, but also on the structure.
• In addition, convection and radiation from the specimen surface should be considered as
factors to affect the testing results.
• Considering the anisotropic nature of the heat dissipation of PCBs, different test methods
are employed for the plane (horizontal) and across the thickness (vertical) direction. The
combination of these tests should replicate a realistic environment.
• A TEG chip is employed with following considerations:
– measuring a small heat source such as an LED with thermocouples;
– ac
...
