EN 13100-2:2004
(Main)Non-destructive testing of welded joints in thermoplastics semi-finished products - Part 2: X-ray radiographic testing
Non-destructive testing of welded joints in thermoplastics semi-finished products - Part 2: X-ray radiographic testing
This document specifies fundamental radiographic techniques which enable repeatable results to be obtained economically.
This document applies to the X-ray radiographic examination of heated tool, electrofusion, extrusion and hot gas joints in plastics materials.
It applies to joints in single wall pipes and plates with a range of thicknesses from 5 mm to 100 mm. It only applies to pipes containing air or other gases at the time of X-ray testing.
This document does not specify acceptance levels of the indications.
Zerstörungsfreie Prüfung von Schweißverbindungen thermoplastischer Kunststoffe - Teil 2: Röntgenprüfung
Dieses Dokument legt die grundlegenden Regeln für Durchstrahlungstechniken mit dem Ziel fest,
vergleichbare Ergebnisse in wirtschaftlicher Weise zu erreichen.
Dieses Dokument gilt für die Durchstrahlungsprüfung von Heizelement-, Heizwendel-, Extrusions- und
Warmgasverbindungen an Kunststoffmaterialien.
Es gilt für Verbindungen an Einwandrohren und Platten im Dickebereich von 5 mm bis 100 mm. Es ist nur
anwendbar für Rohre, die während der Durchstrahlungsprüfung Luft oder andere Gase enthalten.
Dieses Dokument legt keine Zulässigkeitsgrenzen für die Angaben fest.
Essais non destructifs des assemblages soudés sur produits semi-finis en thermoplastiques - Partie 2: Contrôle radiographique par rayons X
La présente Norme européenne spécifie les techniques radiographiques de base qui permettent d'obtenir des résultats répétitifs de manière économique.
La présente norme s'applique au contrôle par radiographie aux rayons X d'assemblages de matières plastiques réalisés par soudage par élément chauffant, par électrofusion, par extrusion et au gaz chaud.
Elle s'applique aux assemblages de tubes à paroi simple et de plaques avec une épaisseur se situant dans la plage de 5 mm à 100 mm. Elle ne s'applique qu'aux tubes contenant de l'air ou un autre gaz au moment du contrôle par radiographie aux rayons X.
La présente norme ne spécifie aucun niveau d'acceptation pour les indications.
Neporušitveno preskušanje zvarjenih spojev plastomernih polizdelkov - 2. del: Rentgensko (radiografsko) preskušanje
General Information
- Status
- Withdrawn
- Publication Date
- 23-Nov-2004
- Withdrawal Date
- 20-Jan-2026
- Technical Committee
- CEN/TC 249 - Plastics
- Drafting Committee
- CEN/TC 249/SC 5/WG 2 - Testing of welded joints
- Current Stage
- 9960 - Withdrawal effective - Withdrawal
- Start Date
- 04-Sep-2019
- Completion Date
- 21-Jan-2026
Relations
- Effective Date
- 08-Nov-2017
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 22-Dec-2008
Get Certified
Connect with accredited certification bodies for this standard
National Aerospace and Defense Contractors Accreditation Program (NADCAP)
Global cooperative program for special process quality in aerospace.
CARES (UK Certification Authority for Reinforcing Steels)
UK certification for reinforcing steels and construction.
DVS-ZERT GmbH
German welding certification society.
Sponsored listings
Frequently Asked Questions
EN 13100-2:2004 is a standard published by the European Committee for Standardization (CEN). Its full title is "Non-destructive testing of welded joints in thermoplastics semi-finished products - Part 2: X-ray radiographic testing". This standard covers: This document specifies fundamental radiographic techniques which enable repeatable results to be obtained economically. This document applies to the X-ray radiographic examination of heated tool, electrofusion, extrusion and hot gas joints in plastics materials. It applies to joints in single wall pipes and plates with a range of thicknesses from 5 mm to 100 mm. It only applies to pipes containing air or other gases at the time of X-ray testing. This document does not specify acceptance levels of the indications.
This document specifies fundamental radiographic techniques which enable repeatable results to be obtained economically. This document applies to the X-ray radiographic examination of heated tool, electrofusion, extrusion and hot gas joints in plastics materials. It applies to joints in single wall pipes and plates with a range of thicknesses from 5 mm to 100 mm. It only applies to pipes containing air or other gases at the time of X-ray testing. This document does not specify acceptance levels of the indications.
EN 13100-2:2004 is classified under the following ICS (International Classification for Standards) categories: 25.160.40 - Welded joints and welds. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 13100-2:2004 has the following relationships with other standards: It is inter standard links to EN 13100-2:2019, EN ISO 5580:2023, EN ISO 11699-2:2018, EN ISO 19232-2:2013, EN ISO 11699-1:2011, EN ISO 19232-1:2013; is excused to EN 13100-1:1999. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 13100-2:2004 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Neporušitveno preskušanje zvarjenih spojev plastomernih polizdelkov - 2. del: Rentgensko (radiografsko) preskušanjeZerstörungsfreie Prüfung von Schweißverbindungen thermoplastischer Kunststoffe - Teil 2: RöntgenprüfungEssais non destructifs des assemblages soudés sur produits semi-finis en thermoplastiques - Partie 2: Contrôle radiographique par rayons XNon-destructive testing of welded joints in thermoplastics semi-finished products - Part 2: X-ray radiographic testing83.140.01Izdelki iz gume in polimernih materialov na splošnoRubber and plastics products in general25.160.40Varjeni spoji in variWelded jointsICS:Ta slovenski standard je istoveten z:EN 13100-2:2004SIST EN 13100-2:2005en01-marec-2005SIST EN 13100-2:2005SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 13100-2November 2004ICS 25.160.40English versionNon-destructive testing of welded joints in thermoplastics semi-finished products - Part 2: X-ray radiographic testingEssais non destructifs des assemblages soudés surproduits semi-finis en thermoplastiques - Partie 2: Contrôleradiographique par rayons XZerstörungsfreie Prüfung von Schweißverbindungenthermoplastischer Kunststoffe - Teil 2: RöntgenprüfungThis European Standard was approved by CEN on 14 October 2004.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Central Secretariat or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2004 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 13100-2:2004: ESIST EN 13100-2:2005

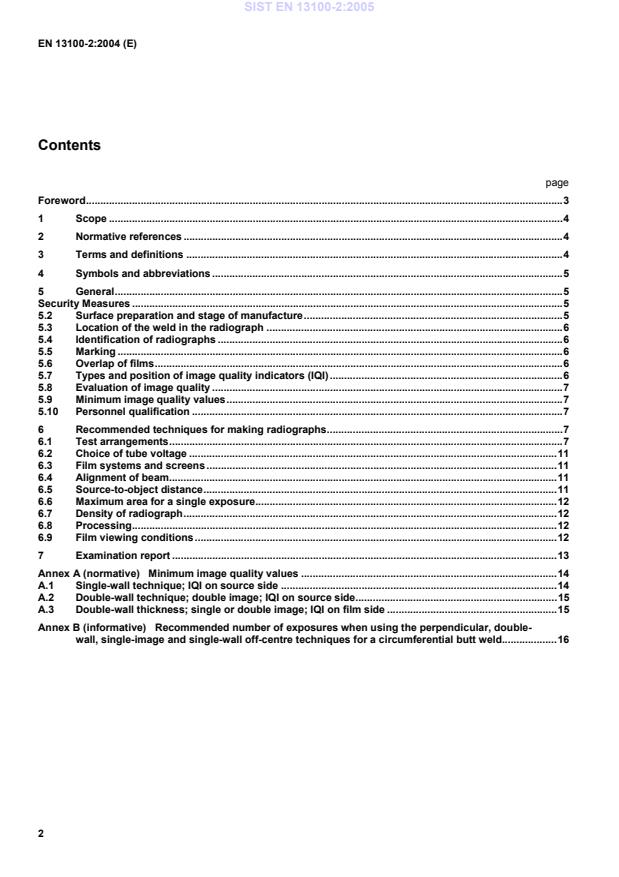

Minimum image quality values.14 A.1 Single-wall technique; IQI on source side.14 A.2 Double-wall technique; double image; IQI on source side.15 A.3 Double-wall thickness; single or double image; IQI on film side.15 Annex B (informative)
Recommended number of exposures when using the perpendicular, double-wall, single-image and single-wall off-centre techniques for a circumferential butt weld.16
mm t Nominal thickness mm w Penetrated thickness mm
S Radiation source — F Film — α Inclination angle
SDR Dn/t — 5 General 5.1 Security Measures Local or national or international safety precautions when using ionising radiation shall be strictly applied. WARNING NOTICE - Exposure of any part of the human body to X-rays can be highly injurious to health. Wherever X-ray equipment is in use, appropriate legal requirements shall be applied.
5.2 Surface preparation and stage of manufacture Prior to radiography the joint shall be cleaned to remove all traces of dirt etc. from the component surface, which might later cause difficulty in detecting defects. In the case of heated tool butt welded pipes, the external weld bead shall be removed prior to radiography. SIST EN 13100-2:2005
...
