EN 13859-1:2005+A1:2008

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Hidroizolacijski trakovi - Definicije in lastnosti podložnih folij - 1. del: Podložne folije za streheAbdichtungsbahnen - Definitionen und Eigenschaften von Unterdeck- und Unterspannbahnen - Teil 1: Unterdeck- und Unterspannbahnen für DachdeckungenFeuilles souples d'étanchéité - Définitions et caractéristiques des écrans souples - Partie 1: Ecrans souples de sous toiture pour couverture en petits éléments discontinusFlexible sheets for waterproofing - Definitions and characteristics of underlays - Part 1: Underlays for discontinuous roofing91.100.50Veziva. Tesnilni materialiBinders. Sealing materials91.060.20StreheRoofs01.040.91Gradbeni materiali in gradnja (Slovarji)Construction materials and building (Vocabularies)ICS:Ta slovenski standard je istoveten z:EN 13859-1:2005+A1:2008SIST EN 13859-1:2005+A1:2009en,fr,de01-januar-2009SIST EN 13859-1:2005+A1:2009SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 13859-1:2005+A1
October 2008 ICS 01.040.91; 91.100.50 Supersedes EN 13859-1:2005 English Version
Flexible sheets for waterproofing -Definitions and characteristics of underlays - Part 1: Underlays for discontinuous roofing
Feuilles souples d'étanchéité - Définitions et caractéristiques des écrans souples - Partie 1: Ecrans souples de sous toiture pour couverture en petits éléments discontinus
Abdichtungsbahnen - Definitionen und Eigenschaften von Unterdeck- und Unterspannbahnen - Teil 1: Unterdeck-und Unterspannbahnen für Dachdeckungen This European Standard was approved by CEN on 22 November 2004 and includes Amendment 1 approved by CEN on 8 August 2008.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36
B-1050 Brussels © 2008 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 13859-1:2005+A1:2008: ESIST EN 13859-1:2005+A1:2009

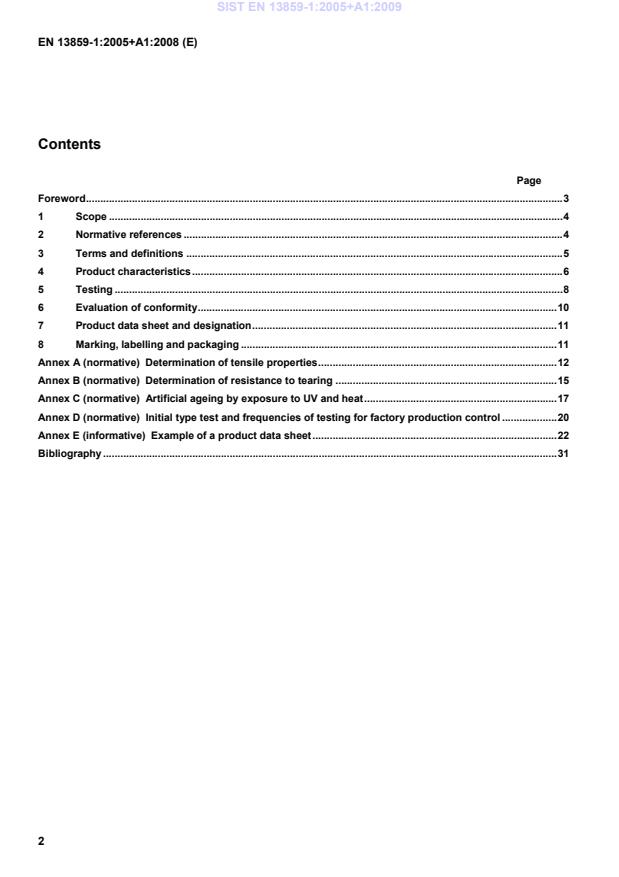

Determination of tensile properties.12 Annex B (normative)
Determination of resistance to tearing.15 Annex C (normative)
Artificial ageing by exposure to UV and heat.17 Annex D (normative)
Initial type test and frequencies of testing for factory production control.20 Annex E (informative)
Example of a product data sheet.22 Bibliography.31
2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 1107-1, Flexible sheets for waterproofing — Part 1: Bitumen sheets for roof waterproofing - Determination of dimensional stability EN 1107-2, Flexible sheets for waterproofing — Determination of dimensional stability — Part 2: Plastic and rubber sheets for roof waterproofing EN 1109, Flexible sheets for waterproofing — Bitumen sheets for roof waterproofing — Determination of flexibility at low temperature EN 1296, Flexible sheets for waterproofing— Bitumen, plastic and rubber sheets for roofing— Method of artificial ageing by long term exposure to elevated temperature EN 1297, Flexible sheets for waterproofing — Bitumen, plastic and rubber sheets for roof waterproofing — Method of artificial ageing by long term exposure to the combination of UV radiation, elevated temperature and water EN 1848-1, Flexible sheets for waterproofing — Determination of length, width and straightness — Part 1: Bitumen sheets for roof waterproofing EN 1848-2, Flexible sheets for waterproofing — Determination of length, width, straightness and flatness — Part 2: Plastic and rubber sheets for roof waterproofing EN 1849-1, Flexible sheets for waterproofing — Determination of thickness and mass per unit area — Part 1: Bitumen sheets for roof waterproofing EN 1849-2, Flexible sheets for waterproofing — Determination of thickness and mass per unit area — Part 2: Plastic and rubber sheets for roof waterproofing !EN 1928:2000", Flexible sheets for waterproofing — Bitumen, plastic and rubber sheets for roof waterproofing — Determination of watertightness EN 1931, Flexible sheets for waterproofing — Bitumen, plastic and rubber sheets for roof waterproofing — Determination of water vapour transmission properties EN 12310-1:1999, Flexible sheets for waterproofing — Part 1: Bitumen sheets for waterproofing — Determination of resistance to tearing (nail shank) EN 12311-1, Flexible sheets for waterproofing — Part 1: Bitumen sheets for roof waterproofing — Determination of tensile properties EN 13111, Flexible sheets for waterproofing — Underlays for discontinuous roofing and walls — Determination of resistance to water penetration SIST EN 13859-1:2005+A1:2009

4.3 Application related characteristics 4.3.1 Reaction to fire Where required, the reaction to fire shall be determined in accordance with 5.2.2. 4.3.2 Resistance to water penetration 4.3.2.1 Class W1 The product shall be classified as resistant to water penetration Class W1 if it passes the resistance to water penetration test in accordance with 5.2.3. If the product fails the test of resistance to water penetration indicated in 5.2.3, it shall be tested in accordance with 4.3.2.2. 4.3.2.2 Class W2 A product failing to pass the test indicated in 5.2.3 shall be tested in accordance with 5.2.4. If the measured mean volume of water passing through the specimens tested is less than 100 ml, the product shall be classified as resistant to water penetration Class W2. SIST EN 13859-1:2005+A1:2009

If the intended use of the underlay is solely limited to being supported on a specific substrate, e. g. wood, mineral wool, polyurethane, it shall be tested in the end use application in accordance with EN 13238." 5.2.3 Determination of resistance to water penetration Class W1 The resistance to water penetration Class W1 shall be determined in accordance with !EN 1928:2000", Method A, with the modifications that:  water column shall be 200 mm;  using water dyed with 0,05 % eosin (instead of a moisture indicating mixture of sugar and methylene blue); SIST EN 13859-1:2005+A1:2009

An FPC system conforming to the requirements of EN ISO 9001, and made specific to the requirements of this document, is considered to satisfy the above requirements. The results of tests or assessments requiring action shall be recorded, as shall any action taken. The action to be taken when control values or criteria are not met shall be recorded. SIST EN 13859-1:2005+A1:2009

The characteristics of the product, determined in accordance with the test methods specified in this document, shall be listed in a technical data sheet. The technical data sheet shall give the following information: a) product trade name and manufacturer's name; b) origin/source of manufacture or traceable code; c) method of application; d) results of tests; e) certification mark, if any; f) consumer information, e.g. restrictions concerning use and storage and safety precautions during installation and disposal; g) description of the product (e.g. components, type and number of carriers, type of coating, mass or thickness, type of surfacing). An example of a product data sheet is given in Annex E. 8 Marking, labelling and packaging The following information shall be indicated on each roll and/or in the accompanying technical or commercial documentation: a) production date or identification number; b) product trade name; c) length and width; d) thickness or mass; e) labelling according to national regulations related to dangerous substances and/or health and safety. Where ZA.3 covers the same information as required by this Clause, the requirements of this Clause are met. SIST EN 13859-1:2005+A1:2009

Determination of tensile properties A.1 General The tensile properties of foldable products shall be tested in accordance with EN 12311-1 with the following modifications. A.2 Apparatus Tensile testing machine in accordance with EN 12311-1. A.3 Sampling Test samples shall be taken in accordance with EN 13416. A.4 Preparation of test specimens For the purpose of a complete tensile test, two sets of test specimens are to be prepared: one set of five for the longitudinal direction and one set of five for the transverse direction. Test specimens shall be cut from a test piece not closer than 100 mm to the edge of the sheet, with the aid of a template, or die cutter, to provide rectangular test specimens measuring (100,0 ± 0,5) mm wide by a length of at least 200 mm + (2 × gripping length), the longer direction being the test direction. Any non-permanent surface layer or provisional protection sheet shall be removed. Test specimens shall be conditioned for at least 20 h at a temperature of (23 ± 2) °C and relative air humidity in the range 30 % to 70 % before testing. A.5 Procedure The 100 mm wide test specimen shall be folded and joined in the middle as shown in Figure A.1 and tightly clamped in the tensile test machine taking care that the axes of the specimen and grips are correctly aligned. The clear distance between grips shall be (200 ± 1) mm. The test specimen shall be arranged concentrically. A pre-load of maximum 5 N shall be applied before the start of the test to take out any slack in the test specimen. The folded edges shall meet in the middle of the sheet without overlapping. The tolerance of the deviation from the middle shall not exceed ± 1 mm. SIST EN 13859-1:2005+A1:2009

Key l gripping length Figure A.1 — Folding of a test specimen A.6 Ex
...
