Animal and vegetable fats and oils - Determination of visible foots in crude fats and oils (ISO 19219:2002)

This International Standard specifies a method for the determination in crude fats or oils of visible matter which can be separated by gravity.

Tierische und pflanzliche Fette und Öle - Bestimmung von sichtbarem Bodensatz in rohen Fetten und Ölen (ISO 19219:2002)

Diese Internationale Norm legt ein Verfahren zur Bestimmung der durch Schwerkraft abtrennbaren sichtbaren Bestandteile in rohen Fetten oder Ölen fest.

Corps gras d'origines animale et végétale - Détermination de la teneur en sédiments visibles dans des graisses et huiles brutes (ISO 19219:2002)

La présente Norme internationale spécifie une méthode pour la détermination de la teneur en substances visibles dans des graisses et huiles brutes susceptibles d'être séparés par gravité.

Živalske in rastlinske maščobe in olja - Določevanje vidnih usedlin v surovih maščobah in oljih (ISO 19219:2002)

General Information

Status
Published
Publication Date
25-Nov-2003
Withdrawal Date
30-May-2004
Current Stage
9093 - Decision to confirm - Review Enquiry
Start Date
03-Apr-2008
Completion Date
03-Apr-2008

Relations

Effective Date
28-Jan-2026

Overview

EN ISO 19219:2003 (ISO 19219:2002) specifies a simple gravimetric method for the determination of visible foots (settling sediment) in crude animal and vegetable fats and oils. The method quantifies insoluble matter (with occluded oil) that separates by gravity when a homogenized sample is stored under controlled temperature for 96 hours. This standard is used for product quality control, acceptance testing and laboratory reporting of sediment levels in crude fats and oils.

Key topics and technical requirements

  • Scope: Determination of visible foots in crude fats and oils; applies to sediments separable by gravity.
  • Sample preparation: Warm until fully liquid and homogenize (see ISO 661); cool with stirring to measurement temperature (20 °C or 10 °C above the melting point, whichever is higher).
  • Test procedure: Fill a graduated sediment tube (100 ml) quickly with the homogeneous sample and stand vertically, undisturbed, for 96 hours at the specified temperature. Read the settled volume to the nearest 0.1 ml.
  • Sediment tubes:
    • Pear-shaped tube for sediment ≤ 1.5 ml per 100 ml.
    • Cone-shaped tube for sediment > 1.5 ml per 100 ml.
  • Number of determinations: Carry out tests in duplicate and report the mean.
  • Expression and rounding of results: Report visible foots as % by volume at the test temperature. Rounding rules:
    • <1 ml/100 ml → to 0.1 ml/100 ml
    • 1–3 ml/100 ml → to 0.5 ml/100 ml
    • 3 ml/100 ml → to 1.0 ml/100 ml

  • Precision (repeatability and reproducibility):
    • Repeatability limits (r): 0.1 (for <1), 0.3–0.5 (1–3), 1.0 (>3) ml/100 ml.
    • Reproducibility limits (R): 1.0 (for <1), 3.0 (1–3), 5.0 (>3) ml/100 ml.
  • Reporting requirements: Include sample ID, sampling method (if known), test temperature, sediment tube used, operating details and final result.

Applications and users

  • Quality control laboratories in edible oil, biodiesel, and rendering industries.
  • Processing and storage facilities monitoring crude oil cleanliness.
  • Traders and inspectors assessing lot acceptance and product specification compliance.
  • Regulatory and standards bodies verifying product conformity.

Practical benefits: low-cost gravimetric test for visible sediments, straightforward implementation in routine QC, and clear acceptance criteria based on volume percent.

Related standards

  • ISO 661: Preparation of test sample (sample homogenization).
  • ISO 5555: Sampling of animal and vegetable fats and oils.
  • ISO 15301: Centrifuge method for sediment in crude fats and oils - shown to correlate with ISO 19219 (centrifuge method useful for rapid control, especially >0.5 ml/100 ml).

Keywords: EN ISO 19219:2003, ISO 19219:2002, visible foots, crude fats and oils, sediment determination, sediment tube, repeatability, reproducibility.

Get Certified

Connect with accredited certification bodies for this standard

BSI Group

BSI (British Standards Institution) is the business standards company that helps organizations make excellence a habit.

UKAS United Kingdom Verified

Bureau Veritas

Bureau Veritas is a world leader in laboratory testing, inspection and certification services.

COFRAC France Verified

DNV

DNV is an independent assurance and risk management provider.

NA Norway Verified

Sponsored listings

Frequently Asked Questions

EN ISO 19219:2003 is a standard published by the European Committee for Standardization (CEN). Its full title is "Animal and vegetable fats and oils - Determination of visible foots in crude fats and oils (ISO 19219:2002)". This standard covers: This International Standard specifies a method for the determination in crude fats or oils of visible matter which can be separated by gravity.

This International Standard specifies a method for the determination in crude fats or oils of visible matter which can be separated by gravity.

EN ISO 19219:2003 is classified under the following ICS (International Classification for Standards) categories: 67.200.10 - Animal and vegetable fats and oils. The ICS classification helps identify the subject area and facilitates finding related standards.

EN ISO 19219:2003 has the following relationships with other standards: It is inter standard links to EN 12544-1:1999. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.

EN ISO 19219:2003 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

Standards Content (Sample)

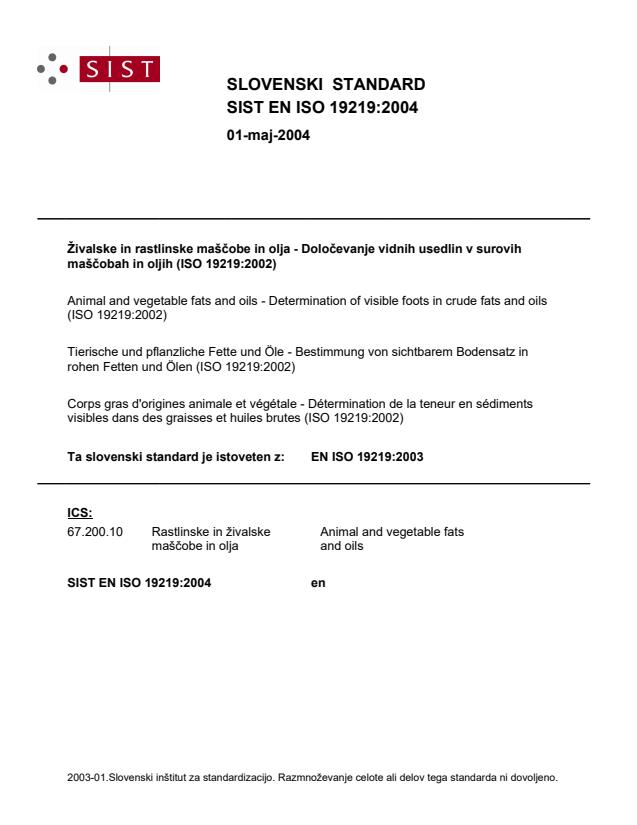

SLOVENSKI STANDARD
01-maj-2004
äLYDOVNHLQUDVWOLQVNHPDãþREHLQROMD'RORþHYDQMHYLGQLKXVHGOLQYVXURYLK
PDãþREDKLQROMLK ,62
Animal and vegetable fats and oils - Determination of visible foots in crude fats and oils
(ISO 19219:2002)
Tierische und pflanzliche Fette und Öle - Bestimmung von sichtbarem Bodensatz in
rohen Fetten und Ölen (ISO 19219:2002)
Corps gras d'origines animale et végétale - Détermination de la teneur en sédiments
visibles dans des graisses et huiles brutes (ISO 19219:2002)
Ta slovenski standard je istoveten z: EN ISO 19219:2003
ICS:
67.200.10 5DVWOLQVNHLQåLYDOVNH Animal and vegetable fats
PDãþREHLQROMD and oils
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN ISO 19219
NORME EUROPÉENNE
EUROPÄISCHE NORM
November 2003
ICS 67.200.10
English version
Animal and vegetable fats and oils - Determination of visible
foots in crude fats and oils (ISO 19219:2002)
Corps gras d'origines animale et végétale - Détermination Tierische und pflanzliche Fette und Öle - Bestimmung von
de la teneur en sédiments visibles dans des graisses et sichtbarem Bodensatz in rohen Fetten und Ölen (ISO
huiles brutes (ISO 19219:2002) 19219:2002)
This European Standard was approved by CEN on 25 September 2003.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,
Hungary, Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Slovakia, Spain, Sweden, Switzerland and United
Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2003 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 19219:2003 E
worldwide for CEN national Members.

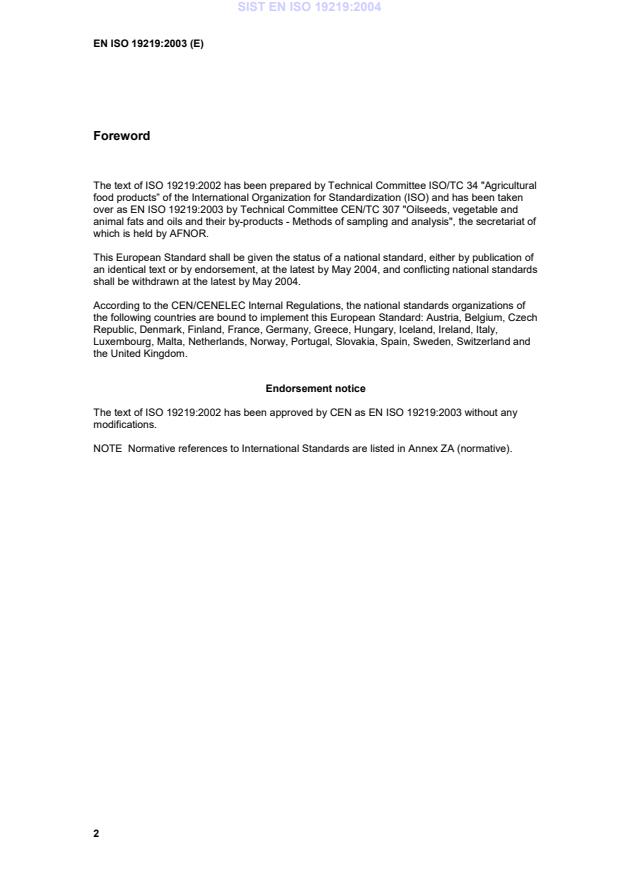

Foreword
The text of ISO 19219:2002 has been prepared by Technical Committee ISO/TC 34 "Agricultural
food products” of the International Organization for Standardization (ISO) and has been taken
over as EN ISO 19219:2003 by Technical Committee CEN/TC 307 "Oilseeds, vegetable and
animal fats and oils and their by-products - Methods of sampling and analysis", the secretariat of
which is held by AFNOR.
This European Standard shall be given the status of a national standard, either by publication of
an identical text or by endorsement, at the latest by May 2004, and conflicting national standards
shall be withdrawn at the latest by May 2004.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of
the following countries are bound to implement this European Standard: Austria, Belgium, Czech
Republic, Denmark, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Luxembourg, Malta, Netherlands, Norway, Portugal, Slovakia, Spain, Sweden, Switzerland and
the United Kingdom.
Endorsement notice
The text of ISO 19219:2002 has been approved by CEN as EN ISO 19219:2003 without any
modifications.
NOTE Normative references to International Standards are listed in Annex ZA (normative).
Annex ZA
(normative)
Normative references to international publications
with their relevant European publications
This European Standard incorporates by dated or undated reference, provisions from other
publications. These normative references are cited at the appropriate places in the text and the
publications are listed hereafter. For dated references, subsequent amendments to or revisions of
any of these publications apply to this European Standard only when incorporated in it by
amendment or revision. For undated references the latest edition of the publication referred to
applies (including amendments).
NOTE Where an International Publication has been modified by common modifications, indicated
by (mod.), the relevant EN/HD applies.
Publication Year Title EN Year
ISO 661 1989 Animal and vegetable fats and oils - EN ISO 661 1995
Preparation of test sample
INTERNATIONAL ISO
STANDARD 19219
First edition
2002-04-01
Animal and vegetable fats and oils —
Determination of visible foots in crude fats
and oils
Corps gras d'origines animale et végétale — Détermination de la teneur en
sédiments visibles dans des graisses et huiles brutes

Reference number
ISO 19219:2002(E)
©
ISO 2002
ISO 19219:2002(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but shall not
be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In downloading this
file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat accepts no liability in this
area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation parameters
were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In the unlikely event
that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2002
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means, electronic
or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or ISO's member body
in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.ch
Web www.iso.ch
Printed in Switzerland
ii © ISO 2002 – All rights reserved

ISO 19219:2002(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies (ISO
member bodies). The work of preparing International Standards is normally carried out through ISO technical
committees. Each member body interested in a subject for which a technical committee has been established has
the right to be represented on that committee. International organizations, governmental and non-governmental, in
liaison with ISO, also take part in the work. ISO collaborates closely with the International Electrotechnical
Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 3.
The main task of technical committees is to produce International Standards. Draft International Standards adopted
by the technical committees are circulated to the member bodies for voting. Publication as an International
Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this International Standard may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 19219 was prepared by Technical Committee ISO/TC 34, Food products, Subcommittee SC 11, Animal and
vegetable fats and oils.
Annex A of this International Standard is for information only.
INTERNATIONAL STANDARD ISO 19219:2002(E)

Animal and vegetable fats and oils — Determination of visible
foots in crude fats and oils
1 Scope
This International Standard
...
