EN ISO 3691-2:2016

SLOVENSKI STANDARD
01-september-2016
Vozila za talni transport - Varnostne zahteve in preverjanje - 2. del: Vozila z lastnim
pogonom s spremenljivim dosegom (ISO 3691-2:2016)
Industrial trucks - Safety requirements and verification - Part 2: Self-propelled variable-
reach trucks (ISO 3691-2:2016)
Flurförderzeuge - Sicherheitsanforderungen und Verifizierung - Teil 2:
Motorkraftbetriebene Flurförderzeuge mit veränderlicher Reichweite (ISO 3691-2:2016)
Chariots de manutention - Exigences de sécurité et vérification - Partie 2: Chariots
automoteurs à portée variable (ISO 3691-2:2016)
Ta slovenski standard je istoveten z: EN ISO 3691-2:2016
ICS:
53.060 Industrijski tovornjaki Industrial trucks
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN ISO 3691-2
EUROPEAN STANDARD
NORME EUROPÉENNE
February 2016
EUROPÄISCHE NORM
ICS 53.060
English Version
Industrial trucks - Safety requirements and verification -
Part 2: Self-propelled variable-reach trucks (ISO 3691-
2:2016)
Chariots de manutention - Exigences de sécurité et Flurförderzeuge - Sicherheitsanforderungen und
vérification - Partie 2: Chariots automoteurs à portée Verifizierung - Teil 2: Motorkraftbetriebene
variable (ISO 3691-2:2016) Flurförderzeuge mit veränderlicher Reichweite (ISO
3691-2:2016)
This European Standard was approved by CEN on 21 November 2015.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2016 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 3691-2:2016 E
worldwide for CEN national Members.

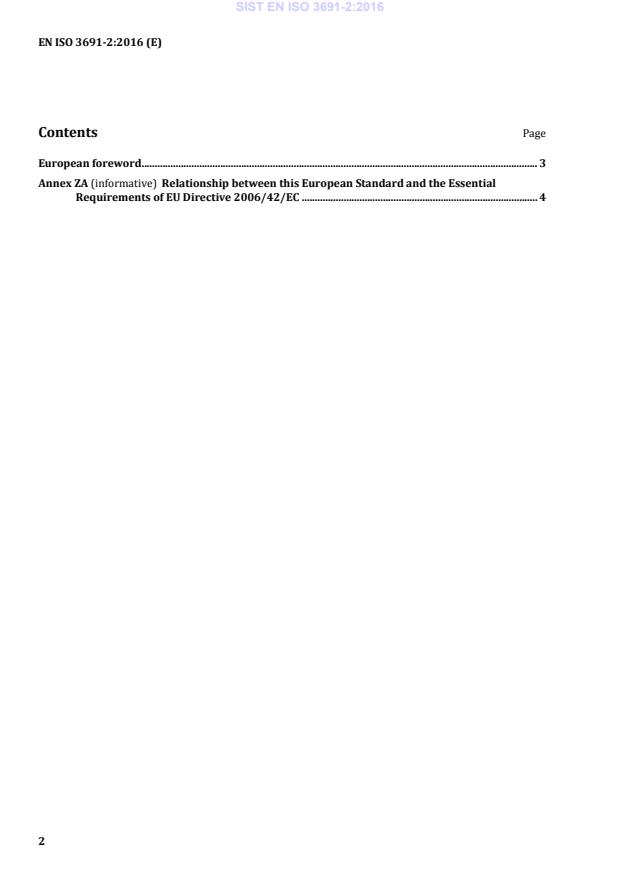

Contents Page
European foreword . 3
Annex ZA (informative) Relationship between this European Standard and the Essential
Requirements of EU Directive 2006/42/EC . 4

European foreword
This document (EN ISO 3691-2:2016) has been prepared by Technical Committee ISO/TC 110
“Industrial trucks” in collaboration with Technical CEN/TC 150 “Industrial Trucks - Safety” the
secretariat of which is held by BSI.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by August 2016, and conflicting national standards shall
be withdrawn at the latest by August 2016.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent
rights.
For the purposes of global relevance, the requirements of all clauses referring to ISO/TS 3691-7 have
been transferred and published as European Standard EN 16307-1, Industrial trucks – Safety
requirements and verification – Part 1: Supplementary requirements for self-propelled industrial trucks,
other than driverless trucks, variable-reach trucks and burden-carrier trucks.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of EU Directive(s).
For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this
document.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta,
Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
Endorsement notice
The text of ISO 3691-2:2016 has been approved by CEN as EN ISO 3691-2:2016 without any
modification.
Annex ZA
(informative)
Relationship between this European Standard
and the Essential Requirements of EU Directive 2006/42/EC
This European Standard has been prepared under a mandate given to CEN by the European
Commission and the European Free Trade Association to provide a means of conforming to Essential
Requirements of the New Approach Machinery Directive 2006/42/EC.
Once this standard is cited in the Official Journal of the European Union under that Directive and has
been implemented as a national standard in at least one Member State, compliance with the normative
clauses of this standard, except Clause 6.2.7, confers, within the limits of the scope of this standard, a
presumption of conformity with the corresponding Essential Requirements of that Directive and
associated EFTA regulations.
WARNING: Other requirements and other EU Directives may be applicable to the product(s) falling
within the scope of this standard.
INTERNATIONAL ISO
STANDARD 3691-2
First edition
2016-01-15
Industrial trucks — Safety
requirements and verification —
Part 2:
Self-propelled variable-reach trucks
Chariots de manutention — Exigences de sécurité et vérification —
Partie 2: Chariots automoteurs à portée variable
Reference number
ISO 3691-2:2016(E)
©
ISO 2016
ISO 3691-2:2016(E)
© ISO 2016, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2016 – All rights reserved

ISO 3691-2:2016(E)
Contents Page
Foreword .v
Introduction .vi
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 3
4 Safety requirements and/or protective measures . 5
4.1 General . 5
4.1.1 Overall requirements . 5
4.1.2 Normal climatic conditions. 5
4.1.3 Normal operating conditions . 5
4.1.4 Sharp edges . 6
4.1.5 Electrical requirements . 6
4.1.6 Stored energy components . 6
4.2 Starting/moving. 6
4.2.1 Unauthorized starting . 6
4.2.2 Unintended movement and inadvertent activation . 6
4.3 Brakes . 7
4.3.1 General. 7
4.3.2 Failure of energy supply . 7
4.4 Manual control actuator. 7
4.4.1 General. 7
4.4.2 Travel and braking controls . 7
4.4.3 Steering controls . 8
4.4.4 Load-handling controls . 8
4.4.5 Other controls . 9
4.4.6 Marking . 9
4.5 Power systems and accessories. 9
4.5.1 Exhaust system . 9
4.5.2 Cooling system . 9
4.5.3 Fuel tanks .10
4.5.4 Access to engine and other compartments .10
4.5.5 Liquefied petroleum gas (LPG)-powered trucks .10
4.6 Systems for telescoping, lifting and tilting .12
4.6.1 Lift chains .12
4.6.2 Hydraulic lifting, telescoping and carriage tilting .13
4.6.3 Hydraulic systems .14
4.6.4 Fork arms .14
4.6.5 Fork-arm extensions .14
4.6.6 Fork carriers .14
4.6.7 Load-handling attachments .15
4.7 Operator positions .15
4.7.1 Dimensions .15
4.7.2 Operator’s seat .15
4.7.3 Operator restraint .16
4.7.4 Operator access and egress .16
4.7.5 Protection from road wheels and objects thrown up by the wheels .17
4.7.6 Protection from burning .17
4.7.7 Protection against crushing, shearing and trapping .17
4.8 Stability .17
4.8.1 General.17
4.8.2 Specific operating conditions .18
4.8.3 Longitudinal stability determination .18
4.9 Protective devices .18
ISO 3691-2:2016(E)
4.9.1 Overhead guard.18
4.9.2 Load backrest extension .18
4.9.3 Roll-over protective structures .19
4.9.4 Warning device .19
4.9.5 Starter battery requirements .19
4.10 Visibility and lighting .19
4.10.1 Visibility.19
4.10.2 Lighting .19
4.11 Operator’s cab .19
4.11.1 General.19
4.11.2 Doors and windows . .19
4.11.3 Fire resistance .20
4.11.4 Ventilation .20
4.11.5 Heating, air conditioning and ventilation system .20
4.11.6 Air filters .21
4.11.7 Demisting and defrosting .21
4.11.8 Pressurization system .21
4.11.9 Wipers and washers .21
4.11.10 Access and an emergency exit .22
4.11.11 Storage of instruction handbook .22
4.11.12 Additional operator’s position .22
4.12 Provisions for transportation of the truck and removable attachments .22
4.13 Environmental requirements .22
4.13.1 Noise emissions .22
4.13.2 Vibration .22
4.13.3 Electromagnetic compatibility (EMC) .23
4.14 Devices for towing.23
5 Verification of safety requirements and/or protective measures .23
5.1 General .23
5.2 Structural verification .23
5.2.1 Test loads .23
5.2.2 Static test .23
5.2.3 Dynamic test .24
5.3 Functional verification .24
6 Information for use .25
6.1 General .25
6.2 Instruction handbook .25
6.2.1 Truck/attachments .25
6.2.2 Operation of truck.25
6.2.3 Details for battery powered trucks .26
6.2.4 Details for internal-combustion-engine powered trucks .26
6.2.5 Service and maintenance .27
6.2.6 Transportation, commissioning and storage .27
6.2.7 Truck modification .27
6.3 Marking .28
6.3.1 Information plates .28
6.3.2 Load chart .29
6.3.3 Information plate for trucks operating in special conditions .31
6.3.4 Other information .31
6.3.5 Languages .32
6.3.6 Operator restraint .32
Annex A (informative) Rated capacity of truck .33
Annex B (informative) List of significant hazards.36
Bibliography .41
iv © ISO 2016 – All rights reserved

ISO 3691-2:2016(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical
Barriers to Trade (TBT) see the following URL: Foreword - Supplementary information
The committee responsible for this document is ISO/TC 110, Industrial trucks, Subcommittee SC 2,
Safety of powered industrial trucks.
ISO 3691 consists of the following parts, under the general title Industrial trucks — Safety requirements
and verification:
— Part 1: Self-propelled industrial trucks, other than driverless, variable-reach and burden-carrier trucks
— Part 2: Self-propelled variable-reach trucks
— Part 3: Additional requirements for trucks with elevating operator position and trucks specifically
designed to travel with elevated loads
— Part 4: Driverless industrial trucks and their systems
— Part 5: Pedestrian-propelled trucks
— Part 6: Burden and personnel carriers
— Part 7: Regional requirements for countries within the European Community [Technical Specification]
— Part 8: Regional requirements for countries outside the European Community [Technical Specification]
ISO 3691-2:2016(E)
Introduction
General
This document is a type-C standard as stated in ISO 12100.
The machines concerned and the extent to which hazards, hazardous situations or hazardous events
are covered are indicated in the Scope of this document.
When requirements of this type-C standard are different from those which are stated in type-A or B
standards, the requirements of this type-C standard take precedence over the requirements of the
other standards for machines that have been designed and built according to the requirements of this
type-C standard.
The ISO 3691- series of standards covers safety requirements and their verification for industrial trucks
as defined in ISO 5053-1.
Structure
An important step forward in the work on the ISO 3691- series of standards was the agreement to issue
a new structure of International Standards for industrial trucks having on one side basic standards for
all kinds of trucks (see Foreword) and on the other side independent standards to cover the respective
specific functions of industrial trucks, e.g. visibility, noise, vibration, electrical requirements, etc.
Assessment of hazards
The product needs to be designed in such a way that it is fit for its purpose or function and can be
adjusted and maintained without putting persons at risk when used under the conditions foreseen by
the manufacturer.
In order to properly design a product and to cover all specific safety requirements, the manufacturer
will have to identify the hazards that apply to his product and carry out a risk assessment. The
manufacturer will then need to design and construct the product taking this assessment into account.
The aim of this procedure is to eliminate the risk of accidents throughout the foreseeable lifetime of
the machinery, including the phases of assembling and dismantling where risks of accidents could also
arise from foreseeable abnormal situations.
In selecting the most appropriate methods, the manufacturer will need to apply the following principles,
in the order given here:
a) eliminate or reduce risks as far as possible by design (inherently safe machinery design and
construction);
b) take the necessary protective measures in relation to risks that cannot be eliminated by design;
c) inform users of any shortcoming of the protective measures adopted;
d) indicate whether any particular training is required;
e) specify any need to provide personal protection equipment;
f) refer to the appropriate user’s document for proper operating instructions.
Industrial trucks need to be designed to prevent foreseeable misuse wherever possible, if such would
engender risk. In other cases, the instructions will need to draw the user’s attention to ways shown by
experience in which the machinery ought not to be used.
This part of ISO 3691 does not repeat all the technical rules which are state-of-the art and which are
applicable to the material used to construct the industrial truck. Reference will also need to be made
to ISO 12100.
vi © ISO 2016 – All rights reserved

ISO 3691-2:2016(E)
Legislative situation/Vienna Agreement
From the very beginning, the task of the working group was to revise ISO 3691:1980 and establish
worldwide basic standards to comply with the major legislative regulations in, for example, the EU,
Japan, Australia and North America.
Every effort was made to develop a globally relevant International Standard. That goal was achieved
with most of the issues. For several potential problem areas compromises were needed and will
be needed in the future. Where divergent regional requirements remain, these are addressed by
ISO/TS 3691-7 and ISO/TS 3691-8.
In order to ensure that the revised International Standard will be actively used in the ISO member
countries, worldwide, procedures will be necessary to replace the existing national standards and
technical regulations by the revised International Standard. In the European Community, ISO and the
European Committee for Standardization (CEN) agreed on technical co-operation under the Vienna
Agreement, with the aim of replacing European Standards (EN) by International Standards. Other
countries are asked to make similar agreements to ensure that their national standards and technical
regulations are replaced by this International Standard.
Only by these actions will there be the guarantee that products in accordance with International
Standards can be shipped worldwide freely without any technical barriers.
INTERNATIONAL STANDARD ISO 3691-2:2016(E)
Industrial trucks — Safety requirements and
verification —
Part 2:
Self-propelled variable-reach trucks
1 Scope
This part of ISO 3691 gives safety requirements and the means for their verification for self-propelled
industrial variable-reach trucks and variable-reach container handlers/reach stackers as defined in
ISO 5053-1 (hereafter referred to as trucks), equipped with forks or integral load-handling devices for
normal industrial duties (e.g. fork arms or means, such as spreaders, for handling containers).
It is not applicable to
— rough-terrain variable-reach trucks,
— rough-terrain variable-reach trucks for handling containers,
— machines designed primarily for earth-moving (e.g. loaders and dozers), even when their buckets
and blades are replaced with forks,
— machines from which the load can swing freely in all directions.
For the purposes of this part of ISO 3691, fork arms and integrated attachments are considered to be
a part of the truck, whereas attachments/equipment mounted on the load carrier or on the fork arms
which are removable by the user are not. Nevertheless, requirements for such attachments are also
given by the document.
Any regional requirements additional to the provisions of this part of ISO 3691 are addressed in
ISO/TS 3691-7 and ISO/TS 3691-8.
This part of ISO 3691 deals with all significant hazards, hazardous situations or hazardous events, as
listed in Annex B, with the exception of the following, relevant to the applicable machines when used as
intended and under conditions of misuse which are reasonably foreseeable by the manufacturer.
It does not establish requirements for hazards that can occur
— during construction,
— when using trucks on public roads,
— when operating in potentially explosive atmospheres, or
— when lifting persons.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
ISO 2328, Fork-lift trucks — Hook-on type fork arms and fork arm carriages — Mounting dimensions
ISO 2330, Fork-lift trucks — Fork arms — Technical characteristics and testing
ISO 3691-2:2016(E)
ISO 2867, Earth-moving machinery — Access systems
ISO 3287, Powered industrial trucks — Symbols for operator controls and other displays
ISO/TS 3691-7, Industrial trucks — Safety requirements and verification — Part 7: Regional requirements
for countries within the European Community
ISO/TS 3691-8, Industrial trucks — Safety requirements and verification — Part 8: Regional requirements
for countries outside the European Community
ISO 3411:2007, Earth-moving machinery — Physical dimensions of operators and minimum operator
space envelope
ISO 3795, Road vehicles, and tractors and machinery for agriculture and forestry — Determination of
burning behaviour of interior materials
ISO 4413, Hydraulic fluid power — General rules and safety requirements for systems and their components
ISO 5053-1, Industrial trucks — Terminology and classification — Part 1: Types of industrial trucks
ISO 5353, Earth-moving machinery, and tractors and machinery for agriculture and forestry — Seat index
point
ISO 6055:2004, Industrial trucks — Overhead guards — Specification and testing
ISO 6292, Powered industrial trucks and tractors — Brake performance and component strength
ISO 10263-2, Earth-moving machinery — Operator enclosure environment — Part 2: Air filter element test
method
ISO 10263-3, Earth-moving machinery — Operator enclosure environment — Part 3: Pressurization test
method
ISO 10263-4, Earth-moving machinery — Operator enclosure environment — Part 4: Heating, ventilating
and air conditioning (HVAC) test method and performance
ISO 12100:2010, Safety of machinery — General principles for design — Risk assessment and risk reduction
ISO 13284, Fork-lift trucks — Fork-arm extensions and telescopic fork arms — Technical characteristics
and strength requirements
ISO 13564-1, Powered industrial trucks — Test methods for verification of visibility — Part 1: Sit-on and
stand-on operator trucks and variable-reach trucks up to and including 10 t capacity
ISO 15870, Powered industrial trucks — Safety signs and hazard pictorials — General principles
ISO 15871, Industrial trucks — Specifications for indicator lights for container handling and grappler
arm operations
ISO 21281, Construction and layout of pedals of self-propelled sit-down rider-controlled industrial trucks —
Rules for the construction and layout of pedals
ISO 22915-1, Industrial trucks — Verification of stability — Part 1: General
ISO 22915-10, Industrial trucks — Verification of stability — Part 10: Additional stability test for trucks
operating in the special condition of stacking with load laterally displaced by powered devices
ISO 22915-11, Industrial trucks — Verification of stability — Part 11: Industrial variable-reach trucks
ISO 22915-12, Industrial trucks — Verification of stability — Part 12: Industrial variable-reach trucks
handling freight containers of 6 m (20 ft) length and longer
ISO 22915-20, Industrial trucks — Verification of stability — Part 20: Additional stability test for trucks
operating in the special condition of offset load, offset by utilization
2 © ISO 2016 – All rights reserved

ISO 3691-2:2016(E)
ISO 24135-1, Industrial trucks — Specifications and test methods for operator restraint systems — Part 1:
Lap-type seat belts
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 5053-1 and ISO 12100, and
the following apply.
3.1
self-propelled industrial variable-reach truck
seated-rider-operated, counterbalanced lift truck with one or more articulated arms, telescopic, non-
slewing, used for stacking loads and for operation on smooth, level, prepared and consolidated surfaces
3.2
actual capacity at maximum lift height with forks
maximum load, Q , specified by the manufacturer that the truck is capable of lifting to its maximum
height in normal operating conditions
Note 1 to entry: It is equal to the maximum load, with centre of gravity G (see Figure A.1), carried on the fork
arms (3.7) at the standard load centre distance, D, as specified in Annex A, and with the boom (3.9) adjusted to its
maximum height. It is expressed in kilograms.
3.3
actual capacity at container position with spreader
maximum load, Q, with row (d) and height (h), specified by the manufacturer that the truck is capable of
lifting to its maximum height in normal operating conditions
3.4
axle locking
mechanism designed to stop oscillation of the rear axle so as to improve truck stability
3.5
stabilizer
extendable or pivoting mechanical supports used to improve stability of a stationary truck
3.6
lateral levelling
act of changing the angular relationship between the boom pivot and the ground in order to adjust the
boom pivot to horizontal when the truck is standing on a side slope
Note 1 to entry: Used to ensure that the boom (3.9) operates in a vertical plane.
3.7
fork arms
device consisting of two or more solid forks, hook-mounted or shaft-mounted, that is fitted on the
carriage and usually spread manually
3.8
fork arm extension
device fitted over the fork arms (3.7) to increase their length
3.9
boom
pivoting support member providing radial and telescoping (if equipped) movement of the load-
engaging means
ISO 3691-2:2016(E)
3.10
spreader
device fitted to the boom (3.9), designed to connect the lifting points of freight containers, swap bodies
and semi-trailers
Note 1 to entry: It can include powered devices used to connect the lifting points of the load and an articulated
mechanism to facilitate engagement.
3.11
bucket
device intended for carrying bulk products such as sand, gravel or coal
3.12
overhead guard
device fitted to the truck for the purpose of protecting the operator against falling objects
3.13
load backrest
portion of the fork carriage serving to restrain the load when the load is tilted rearward or upward
3.14
normal operating position
position in which the operator is able to control all functions for driving and load handling as defined
by the manufacturer
Note 1 to entry: Additional positions may be defined by the manufacturer if it is not possible to control all the
functions of the truck from a single position. A rotating seat or stand-up end-control truck with more than one
operating direction is considered as being or having a single operating position.
3.15
fork carrier
device fitted at the end of the boom (3.9) to connect and lock interchangeable attachments without the
use of a tool
3.16
auxiliary mast
mast at the end of the boom (3.9) intended for reaching greater lifting heights
Note 1 to entry: Referred to simply as mast in this part of ISO 3691.
3.17
non-slewing
having a slewing movement not greater than 5° on either side of the longitudinal axis of the truck
Note 1 to entry: See Figure 1.
Figure 1 — Slewing movement ≤ 5° (non-slewing)
4 © ISO 2016 – All rights reserved
5º
5º
ISO 3691-2:2016(E)
3.18
rated capacity with fork arms
load, Q , in kilograms, permitte
...
