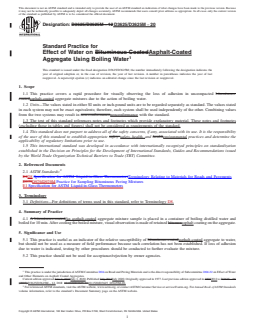

ASTM D3625/D3625M-20

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.
Designation: D3625/D3625M − 12 D3625/D3625M − 20
Standard Practice for
Effect of Water on Bituminous-CoatedAsphalt-Coated
Aggregate Using Boiling Water
This standard is issued under the fixed designation D3625/D3625M; the number immediately following the designation indicates the
year of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last
reapproval. A superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope
1.1 This practice covers a rapid procedure for visually observing the loss of adhesion in uncompacted bituminous-
coatedasphalt-coated aggregate mixtures due to the action of boiling water.
1.2 Units—The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated
in each system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values
from the two systems may result in non-conformancenonconformance with the standard.
1.3 The text of this standard references notes and footnotes which provide explanatory material. These notes and footnotes
(excluding those in tables and figures) shall not be considered as requirements of the standard.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety safety, health, and healthenvironmental practices and determine the
applicability of regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2.1 ASTM Standards:
E1D8 Specification for ASTM Liquid-in-Glass ThermometersTerminology Relating to Materials for Roads and Pavements
D979D979/D979M Practice for Sampling Bituminous Paving Mixtures
E1 Specification for ASTM Liquid-in-Glass Thermometers
3. Terminology
3.1 Definitions—For definitions of terms used in this standard, refer to Terminology D8.
4. Summary of Practice
4.1 A bituminous-coatedAn asphalt-coated aggregate mixture sample is placed in a container of boiling distilled water and
boiled for 10 min. After cooling the boiled mixture, visual observation is made of retained bitumenasphalt coating on the aggregate.
5. Significance and Use
5.1 This practice is useful as an indicator of the relative susceptibility of bituminous-coatedasphalt-coated aggregate to water,
but should not be used as a measure of field performance because such correlation has not been established. If loss of adhesion
due to water is indicated, testing by other procedures should be conducted to further evaluate the mixture.
5.2 This practice should not be used for acceptance/rejection by owner agencies.
This practice is under the jurisdiction of ASTM Committee D04 on Road and Paving Materials and is the direct responsibility of Subcommittee D04.22 on Effect of Water
and Other Elements on Asphalt Coated Aggregates.
Current edition approved June 1, 2012July 1, 2020. Published July 2012July 2020. Originally approved in 1977. Last previous edition approved in 20052012 as D3625 – 96
(2005).D3625/D3625M – 12. DOI: 10.1520/D3625-12.10.1520/D3625_D3625M-20.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States

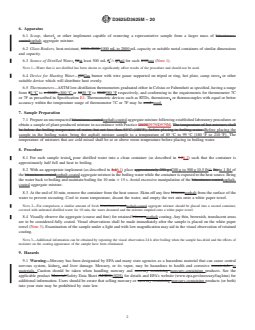

D3625/D3625M − 20
6. Apparatus
6.1 Scoop, shovel, or other implement capable of removing a representative sample from a larger mass of bituminous-
coatedasphalt aggregate mixture.
6.2 Glass Beakers, heat-resistant, 1000–2000 1000 mL to 2000 mL capacity or suitable metal containers of similar dimensions
and capacity.
6.3 Source of Distilled Water, (atat least 500 mL ([ ⁄2 qt)qt] for each test)test (Note 1).
NOTE 1—Water that is not distilled has been shown to significantly affect results of the procedure and should not be used.
6.4 Device for Heating Water—gasGas burner with wire gauze supported on tripod or ring, hot plate, camp stove, or other
suitable device which will distribute heat evenly.
6.5 Thermometers—ASTM low-distillation thermometers graduated either in
...
