SIST ETS 300 166 E1:2003
(Main)Transmission and Multiplexing (TM); Physical and electrical characteristics of hierarchical digital interfaces for equipment using the 2 048 kbit/s - based plesiochronous or synchronous digital hierarchies
General Information
- Abstract
Specification of the physical & electrical characteristics of 64, 2048 8448, 34368, 139264, 155520 kbit/s traffic interfaces & 2048 kHz synchronisation interface.
- Status
- Published
- Publication Date
- 30-Nov-2003
- Current Stage
- 6060 - National Implementation/Publication (Adopted Project)
- Start Date
- 01-Dec-2003
- Due Date
- 01-Dec-2003
- Completion Date
- 01-Dec-2003
Overview
SIST ETS 300 166 E1:2003 is an international standard specifying the physical and electrical characteristics of hierarchical digital interfaces for telecommunication equipment utilizing the 2 048 kbit/s-based plesiochronous or synchronous digital hierarchies. Developed by the Slovenian Institute for Standardization (SIST) and aligned with ETSI standards, it is based primarily on the internationally recognized CCITT (now ITU-T) recommendations G.702, G.703, and G.707.
The standard defines requirements for hierarchical interfaces at bit rates of 64 kbit/s, 2 048 kbit/s, 8 448 kbit/s, 34 368 kbit/s, 139 264 kbit/s, and 155 520 kbit/s, as well as the 2 048 kHz synchronization interface. It aims to ensure interoperability between equipment from different vendors and operators, supporting reliable digital transmission and multiplexing across telecommunication networks.
Key Topics
Physical and Electrical Interface Characteristics
Specifies electrical requirements such as tolerable longitudinal voltage, output signal balance, and minimum output return loss for hierarchical digital interfaces.Hierarchy Levels and Transmission Rates
Covers multiple bit rates within the Plesiochronous Digital Hierarchy (PDH) and the first level of the Synchronous Digital Hierarchy (SDH), including 64 kbit/s, 2 048 kbit/s, 8 448 kbit/s, 34 368 kbit/s, 139 264 kbit/s, and STM-1 at 155 520 kbit/s.Connection Types
Describes use for both in-station (short-distance) and metallic (symmetrical or coaxial) cable interfaces, ensuring flexibility for network design and deployment.Synchronization Interface
Details requirements for the 2 048 kHz synchronization interface which is essential for maintaining network timing integrity.Conformance and Compatibility
Ensures inter-vendor and inter-operator compatibility, promoting seamless digital communication infrastructure.
Applications
The practical applications of SIST ETS 300 166 E1:2003 include:
Telecommunications Transmission Networks
Used in the interconnection of digital network elements such as multiplexers, cross-connects, and switches at key hierarchy levels within both PDH and SDH networks.Carrier and Service Provider Equipment
Enables carriers and service providers to integrate equipment from multiple vendors by conforming to a common standard for physical and electrical interface parameters.Synchronization and Timing
Supports accurate timing distribution for digital networks through the 2 048 kHz synchronization interface, essential for stable and robust network operations.Legacy and Modern Network Coexistence
Facilitates compatibility between legacy PDH equipment and modern SDH systems, enabling gradual network upgrades and minimizing disruption.Network Testing and Maintenance
Helps in the validation and testing of network hardware by providing clear electrical parameter targets, simplifying troubleshooting and maintenance activities.
Related Standards
The development of SIST ETS 300 166 E1:2003 references and aligns with several key international standards, including:
- CCITT Recommendation G.702: Digital hierarchy bit rates
- CCITT Recommendation G.703: Physical/electrical characteristics of hierarchical digital interfaces
- CCITT Recommendation G.707: Synchronous digital hierarchy bit rates
- CCITT Recommendation G.704: Synchronous frame structures at hierarchical levels
- CCITT Recommendation I.431: Primary rate user/network interface - Layer 1 specification
- CCITT Recommendation O.9: Measuring arrangements to assess balance about earth
For organizations involved in digital telecommunications network infrastructure, adherence to SIST ETS 300 166 E1:2003 ensures equipment compatibility, network reliability, and smooth integration of digital transmission and multiplexing technologies.
Keywords: hierarchical digital interfaces, 2 048 kbit/s, transmission and multiplexing, PDH, SDH, synchronization, telecommunication standards, electrical characteristics, ETSI, G.703, interconnection, network interoperability.
Get Certified
Connect with accredited certification bodies for this standard
BSI Group
BSI (British Standards Institution) is the business standards company that helps organizations make excellence a habit.
NYCE
Mexican standards and certification body.
ANCE
Mexican certification and testing association.
Sponsored listings
Frequently Asked Questions
SIST ETS 300 166 E1:2003 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Transmission and Multiplexing (TM); Physical and electrical characteristics of hierarchical digital interfaces for equipment using the 2 048 kbit/s - based plesiochronous or synchronous digital hierarchies". This standard covers: Specification of the physical & electrical characteristics of 64, 2048 8448, 34368, 139264, 155520 kbit/s traffic interfaces & 2048 kHz synchronisation interface.
Specification of the physical & electrical characteristics of 64, 2048 8448, 34368, 139264, 155520 kbit/s traffic interfaces & 2048 kHz synchronisation interface.
SIST ETS 300 166 E1:2003 is classified under the following ICS (International Classification for Standards) categories: 33.040.20 - Transmission systems; 35.200 - Interface and interconnection equipment. The ICS classification helps identify the subject area and facilitates finding related standards.
SIST ETS 300 166 E1:2003 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
SLOVENSKI STANDARD
01-december-2003
3UHQRVLQPXOWLSOHNVLUDQMH 70 ±)L]LþQHLQHOHNWULþQHNDUDNWHULVWLNHKLHUDUKLþQLK
GLJLWDOQLKYPHVQLNRY]DRSUHPRNLXSRUDEOMDSOH]LKURQHDOLVLQKURQHGLJLWDOQH
KLHUDUKLMHQDRVQRYLKLWURVWLNELWV
Transmission and Multiplexing (TM); Physical and electrical characteristics of
hierarchical digital interfaces for equipment using the 2 048 kbit/s - based plesiochronous
or synchronous digital hierarchies
Ta slovenski standard je istoveten z: ETS 300 166 Edition 1
ICS:
33.040.20 Prenosni sistem Transmission systems
35.200 Vmesniška in povezovalna Interface and interconnection
oprema equipment
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN ETS 300 166
TELECOMMUNICATION August 1993
STANDARD
Source: ETSI TC-TM Reference: DE/TM-3002
ICS: 33.020, 33.040.40
Transmission, multiplexing, interfaces
Key words:
Transmission and Multiplexing (TM);
Physical and electrical characteristics of hierarchical digital
interfaces for equipment using the 2 048 kbit/s -
based plesiochronous or synchronous digital hierarchies
ETSI
European Telecommunications Standards Institute
ETSI Secretariat
F-06921 Sophia Antipolis CEDEX - FRANCE
Postal address:
650 Route des Lucioles - Sophia Antipolis - Valbonne - FRANCE
Office address:
c=fr, a=atlas, p=etsi, s=secretariat - secretariat@etsi.fr
X.400: Internet:
Tel.: +33 92 94 42 00 - Fax: +33 93 65 47 16
Copyright Notification: No part may be reproduced except as authorized by written permission. The copyright and the
foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 1993. All rights reserved.
New presentation - see History box
Page 2
ETS 300 166: August 1993

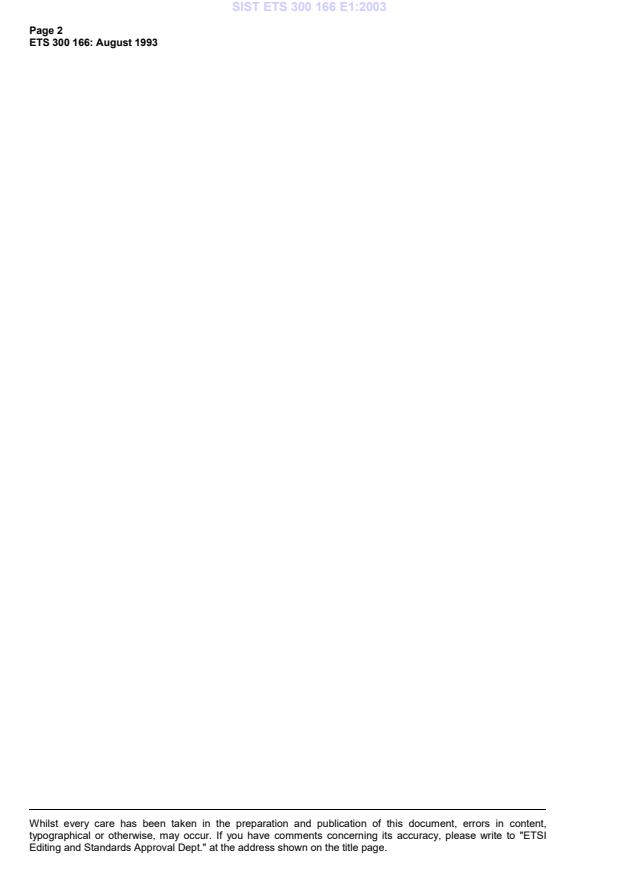

Whilst every care has been taken in the preparation and publication of this document, errors in content,
typographical or otherwise, may occur. If you have comments concerning its accuracy, please write to "ETSI
Editing and Standards Approval Dept." at the address shown on the title page.
Page 3
ETS 300 166:1993
Contents
Foreword .5
1 Scope .7
2 Normative references.7
3 Definitions.7
4 Symbols and abbreviations .7
5 Requirements.8
5.1 Tolerable longitudinal voltage .10
5.2 Output signal balance .10
5.3 Minimum output return loss .10
History.12
Page 4
ETS 300 166:1993
Blank page
Page 5
ETS 300 166:1993
Foreword
This European Telecommunication Standard (ETS) has been produced by the Transmission and
MuItiplexing (TM) Technical Committee of the European Telecommunications Standards Institute (ETSI).
This ETS specifies the physical and electrical characteristics of hierarchical interfaces based on CCITT
Recommendation G.703 [2] but it does not intend to preclude the use of interfaces covered in other
standards.
The aim of this ETS is to provide inter-vendor and inter-operator compatibility.
The conformance testing requirements corresponding to the specifications contained in this ETS are to be
specified in a different ETS.
Physical parameters for optical interfaces for the Synchronous Digital Hierarchy (SDH) are to be specified
in a different standard which is under development.
Page 6
ETS 300 166:1993
Blank page
Page 7
ETS 300 166:1993
1 Scope
This ETS describes the requirements for the physical and electrical parameters of interfaces based on
CCITT Recommendations G.702 [1], G.703 [2] and G.707 [3] for interconnection of digital network
elements:
- in-station (i.e. for distances below a few hundred metres);
- using metallic (symmetrical or coaxial) pairs;
- at 64, 2 048, 8 448, 34 368 and 139 264 kbit/s hierarchical levels of the Plesiochronous Digital
Hierarchy (PDH) and at the first level of the Synchronous Digital Hierarchy (SDH) (STM-1 at
155 520 kbit/s).
This ETS also describes the requirements for the physical and electrical parameters of the 2 048 kHz
synchronisation interface.
2 Normative references
This ETS incorporates by dated or undated reference, provisions from other publications. These
normative references are cited at the appropriate places in the text and the publications are listed
hereafter. For dated references, subsequent amendments to or revisions of any of these publications
apply to this ETS only when incorporated in it by amendment or revision. For undated references the latest
edition of the publication referred to applies.
[1] CCITT Recommendation G.702 (1990): "Digital hierarchy bit rates".
[2] CCITT Recommendation G.703 (1991): "Physical/electrical characteristics of
hierarchical digital interfaces".
[3] CCITT Recommendation G.707 (1991): "Synchronous digital hierarchy bit
rates".
[4] CCITT Recommendation I.431 (1988): "Primary rate user/network interface -
Layer 1 specification".
[5] CCITT Recommendation O.9 (1988): "Measuring arrangements to assess the
degree of unbalance about earth".
[6] CCITT Recommendation G.704 (1991): "Synchronous frame structures used at
primary and secondary hierarchical levels".
3 Definitions
For the purposes of this ETS, there are no terms needing a specific definition.
4 Symbols and abbreviations
For the purposes of this ETS, the following abbr
...
