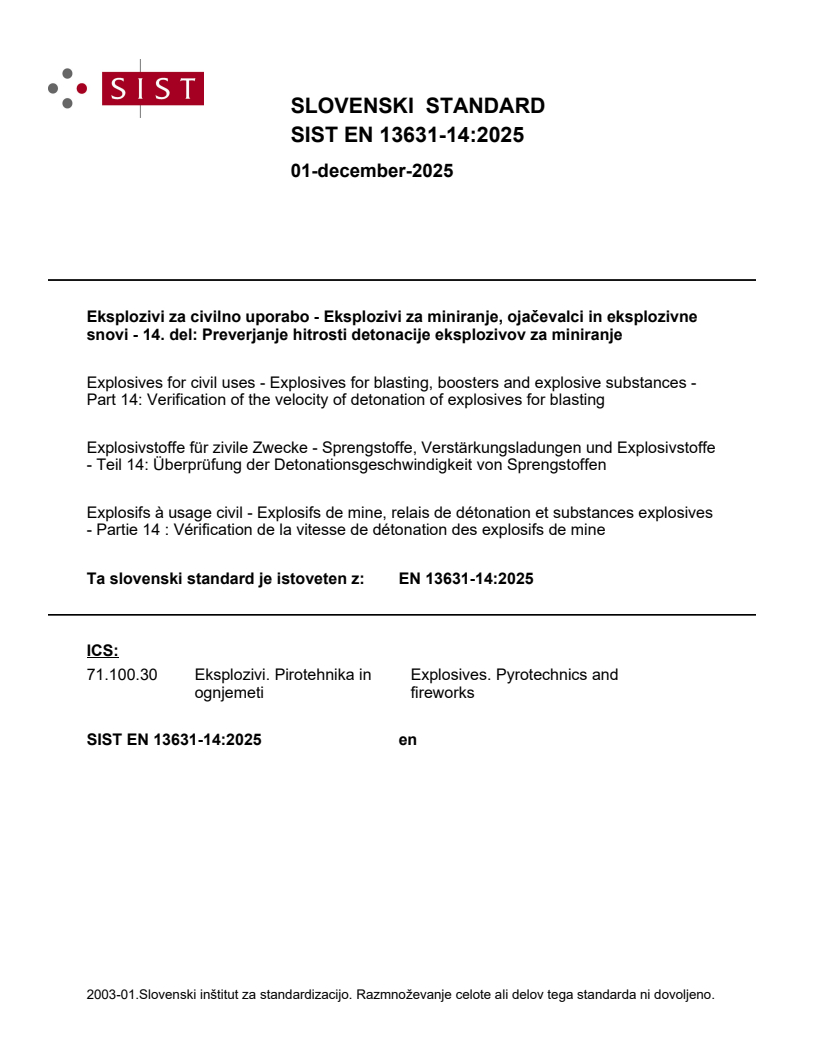

SIST EN 13631-14:2025

SLOVENSKI STANDARD
01-december-2025
Eksplozivi za civilno uporabo - Eksplozivi za miniranje, ojačevalci in eksplozivne
snovi - 14. del: Preverjanje hitrosti detonacije eksplozivov za miniranje
Explosives for civil uses - Explosives for blasting, boosters and explosive substances -
Part 14: Verification of the velocity of detonation of explosives for blasting
Explosivstoffe für zivile Zwecke - Sprengstoffe, Verstärkungsladungen und Explosivstoffe
- Teil 14: Überprüfung der Detonationsgeschwindigkeit von Sprengstoffen
Explosifs à usage civil - Explosifs de mine, relais de détonation et substances explosives
- Partie 14 : Vérification de la vitesse de détonation des explosifs de mine
Ta slovenski standard je istoveten z: EN 13631-14:2025
ICS:
71.100.30 Eksplozivi. Pirotehnika in Explosives. Pyrotechnics and
ognjemeti fireworks
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

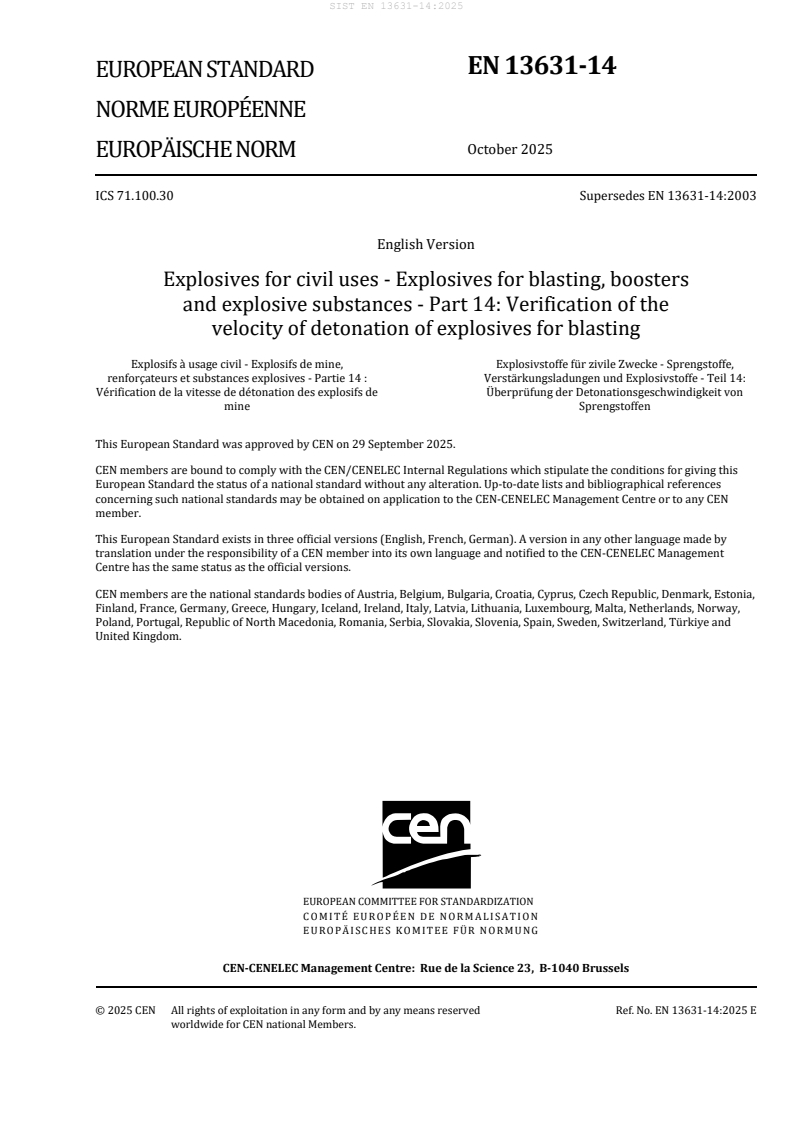

EN 13631-14
EUROPEAN STANDARD
NORME EUROPÉENNE
October 2025
EUROPÄISCHE NORM
ICS 71.100.30 Supersedes EN 13631-14:2003
English Version
Explosives for civil uses - Explosives for blasting, boosters
and explosive substances - Part 14: Verification of the
velocity of detonation of explosives for blasting
Explosifs à usage civil - Explosifs de mine, Explosivstoffe für zivile Zwecke - Sprengstoffe,
renforçateurs et substances explosives - Partie 14 : Verstärkungsladungen und Explosivstoffe - Teil 14:
Vérification de la vitesse de détonation des explosifs de Überprüfung der Detonationsgeschwindigkeit von
mine Sprengstoffen
This European Standard was approved by CEN on 29 September 2025.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2025 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 13631-14:2025 E
worldwide for CEN national Members.

Contents Page
European foreword . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Principle . 5
5 Apparatus . 5
6 Preparation of test sample . 6
6.1 General. 6
6.2 Test without confinement . 6
6.3 Test under confinement . 7
7 Procedure . 8
7.1 Attachment of the means to measure the velocity of detonation . 8
7.1.1 Start-stop method . 8
7.1.2 Continuous method . 8
7.2 Attachment of the means of initiation . 9
7.2.1 Initiation by means of a detonator . 9
7.2.2 Initiation by means of a booster . 10
7.2.3 Initiation by means of a detonating cord . 11
7.3 Measurement procedure . 13
8 Expression of results . 13
9 Test report . 13
Annex ZA (informative) Relationship between this European Standard and the essential
requirements of Directive 2014/28/EU relating to the making available on the market
and supervision of explosives for civil uses aimed to be covered. 15
Bibliography . 16

European foreword
This document (EN 13631-14:2025) has been prepared by Technical Committee CEN/TC 321
“Explosives for civil uses”, the secretariat of which is held by UNE.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by April 2026 and conflicting national standards shall be
withdrawn at the latest by April 2026.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 13631-14:2003.
EN 13631-14:2003:
a) the document title has been changed from “High explosives — Part 14: Determination of velocity of
detonation” to “Explosives for civil uses — Explosives for blasting, boosters and explosive
substances — Part 14: Determination of velocity of detonation of explosives for blasting”;
b) the Scope has been revised to clarify the covered and not covered explosives;
c) the normative references have been updated;
d) Clause 4 “Principle” has been revised and enlarged;
e) Clause 5 “Apparatus” has been updated and enlarged, especially, to include an alternative velocity of
detonation measuring equipment;
f) Clause 6 “Test pieces” is now called “Preparation of test sample” and has been revised and now
provides with specification of the preparation of the test pieces for the test without (6.1) and under
confinement (6.2) considering bulk and cartridged explosives;
g) Clause 7 “Procedure” has been revised and enlarged to provide with separate specifications on the
attachment of the means to measure the velocity of detonation (7.1), the attachment of the means of
initiation (7.2) and the measurement (7.3);
h) Figures 2, 3, 5 and 7 have been added to the document, the existing figures have been revised;
i) Clause 8 “Expression of results” has been added;
j) the Clause “Test report” does no longer require conformity with EN ISO/IEC 17025 and the
information to be provided has been revised and enlarged;
k) former Annex A “Range of applicability of the test method” has been removed;
l) Annex ZA has been updated;
m) the Bibliography has been added and lists, e.g. EN ISO/IEC 17025:2017.
This document has been prepared under a standardization request addressed to CEN by the European
Commission. The Standing Committee of the EFTA States subsequently approves these requests for its
Member States.
For the relationship with EU Legislation, see informative Annex ZA, which is an integral part of this
document.
A list of all parts in the EN 13631 series, published under the general title Explosives for civil uses —
Explosives for blasting, boosters and explosive substances, can be found on the CEN website.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the United
Kingdom.
1 Scope
This document specifies two test methods for the determination of the velocity of detonation of
explosives for blasting.
This document does not apply to boosters and explosive substances.
NOTE This document does not apply to black powder. The burning rate of black powder is determined in
accordance with EN 13938-4:2025.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 10025-2:2019, Hot rolled products of structural steels — Part 2: Technical delivery conditions for non-
alloy structural steels
EN 10216-1:2013, Seamless steel tubes for pressure purposes — Technical delivery conditions — Part 1:
Non-alloy steel tubes with specified room temperature properties
EN 13630-7:2025, Explosives for civil uses — Detonating cords and safety fuses — Part 7: Verification of
reliability of initiation of detonating cords
EN 13631-1:2025, Explosives for civil uses — Explosives for blasting, boosters and explosive substances —
Part 1: Requirements
EN 13857-1:2025, Explosives for civil uses — Part 1: Vocabulary
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN 13857-1:2025 apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https://www.iso.org/obp/
— IEC Electropedia: available at https://www.electropedia.org/
4 Principle
The velocity of detonation is an important performance characteristic of explosives for blasting.
The determination of the velocity of detonation (VOD) is carried out by measuring the time it takes the
detonation front to travel a distance through a test piece. The test is carried out either under confinement
or without. Depending on the measuring equipment, the velocity of detonation is calculated from the
measured time and the measured distance or derived from the distance over time test records.
5 Apparatus
5.1 Means of initiation, as specified for the explosive tested in accordance with EN 13631-1:2025,
4.1.4, being a detonator, a detonating cord with a detonator or a booster with a detonator.
5.2 Steel tube, of steel grade S 235 in accordance with EN 10025-2:2019, Clause 4 and Tables 1, 3 and
6, and with dimensions in accordance with EN 10216-1:2013, Table 7.
In case of bulk explosives, the resulting inner diameter of the steel tube shall be the nearest diameter
equal to or greater than the minimum diameter specified in accordance with EN 13631-1:2025, 4.1.9. The
wall thickness of the steel tube shall be the smallest preferred value as given for the outer diameter in
EN 10216-1:2013, Table 7.
In case of cartridged explosives being tested under confinement, the resulting inner diameter of the steel
tube shall have the smallest diameter where the cartridges with the minimum diameter specified in
accordance with EN 13631-1:2025, 4.1.9, can still be inserted. The wall thickness of the steel tube shall
be the smallest preferred value as given for the outer diameter in EN 10216-1:2013, Table 7.
If the start-stop-method (5.4.1) is used for measuring the velocity of detonation, there shall be two holes
in the tube to allow the insertion of the sensors of the measuring equipment at positions in accordance
with 7.1.1. The diameter of the holes shall be just large enough for the sensors to be inserted.
5.3 Plastic liner, made of a thin plastic film. The plastic liner shall have a cylindrical shape.
Alte
...
