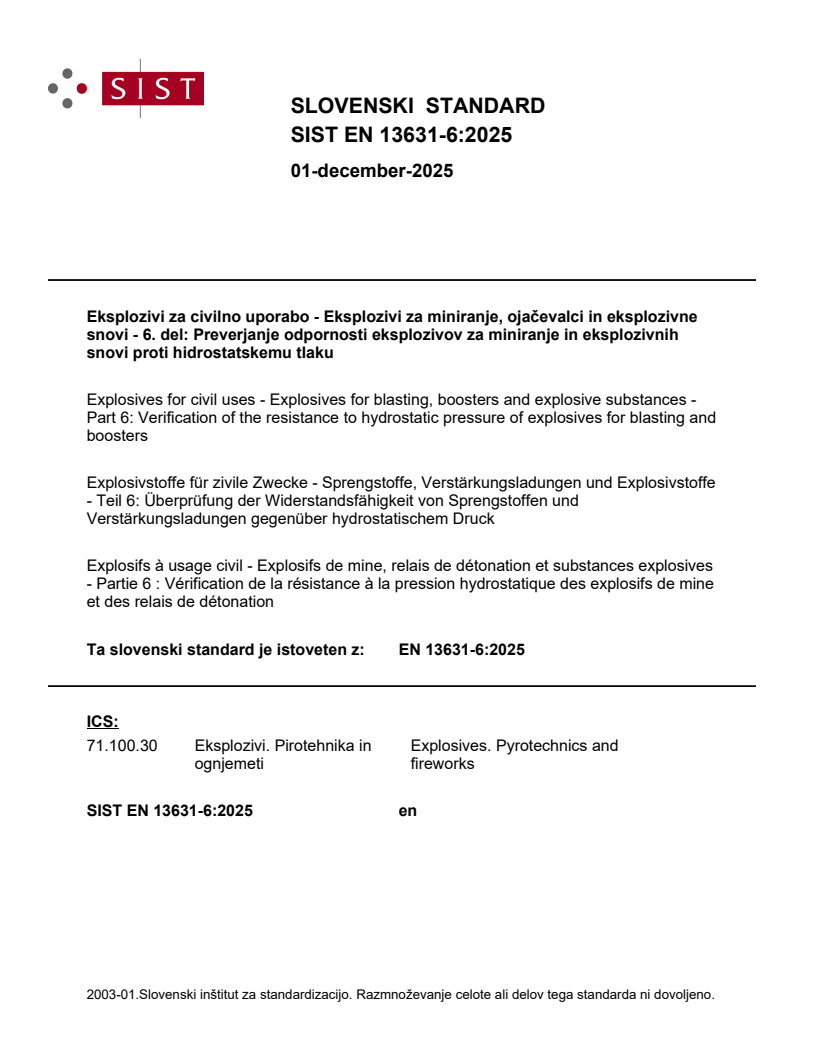

SIST EN 13631-6:2025

SLOVENSKI STANDARD
01-december-2025
Eksplozivi za civilno uporabo - Eksplozivi za miniranje, ojačevalci in eksplozivne
snovi - 6. del: Preverjanje odpornosti eksplozivov za miniranje in eksplozivnih
snovi proti hidrostatskemu tlaku
Explosives for civil uses - Explosives for blasting, boosters and explosive substances -
Part 6: Verification of the resistance to hydrostatic pressure of explosives for blasting and
boosters
Explosivstoffe für zivile Zwecke - Sprengstoffe, Verstärkungsladungen und Explosivstoffe
- Teil 6: Überprüfung der Widerstandsfähigkeit von Sprengstoffen und
Verstärkungsladungen gegenüber hydrostatischem Druck
Explosifs à usage civil - Explosifs de mine, relais de détonation et substances explosives
- Partie 6 : Vérification de la résistance à la pression hydrostatique des explosifs de mine
et des relais de détonation
Ta slovenski standard je istoveten z: EN 13631-6:2025
ICS:
71.100.30 Eksplozivi. Pirotehnika in Explosives. Pyrotechnics and
ognjemeti fireworks
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

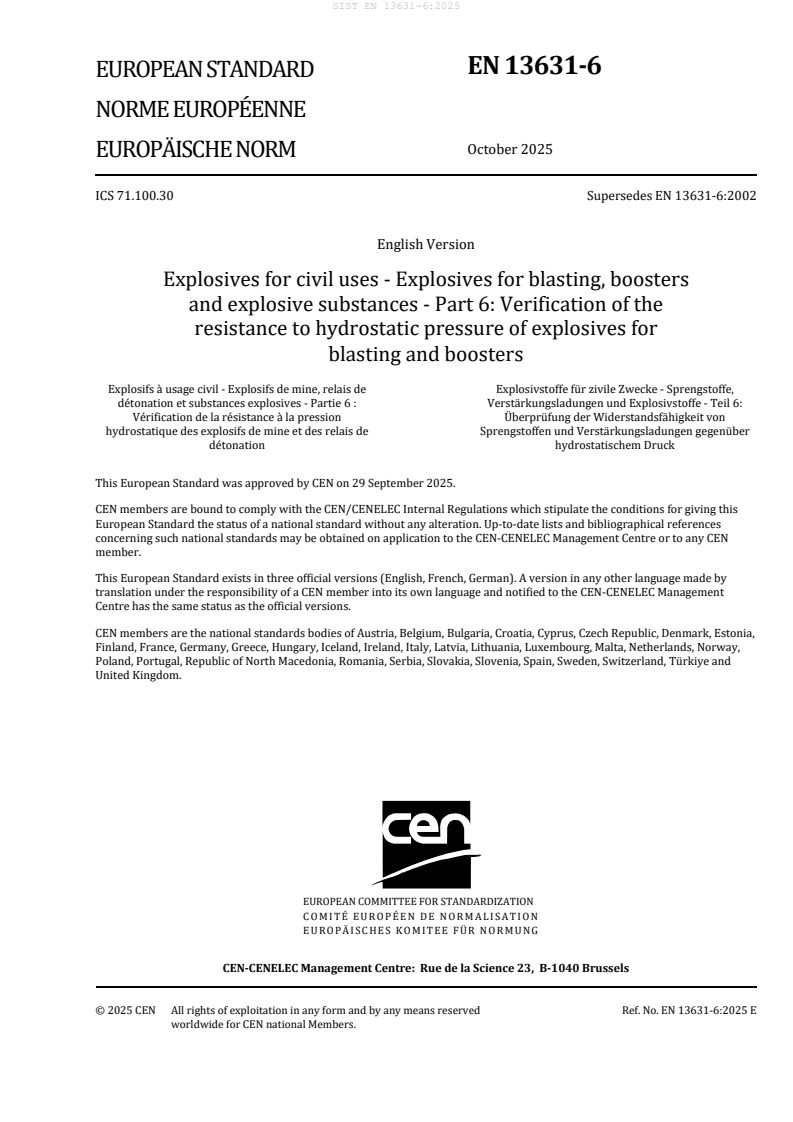

EN 13631-6
EUROPEAN STANDARD
NORME EUROPÉENNE
October 2025
EUROPÄISCHE NORM
ICS 71.100.30 Supersedes EN 13631-6:2002
English Version
Explosives for civil uses - Explosives for blasting, boosters
and explosive substances - Part 6: Verification of the
resistance to hydrostatic pressure of explosives for
blasting and boosters
Explosifs à usage civil - Explosifs de mine, relais de Explosivstoffe für zivile Zwecke - Sprengstoffe,
détonation et substances explosives - Partie 6 : Verstärkungsladungen und Explosivstoffe - Teil 6:
Vérification de la résistance à la pression Überprüfung der Widerstandsfähigkeit von
hydrostatique des explosifs de mine et des relais de Sprengstoffen und Verstärkungsladungen gegenüber
détonation hydrostatischem Druck
This European Standard was approved by CEN on 29 September 2025.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2025 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 13631-6:2025 E
worldwide for CEN national Members.

Contents Page
European foreword . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Principle . 5
5 Apparatus . 6
6 Preparation of test pieces . 8
6.1 Cartridged explosives without confinement . 8
6.2 Bulk explosives without confinement . 8
6.3 Cartridged or bulk explosives under confinement . 9
6.4 Boosters . 9
7 Procedure . 9
7.1 Explosives for blasting . 9
7.2 Boosters . 10
8 Expression of results . 11
9 Test report . 11
Annex ZA (informative) Relationship between this European Standard and the essential
requirements of Directive 2014/28/EU relating to the making available on the
market and supervision of explosives for civil uses aimed to be covered . 12
Bibliography . 13
European foreword
This document (EN 13631-6:2025) has been prepared by Technical Committee CEN/TC 321
“Explosives for civil uses”, the secretariat of which is held by UNE.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by April 2026, and conflicting national standards shall be
withdrawn at the latest by April 2026.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 13631-6:2002.
EN 13631-6:2002:
a) the document title has been changed from “Explosives for civil uses — High explosives — Part 6:
Determination of resistance to hydrostatic pressure” to “Explosives for civil uses — Explosives for
blasting, boosters and explosive substances — Part 6: Verification of the resistance to hydrostatic
pressure of explosives for blasting and boosters”;
b) the Scope has been revised and now specifies the covered and not covered explosives;
c) the normative references have been updated;
d) the Clause 4 “Principle” has been added;
e) the Clause “Apparatus” and Figure 1 have been revised; Figure 2 has been removed;
f) the former Clause “Test pieces” is now called “Clause 6 Preparation of test sample” and has been
revised;
g) the new Clause 7 “Procedure” provides with a completely revised test method to verify the
resistance to hydrostatic - for explosives for blasting, testing is now done under confinement at the
specified maximum temperature of use;
h) the Clause 8 “Expression of results” has been added;
i) the Clause “Test report” does no longer require conformity with EN ISO/IEC 17025 and the
information to be provided has been revised;
j) the former Annex A “Range of applicability of the test method” has been removed;
k) the Annex ZA has been updated;
l) the Bibliography has been added and lists EN ISO/IEC 17025:2017.
This document has been prepared under a standardization request addressed to CEN by the European
Commission. The Standing Committee of the EFTA States subsequently approves these requests for its
Member States.
For the relationship with EU Legislation, see informative Annex ZA, which is an integral part of this
document.
A list of all parts in the EN 13631 series, published under the general title Explosives for civil uses —
Explosives for blasting, boosters and explosive substances, can be found on the CEN website.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the
United Kingdom.
1 Scope
This document specifies a test method for the verification of the resistance to hydrostatic pressure of
explosives for blasting and a test method for the verification of the resistance to hydrostatic pressure of
explosives for boosters.
This document does not apply to black powder.
This document does not apply to explosive substances.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 10025-2:2019, Hot rolled products of structural steels — Part 2: Technical delivery conditions for non-
alloy structural steels
EN 10216-1:2013, Seamless steel tubes for pressure purposes — Technical delivery conditions — Part 1:
Non-alloy steel tubes with specified room temperature properties
EN 13630-7:2025, Explosives for civil uses — Detonating cords and safety fuses — Part 7: Verification of
reliability of initiation of detonating cords
EN 13631-1:2025, Explosives for civil uses — Explosives for blasting, boosters and explosive substances —
Part 1: Requirements
EN 13631-10:2025, Explosives for civil uses — Explosives for blasting, boosters and explosive
substances — Part 10: Verification of the means of initiation of explosives for blasting and boosters
EN 13631-14:2025, Explosives for civil uses — Explosives for blasting, boosters and explosive
substances — Part 14: Verification of the velocity of detonation of explosives for blasting
EN 13857-1:2025, Explosives for civil uses — Part 1: Vocabulary
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN 13857-1:2025 apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https://www.iso.org/obp
— IEC Electropedia: available at https://www.electropedia.org
4 Principle
Hydrostatic pressure can adversely affect the safety or reliability of explosives resulting in a failure to
initiate or to detonate completely. To verify the resistance against hydrostatic pressure, a test piece is
immersed into water at the highest temperature of use as specified for the explosive and the maximum
hydrostatic pressure as for which resistance to is specified for the explosive is applied. The water
temperature is kept at the specified maximum temperature of use throughout the test. Afterwards, the
explosive is initiated, and complete detonation verified.
5 Apparatus
5.1 Testing tube (see Figure 1), made from a material and with dimensions able to withstand the
hydrostatic pressure as specified in accordance with EN 13631-1:2025, 4.1.6 for explosives for blasting
or with EN 13631-1:2025, 6.1.4, for boosters, and the maximum temperature of use specified for the
test explosive in accordance with EN 13631-1:2025, 4.1.1 for explosives for blasting or with
EN 13631-1:2025, 6.1.1 for boosters, when assembled with the seals (5.2). The testing tube may be
closed at one end. In addition, the length and the inner diameter of the testing tube shall be large
enough such that the test piece when assembled as specified in 7.1 or 7.2, as applicable, can be
accommodated. It shall be possible to release applied pressure from the testing tube without opening it
once assembled; this can be done, for example, by means of a venting system in the testing tube, in one
of the seals (5.2) or in the pressure system (5.3).

Key
1 opening for the connection of the pressure system (5.3)
2 seal (5.2)
3 testing tube (5.1)
4 water
5 cable feed-through for the means of initiation (5.4)
6 detonator as means of initiation (5.4)
7 test piece under confinement inside steel tube (5.10)
8 continuous probe of the velocity of detonation measuring equipment (5.5.2)
9 cable feed-through for the means to verify complete detonation (5.5)
Figure 1 — Example for a testing tube with blasting explosive test piece under confinement
5.2 Seal(s), that provide a watertight and airtight closure for the testing tube (5.1) and that shall be
capable to hold the applied pressure specified in accordance with EN 13631-1:2025, 4.1.6 or 6.1.4, as
applicable, when assembled with the testing tube (5.1). The seal(s) shall incorporate cable feedthroughs
to lead out the ends of the means of initiation (5.4) a
...
