SIST EN 61169-32:2005/oprA1:2026
(Amendment)Radio-frequency connectors - Part 32: RF coaxial connectors with inner diameter of outer conductor 1,85 mm (0,072 in) with screw coupling - Characteristic impedance 50 ohms (type 1,85)
General Information
- Abstract
- Status
- Not Published
- Public Enquiry End Date
- 26-Nov-2026
- Technical Committee
- MOC - Mobile Communications
- Current Stage
- 4020 - Public enquire (PE) (Adopted Project)
- Start Date
- 08-Sep-2026
- Due Date
- 26-Jan-2027
Overview
SIST EN 61169-32:2005/oprA1:2026 is a European standard developed by CLC, based on IEC 61169-32 and its Amendment 1. This standard focuses on radio-frequency (RF) coaxial connectors with an inner diameter of 1.85 mm (0.072 in) and screw coupling, designed for a characteristic impedance of 50 ohms (Type 1.85). The amendment introduces enhancements, including coverage extension for higher frequency ranges, enabling support for emerging technologies such as 5G wireless communications.
These specialized RF coaxial connectors are widely used in applications where precise impedance control and high-frequency performance are critical. The standard sets detailed technical requirements for electrical, mechanical, and environmental characteristics, ensuring consistent quality and interoperability.
Key Topics
Connector Type and Interface
- Describes RF coaxial connectors with a 1.85 mm outer conductor inner diameter and screw coupling mechanism.
- Provides compatibility for systems requiring a 50-ohm impedance, minimizing signal reflection and loss.
Frequency Spectrum Extension
- Amendment 1 increases the supported frequency range up to 71 GHz. This addresses new needs in telecommunications, particularly for 5G, that require operation above the previous 65 GHz upper limit.
- Improved reflection performance and lower insertion loss, especially for grades intended for high-frequency testing and measurement.
Grades of Connectors
- Addition of "Grade 0" connectors with enhanced electrical characteristics to meet demanding application environments, such as testing up to 71 GHz with minimal signal degradation.
Electrical and Mechanical Performance
- Specifies values for characteristic impedance, reflection factor, contact resistance, insulation resistance, and voltage proof.
- Defines requirements for mechanical strength, coupling force, vibration, shock resistance, and endurance under environmental stress.
Applications
5G Communication Systems:
- The expanded frequency range up to 71 GHz makes these connectors ideal for base stations, mobile devices, and test equipment operating in the high-frequency bands allocated to 5G NR (New Radio).
Test and Measurement Equipment:
- Precision connectors are essential for accurate signal transmission in vector network analyzers, spectrum analyzers, and other RF test systems where repeatable, high-frequency connections are required.
Microwave Devices and Circuits:
- Used extensively in microwave modules, radar, satellite communications, and other high-frequency electronic assemblies.
Laboratory and Research:
- Supports development and validation of emerging RF technologies up to the mmWave region.
Related Standards
Integrating SIST EN 61169-32:2005/oprA1:2026 into projects may require familiarity with these associated standards:
- IEC 61169-1: General requirements and measuring methods for RF connectors.
- IEC 61169-32: Original specification for 1.85 mm RF coaxial connectors.
- IEC SC 46F: Series of standards covering passive RF and microwave components.
- Other IEC 61169 Parts: Specifications for various types of RF connectors designed for different dimensions and applications (e.g., 2.4 mm, 3.5 mm interfaces).
SIST EN 61169-32:2005/oprA1:2026 establishes pivotal technical benchmarks for RF coaxial connectors used in advanced electronic and communications systems, supporting innovation and ensuring robust, high-frequency performance for the next generation of wireless technologies.
Relations
- Effective Date
- 23-Sep-2025
Get Certified
Connect with accredited certification bodies for this standard
ANCE
Mexican certification and testing association.
Intertek Slovenia
Intertek testing, inspection, and certification services in Slovenia.
LNE (Laboratoire National de Métrologie et d'Essais)
French national laboratory for metrology and testing.
Sponsored listings
Frequently Asked Questions
SIST EN 61169-32:2005/oprA1:2026 is a draft published by the Slovenian Institute for Standardization (SIST). Its full title is "Radio-frequency connectors - Part 32: RF coaxial connectors with inner diameter of outer conductor 1,85 mm (0,072 in) with screw coupling - Characteristic impedance 50 ohms (type 1,85)". This standard covers: Radio-frequency connectors - Part 32: RF coaxial connectors with inner diameter of outer conductor 1,85 mm (0,072 in) with screw coupling - Characteristic impedance 50 ohms (type 1,85)
Radio-frequency connectors - Part 32: RF coaxial connectors with inner diameter of outer conductor 1,85 mm (0,072 in) with screw coupling - Characteristic impedance 50 ohms (type 1,85)
SIST EN 61169-32:2005/oprA1:2026 is classified under the following ICS (International Classification for Standards) categories: 33.120.30 - RF connectors. The ICS classification helps identify the subject area and facilitates finding related standards.
SIST EN 61169-32:2005/oprA1:2026 has the following relationships with other standards: It is inter standard links to SIST EN 61169-32:2005. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
SIST EN 61169-32:2005/oprA1:2026 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)

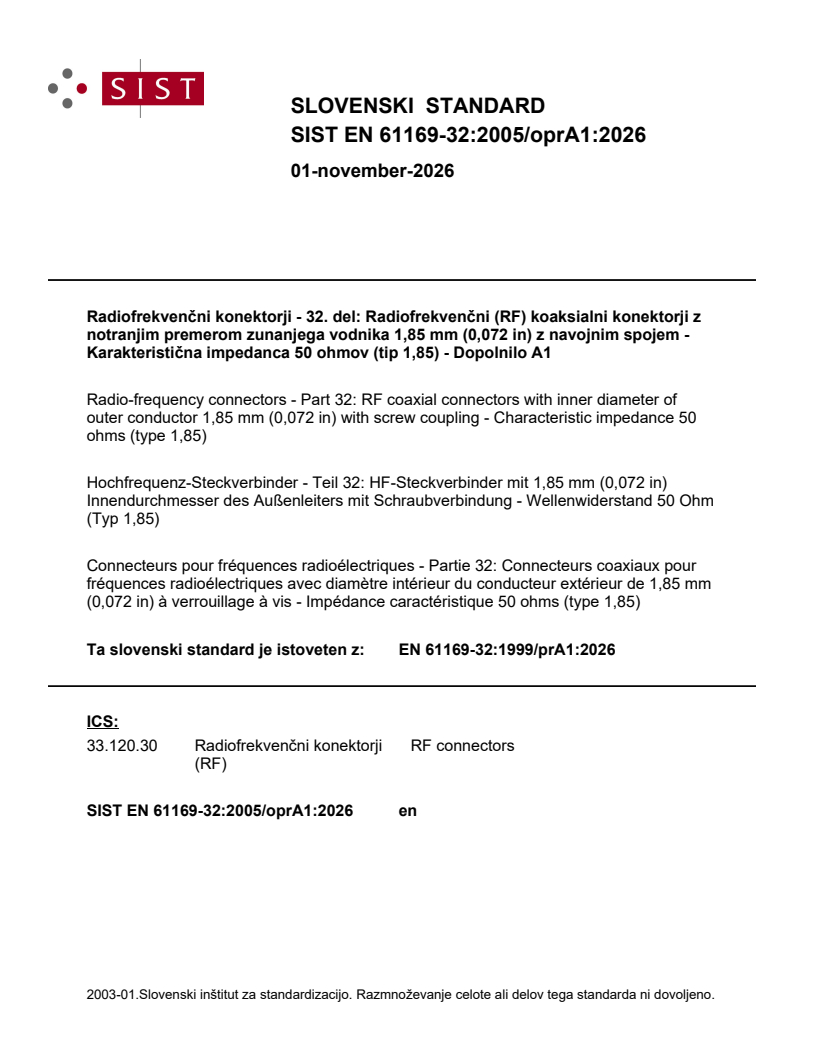

SLOVENSKI STANDARD
01-november-2026
Radiofrekvenčni konektorji - 32. del: Radiofrekvenčni (RF) koaksialni konektorji z
notranjim premerom zunanjega vodnika 1,85 mm (0,072 in) z navojnim spojem -
Karakteristična impedanca 50 ohmov (tip 1,85) - Dopolnilo A1
Radio-frequency connectors - Part 32: RF coaxial connectors with inner diameter of
outer conductor 1,85 mm (0,072 in) with screw coupling - Characteristic impedance 50
ohms (type 1,85)
Hochfrequenz-Steckverbinder - Teil 32: HF-Steckverbinder mit 1,85 mm (0,072 in)
Innendurchmesser des Außenleiters mit Schraubverbindung - Wellenwiderstand 50 Ohm
(Typ 1,85)
Connecteurs pour fréquences radioélectriques - Partie 32: Connecteurs coaxiaux pour
fréquences radioélectriques avec diamètre intérieur du conducteur extérieur de 1,85 mm
(0,072 in) à verrouillage à vis - Impédance caractéristique 50 ohms (type 1,85)
Ta slovenski standard je istoveten z: EN 61169-32:1999/prA1:2026
ICS:
33.120.30 Radiofrekvenčni konektorji RF connectors
(RF)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

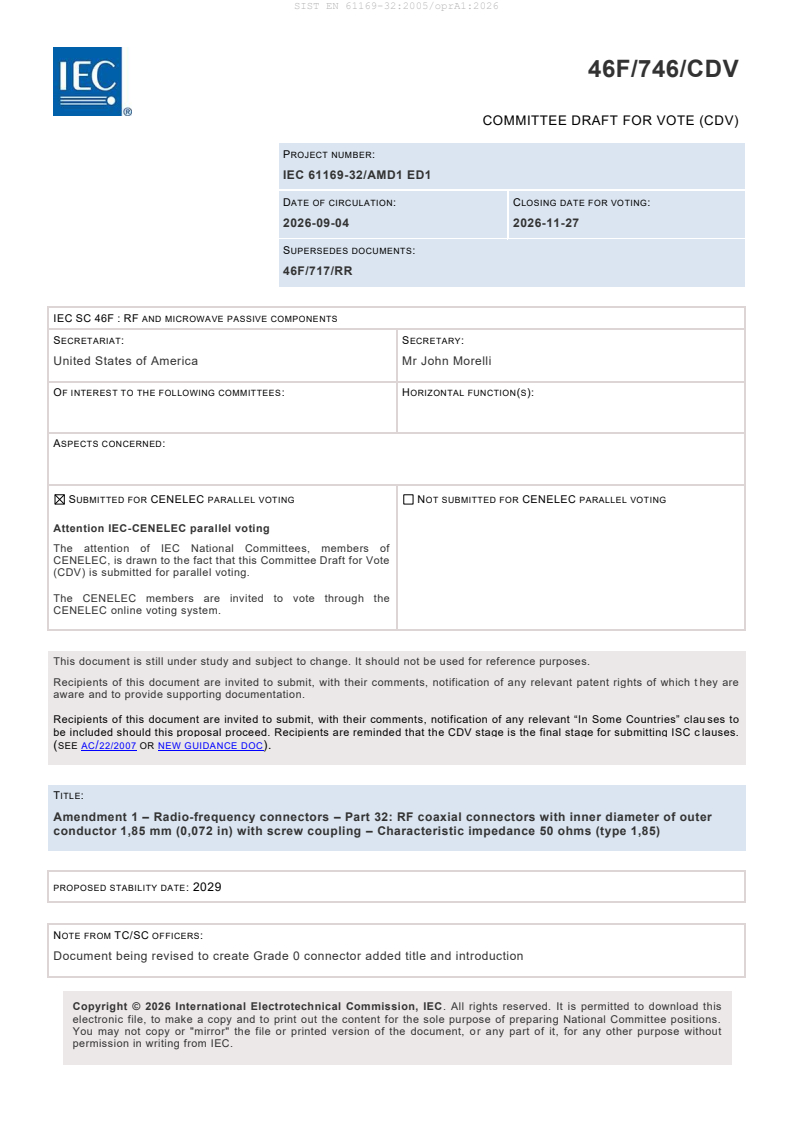

46F/746/CDV
COMMITTEE DRAFT FOR VOTE (CDV)
PROJECT NUMBER:
IEC 61169-32/AMD1 ED1
DATE OF CIRCULATION: CLOSING DATE FOR VOTING:
2026-09-04 2026-11-27
SUPERSEDES DOCUMENTS:
46F/717/RR
IEC SC 46F : RF AND MICROWAVE PASSIVE COMPONENTS
SECRETARIAT: SECRETARY:
United States of America Mr John Morelli
OF INTEREST TO THE FOLLOWING COMMITTEES: HORIZONTAL FUNCTION(S):
ASPECTS CONCERNED:
SUBMITTED FOR CENELEC PARALLEL VOTING NOT SUBMITTED FOR CENELEC PARALLEL VOTING
Attention IEC-CENELEC parallel voting
The attention of IEC National Committees, members of
CENELEC, is drawn to the fact that this Committee Draft for Vote
(CDV) is submitted for parallel voting.
The CENELEC members are invited to vote through the
CENELEC online voting system.
This document is still under study and subject to change. It should not be used for reference purposes.
Recipients of this document are invited to submit, with their comments, notification of any relevant patent rights of which t hey are
aware and to provide supporting documentation.
Recipients of this document are invited to submit, with their comments, notification of any relevant “In Some Countries” clau ses to
be included should this proposal proceed. Recipients are reminded that the CDV stage is the final stage for submitting ISC c lauses.
(SEE AC/22/2007 OR NEW GUIDANCE DOC).
TITLE:
Amendment 1 – Radio-frequency connectors – Part 32: RF coaxial connectors with inner diameter of outer
conductor 1,85 mm (0,072 in) with screw coupling – Characteristic impedance 50 ohms (type 1,85)
PROPOSED STABILITY DATE: 2029
NOTE FROM TC/SC OFFICERS:
Document being revised to create Grade 0 connector added title and introduction
electronic file, to make a copy and to print out the content for the sole purpose of preparing National Committee positions.
You may not copy or "mirror" the file or printed version of the document, or any part of it, for any other purpose without
permission in writing from IEC.
IEC CDV 61169-32:1999/AMD1 © IEC 2026

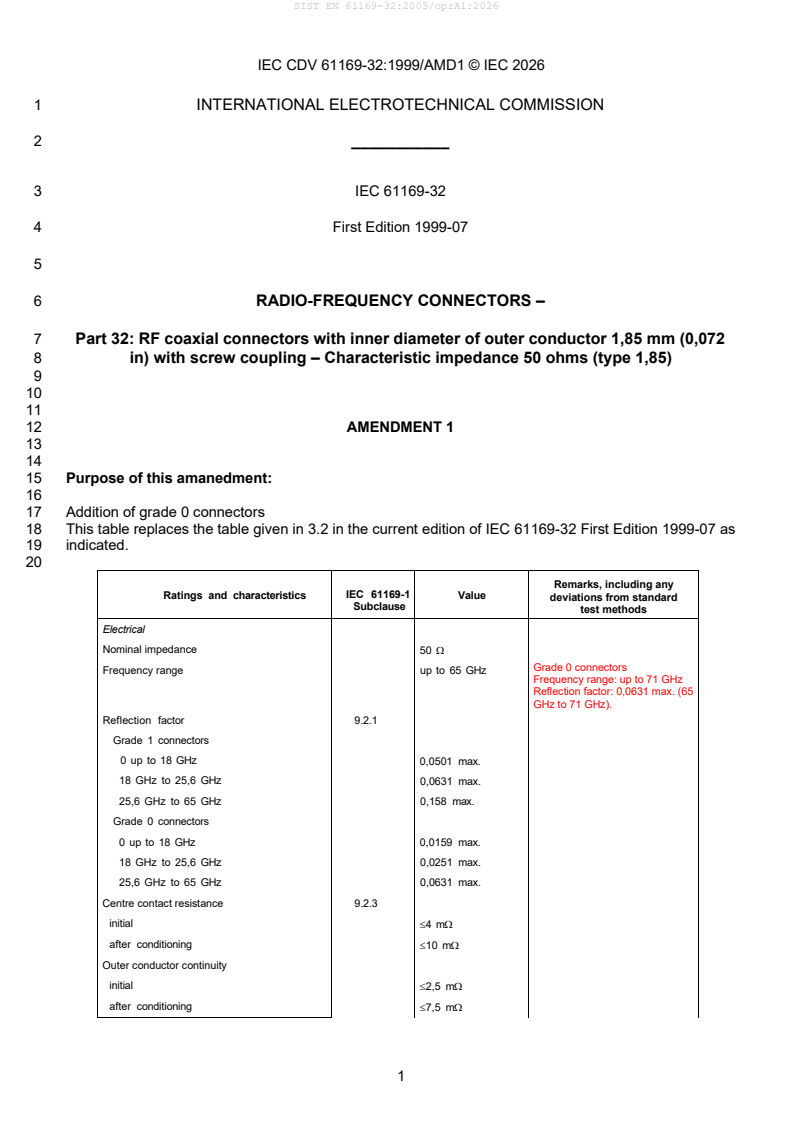

1 INTERNATIONAL ELECTROTECHNICAL COMMISSION
2 ___________
3 IEC 61169-32
4 First Edition 1999-07
6 RADIO-FREQUENCY CONNECTORS –
7 Part 32: RF coaxial connectors with inner diameter of outer conductor 1,85 mm (0,072
8 in) with screw coupling – Characteristic impedance 50 ohms (type 1,85)
12 AMENDMENT 1
15 Purpose of this amanedment:
17 Addition of grade 0 connectors
18 This table replaces the table given in 3.2 in the current edition of IEC 61169-32 First Edition 1999-07 as
19 indicated.
Remarks, including any
IEC 61169-1
Ratings and characteristics Value
deviations from standard
Subclause
test methods
Electrical
Nominal impedance 50
Grade 0 connectors
Frequency range up to 65 GHz
Frequency range: up to 71 GHz
Reflection factor: 0,0631 max. (65
GHz to 71 GHz).
Reflection factor 9.2.1
Grade 1 connectors
0 up to 18 GHz 0,0501 max.
18 GHz to 25,6 GHz
...
