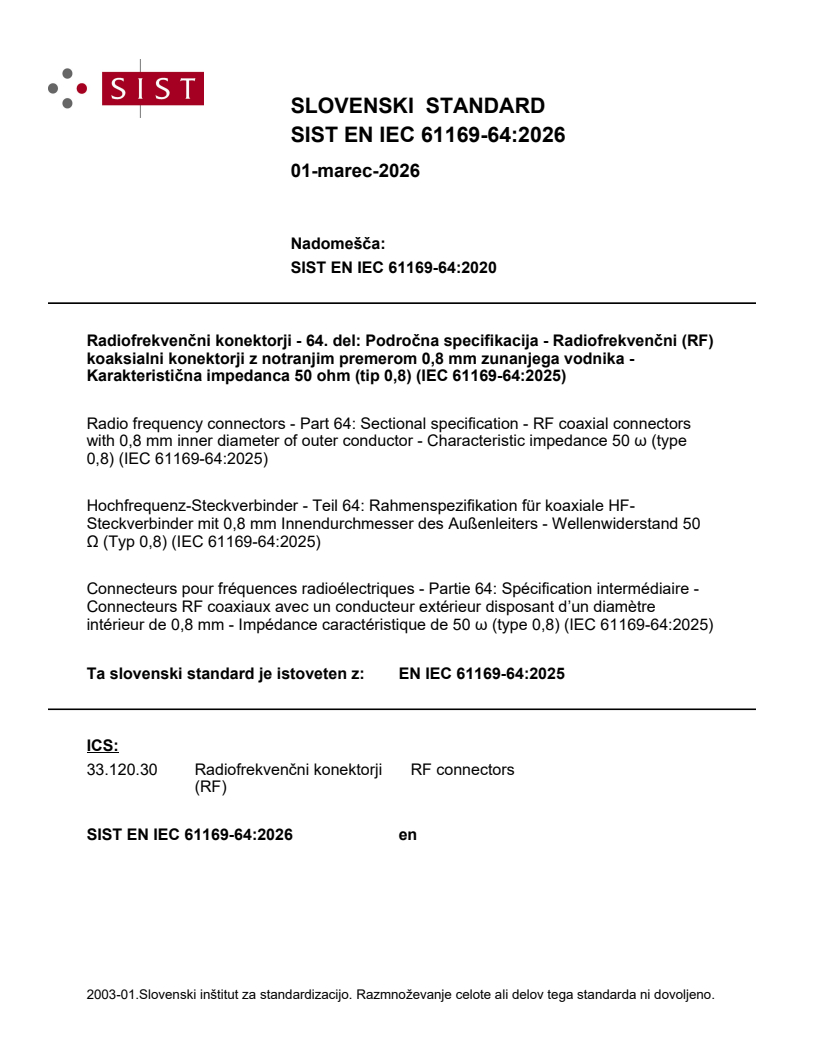

SIST EN IEC 61169-64:2026

SLOVENSKI STANDARD
01-marec-2026
Nadomešča:
SIST EN IEC 61169-64:2020
Radiofrekvenčni konektorji - 64. del: Področna specifikacija - Radiofrekvenčni (RF)
koaksialni konektorji z notranjim premerom 0,8 mm zunanjega vodnika -
Karakteristična impedanca 50 ohm (tip 0,8) (IEC 61169-64:2025)
Radio frequency connectors - Part 64: Sectional specification - RF coaxial connectors
with 0,8 mm inner diameter of outer conductor - Characteristic impedance 50 ω (type
0,8) (IEC 61169-64:2025)
Hochfrequenz-Steckverbinder - Teil 64: Rahmenspezifikation für koaxiale HF-
Steckverbinder mit 0,8 mm Innendurchmesser des Außenleiters - Wellenwiderstand 50
Ω (Typ 0,8) (IEC 61169-64:2025)
Connecteurs pour fréquences radioélectriques - Partie 64: Spécification intermédiaire -
Connecteurs RF coaxiaux avec un conducteur extérieur disposant d’un diamètre
intérieur de 0,8 mm - Impédance caractéristique de 50 ω (type 0,8) (IEC 61169-64:2025)
Ta slovenski standard je istoveten z: EN IEC 61169-64:2025
ICS:
33.120.30 Radiofrekvenčni konektorji RF connectors
(RF)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

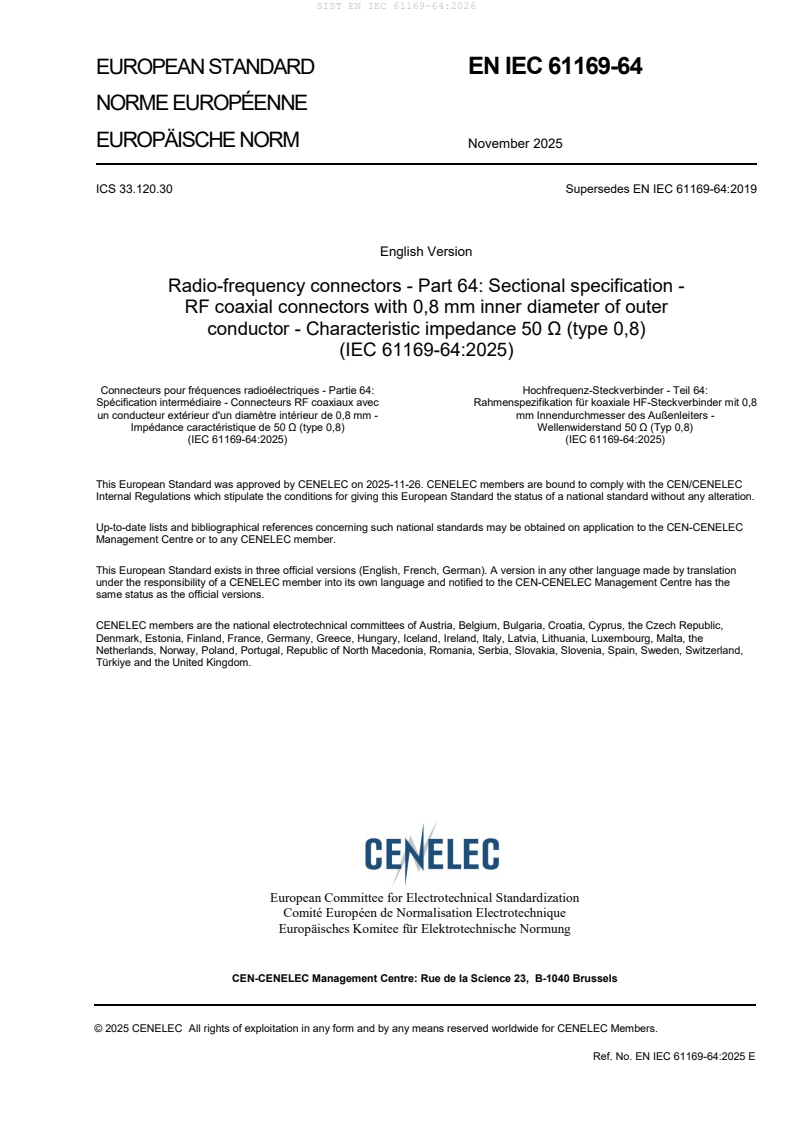

EUROPEAN STANDARD EN IEC 61169-64

NORME EUROPÉENNE
EUROPÄISCHE NORM November 2025
ICS 33.120.30 Supersedes EN IEC 61169-64:2019
English Version
Radio-frequency connectors - Part 64: Sectional specification -
RF coaxial connectors with 0,8 mm inner diameter of outer
conductor - Characteristic impedance 50 Ω (type 0,8)
(IEC 61169-64:2025)
Connecteurs pour fréquences radioélectriques - Partie 64: Hochfrequenz-Steckverbinder - Teil 64:
Spécification intermédiaire - Connecteurs RF coaxiaux avec Rahmenspezifikation für koaxiale HF-Steckverbinder mit 0,8
un conducteur extérieur d'un diamètre intérieur de 0,8 mm - mm Innendurchmesser des Außenleiters -
Impédance caractéristique de 50 Ω (type 0,8) Wellenwiderstand 50 Ω (Typ 0,8)
(IEC 61169-64:2025) (IEC 61169-64:2025)
This European Standard was approved by CENELEC on 2025-11-26. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2025 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 61169-64:2025 E

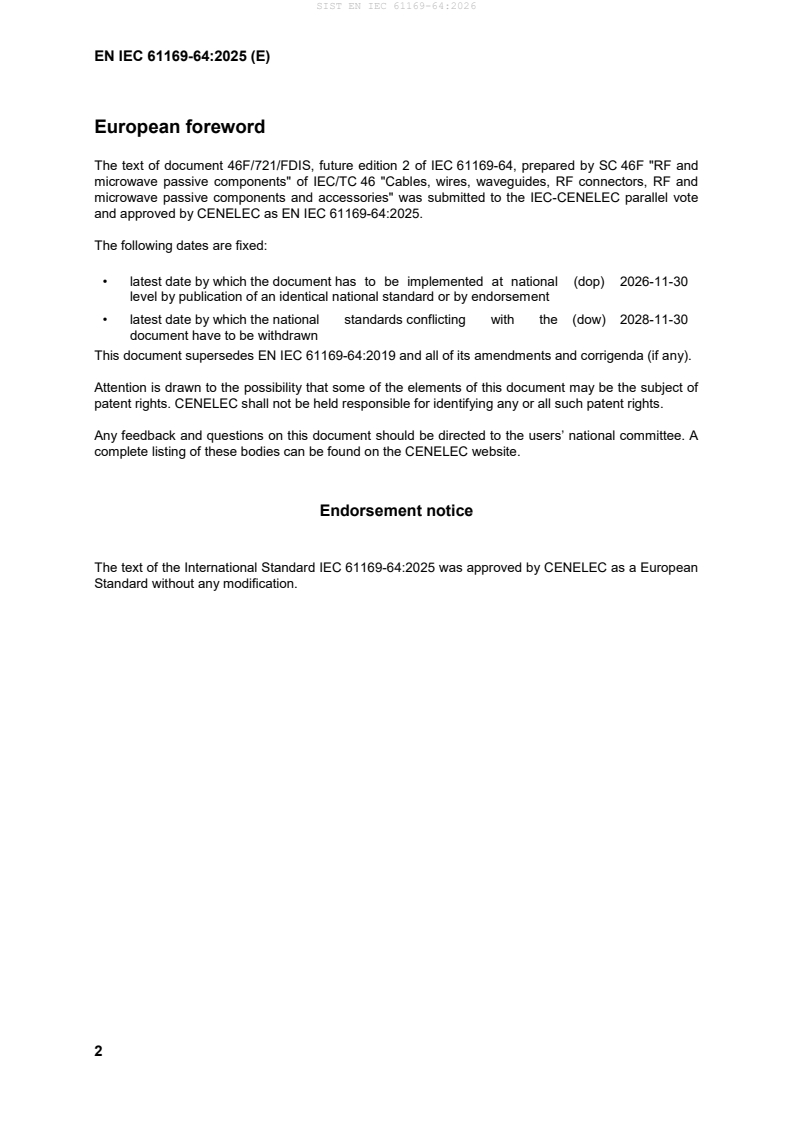

European foreword
The text of document 46F/721/FDIS, future edition 2 of IEC 61169-64, prepared by SC 46F "RF and
microwave passive components" of IEC/TC 46 "Cables, wires, waveguides, RF connectors, RF and
microwave passive components and accessories" was submitted to the IEC-CENELEC parallel vote
and approved by CENELEC as EN IEC 61169-64:2025.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2026-11-30
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2028-11-30
document have to be withdrawn
This document supersedes EN IEC 61169-64:2019 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 61169-64:2025 was approved by CENELEC as a European
Standard without any modification.
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1  Where an International Publication has been modified by common modifications, indicated by (mod),
the relevant EN/HD applies.
NOTE 2  Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cencenelec.eu.
Publication Year Title EN/HD Year
IEC 61169-1 2013 Radio frequency connectors - Part 1: EN 61169-1 2013
Generic specification - General
requirements and measuring methods

IEC 61169-64 ®
Edition 2.0 2025-10
INTERNATIONAL
STANDARD
Radio-frequency connectors -
Part 64: Sectional specification - RF coaxial connectors with 0,8 mm inner
diameter of outer conductor - Characteristic impedance 50 Ω (type 0,8)
ICS 33.120.30  ISBN 978-2-8327-0775-3

IEC 61169-64:2025-10(en)
IEC 61169-64:2025 © IEC 2025
CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Mating face and gauge information . 6
4.1 Material . 6
4.2 Reference position . 6
4.3 Datum system . 6
4.4 Dimensions – High performance connector – Grade 1 . 6
4.4.1 Connector with pin centre contact – Grade 1 . 6
4.4.2 Connector with socket centre contact – Grade 1 . 7
4.5 Dimensions – Standard test connector – Grade 0 . 9
4.5.1 Connector with pin centre contact – Grade 0 . 9
4.5.2 Connector with socket centre contact – Grade 0 . 10
4.6 Optional design of coupling nut . 11
4.7 Gauging of socket centre contacts . 11
4.7.1 Gauge pins . 11
4.7.2 Test sequence . 12
5 Quality assessment procedures . 12
5.1 General . 12
5.2 Ratings and characteristics . 12
5.3 Test schedule and inspection requirements . 14
5.3.1 Acceptance tests . 14
5.3.2 Periodic tests . 14
5.4 Procedures for quality conformance . 14
5.4.1 Quality conformance inspection . 14
5.4.2 Quality conformance and its maintenance . 14
6 Instructions for preparation of detail specifications . 14
6.1 General . 14
6.2 Identification of the component . 14
6.3 Performance . 14
6.4 Marking, ordering information and related matters . 14
6.5 Selection of tests, test conditions and severities . 14
6.6 Blank detail specification pro-forma for type 0,8 connectors . 14
7 Marking . 15
7.1 Marking of component . 15
7.2 Marking and contents of package . 15
Bibliography . 16

Figure 1 – Connector with pin centre contact – Grade 1 . 7
Figure 2 – Connector with socket centre contact – Grade 1 . 8
Figure 3 – Connector with pin centre contact – Grade 0 . 9
Figure 4 – Connector with socket centre contact – Grade 0 . 10
Figure 5 – Optional design of coupling nut . 11
Figure 6 – Gauge pin for socket centre contact . 11
IEC 61169-64:2025 © IEC 2025
Table 1 – Dimensions of connector with pin centre contact – Grade 1 . 7
Table 2 – Dimensions of connector with socket centre contact – Grade 1 . 8
Table 3 – Dimensions of connector with pin centre contact – Grade 0 . 9
Table 4 – Dimensions of connector with socket centre contact – Grade 0 . 10
Table 5 – Dimensions of gauge pins for socket centre contact . 11
Table 6 – Ratings and characteristics . 12

IEC 61169-64:2025 © IEC 2025
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
Radio-frequency connectors -
Part 64: Sectional specification -
RF coaxial connectors with 0,8 mm inner diameter of outer conductor -
Characteristic impedance 50 Ω (type 0,8)

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC Publication(s)"). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
shall not be held responsible for identifying any or all such patent rights.
IEC 61169-64 has been prepared by subcommittee 46F: RF and microwave passive
components, of IEC technical committee 46: Cables, wires, waveguides, RF connectors, RF
and microwave passive components and accessories. It is an International Standard.
This second edition cancels and replaces the first edition published in 2019. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) upgrading of the inferior connector class to a grade 1 "high performance connector";
b) alignment of the mating face dimensions as well as the ratings and characteristics with the
precision 0,8 mm connectors specified in the IEEE 287.1-2021 and IEEE 287.3-2021
standards;
IEC 61169-64:2025 © IEC 2025
c) figures: true-to-scale design; change of datum system for tolerances; introduction of an
additional dimension;
d) gauge pins: correction of dimensions and test procedures;
e) simplification of the clauses on quality assessment (Clause 5), preparation of a detail
specification (Clause 6), and marking (Clause 7) by making direct reference to the generic
specification IEC 61169-1;
f) introduction of an optional design for the coupling nut.
The text of this International Standard is based on the following documents:
Draf
...
