SIST ES 204 915-7 V1.1.1:2008

ETSI Standard
Open Service Access (OSA);
Application Programming Interface (API);
Part 7: Terminal Capabilities SCF
(Parlay 6)
�

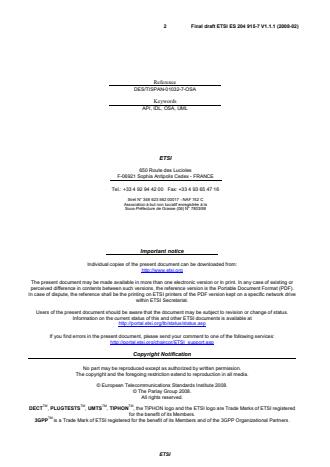

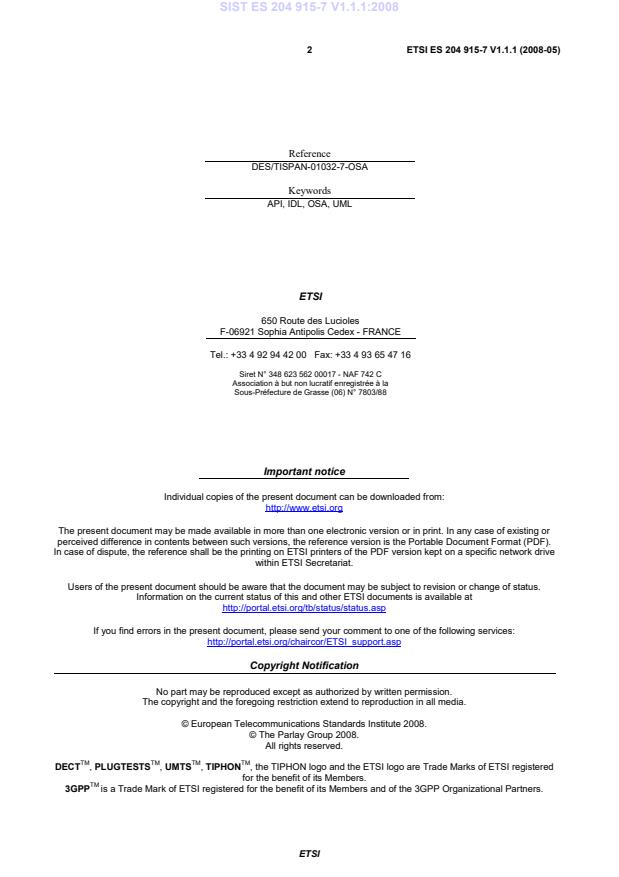

2 ETSI ES 204 915-7 V1.1.1 (2008-05)

Reference
DES/TISPAN-01032-7-OSA
Keywords
API, IDL, OSA, UML
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: +33 4 92 94 42 00  Fax: +33 4 93 65 47 16

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.

© European Telecommunications Standards Institute 2008.
© The Parlay Group 2008.
All rights reserved.
TM TM TM TM
DECT , PLUGTESTS , UMTS , TIPHON , the TIPHON logo and the ETSI logo are Trade Marks of ETSI registered
for the benefit of its Members.
TM
3GPP is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners.
ETSI
3 ETSI ES 204 915-7 V1.1.1 (2008-05)
Contents
Intellectual Property Rights.5
Foreword.5
1 Scope.6
2 References.6
3 Definitions and abbreviations.6
3.1 Definitions.6
3.2 Abbreviations.6
4 Terminal Capabilities SCF .6
4.1 General requirements on support of methods.7
5 Sequence Diagrams.7
5.1 Terminal capabilities example.7
6 Class Diagrams.9
7 The Service Interface Specifications.10
7.1 Interface Specification Format .10
7.1.1 Interface Class.10
7.1.2 Method descriptions.10
7.1.3 Parameter descriptions.10
7.1.4 State Model.10
7.2 Base Interface.10
7.2.1 Interface Class IpInterface .10
7.3 Service Interfaces.11
7.3.1 Overview.11
7.4 Generic Service Interface .11
7.4.1 Interface Class IpService .11
7.4.1.1 Method setCallback().11
7.4.1.2 Method setCallbackWithSessionID().11
8 Terminal Capabilities Interface Classes .12
8.1 Interface Class IpTerminalCapabilities .12
8.1.1 Method getTerminalCapabilities().12
8.2 Interface Class IpExtendedTerminalCapabilities .13
8.2.1 Method triggeredTerminalCapabilityStartReq().13
8.2.2 Method triggeredTerminalCapabilityStop().14
8.3 Interface Class IpAppExtendedTerminalCapabilities .14
8.3.1 Method triggeredTerminalCapabilityReport().15
8.3.2 Method triggeredTerminalCapabilityReportErr().15
9 State Transition Diagrams.16
10 Service Properties.16
11 Terminal Capabilities Data Definitions.16
11.1 terminalIdentity.16
11.2 TpTerminalCapabilities.16
11.3 TpTerminalCapabilitiesError .17
11.4 TpTerminalCapabilityChangeCriteria.17
11.5 TpTerminalCapabilityScopeType.17
11.6 TpTerminalCapabilityScope.17
12 Exception Classes.18
Annex A (normative): OMG IDL Description of Terminal Capabilities SCF .19
Annex B (informative): W3C WSDL Description of Terminal Capabilities SCF.20
ETSI

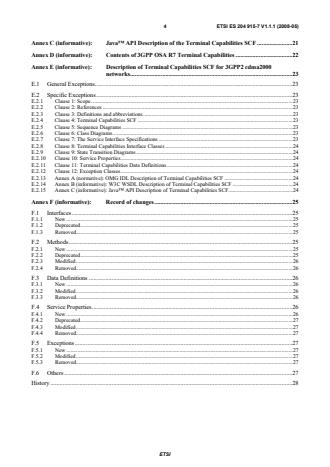

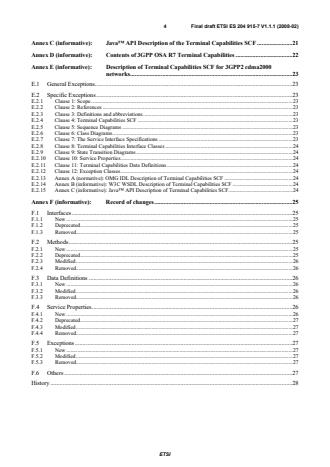

4 ETSI ES 204 915-7 V1.1.1 (2008-05)
Annex C (informative): Java™ API Description of the Terminal Capabilities SCF .21
Annex D (informative): Contents of 3GPP OSA R7 Terminal Capabilities .22
Annex E (informative): Description of Terminal Capabilities SCF for 3GPP2 cdma2000
networks.23
E.1 General Exceptions.23
E.2 Specific Exceptions.23
E.2.1 Clause 1: Scope .23
E.2.2 Clause 2: References .23
E.2.3 Clause 3: Definitions and abbreviations.23
E.2.4 Clause 4: Terminal Capabilities SCF .23
E.2.5 Clause 5: Sequence Diagrams .23
E.2.6 Clause 6: Class Diagrams.23
E.2.7 Clause 7: The Service Interface Specifications .23
E.2.8 Clause 8: Terminal Capabilities Interface Classes .24
E.2.9 Clause 9: State Transition Diagrams .24
E.2.10 Clause 10: Service Properties.24
E.2.11 Clause 11: Terminal Capabilities Data Definitions .24
E.2.12 Clause 12: Exception Classes.24
E.2.13 Annex A (normative): OMG IDL Description of Terminal Capabilities SCF .24
E.2.14 Annex B (informative): W3C WSDL Description of Terminal Capabilities SCF .24
E.2.15 Annex C (informative): Java™ API Description of Terminal Capabilities SCF.24
Annex F (informative): Record of changes .25
F.1 Interfaces.25
F.1.1 New.25
F.1.2 Deprecated.25
F.1.3 Removed.25
F.2 Methods.25
F.2.1 New.25
F.2.2 Deprecated.25
F.2.3 Modified.26
F.2.4 Removed.26
F.3 Data Definitions.26
F.3.1 New.26
F.3.2 Modified.26
F.3.3 Removed.26
F.4 Service Properties.26
F.4.1 New.26
F.4.2 Deprecated.27
F.4.3 Modified.27
F.4.4 Removed.27
F.5 Exceptions.27
F.5.1 New.27
F.5.2 Modified.27
F.5.3 Removed.27
F.6 Others.27
History .28

ETSI
5 ETSI ES 204 915-7 V1.1.1 (2008-05)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://webapp.etsi.org/IPR/home.asp).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This ETSI Standard (ES) has been produced by ETSI Technical Committee Telecommunications and Internet
converged Services and Protocols for Advanced Networking (TISPAN).
The present document is part 7 of a multi-part deliverable covering Open Service Access (OSA); Application
Programming Interface (API), as identified below. The API specification (ES 204 915) is structured in the following
parts:
Part 1: "Overview";
Part 2: "Common Data Definitions";
Part 3: "Framework";
Part 4: "Call Control";
Part 5: "User Interaction SCF";
Part 6: "Mobility SCF";
Part 7: "Terminal Capabilities SCF";
Part 8: "Data Session Control SCF";
Part 9: "Generic Messaging SCF";
Part 10: "Connectivity Manager SCF";
Part 11: "Account Management SCF";
Part 12: "Charging SCF";
Part 13: "Policy Management SCF";
Part 14: "Presence and Availability Management SCF";
Part 15: "Multi-Media Messaging SCF"
Part 16: "Service Broker SCF".
The present document has been defined jointly between ETSI, The Parlay Group (http://www.parlay.org) and the 3GPP,
in co-operation with a number of JAIN™ Community (http://www.java.sun.com/products/jain) member companies.
The present document forms part of the Parlay 6.0 set of specifications.
The present document is equivalent to 3GPP TS 29.198-7 V7.0.0 (Release 7).
ETSI
6 ETSI ES 204 915-7 V1.1.1 (2008-05)
1 Scope
The present document is part 7 of the Stage 3 specification for an Application Programming Interface (API) for Open
Service Access (OSA).
The OSA specifications define an architecture that enables application developers to make use of network functionality
through an open standardised interface, i.e. the OSA APIs.
The present document specifies the Terminal Capabilities Service Capability Feature (SCF) aspects of the interface. All
aspects of the Terminal Capabilities SCF are defined here, these being:
• Sequence Diagrams.
• Class Diagrams.
• Interface specification plus detailed method descriptions.
• State Transition diagrams.
• Data Definitions.
• IDL Description of the interfaces.
• WSDL Description of the interfaces.
The process by which this task is accomplished is through the use of object modelling techniques described by the
Unified Modelling Language (UML).
2 References
The references listed in clause 2 of ES 204 915-1 contain provisions which, through reference in this text, constitute
provisions of the present document.
ETSI ES 204 915-1: "Open Service Access (OSA); Application Programming Interface (API); Part 1: Overview
(Parlay 6)".
3 Definitions and abbreviations
3.1 Definitions
For the purposes of the present document, the terms and definitions given in ES 204 915-1 apply.
3.2 Abbreviations
For the purposes of the present document, the abbreviations given in ES 204 915-1 apply.
4 Terminal Capabilities SCF
The following clauses describe each aspect of the Terminal Capabilities Capability Feature (SCF).
The order is as follows:
• The Sequence diagrams give the reader a practical idea of how each of the SCF is implemented.
• The Class relationships clause shows how each of the interfaces applicable to the SCF, relate to one another.
ETSI
7 ETSI ES 204 915-7 V1.1.1 (2008-05)
• The Interface specification clause describes in detail each of the interfaces shown within the Class diagram
part.
• The State Transition Diagrams (STD) show the transition between states in the SCF. The states and transitions
are well-defined; either methods specified in the Interface specification or events occurring in the underlying
networks cause state transitions.
• The Data Definitions clause shows a detailed expansion of each of the data types associated with the methods
within the classes. Note that some data types are used in other methods and classes and are therefore defined
within the Common Data types part ES 204 915-2.
4.1 General requirements on support of methods
An implementation of this API which supports or implements a method described in the present document, shall
support or implement the functionality described for that method, for at least one valid set of values for the parameters
of that method.
Where a method is not supported by an implementation of a Service interface, the exception
P_METHOD_NOT_SUPPORTED shall be returned to any call of that method.
Where a method is not supported by an implementation of an Application interface, a call to that method shall be
possible, and no exception shall be returned.
5 Sequence Diagrams
5.1 Terminal capabilities example
The following example sequence diagram illustrates how the terminal capabilities can be retrieved and their changes
monitored.
ETSI
8 ETSI ES 204 915-7 V1.1.1 (2008-05)
Application : : :
IpAppExtendedTerminalCapabilities IpTerminalCapabilities IpExtendedTerminalCapabilities
1: getTerminalCapability( )
2: new( )
3: triggeredTerminalCapabilityStartReq(  )
4: triggeredTerminalCapabilityReport(  )
5: forward notification
6: triggeredTerminalCapabilityReport(  )
7: forward notification
8: triggeredTerminalCapabilityReportErr(  )
9: forward error
10: triggeredTerminalCapabilityReport(  )
11: forward notification
12: triggeredTerminalCapabilityStop( )

1: The application retrieves the terminal capability of a terminal.
2: The application creates an object to implement IpAppExtendedTerminalCapabilities.
3: The terminal capabilities changes are started to be monitored.
4: The terminal capabilities have changed and they are reported as requested.
5: The report is forwarded internally to the application.
6: The terminal capabilities have changed and they are reported as requested.
7: The report is forwarded internally to the application.
8: An error has happened in the monitoring and it is reported.
9: The error report is forwarded internally to the application.
10: The terminal capabilities have changed and they are reported as requested.
11: The report is forwarded internally to the application.
12: The terminal capability monitoring is stopped.
ETSI
9 ETSI ES 204 915-7 V1.1.1 (2008-05)
6 Class Diagrams
Terminal Capabilities Class Diagram:
<>
IpInterface
(from csapi)
<>
IpAppExtendedTerminalCapabilities
(from termcap)
triggeredTerminalCapabilityReport()
triggeredTerminalCapabilityReportErr()
<>
<>
IpExtendedTerminalCapabilities
(from termcap)
triggeredTerminalCapabilityStartReq()
triggeredTerminalCapabilityStop()
<>
IpTerminalCapabilities
(from termcap)
getTerminalCapabilities()
<>
IpService
(from csapi)
setCallback()
setCallbackWithSessionID()
Figure 1: Terminal Capabilities Class Diagram
ETSI
10 ETSI ES 204 915-7 V1.1.1 (2008-05)
7 The Service Interface Specifications
7.1 Interface Specification Format
This clause defines the interfaces, methods and parameters that form a part of the API specification. The Unified
Modelling Language (UML) is used to specify the interface classes. The general format of an interface specification is
described below.
7.1.1 Interface Class
This shows a UML interface class description of the methods supported by that interface, and the relevant parameters
...

SLOVENSKI STANDARD
01-september-2008
Odprti dostop do storitve (OSA) - Aplikacijski programski vmesnik (API) - 7. del:
Lastnost storitvene zmožnosti (SCF) za zmožnosti terminalov (Parlay 6)
Open Service Access (OSA) - Application Programming Interface (API) - Part 7: Terminal
Capabilities SCF (Parlay 6)
Ta slovenski standard je istoveten z: ES 204 915-7 Version 1.1.1
ICS:
35.100.01 Medsebojno povezovanje Open systems
odprtih sistemov na splošno interconnection in general
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

ETSI Standard
Open Service Access (OSA);
Application Programming Interface (API);
Part 7: Terminal Capabilities SCF
(Parlay 6)
�
2 ETSI ES 204 915-7 V1.1.1 (2008-05)

Reference
DES/TISPAN-01032-7-OSA
Keywords
API, IDL, OSA, UML
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: +33 4 92 94 42 00  Fax: +33 4 93 65 47 16

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.

© European Telecommunications Standards Institute 2008.
© The Parlay Group 2008.
All rights reserved.
TM TM TM TM
DECT , PLUGTESTS , UMTS , TIPHON , the TIPHON logo and the ETSI logo are Trade Marks of ETSI registered
for the benefit of its Members.
TM
3GPP is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners.
ETSI
3 ETSI ES 204 915-7 V1.1.1 (2008-05)
Contents
Intellectual Property Rights.5
Foreword.5
1 Scope.6
2 References.6
3 Definitions and abbreviations.6
3.1 Definitions.6
3.2 Abbreviations.6
4 Terminal Capabilities SCF .6
4.1 General requirements on support of methods.7
5 Sequence Diagrams.7
5.1 Terminal capabilities example.7
6 Class Diagrams.9
7 The Service Interface Specifications.10
7.1 Interface Specification Format .10
7.1.1 Interface Class.10
7.1.2 Method descriptions.10
7.1.3 Parameter descriptions.10
7.1.4 State Model.10
7.2 Base Interface.10
7.2.1 Interface Class IpInterface .10
7.3 Service Interfaces.11
7.3.1 Overview.11
7.4 Generic Service Interface .11
7.4.1 Interface Class IpService .11
7.4.1.1 Method setCallback().11
7.4.1.2 Method setCallbackWithSessionID().11
8 Terminal Capabilities Interface Classes .12
8.1 Interface Class IpTerminalCapabilities .12
8.1.1 Method getTerminalCapabilities().12
8.2 Interface Class IpExtendedTerminalCapabilities .13
8.2.1 Method triggeredTerminalCapabilityStartReq().13
8.2.2 Method triggeredTerminalCapabilityStop().14
8.3 Interface Class IpAppExtendedTerminalCapabilities .14
8.3.1 Method triggeredTerminalCapabilityReport().15
8.3.2 Method triggeredTerminalCapabilityReportErr().15
9 State Transition Diagrams.16
10 Service Properties.16
11 Terminal Capabilities Data Definitions.16
11.1 terminalIdentity.16
11.2 TpTerminalCapabilities.16
11.3 TpTerminalCapabilitiesError .17
11.4 TpTerminalCapabilityChangeCriteria.17
11.5 TpTerminalCapabilityScopeType.17
11.6 TpTerminalCapabilityScope.17
12 Exception Classes.18
Annex A (normative): OMG IDL Description of Terminal Capabilities SCF .19
Annex B (informative): W3C WSDL Description of Terminal Capabilities SCF.20
ETSI
4 ETSI ES 204 915-7 V1.1.1 (2008-05)
Annex C (informative): Java™ API Description of the Terminal Capabilities SCF .21
Annex D (informative): Contents of 3GPP OSA R7 Terminal Capabilities .22
Annex E (informative): Description of Terminal Capabilities SCF for 3GPP2 cdma2000
networks.23
E.1 General Exceptions.23
E.2 Specific Exceptions.23
E.2.1 Clause 1: Scope .23
E.2.2 Clause 2: References .23
E.2.3 Clause 3: Definitions and abbreviations.23
E.2.4 Clause 4: Terminal Capabilities SCF .23
E.2.5 Clause 5: Sequence Diagrams .23
E.2.6 Clause 6: Class Diagrams.23
E.2.7 Clause 7: The Service Interface Specifications .23
E.2.8 Clause 8: Terminal Capabilities Interface Classes .24
E.2.9 Clause 9: State Transition Diagrams .24
E.2.10 Clause 10: Service Properties.24
E.2.11 Clause 11: Terminal Capabilities Data Definitions .24
E.2.12 Clause 12: Exception Classes.24
E.2.13 Annex A (normative): OMG IDL Description of Terminal Capabilities SCF .24
E.2.14 Annex B (informative): W3C WSDL Description of Terminal Capabilities SCF .24
E.2.15 Annex C (informative): Java™ API Description of Terminal Capabilities SCF.24
Annex F (informative): Record of changes .25
F.1 Interfaces.25
F.1.1 New.25
F.1.2 Deprecated.25
F.1.3 Removed.25
F.2 Methods.25
F.2.1 New.25
F.2.2 Deprecated.25
F.2.3 Modified.26
F.2.4 Removed.26
F.3 Data Definitions.26
F.3.1 New.26
F.3.2 Modified.26
F.3.3 Removed.26
F.4 Service Properties.26
F.4.1 New.26
F.4.2 Deprecated.27
F.4.3 Modified.27
F.4.4 Removed.27
F.5 Exceptions.27
F.5.1 New.27
F.5.2 Modified.27
F.5.3 Removed.27
F.6 Others.27
History .28

ETSI
5 ETSI ES 204 915-7 V1.1.1 (2008-05)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://webapp.etsi.org/IPR/home.asp).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This ETSI Standard (ES) has been produced by ETSI Technical Committee Telecommunications and Internet
converged Services and Protocols for Advanced Networking (TISPAN).
The present document is part 7 of a multi-part deliverable covering Open Service Access (OSA); Application
Programming Interface (API), as identified below. The API specification (ES 204 915) is structured in the following
parts:
Part 1: "Overview";
Part 2: "Common Data Definitions";
Part 3: "Framework";
Part 4: "Call Control";
Part 5: "User Interaction SCF";
Part 6: "Mobility SCF";
Part 7: "Terminal Capabilities SCF";
Part 8: "Data Session Control SCF";
Part 9: "Generic Messaging SCF";
Part 10: "Connectivity Manager SCF";
Part 11: "Account Management SCF";
Part 12: "Charging SCF";
Part 13: "Policy Management SCF";
Part 14: "Presence and Availability Management SCF";
Part 15: "Multi-Media Messaging SCF"
Part 16: "Service Broker SCF".
The present document has been defined jointly between ETSI, The Parlay Group (http://www.parlay.org) and the 3GPP,
in co-operation with a number of JAIN™ Community (http://www.java.sun.com/products/jain) member companies.
The present document forms part of the Parlay 6.0 set of specifications.
The present document is equivalent to 3GPP TS 29.198-7 V7.0.0 (Release 7).
ETSI
6 ETSI ES 204 915-7 V1.1.1 (2008-05)
1 Scope
The present document is part 7 of the Stage 3 specification for an Application Programming Interface (API) for Open
Service Access (OSA).
The OSA specifications define an architecture that enables application developers to make use of network functionality
through an open standardised interface, i.e. the OSA APIs.
The present document specifies the Terminal Capabilities Service Capability Feature (SCF) aspects of the interface. All
aspects of the Terminal Capabilities SCF are defined here, these being:
• Sequence Diagrams.
• Class Diagrams.
• Interface specification plus detailed method descriptions.
• State Transition diagrams.
• Data Definitions.
• IDL Description of the interfaces.
• WSDL Description of the interfaces.
The process by which this task is accomplished is through the use of object modelling techniques described by the
Unified Modelling Language (UML).
2 References
The references listed in clause 2 of ES 204 915-1 contain provisions which, through reference in this text, constitute
provisions of the present document.
ETSI ES 204 915-1: "Open Service Access (OSA); Application Programming Interface (API); Part 1: Overview
(Parlay 6)".
3 Definitions and abbreviations
3.1 Definitions
For the purposes of the present document, the terms and definitions given in ES 204 915-1 apply.
3.2 Abbreviations
For the purposes of the present document, the abbreviations given in ES 204 915-1 apply.
4 Terminal Capabilities SCF
The following clauses describe each aspect of the Terminal Capabilities Capability Feature (SCF).
The order is as follows:
• The Sequence diagrams give the reader a practical idea of how each of the SCF is implemented.
• The Class relationships clause shows how each of the interfaces applicable to the SCF, relate to one another.
ETSI
7 ETSI ES 204 915-7 V1.1.1 (2008-05)
• The Interface specification clause describes in detail each of the interfaces shown within the Class diagram
part.
• The State Transition Diagrams (STD) show the transition between states in the SCF. The states and transitions
are well-defined; either methods specified in the Interface specification or events occurring in the underlying
networks cause state transitions.
• The Data Definitions clause shows a detailed expansion of each of the data types associated with the methods
within the classes. Note that some data types are used in other methods and classes and are therefore defined
within the Common Data types part ES 204 915-2.
4.1 General requirements on support of methods
An implementation of this API which supports or implements a method described in the present document, shall
support or implement the functionality described for that method, for at least one valid set of values for the parameters
of that method.
Where a method is not supported by an implementation of a Service interface, the exception
P_METHOD_NOT_SUPPORTED shall be returned to any call of that method.
Where a method is not supported by an implementation of an Application interface, a call to that method shall be
possible, and no exception shall be returned.
5 Sequence Diagrams
5.1 Terminal capabilities example
The following example sequence diagram illustrates how the terminal capabilities can be retrieved and their changes
monitored.
ETSI
8 ETSI ES 204 915-7 V1.1.1 (2008-05)
Application : : :
IpAppExtendedTerminalCapabilities IpTerminalCapabilities IpExtendedTerminalCapabilities
1: getTerminalCapability( )
2: new( )
3: triggeredTerminalCapabilityStartReq(  )
4: triggeredTerminalCapabilityReport(  )
5: forward notification
6: triggeredTerminalCapabilityReport(  )
7: forward notification
8: triggeredTerminalCapabilityReportErr(  )
9: forward error
10: triggeredTerminalCapabilityReport(  )
11: forward notification
12: triggeredTerminalCapabilityStop( )

1: The application retrieves the terminal capability of a terminal.
2: The application creates an object to implement IpAppExtendedTerminalCapabilities.
3: The terminal capabilities changes are started to be monitored.
4: The terminal capabilities have changed and they are reported as requested.
5: The report is forwarded internally to the application.
6: The terminal capabilities have changed and they are reported as requested.
7: The report is forwarded internally to the application.
8: An error has happened in the monitoring and it is reported.
9: The error report is forwarded internally to the application.
10: The terminal capabilities have changed and they are reported as requested.
11: The report is forwarded internally to the application.
12: The terminal capability monitoring is stopped.
ETSI
9 ETSI ES 204 915-7 V1.1.1 (2008-05)
6 Class Diagrams
Terminal Capabilities Class Diagram:
<>
IpInterface
(from csapi)
<>
IpAppExtendedTerminalCapabilities
(from termcap)
triggeredTerminalCapabilityReport()
triggeredTerminalCapabilityReportErr()
<>
<>
IpExtendedTerminalCapabilities
(from termcap)
triggeredTerminalCapabilityStartReq()
triggeredTerminalCapabilityStop()
<>
IpTerminalCapabilities
(from termcap)
getTerminalCapabilities()
<>
IpService
(from csapi)
setCallback()
setCallbackWithSessionID()
Figure 1: Terminal Capabilities Class Diagram
ETSI
10 ETSI ES 204 915-7 V1.1.1 (2008-05)
7 The Service Interface Specifications
7.1 Interface Specification Format
This clause defines the interfaces, methods and parameters that form a part of the API specification. The Unified
Modelling Langu
...
