SIST EN 301 213-3 V1.4.1:2003

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.UD]GHOMHQLPFixed Radio Systems; Point-to-multipoint equipment; Point-to-multipoint digital radio systems in frequency bands in the range 24,25 GHz to 29,5 GHz using different access methods; Part 3: Time Division Multiple Access (TDMA) methods33.060.30Radiorelejni in fiksni satelitski komunikacijski sistemiRadio relay and fixed satellite communications systemsICS:Ta slovenski standard je istoveten z:EN 301 213-3 Version 1.4.1SIST EN 301 213-3 V1.4.1:2003en01-december-2003SIST EN 301 213-3 V1.4.1:2003SLOVENSKI
STANDARD

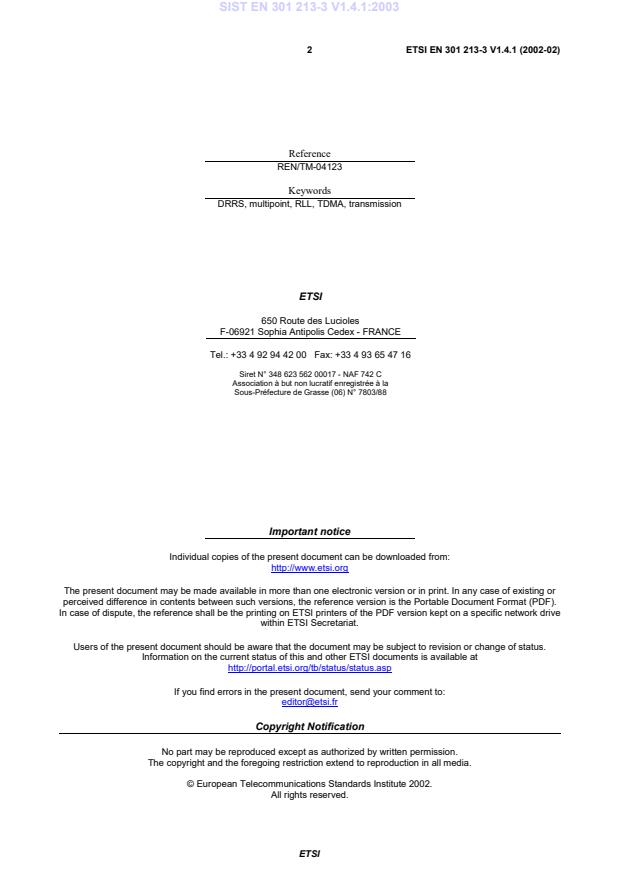

ETSI ETSI EN 301 213-3 V1.4.1 (2002-02) 2
Reference REN/TM-04123 Keywords DRRS, multipoint, RLL, TDMA, transmission ETSI 650 Route des Lucioles F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00
Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C Association à but non lucratif enregistrée à la Sous-Préfecture de Grasse (06) N° 7803/88
Important notice Individual copies of the present document can be downloaded from: http://www.etsi.org The present document may be made available in more than one electronic version or in print. In any case of existing or perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF). In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive within ETSI Secretariat. Users of the present document should be aware that the document may be subject to revision or change of status. Information on the current status of this and other ETSI documents is available at http://portal.etsi.org/tb/status/status.asp If you find errors in the present document, send your comment to: editor@etsi.fr Copyright Notification No part may be reproduced except as authorized by written permission. The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2002. All rights reserved.
ETSI ETSI EN 301 213-3 V1.4.1 (2002-02) 3 Contents Intellectual Property Rights.5 Foreword.5 1 Scope.6 2 References.6 3 Definitions, symbols and abbreviations.7 3.1 Definitions.7 3.2 Symbols.7 3.3 Abbreviations.7 4 General characteristics.7 4.1 General system architecture.7 4.2 Frequency bands and channel arrangements.7 4.2.1 Channel plan.7 4.2.2 Channel arrangements.8 4.3 Compatibility requirements.8 4.4 Environmental conditions.8 4.5 Power supply.9 4.6 Electromagnetic compatibility conditions.9 4.7 TMN interfaces.9 4.8 Synchronization of interface bit rates.9 4.9 Branching/feeder/antenna requirements.9 5 System parameters for TDMA P-MP systems.9 5.1 System capacity.9 5.2 Round trip delay.9 5.3 Transparency.9 5.4 Voice coding methods.9 5.5 Transmitter characteristics.9 5.5.1 Transmitter output power.9 5.5.2 Transmitter nominal output power.10 5.5.3 Transmitter power and frequency control.10 5.5.4 RF spectrum mask.10 5.5.4.1 RF spectrum density mask for the central radio station.10 5.5.4.2 RF-spectrum density mask for the terminal station and the repeater station.13 5.5.4.3 Discrete CW components exceeding the spectrum density mask limit (all stations).13 5.5.5 Tx local oscillator frequency arrangements.14 5.5.6 Spurious emissions (external).14 5.5.7 Radio frequency tolerance.14 5.6 Receiver characteristics.14 5.6.1 Rx local oscillator frequency arrangements.14 5.6.2 Spurious emissions (external).14 5.6.3 Receiver IF.14 5.7 System performance.15 5.7.1 Dynamic level range.15 5.7.2 BER as a function of Receiver input Signal Level (RSL).15 5.7.3 Equipment residual BER (RBER).15 5.7.4 Interference sensitivity.16 5.7.4.1 Co-channel interference (external).16 5.7.4.2 Adjacent channel interference (external).16 5.7.4.3 CW interference.16 5.7.5 Distortion sensitivity.16 SIST EN 301 213-3 V1.4.1:2003

ETSI ETSI EN 301 213-3 V1.4.1 (2002-02) 4 6 Types of interfaces at the user equipment and the network node.16 Annex A (normative): System type codes for regulatory procedures.17 Annex B (informative): Bibliography.19 History.21
ETSI ETSI EN 301 213-3 V1.4.1 (2002-02) 5 Intellectual Property Rights IPRs essential or potentially essential to the present document may have been declared to ETSI. The information pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web server (http://webapp.etsi.org/IPR/home.asp). Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become, essential to the present document. Foreword This European Standard (Telecommunications series) has been produced by ETSI Technical Committee Transmission and Multiplexing (TM). The present document contains the minimum technical requirements to ensure compatibility of products and conformance with radio regulations across ETSI member states. Radio terminals from different manufacturers are not required to interwork at radio frequency (i.e. no common air interface). The present document defines the requirements of radio terminal and radio-relay equipment and associated interfaces. The present document is part 3 of a multipart deliverable covering the Point-to-multipoint equipment;
Point-to-multipoint digital radio systems in frequency bands in the range 24,25 GHz to 29,5 GHz using different access methods, as identified below: Part 1: "Basic parameters"; Part 2: "Frequency Division Multiple Access (FDMA) methods"; Part 3: "Time Division Multiple Access (TDMA) methods"; Part 4: "Direct Sequence Code Division Multiple Access (DS-CDMA) methods"; Part 5: "Multi-Carrier Time Division Multiple Access (MC-TDMA) methods". The present version of the document takes into account that, with the final publication of EN 301 213-5 [4], information and requirements relative to multicarrier systems are now more organically reported there. Therefore similar information for multicarrier systems has been removed from the present document being redundant and superseded by EN 301 213-5 [4].
National transposition dates Date of adoption of this EN: 8 February 2002 Date of latest announcement of this EN (doa): 31 May 2002 Date of latest publication of new National Standard or endorsement of this EN (dop/e):
30 November 2002 Date of withdrawal of any conflicting National Standard (dow): 30 November 2002
ETSI ETSI EN 301 213-3 V1.4.1 (2002-02) 6 1 Scope The present document describes the TDMA access method used in Point-to-Multipoin (P-MP) Radio Relay Systems. (P-MP) Radio Relay Systems may use different access methods. As some technical parameters are different for the various access methods, the standard is divided in four parts. A basic description of the different access methods and a comparison among them is provided in TR 101 274 [2]. The present document (Time Division Multiple Access Methods, TDMA) is to be used in conjunction with EN 301 213-1 [1], describing the basic parameters common to all access methods. The present document is related to characteristics of system operating with transmitters delivering to antenna port one single carrier; multicarrier systems (where more than one carrier is passed through the same final power amplifier or active antenna are considered in EN 301 213-5 [4]).
The present document specifies the minimum requirements for system parameters of Time Division Multiple Access (TDMA) Point-to-Multipoint (P-MP) Radio Systems in the terrestrial fixed services operating in the band 24,5 GHz to 29,5 GHz (see ERC/REC T/R 13-02 [3]). Only sections specific to TDMA are described in respect to the paragraphs stated in EN 301 213-1 [1]. Time Division Multiple Access (TDMA) is an alternative to FDMA and CDMA covered in other parts of the present document. In TDMA Point-to-Multipoint (P-MP) systems, a central station broadcasts information to terminal stations in a continuous Time Division Multiplex (TDM) or in a burst TDMA mode. The Terminal stations transmit in TDMA mode. The users may have access to the spectrum by sharing it through time multiplexing. 2 References The following documents contain provisions which, through reference in this text, constitute provisions of the present document. • References are either specific (identified by date of publication and/or edition number or version number) or non-specific. • For a specific reference, subsequent revisions do not apply. • For a non-specific reference, the latest version applies. [1] ETSI EN 301 213-1: "Fixed Radio Systems; Point-to-multipoint equipment; Point-to-multipoint digital radio systems in frequency bands in the range 24,25 GHz to 29,5 GHz using different access methods; Part 1: Basic parameters". [2] ETSI TR 101 274: "Transmission and Multiplexing (TM); Digital Radio Relay Systems (DRRS); Point-to-multipoint DRRS in the access network: Overview of different access techniques". [3] ERC/REC T/R 13-02: "Preferred channel arrangements for the fixed services in the range 22,0 GHz to 29,5 GHz". [4] ETSI EN 301 213-5: "Fixed Radio Systems; Point-to-multipoint equipment; Point-to-multipoint digital radio systems in frequency bands in the range 24,25 GHz to 29,5 GHz using different access methods; Part 5: Multi-Carrier Time Division Multiple Access (MC-TDMA) methods". [5] ERC/REC 00-05: "Use of the band 24.5 - 26.5 GHz for fixed wireless access". [6] ERC/REC 01-03: "Use of parts of the band 27.5-29.5 GHz for Fixed Wireless Access (FWA)". SIST EN 301 213-3 V1.4.1:2003

ETSI ETSI EN 301 213-3 V1.4.1 (2002-02) 7 3 Definitions, symbols and abbreviations 3.1 Definitions For the purposes of the present document the terms and definitions given in EN 301 213-1 [1] and the following apply: gross bit rate: defined as the transmission bit rate over the air NOTE: In the case of a transmitter working in burst mode, the gross bit rate is the instantaneous maximum bit rate during the burst. The gross bit rate has a unique relation to the symbol rate through the implemented modulation format. 3.2 Symbols For the purposes of the present document the symbols given in EN 301 213-1 [1] apply. 3.3 Abbreviations For the purposes of the present document the abbreviations defined in EN 301 213-1 [1] and the following apply: CSmin minimum practical Channel Separation (for a given radio-frequency channel arrangement) 4 General characteristics 4.1 General system architecture Refer to EN 301 213-1 [1], clause 4.1. 4.2 Frequency bands and channel arrangements 4.2.1 Channel plan Bands allocated to the Fixed Service in the range 24,5 GHz to 29,5 GHz shall be used according to ERC/REC T/R 13-02 [3], annexes B and C. Regulatory bodies may choose appropriate parts of the above mentioned frequency bands for the application for Point-to-Multipoint systems. SIST EN 301 213-3 V1.4.1:2003

ETSI ETSI EN 301 213-3 V1.4.1 (2002-02) 8 4.2.2 Channel arrangements The system shall meet at least one or more of the channel arrangements listed in table 1. Table 1: Channel arrangement Channel Spacing [MHz] 3,5 MHz 7 MHz 14 MHz 28 MHz 56 MHz 112 MHz System Type A
Minimum CRS bit rate for transmission and reception (Mbit/s) 4 Mbit/s 8 Mbit/s 16 Mbit/s 32 Mbit/s 64 Mbit/s 128 Mbit/s System Type B
Minimum CRS bit rate for transmission and reception (Mbit/s) 8 Mbit/s 16 Mbit/s 32 Mbit/s 64 Mbit/s 128 Mbit/s 256 Mbit/s System Type C
Minimum CRS bit rate for transmission and reception (Mbit/s) 12 Mbit/s 24 Mbit/s 48 Mbit/s 96 Mbit/s 192 Mbit/s 384 Mbit/s System Type HC
Minimum CRS bit rate for transmission and reception (Mbit/s
...
