European Standard (Telecommunications series)

Fixed Radio Systems;
Characteristics and requirements
for point-to-point equipment and antennas;
Part 4-1: System-dependent requirements for antennas

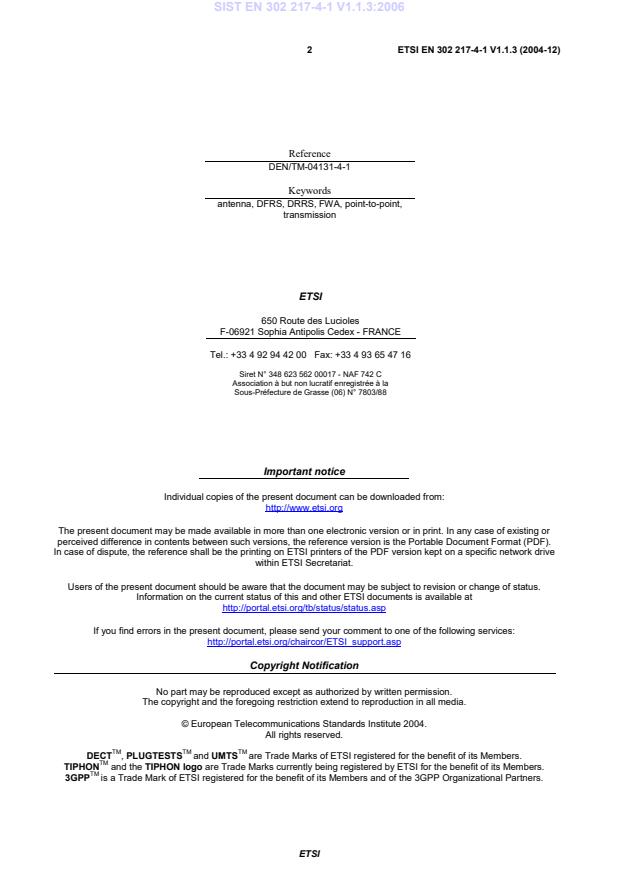

2 ETSI EN 302 217-4-1 V1.1.3 (2004-12)

Reference
DEN/TM-04131-4-1
Keywords
antenna, DFRS, DRRS, FWA, point-to-point,
transmission
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: +33 4 92 94 42 00  Fax: +33 4 93 65 47 16

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.

© European Telecommunications Standards Institute 2004.
All rights reserved.
TM TM TM
DECT , PLUGTESTS and UMTS are Trade Marks of ETSI registered for the benefit of its Members.
TM
TIPHON and the TIPHON logo are Trade Marks currently being registered by ETSI for the benefit of its Members.
TM
3GPP is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners.
ETSI
3 ETSI EN 302 217-4-1 V1.1.3 (2004-12)
Contents
Intellectual Property Rights.4
Foreword.4
Introduction .4
1 Scope.5
2 References.5
3 Definitions, symbols and abbreviations .6
3.1 Definitions.6
3.2 Symbols.6
3.3 Abbreviations.6
4 Frequency bands.6
5 Classification of antennas.6
5.1 Radiation Pattern Envelope (RPE) classes .6
5.2 Cross-Polar Discrimination (XPD) categories.9
6 Electrical characteristics.9
6.1 Radiation Pattern Envelope (RPE) .9
6.2 Cross-Polar Discrimination (XPD).10
6.3 Antenna gain.10
Annex A (normative): Standardized Radiation Pattern Envelopes for class 1 antennas in
bands 3 GHz to 60 GHz.11
Annex B (informative): Additional information.15
B.1 Mechanical characteristics.15
B.1.1 Environmental characteristics.15
B.1.2 Wind ratings.15
B.1.3 Antenna stability.15
B.2 Antenna input connectors.15
B.3 Return loss at the input ports.16
B.4 Inter-port isolation.16
B.5 Antenna labelling.16
Annex C (informative): Antenna gain and radiation pattern information .17
C.1 Impact of antenna gain on the frequency planning .17
C.2 Gain and typical radiation pattern for circular-symmetric antennas .17
Annex D (informative): Bibliography.19
History .20

ETSI
4 ETSI EN 302 217-4-1 V1.1.3 (2004-12)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://webapp.etsi.org/IPR/home.asp).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This European Standard (Telecommunications series) has been produced by ETSI Technical Committee Transmission
and Multiplexing (TM).
The present document is part 4-1 of a multi-part deliverable covering the Fixed Radio Systems; Characteristics and
requirements for point-to-point equipment and antennas, as identified below:
Part 1: "Overview and system-independent common characteristics";
Part 2-1: "System-dependent requirements for digital systems operating in frequency bands where frequency
co-ordination is applied";
Part 2-2: "Harmonized EN covering essential requirements of Article 3.2 of R&TTE Directive for digital
systems operating in frequency bands where frequency co-ordination is applied";
Part 3: "Harmonized EN covering essential requirements of Article 3.2 of R&TTE Directive for equipment
operating in frequency bands where no frequency co-ordination is applied";
Part 4-1: "System-dependent requirements for antennas";
Part 4-2: "Harmonized EN covering essential requirements of Article 3.2 of R&TTE Directive for antennas".

National transposition dates
Date of adoption of this EN: 19 November 2004
Date of latest announcement of this EN (doa): 28 February 2005
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 31 August 2005
Date of withdrawal of any conflicting National Standard (dow): 28 February 2007

Introduction
The purpose of the present document is to define antenna parameters, which are relevant to Fixed Radio Systems (FRS),
including those considered essential for conformity to the R&TTE Directive [1]. Limits are set out in
EN 302 217-4-2 [4].
Additional parameters appropriate to system implementation may be subject to agreement between the equipment
purchaser and supplier. Further guidance is provided in annex B.
ETSI
5 ETSI EN 302 217-4-1 V1.1.3 (2004-12)
1 Scope
The present document summarizes all requirements for single main beam, linear polarization, directional antennas to be
adopted in conjunction with Point-to-Point (PP) systems operating in the frequency range 1 GHz to 60 GHz.
Single polarization antennas, dual polarization antennas, dual band/single polarized antennas and dual band/dual
polarization antennas are considered.
Description and limits for parameters relevant to essential requirements under article 3.2 of the R&TTE Directive [1]
are given in EN 302 217-4-2 [4].
For other parameters and general information that does not affect the R&TTE Directive [1] "essential requirements"
mentioned above, description and limits are set out in the present document.
There are a number of different antenna types for various applications, the principles by which they are classified are
given in clause 5.
The present document does not cover aspects related to test procedures and test conditions, which are covered by the
scope of EN 301 126-3-1 [2].
Guidance on the definition of radio parameters relevant to the essential requirements under article 3.2 of the
R&TTE Directive [1] for DFRS may be found in TR 101 506 (see bibliography).
2 References
The following documents contain provisions which, through reference in this text, constitute provisions of the present
document.
• References are either specific (identified by date of publication and/or edition number or version number) or
non-specific.
• For a specific reference, subsequent revisions do not apply.
• For a non-specific reference, the latest version applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
[1] Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio
equipment and telecommunications terminal equipment and the mutual recognition of their
conformity. (R&TTE Directive).
[2] ETSI EN 301 126-3-1: "Fixed Radio Systems; Conformance testing; Part 3-1: Point-to-Point
antennas; Definitions, general requirements and test procedures".
[3] ETSI EN 302 217-1: "Fixed Radio Systems; Characteristics and requirements for point-to-point
equipment and antennas; Part 1: Overview and system-independent common characteristics".
[4] ETSI EN 302 217-4-2 (V1.1.2): "Fixed Radio Systems; Characteristics and requirements for
point-to-point equipment and antennas; Part 4-2: Harmonized EN covering essential requirements
of Article 3.2 of R&TTE Directive for antennas".
[5] IEC 60154-1: "Flanges for waveguides. Part 1: General requirements".
[6] IEC 60154-2: "Flanges for waveguides. Part 2: Relevant specifications for flanges for ordinary
rectangular waveguides".
[7] IEC 60169-1: "Radio-frequency connectors. Part 1: General requirements and measuring
methods".
ETSI
6 ETSI EN 302 217-4-1 V1.1.3 (2004-12)
3 Definitions, symbols and abbreviations
3.1 Definitions
For the purposes of the present document, the terms and definitions given in EN 302 217-1 [3] apply.
3.2 Symbols
For the purposes of the present document, the symbols given in EN 302 217-1 [3] apply.
3.3 Abbreviations
For the purposes of the present document, the abbreviations given in EN 302 217-1 [3] apply.
4 Frequency bands
The present document defines the characteristics and requirements of antennas in the frequency range from 1 GHz to
60 GHz.
For technical commonalities that range is here divided into sub-ranges as follows:
Range 0: 1 GHz to 3 GHz;
Range 1: 3 GHz to 14 GHz;
Range 2: 14 GHz to 20 GHz;
Range 3: 20 GHz to 24 GHz;
Range 4: 24 GHz to 30 GHz;
Range 5: 30 GHz to 47 GHz;
Range 6: 47 GHz to 60 GHz.
5 Classification of antennas
Antenna classification presented in the present document is based on RPE and XPD parameters.
NOTE: It should be noted that in previous EN 301 751, based on EN 300 631 and EN 300 833 (see references for
these ENs in the bibliography), there was an additional classification regarding "low gain" and "high
gain", considered no longer appropriate since R&TTE Directive [1] came into force.
5.1 Radiation Pattern Envelope (RPE) classes
The RPE directional characteristic (co-polar and cross-polar) impacts the interference situation in the network planning
and a trade-off between a highly demanding RPE and the cost/size/weight of the antennas, compatible with the
constraints given by present and future networks is then advisable.
With respect to the Radiation Pattern Envelope (RPE), four classes (RPE classes 1 to 4) have been identified according
maximum co-polar limits for any actual RPE mask in significant range of off-axis azimuth angles. The subdivision in
those classes is also depending on given frequency ranges of operation according figures 1 to 3 and table 1.
ETSI
7 ETSI EN 302 217-4-1 V1.1.3 (2004-12)
Figures 1 to 3 are intended only for defining subdivision of antennas in directivity classes; actual limits options
for declaration of conformance to essential requirements under article 3.2 of the R&TTE Directive [1] are
defined only in EN 302 217-2-2 (see bibliography).
When more than one actual standardized RPE fall within the same class, a sub-class indicative (A, B, C, etc.) will be
used according their more demanding RPE limit in angles closer to the intended direction.
NOTE: Figures 1 to 3 reports limits for any actual RPE mask of classes 2, 3 and 4 antennas; class 1 antennas are
defined as those which actual RPE mask exceeds class 2 limits. It should also be noted that, while the
above subdivision is objectively based on actual antenna characteristics, in previous EN 300 631 and
EN 300 833 (see both references in the bibliography) the definition of classes 1 to 4 was based on
different subjective concepts of "low, high, very high, extremely high interference potential on the
network"; those definitions are no longer appropriate since R&TTE Directive [1] came into force,
because of the possible connection to the regulatory frame. Nevertheless only in few cases the RPEs,
transferred in the present document or in EN 302 217-4-2 [4], have actually changed class number from
those previous ENs.
Class 4
Class 3
Class 2
-5
-10
-15
-20
-25
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180
Azimuth Degrees
Figure 1: Co-polar limits for actual RPE masks of antenna classes
in the range 1 GHz to 3 GHz (see table 1)
ETSI
Maximum Gain (dBi)
8 ETSI EN 302 217-4-1 V1.1.3 (2004-12)
Class 4 limits
Class 3 limits
Class 2 limits
-5
-10
-15
-20
-25
-30
-35
0 102030 405060708090 100 110 120 130 140 150 160 170 180
Azimuth Degrees
Figure 2: Co-polar limits for actual RPE masks of antenna classes
in the range 3 GHz to 30 GHz (see table 1)
Class 2
Class 3
Class 4
-5
-10
-15
-20
-25
-30
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180
Azimuth Degrees
Figure 3: Co-polar limits for actual RPE masks of antenna classes
in the range 30 GHz to 60 GHz (see table 1)
ETSI
Maximum Gain (dBi)
Maximum Gain (dBi)
9 ETSI EN 302 217-4-1 V1.1.3 (2004-12)
Table 1: Corner points of co-polar limits for actual RPE masks (see figures 1, 2 and 3)
RPE Co-polar maximum limits for actual RPEs
Range 1 GHz to 3 GHz Range 3 GHz to 30 GHz Range 30 GHz to 60 GHz
classes
(see note 2) (see note 3) (see note 4)
Maximum gain Azimuth angle Maximum gain Azimuth angle Maximum gain Azimuth angle
(see note 1)
(dBi) (°) (dBi) (°) (dBi) (°)
5 40 12 20 12 20
5 90 2 80 0 70
-10 120 -18 105 -17 90
-10 180 -18 180 -17 180
3 30 8 20 1 20
2 80 -2 65 -1 50
3 -15 110 -22 100 -4 70
-15 180 -
...
