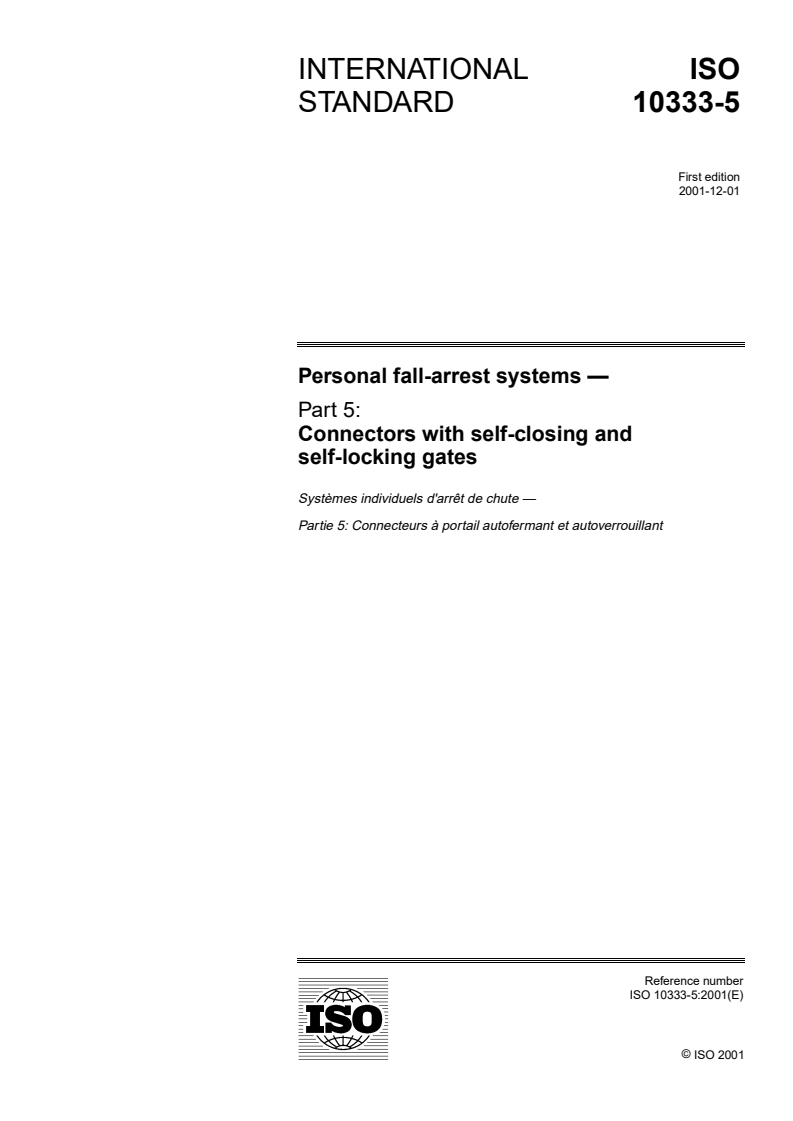

ISO 10333-5:2001

INTERNATIONAL ISO
STANDARD 10333-5
First edition
2001-12-01
Personal fall-arrest systems —
Part 5:
Connectors with self-closing and
self-locking gates
Systèmes individuels d'arrêt de chute —
Partie 5: Connecteurs à portail autofermant et autoverrouillant
Reference number
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but shall not be
edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In downloading this file,
parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation parameters
were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In the unlikely event
that a problem relating to it is found, please inform the Central Secretariat at the address given below.
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means, elec-
tronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or ISO's mem-
ber body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.ch
Web www.iso.ch
Printed in Switzerland
©
ii ISO 2001 – All rights reserved

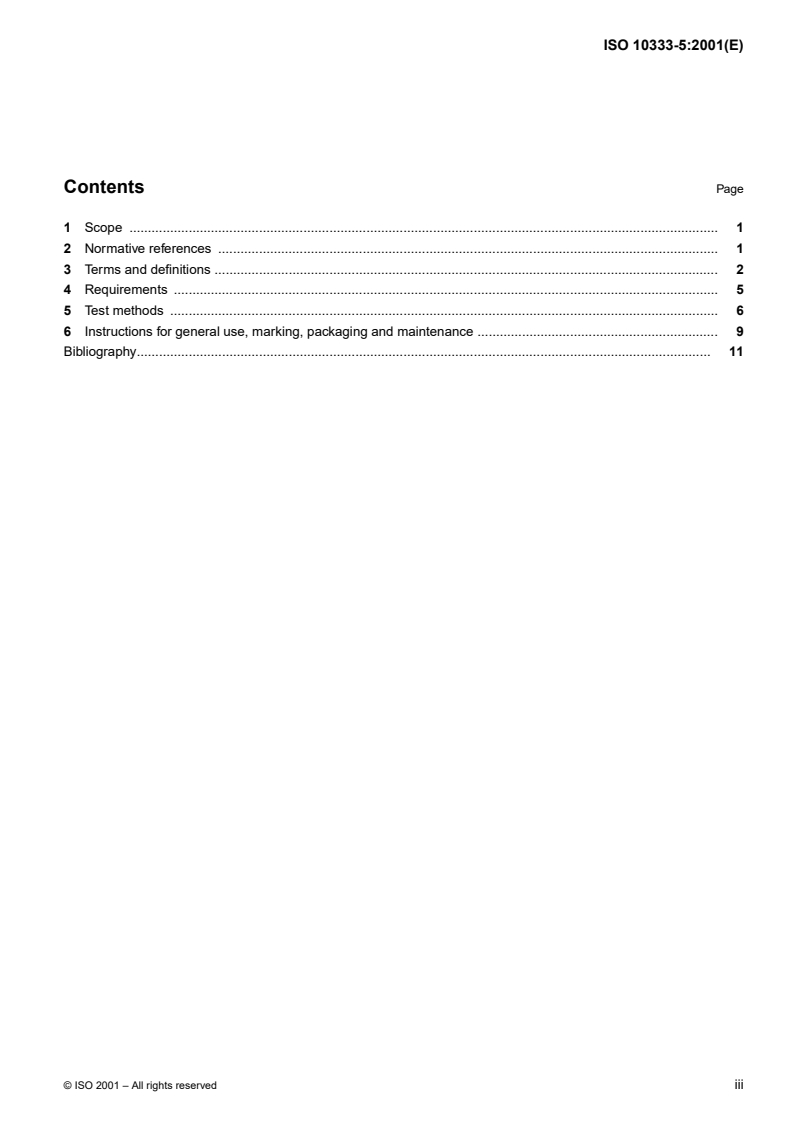

Contents Page
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 2
4 Requirements . 5
5 Test methods . 6
6 Instructions for general use, marking, packaging and maintenance . 9
Bibliography. 11
©
ISO 2001 – All rights reserved iii

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies (ISO
member bodies). The work of preparing International Standards is normally carried out through ISO technical
committees. Each member body interested in a subject for which a technical committee has been established has
the right to be represented on that committee. International organizations, governmental and non-governmental, in
liaison with ISO, also take part in the work. ISO collaborates closely with the International Electrotechnical
Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 3.
Draft International Standards adopted by the technical committees are circulated to the member bodies for voting.
Publication as an International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this part of ISO 10333 may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
International Standard ISO 10333-5 was prepared by Technical Committee ISO/TC 94, Personal safety — Protective
clothing and equipment, Subcommittee SC 4, Personal equipment for protection against falls.
ISO 10333 consists of the following parts, under the general title Personal fall-arrest systems:
— Part 1: Full-body harnesses
— Part 2: Lanyards and energy absorbers
— Part 3: Self-retracting lifelines
— Part 4: Vertical rails and vertical lifelines incorporating a sliding-type fall arrester
— Part 5: Connectors with self-closing and self-locking gates
The system performance tests will be the subject of a future part 6 to ISO 10333.
©
iv ISO 2001 – All rights reserved

Introduction
In cases where the hazard of falling from a height exists and where, for technical reasons or for work of very short
duration, safe access cannot be otherwise provided, it is necessary to consider the use of personal fall-arrest
systems (PFAS). Such use should never be improvised and its adoption should be specifically provided for in the
appropriate formal provisions for safety in the work place.
PFAS complying with this part of ISO 10333 should satisfy ergonomic requirements and should only be used if the
work allows means of connection to a suitable anchor device of demonstrated strength and if it can be implemented
without compromising the safety of the user. Personnel should be trained and instructed in the safe use of the
equipment and be observant of such training and instruction.
This part of ISO 10333 is based on current knowledge and practice concerning the use of PFAS that incorporate a
full body harness.
This part of ISO 10333 presumes that the manufacturer of the PFAS, subsystems or components will, for the sake of
consistency and traceability, operate a quality management system which will comply with national and regional
regulations in force at the time. Guidance on the form this quality management system may take can be found in
ISO 9000 (all parts), Quality management and quality assurance standards.
©
ISO 2001 – All rights reserved v

INTERNATIONAL STANDARD ISO 10333-5:2001(E)
Personal fall-arrest systems —
Part 5:
Connectors with self-closing and self-locking gates
1 Scope
This part of ISO 10333 specifies requirements, test methods, instructions for use and maintenance, marking,
labelling and packaging, as appropriate, for connectors with self-closing and self-locking gates made from metallic
materials.
Connectors are used in personal fall-arrest systems (PFAS), which will be specified in a future International Standard
(see ISO 10333-6 in the Bibliography), such that, if an arrest takes place, the arresting force will not exceed 6kN.
This part of ISO 10333 is applicable only to connectors limited to single person use of a total mass not exceeding
100 kg.
NOTE Users of fall protection equipment whose total mass (including tools and equipment) exceeds 100 kg are advised to seek
advice from the equipment manufacturer regarding the suitability of this equipment, which may need additional testing.
The scope of this part of ISO 10333 does not extend to:
a) attachment elements, fastening buckles, adjusting buckles and other metallic fittings used in the manufacture of
full-body harnesses, which are specified in ISO 10333-6;
b) connectors used for material-lifting purposes;
c) connectors used in special techniques or situations, e.g. rescue, or rope access.
This part of ISO 10333 does not specify those additional requirements that would apply when connectors are
subjected to special conditions of use (where, for example, there exist unusual limitations concerning access to the
place of work and/or particular environmental factors). Thus, treatments to ensure the durability of the materials of
construction (such as heat treatment, anti-corrosion treatment, protection against physical and chemical hazards)
are not specified in this part of ISO 10333, but should comply with appropriate International Standards or, failing that,
with national standards and other specifications dealing with relevant physical characteristics and/or the safety of
users. In particular, when it is considered necessary to test the corrosion resistance of metallic parts of the
equipment, reference should be made to ISO 9227.
2 Normative references
The following normative documents contain provisions which, through reference in this text, constitute provisions of
this part of ISO 10333. For dated references, subsequent amendments to, or revisions of, any of these publications
do not apply. However, parties to agreements based on this part of ISO 10333 are encouraged to investigate the
possibility of applying the most recent editions of the normative documents indicated below. For undated references,
the latest edition of the normative document referred to applies. Members of ISO and IEC maintain registers of
currently valid International Standards.
ISO 9227:1990, Corrosion tests in artificial atmospheres — Salt spray tests
ISO 10333-1, Personal fall-arrest systems — Part 1: Full-body harnesses
©
ISO 2001 – All rights reserved 1

3 Terms and definitions
For the purposes of this part of ISO 10333, the following terms and definitions apply.
3.1 Connectors
3.1.1
connector
device, which is used to assemble a PFAS by enabling two other components or subsystems to be physically
connected
SeeFigure1.
NOTE A connector has an opening guarded by a self-closing gate with a self-locking feature.
a) Karabiner and small snap hook
b) Large hooks
Figure 1 — Examples of connectors
©
2 ISO 2001 – All rights reserved

c) Anchor connector d) System assembly connector
Figure 1 — Examples of connectors (continued)
3.1.2
gate
self-closing, sliding or hinged mechanism which, when opened, allows passage of the components or sub-systems
to be coupled into the connector
SeeFigure2.
NOTE When closed and with the locking feature engaged it is designed to prevent the unintentional separation of the coupled
components or subsystems.
©
ISO 2001 – All rights reserved 3

3.1.3
self-locking feature
mechanism which operates automatically upon closure of the gate and is opened by at least two consecutive,
deliberate actions
3.1.4
opening
maximum gap for the passage of a component or subsystem into the connector with a fully opened gate
SeeFigure2.
Key
1 Opening
2Gate
Figure 2 — Example of opening dimension
3.1.5
retention pin
pin, which when inserted across one end of a connector, maintains the position of a lanyard termination, so that the
termination is constrained to bear on a part of the connector which has been designed to sustain a fall-arrest force
3.1.6
retention eye
eye or hole which is similar in function to a retention pin, but which becomes integral to the connector during
manufacture
3.1.7
latch
that part of the connector which engages with the free end of the gate
3.1.8
total mass
sum of the user's mass plus the mass of all attached clothing and equipment
©
4 ISO 2001 – All rights reserved

3.2 General terms and definitions
3.2.1
personal fall-arrest system
PFAS
assembly of interconnected components and subsystems, including a full-body harness worn by the user, that when
connected to a suitable anchor device will arrest a fall from a height
NOTE A PFAS minimizes the fall-arrest forces, controls the total fall distance as to prevent collision with the ground or other
relevant obstruction and maintains the faller in a suitable post fall-arrest attitude for rescue purposes.
3.2.2
component
constituent part of a PFAS or subsystem that has completed the manufa
...
