ISO 570:1982
(Main)Textile machinery and accessories — Heald carrying rods for healds with closed "O"-shaped end loops
Textile machinery and accessories — Heald carrying rods for healds with closed "O"-shaped end loops
The main dimensions and the co-ordination of cited heald carrying rods are specified. The length of end loops and the width of end loops of flat steel healds of twin wire healds are shown in figures. Heald carrying rods, type A and type B, are described (figures and tables). Examples of designation are contained. - Replaces ISO Recommendation R 570-1967 and constitutes its technical revision.
Matériel pour l'industrie textile — Tringles porte-lisses pour lisses à boucles d'extrémité fermées en forme de "O"
General Information
- Status
- Published
- Publication Date
- 31-Oct-1982
- Current Stage
- 9093 - International Standard confirmed
- Start Date
- 09-Sep-2024
- Completion Date
- 14-Feb-2026
Overview
ISO 570:1982 establishes the main dimensions and specifications for heald carrying rods used in textile machinery, specifically for healds equipped with closed "O"-shaped end loops. This international standard, developed by ISO Technical Committee 72 (Textile machinery and allied machinery and accessories), provides a basis for dimensional coordination and standardization in weaving equipment, facilitating compatibility and interchangeability within the textile industry. ISO 570:1982 supersedes and technically revises the earlier ISO Recommendation R 570:1967.
Key Topics
- Main Dimensions: Specifies the essential measurements for heald carrying rods, ensuring consistency and compatibility.
- Types of Heald Carrying Rods: Defines two principal types-Type A and Type B-with guidance on their dimensions and intended use.
- Type A: Standard rod configuration.
- Type B: Wedge-shaped at one end, designed for connection with automatic drawing-in systems.
- End Loops Coordination: Details the dimensions for the end loops of both flat steel healds and twin wire healds compatible with the rods.
- Designation Examples: Provides examples of standardized designations for easy identification and specification in procurement and manufacturing.
- Figures and Tables: Includes visual references to support correct interpretation of dimensions and usage.
- Replacement and Revision: Clarifies that ISO 570:1982 replaces ISO Recommendation R 570:1967, marking a technical update.
Applications
The application of ISO 570:1982 is crucial wherever weaving machinery requires reliable and standardized heald carrying rods. Adherence to this standard ensures:
- Efficient Assembly and Maintenance: By harmonizing the main dimensions, textile mills and machinery manufacturers can streamline assembly, reduce downtime, and facilitate easier replacement and maintenance of parts.
- International Compatibility: Use of standardized heald carrying rods simplifies global supply chains and supports interoperability between machines manufactured in different countries.
- Quality Assurance: Following ISO 570 promotes consistent quality and performance in textile production, directly impacting fabric uniformity and machine efficiency.
- Support for Automation: Type B rods, with their wedge-shaped ends, support the integration of automatic drawing-in systems, boosting productivity and modernizing operations.
- Procurement Simplification: Clear designation systems help buyers and suppliers specify and verify the correct components, reducing errors and ensuring component compatibility.
Related Standards
Organizations and professionals working according to ISO 570:1982 should also be aware of related standards for textile machinery and accessories:
- ISO 363: Textile machinery and accessories - Flat steel healds for general use - Dimensions.
- ISO 364: Textile machinery and accessories - Twin wire healds for weaving machines (in development as of the date of ISO 570:1982).
- Other ISO standards governing textile machinery parts, accessories, and testing methods.
Practical Value
Adhering to ISO 570:1982 for heald carrying rods ensures precision, safety, and operational continuity in textile weaving operations. The standard fosters interchangeability, supports international trade in textile equipment, and underpins the growing automation in modern textile mills. Adopting ISO-compliant components reinforces a company’s commitment to quality, efficiency, and global industry best practices in textile machinery manufacturing and operation.
Buy Documents
ISO 570:1982 - Textile machinery and accessories — Heald carrying rods for healds with closed "O"-shaped end loops Released:11/1/1982
ISO 570:1982 - Matériel pour l'industrie textile — Tringles porte-lisses pour lisses a boucles d'extrémité fermées en forme de "O" Released:11/1/1982
ISO 570:1982 - Matériel pour l'industrie textile — Tringles porte-lisses pour lisses a boucles d'extrémité fermées en forme de "O" Released:11/1/1982
Get Certified
Connect with accredited certification bodies for this standard
Control Union Certifications
Global certification for agriculture and sustainability.
Hohenstein Institut
Textile testing and certification.
Bureau Veritas Bangladesh
Bureau Veritas certification services in Bangladesh.
Sponsored listings
Frequently Asked Questions
ISO 570:1982 is a standard published by the International Organization for Standardization (ISO). Its full title is "Textile machinery and accessories — Heald carrying rods for healds with closed "O"-shaped end loops". This standard covers: The main dimensions and the co-ordination of cited heald carrying rods are specified. The length of end loops and the width of end loops of flat steel healds of twin wire healds are shown in figures. Heald carrying rods, type A and type B, are described (figures and tables). Examples of designation are contained. - Replaces ISO Recommendation R 570-1967 and constitutes its technical revision.
The main dimensions and the co-ordination of cited heald carrying rods are specified. The length of end loops and the width of end loops of flat steel healds of twin wire healds are shown in figures. Heald carrying rods, type A and type B, are described (figures and tables). Examples of designation are contained. - Replaces ISO Recommendation R 570-1967 and constitutes its technical revision.
ISO 570:1982 is classified under the following ICS (International Classification for Standards) categories: 59.120.30 - Looms. Weaving machines. The ICS classification helps identify the subject area and facilitates finding related standards.
ISO 570:1982 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
International Standard
INTERNATIONAL ORGANIZATION FOR STANDARDIZATIONWvIEIKJlYHAPO~HAfl OPTAHlMAUbifl fl0 CTAH~APTM3A~WWORGANISATION INTERNATIONALE DE NORMALISATION
Textile machinery and accessories - Heald carrying rods
for healds with closed “0’‘-shaped end loops
Mat&iel pour Pindustrie textile - Tringles porte-lisses pour lisses 2 boucles d’extrhmitk fermkes en forme de NON
First edition - 1982-11-01
Ref. No. ISO 5704982 (E)
UDC 677.058
Descriptors : textile machinery, loops, healds, dimensions, designation.
Price based on 3 pages

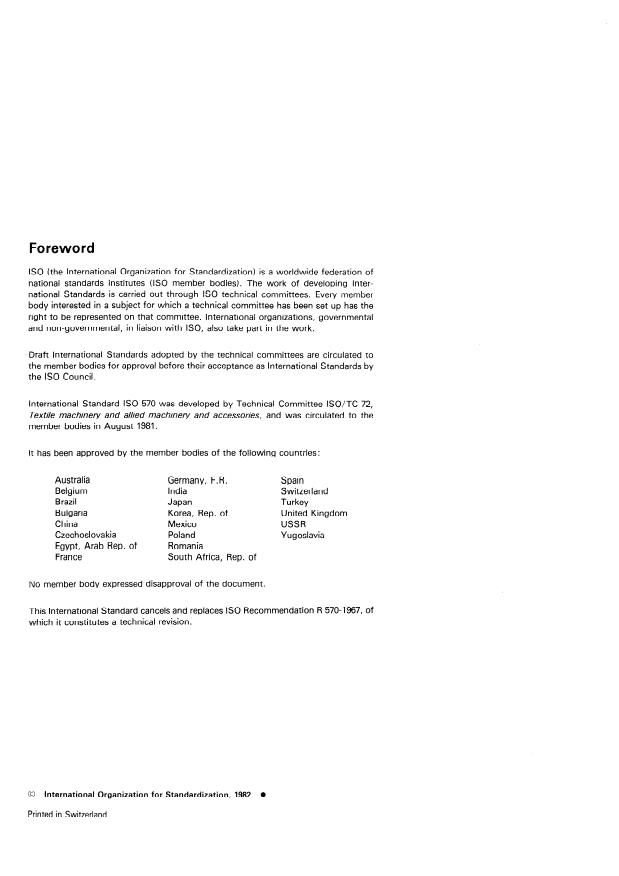

Foreword
ISO (the International Organization for Standardization) is a woridwide federation of
national standards institutes (ISO member bodiesl. The work of developing inter-
national Standards is carried out through ISO technicai committees. Every member
body interested in a subject for which a technicai committee has been set up has the
right to be represented on that committee. international organizations, governmental
and non-governmentai, in iiaison with ISO, also take part in the work.
Draft international Standards adopted by the technicai committees are circuiated to
the member bodies for approval before their acceptance as international Standards by
the ISO Councii.
International Standard ISO 570 was deveioped by Technicai Committee iSO/TC 72,
Texti/e macbinery and alied machinery and accessories, and was circulated to the
member bodies in August 1981.
8t has been approved by the member bodies of the foliowing countries:
Australia
Germany, F. R. Spain
Beigium india Switzeriand
Brazii
Japan Turkey
Bulgaria Korea, Rep. of United Kingdom
China Mexico USSR
Czechosiovakia Poiand Y ugoslavia
Egypt, Arab Rep. sf Romania
France South Africa, Rep. sf
No member body expressed disapprovai of the document.
This International Standard canceis and repiaces ISO Recommendation R 570-1967, of
which it constitutes a technicai revision.
International Organkation for Standardkation, 1982
Printed in Switzerland
ISO 570-1982 (EI
INTERNATIONAL STANDARD
Textile machinery and accessories - Heald carrying rods
for healds with closed “0’‘-shaped end loops

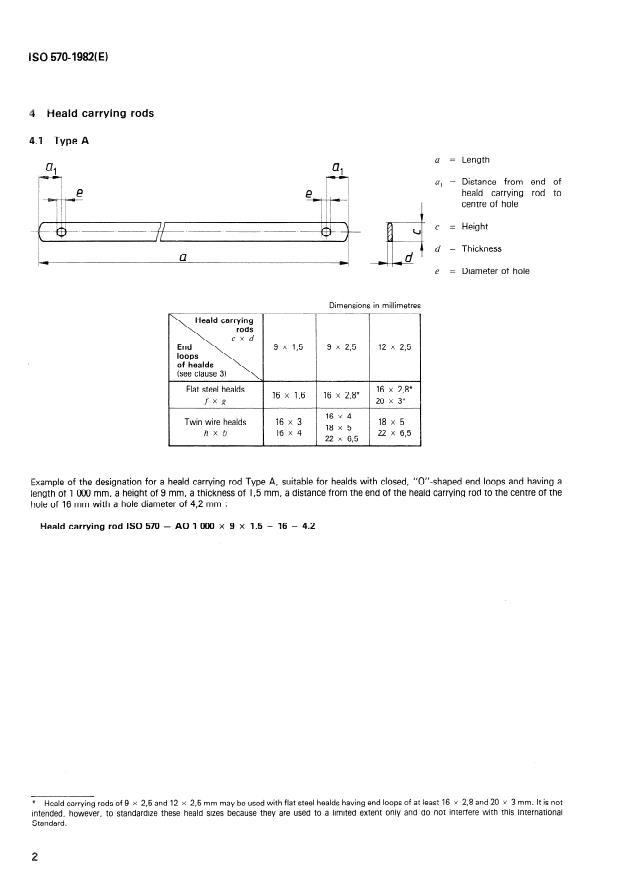

1 Scope and field of applieation
This International Standard specifies the main dimensions and the Co-Ordination of heaid carrying rods for heaids with ciosed
“0’‘-shaped end ioops.
2 References
ISO 363, Textile machinery and acce
...
Norme internationale
INTERNATIONAL ORGANIZATION FOR STANDARDIZATION.ME~YHAPO~HAR OPrAHM3AUMi l-l0 CTAH~APTl43A~Wl.ORGANISATlON INTERNATIONALE DE NORMALISATION
Matériel pour l’industrie textile - Tringles porte-lisses
pour lisses à boucles d’extrémité fermées en forme
de NO»
Textile machinery and accessories - fleald carrying rods for healds with closed “0”-shaped end loops
Première édition - 1982-11-01
CDU 677.056 Réf. no : ISO 5704982 (F)
Descripteurs : matériel textile, lisse, boucle, dimension, désignation.
Prix basé sur 3 pages

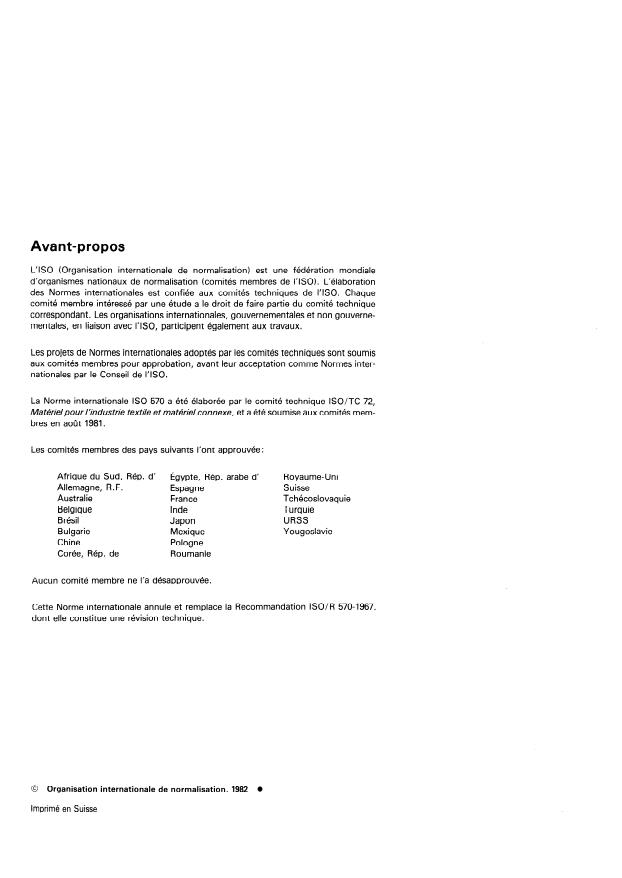

Avant-propos
L’ISO (Organisation internationale de normalisation} est une fédération mondiale
d’organismes nationaux de normalisation (comités membres de I’ISO). L’élaboration
des Normes internationales est confiée aux comités techniques de I’ISO. Chaque
comité membre intéressé par une étude a le droit de faire partie du comité technique
correspondant. Les organisations internationales, gouvernementales et non gouverne-
mentales, en liaison avec I’ISO, participent également aux travaux.
Les projets de Normes internationales adoptés par les comités techniques sont soumis
aux comités membres pour approbation, avant leur acceptation comme Normes inter-
nationales par le Conseil de I’ISO.
La Norme internationale ISO 570 a été élaborée par le comité technique ISO/TC 72,
Matérielpour I?ndustrie textile et matériel connexe, et a été soumise aux comités mem-
bres en août 1981.
Les comités membres des pays suivants l’ont approuvée:
Royaume-Uni
Afrique du Sud, Rép. d’ Égypte, Rép. arabe d’
Allemagne, R.F. Suisse
Espagne
Tchécoslovaquie
Australie France
Turquie
Belgique Inde
URSS
Brésil Japon
Yougoslavie
Bulgarie Mexique
Chine Pologne
Corée, Rép. de Roumanie
Aucun comité membre ne l’a désapprouvée.
la Recommandation ISO/R 5704967,
Cette Norme internationale annule et remplace
ique.
dont elle constitue une révision techn
0 Organisation internationale de normalisation, 1982
Imprimé en Suisse
NORME INTERNATIONALE ISO 570-1982 (F)
Matériel pour l’industrie textile - Tringles porte-lisses
pour lisses à boucles d’extrémité fermées en forme
de «0»

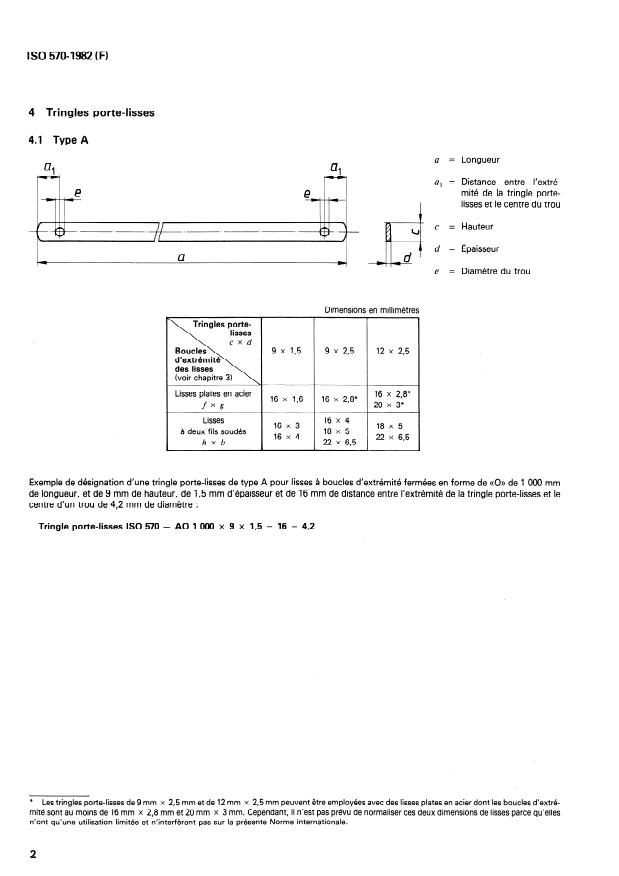

1 Objet et domaine d’application
La présente Norme internationale fixe, pour assurer la coordination entre les dimensions des tringles porte-lisses et les dimensions des
boucles d’extrémité fermées en forme de «OH des lisses, les principales valeurs des dimensions concernées.
2 Références
I SO 363, Matériel pour l’industrie textile - Lisses plates en acier d’usage général - Dimensions.
ISO 364, Matériel pour l’industrie textle - Lisses à deux fi
...
Norme internationale
INTERNATIONAL ORGANIZATION FOR STANDARDIZATION.ME~YHAPO~HAR OPrAHM3AUMi l-l0 CTAH~APTl43A~Wl.ORGANISATlON INTERNATIONALE DE NORMALISATION
Matériel pour l’industrie textile - Tringles porte-lisses
pour lisses à boucles d’extrémité fermées en forme
de NO»
Textile machinery and accessories - fleald carrying rods for healds with closed “0”-shaped end loops
Première édition - 1982-11-01
CDU 677.056 Réf. no : ISO 5704982 (F)
Descripteurs : matériel textile, lisse, boucle, dimension, désignation.
Prix basé sur 3 pages

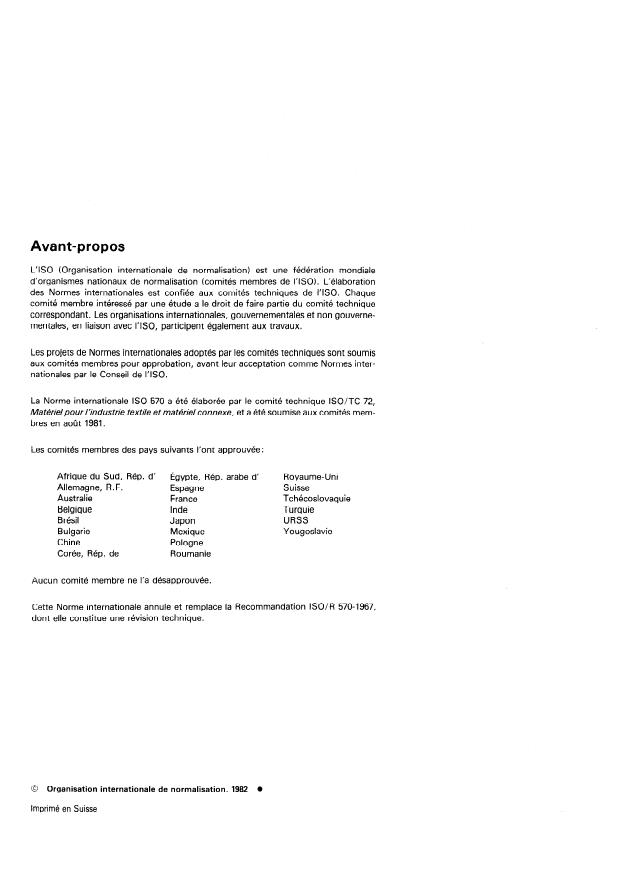

Avant-propos
L’ISO (Organisation internationale de normalisation} est une fédération mondiale
d’organismes nationaux de normalisation (comités membres de I’ISO). L’élaboration
des Normes internationales est confiée aux comités techniques de I’ISO. Chaque
comité membre intéressé par une étude a le droit de faire partie du comité technique
correspondant. Les organisations internationales, gouvernementales et non gouverne-
mentales, en liaison avec I’ISO, participent également aux travaux.
Les projets de Normes internationales adoptés par les comités techniques sont soumis
aux comités membres pour approbation, avant leur acceptation comme Normes inter-
nationales par le Conseil de I’ISO.
La Norme internationale ISO 570 a été élaborée par le comité technique ISO/TC 72,
Matérielpour I?ndustrie textile et matériel connexe, et a été soumise aux comités mem-
bres en août 1981.
Les comités membres des pays suivants l’ont approuvée:
Royaume-Uni
Afrique du Sud, Rép. d’ Égypte, Rép. arabe d’
Allemagne, R.F. Suisse
Espagne
Tchécoslovaquie
Australie France
Turquie
Belgique Inde
URSS
Brésil Japon
Yougoslavie
Bulgarie Mexique
Chine Pologne
Corée, Rép. de Roumanie
Aucun comité membre ne l’a désapprouvée.
la Recommandation ISO/R 5704967,
Cette Norme internationale annule et remplace
ique.
dont elle constitue une révision techn
0 Organisation internationale de normalisation, 1982
Imprimé en Suisse
NORME INTERNATIONALE ISO 570-1982 (F)
Matériel pour l’industrie textile - Tringles porte-lisses
pour lisses à boucles d’extrémité fermées en forme
de «0»
1 Objet et domaine d’application
La présente Norme internationale fixe, pour assurer la coordination entre les dimensions des tringles porte-lisses et les dimensions des
boucles d’extrémité fermées en forme de «OH des lisses, les principales valeurs des dimensions concernées.
2 Références
I SO 363, Matériel pour l’industrie textile - Lisses plates en acier d’usage général - Dimensions.
ISO 364, Matériel pour l’industrie textle - Lisses à deux fi
...
