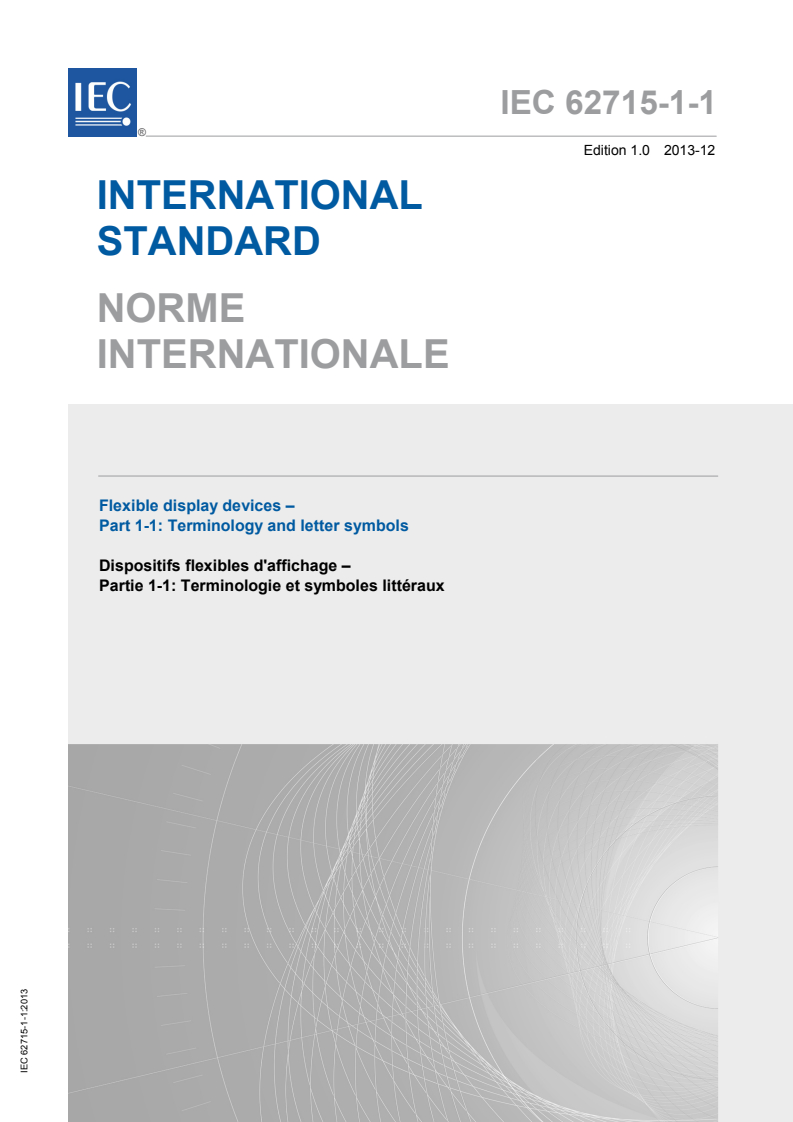

IEC 62715-1-1:2013

IEC 62715-1-1 ®
Edition 1.0 2013-12
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Flexible display devices –
Part 1-1: Terminology and letter symbols

Dispositifs flexibles d'affichage –
Partie 1-1: Terminologie et symboles littéraux

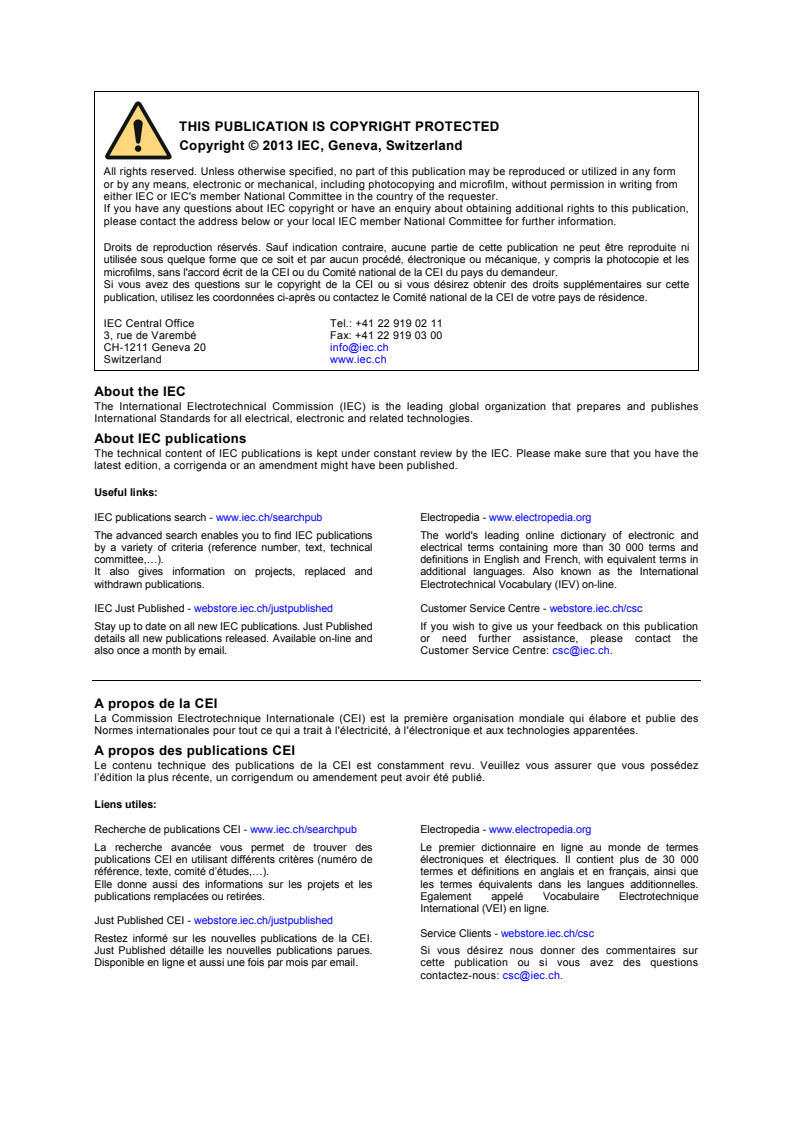

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et les
microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

Useful links:
IEC publications search - www.iec.ch/searchpub Electropedia - www.electropedia.org
The advanced search enables you to find IEC publications The world's leading online dictionary of electronic and
by a variety of criteria (reference number, text, technical electrical terms containing more than 30 000 terms and
committee,…). definitions in English and French, with equivalent terms in
It also gives information on projects, replaced and additional languages. Also known as the International
withdrawn publications. Electrotechnical Vocabulary (IEV) on-line.

IEC Just Published - webstore.iec.ch/justpublished Customer Service Centre - webstore.iec.ch/csc
Stay up to date on all new IEC publications. Just Published If you wish to give us your feedback on this publication
details all new publications released. Available on-line and or need further assistance, please contact the
also once a month by email. Customer Service Centre: csc@iec.ch.

A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.

Liens utiles:
Recherche de publications CEI - www.iec.ch/searchpub Electropedia - www.electropedia.org
La recherche avancée vous permet de trouver des Le premier dictionnaire en ligne au monde de termes
publications CEI en utilisant différents critères (numéro de électroniques et électriques. Il contient plus de 30 000
référence, texte, comité d’études,…). termes et définitions en anglais et en français, ainsi que
Elle donne aussi des informations sur les projets et les les termes équivalents dans les langues additionnelles.
publications remplacées ou retirées. Egalement appelé Vocabulaire Electrotechnique
International (VEI) en ligne.
Just Published CEI - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications de la CEI.
Just Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur
Disponible en ligne et aussi une fois par mois par email. cette publication ou si vous avez des questions
contactez-nous: csc@iec.ch.

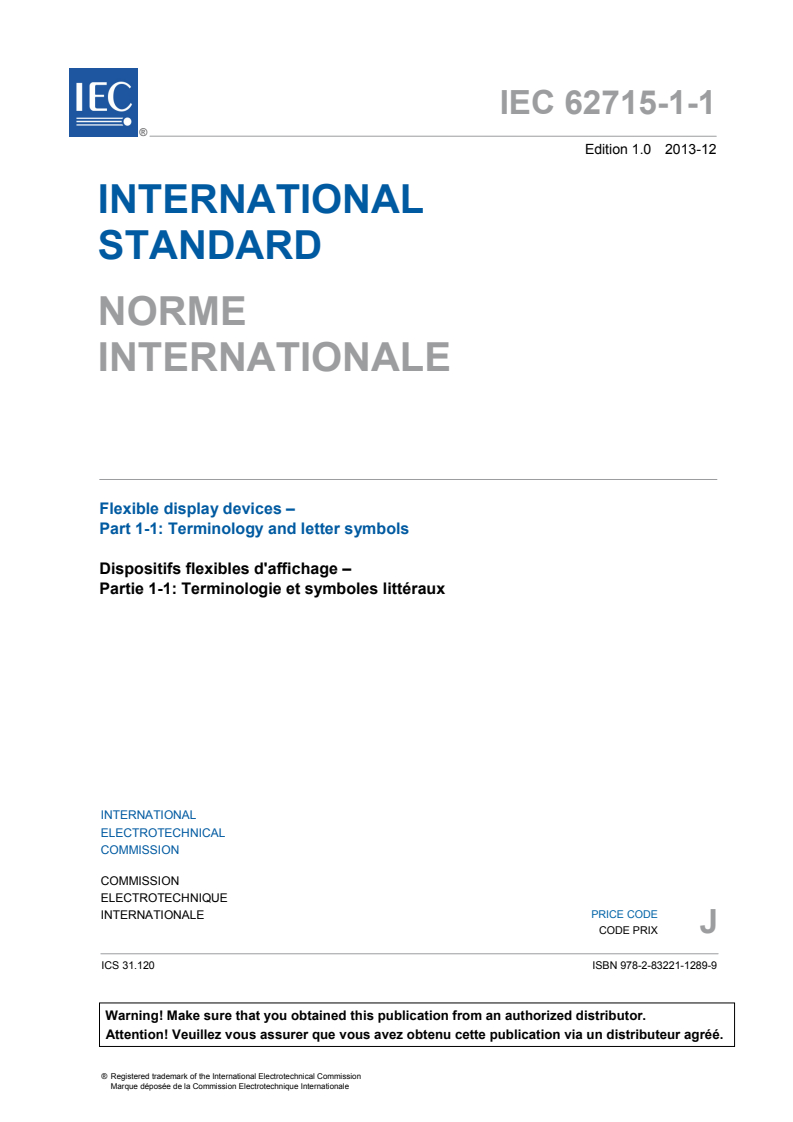

IEC 62715-1-1 ®
Edition 1.0 2013-12
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Flexible display devices –
Part 1-1: Terminology and letter symbols

Dispositifs flexibles d'affichage –

Partie 1-1: Terminologie et symboles littéraux

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX J
ICS 31.120 ISBN 978-2-83221-1289-9

– 2 – 62715-1-1 © IEC:2013

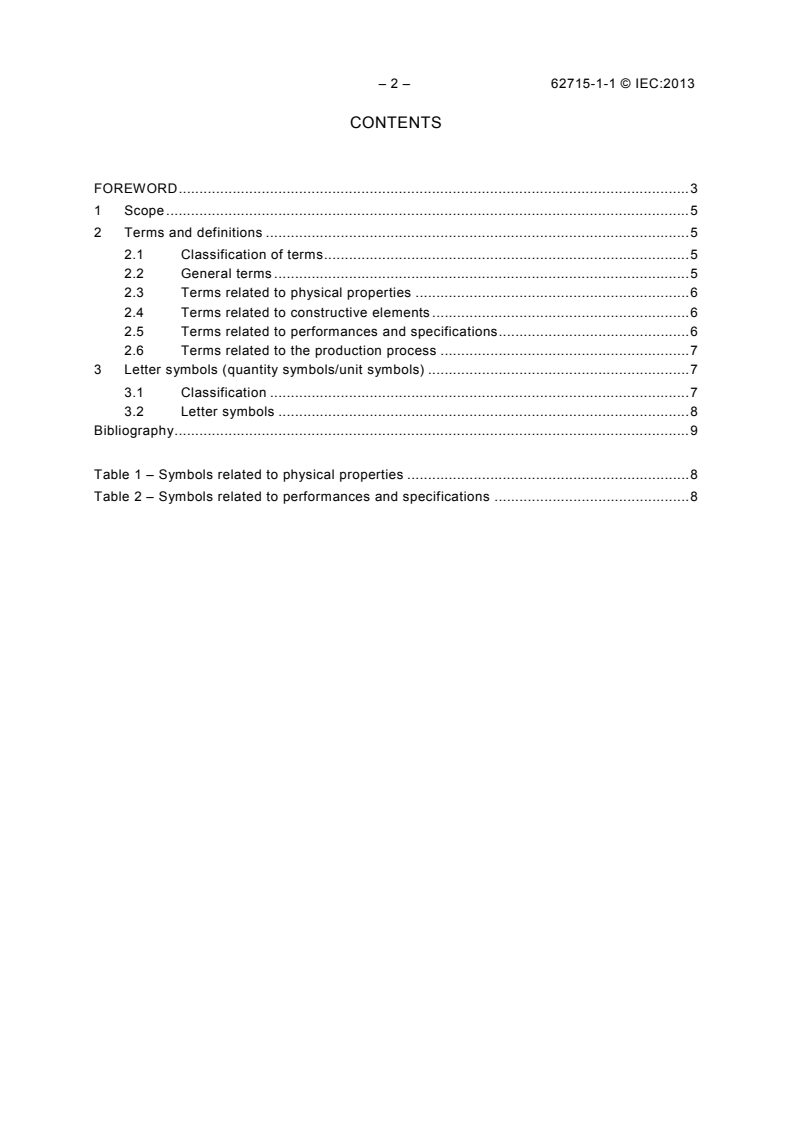

CONTENTS
FOREWORD . 3
1 Scope . 5
2 Terms and definitions . 5
2.1 Classification of terms . 5
2.2 General terms . 5
2.3 Terms related to physical properties . 6
2.4 Terms related to constructive elements . 6
2.5 Terms related to performances and specifications . 6
2.6 Terms related to the production process . 7
3 Letter symbols (quantity symbols/unit symbols) . 7
3.1 Classification . 7
3.2 Letter symbols . 8
Bibliography . 9

Table 1 – Symbols related to physical properties . 8
Table 2 – Symbols related to performances and specifications . 8

62715-1-1 © IEC:2013 － 3 －
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FLEXIBLE DISPLAY DEVICES –
Part 1-1: Terminology and letter symbols

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62715-1-1 has been prepared by IEC technical committee 110:
Electronic display devices.
The text of this standard is based on the following documents:
CDV Report on voting
110/441/CDV 110/480A/RVC
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all the parts in the IEC 62715 series, under the general title Flexible display devices,
can be found on the IEC website.

– 4 – 62715-1-1 © IEC:2013
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
62715-1-1 © IEC:2013 － 5 －
FLEXIBLE DISPLAY DEVICES –
Part 1-1: Terminology and letter symbols

1 Scope
This part of IEC 62715 gives the preferred terms, their definitions and symbols for flexible
display devices, with the object of using the same terminology when standards are prepared
in different countries.
2 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
2.1 Classification of terms
Terms for flexible display devices were classified as follows:
• general terms (2.2)
• terms related to physical properties (2.3)
• terms related to constructive elements (2.4)
• terms related to performances and specifications (2.5)
• terms related to the production process (2.6)
2.2 General terms
2.2.1
flexibility
mechanical pliancy to an external mechanical stress
2.2.2
flexible display device
flexible display panel and flexible module that are mechanically bendable in one or more of
the steps of substrate handling, manufacturing, storage, use, operation, shipping, and
relocation
Note 1 to entry: Preferably, flexible display devices are bendable, compliable to curved surface, rollable, or
foldable without creasing.
Note 2 to entry: Flexible display devices are generally rugged under rough handling.
2.2.3
flexible display module
flexible display device that has external drivers, optical films and other input/output interactive
films such as touch screen or sensing films
2.2.4
flexible display panel
flexible display device without external drivers
2.2.5
flexible display
product which contains flexible display modules and which is bendable for end users

– 6 – 62715-1-1 © IEC:2013
2.3 Terms related to physical properties
2.3.1
malleability
ability of flexible display devices to deform under compressive stress and to keep the
deformed shape after releasing the stress
2.3.2
flexural strength
maximum bending stress that can be applied to flexible display devices without causing any
deterioration of image quality, permanent distortion or breakage
2.3.3
flexural modulus
ratio of bending stress to the resulting strain in flexural deformation of flexible display devices
2.3.4
cyclic stress
repetitive application of an external stimulus, such as mechanical force or exposure to
temperature, to flexible display devices over time
Note 1 to entry: In case of mechanical cyclic stress, it is typically called "fatigue."
2.4 Terms related to constructive elements
2.4.1
gas barrier layer
type of passivation layer that hinders contaminants in vapour or gaseous forms, from
transmitting into the active device area
Note 1 to entry: The gas barrier layer is typically employed on substrates or directly on the active device to prevent
water or oxygen from permeating into the active device area.
2.4.2
flexible substrate
substrate with flexibility where the flexible display device is composed on, such as plastic film,
thin glass, metal foil, or paper
2.4.3
buffer layer
type of passivation layer that is inserted between the substrate and electronic elements of the
flexible display device to mitigate the defect effect on the display fabrication process and/or
the operation performance
Note 1 to entry: The buffer layer is typically employed on a thin glass substrate to hinder breakage when subject to
a bending.
2.4.4
insulation layer
type of passivation layer that electrically separates the metal foil substrate from the
conductive part of a device
Note 1 to entry: It can be applied to a substrate surface to create a smooth surface.
2.5 Terms related to performances and specifications
2.5.1
bending radius
radius of arc corresponding to the curvature of the central line between innermost and
outermost surfaces of a flexible display device during a bending test

62715-1-1 © IEC:2013 － 7 －
2.5.2
critical bending radius
minimum bending radius at which a flexible display device operate without causing any
deterioration of image quality, permanent distortion or breakage
2.5.3
strain
ratio of the amount of change in the length of a flexible display device to its original length
when an external stimulus is applied to the device
2.5.4
calcium test
Ca test
type of gas permeation test method using calcium
Note 1 to entry: The permeation rate of a substance used for the encapsulation of a display cell or the gas barrier
layer of the substrate is measured by monitoring changes in the optical transmission or electrical property of the
calcium layer. The calcium layer is degraded due to the permeation of moisture or other gases through the
substance.
Note 2 to entry: The time dependence of the calcium change process is inversely proportional to the permeation
rate.
2.6 Terms related to the production proc
...
