IEC 61754-7:1996

INTERNATIONAL
IEC
STANDARD
1754-7
First edition
1996-12
Fibre optic connector interfaces –
Part 7:
Type MPO connector family
Interfaces de connecteurs
pour fibres optiques –
Partie 7:
Famille de connecteurs de type MPO

Reference number
IEC 1754-7: 1996 (E)

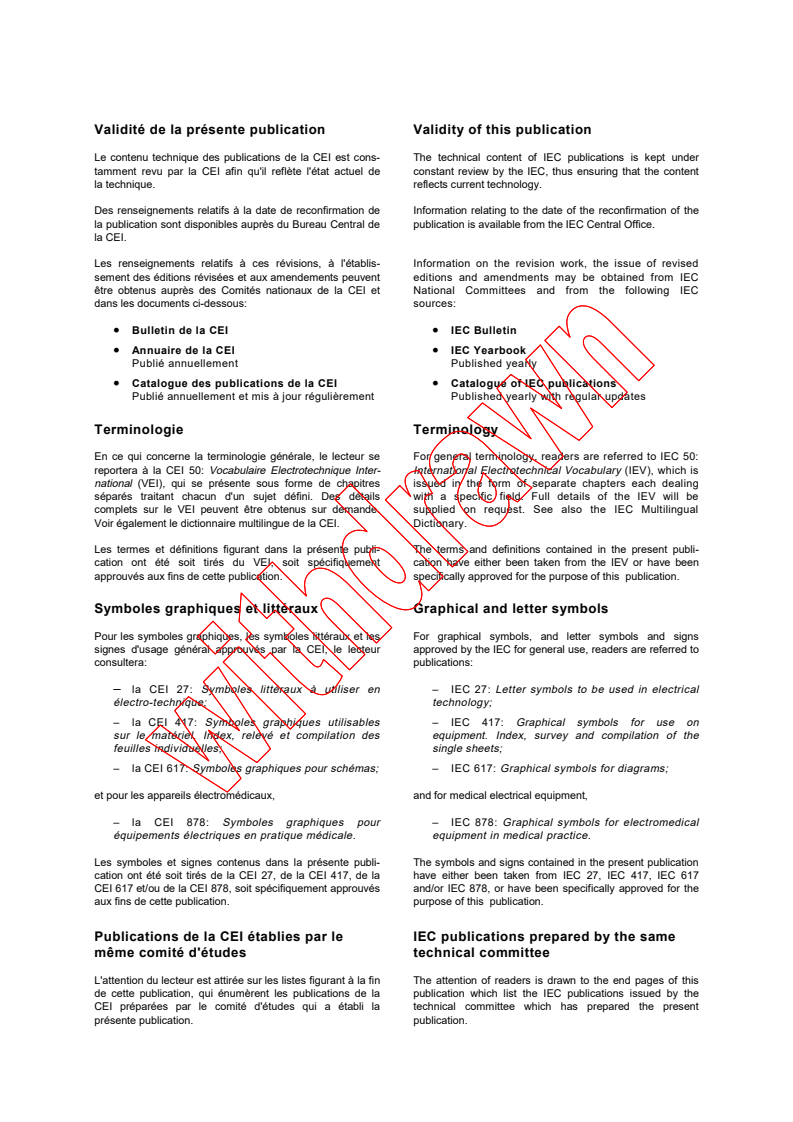

Validité de la présente publication Validity of this publication

Le contenu technique des publications de la CEI est cons- The technical content of IEC publications is kept under

tamment revu par la CEI afin qu'il reflète l'état actuel de constant review by the IEC, thus ensuring that the content

la technique. reflects current technology.

Des renseignements relatifs à la date de reconfirmation de Information relating to the date of the reconfirmation of the

la publication sont disponibles auprès du Bureau Central de publication is available from the IEC Central Office.

la CEI.
Les renseignements relatifs à ces révisions, à l'établis- Information on the revision work, the issue of revised
sement des éditions révisées et aux amendements peuvent editions and amendments may be obtained from IEC

être obtenus auprès des Comités nationaux de la CEI et National Committees and from the following IEC

dans les documents ci-dessous: sources:
• Bulletin de la CEI • IEC Bulletin
• Annuaire de la CEI • IEC Yearbook
Publié annuellement Published yearly
• Catalogue des publications de la CEI • Catalogue of IEC publications
Publié annuellement et mis à jour régulièrement Published yearly with regular updates
Terminologie Terminology
En ce qui concerne la terminologie générale, le lecteur se For general terminology, readers are referred to IEC 50:
reportera à la CEI 50: Vocabulaire Electrotechnique Inter- International Electrotechnical Vocabulary (IEV), which is
national (VEI), qui se présente sous forme de chapitres issued in the form of separate chapters each dealing
séparés traitant chacun d'un sujet défini. Des détails with a specific field. Full details of the IEV will be
complets sur le VEI peuvent être obtenus sur demande. supplied on request. See also the IEC Multilingual
Voir également le dictionnaire multilingue de la CEI. Dictionary.
Les termes et définitions figurant dans la présente publi- The terms and definitions contained in the present publi-
cation ont été soit tirés du VEI, soit spécifiquement cation have either been taken from the IEV or have been
approuvés aux fins de cette publication. specifically approved for the purpose of this publication.
Symboles graphiques et littéraux Graphical and letter symbols
Pour les symboles graphiques, les symboles littéraux et les For graphical symbols, and letter symbols and signs
signes d'usage général approuvés par la CEI, le lecteur approved by the IEC for general use, readers are referred to
consultera: publications:
– la CEI 27: Symboles littéraux à utiliser en – IEC 27: Letter symbols to be used in electrical
électro-technique; technology;
– la CEI 417: Symboles graphiques utilisables – IEC 417: Graphical symbols for use on
sur le matériel. Index, relevé et compilation des equipment. Index, survey and compilation of the
feuilles individuelles; single sheets;
– la CEI 617: Symboles graphiques pour schémas; – IEC 617: Graphical symbols for diagrams;

et pour les appareils électromédicaux, and for medical electrical equipment,
– la CEI 878: Symboles graphiques pour – IEC 878: Graphical symbols for electromedical
équipements électriques en pratique médicale. equipment in medical practice.
Les symboles et signes contenus dans la présente publi- The symbols and signs contained in the present publication
cation ont été soit tirés de la CEI 27, de la CEI 417, de la have either been taken from IEC 27, IEC 417, IEC 617
CEI 617 et/ou de la CEI 878, soit spécifiquement approuvés and/or IEC 878, or have been specifically approved for the
aux fins de cette publication. purpose of this publication.
Publications de la CEI établies par le IEC publications prepared by the same
même comité d'études technical committee
L'attention du lecteur est attirée sur les listes figurant à la fin The attention of readers is drawn to the end pages of this
de cette publication, qui énumèrent les publications de la publication which list the IEC publications issued by the
CEI préparées par le comité d'études qui a établi la technical committee which has prepared the present
présente publication. publication.

INTERNATIONAL
IEC
STANDARD
1754-7
First edition
1996-12
Fibre optic connector interfaces –
Part 7:
Type MPO connector family
Interfaces de connecteurs
pour fibres optiques –
Partie 7:
Famille de connecteurs de type MPO

 CEI 1996  Droits de reproduction réservés  Copyright - all rights reserved
Aucune partie de cette publication ne peut être reproduite ni No part of this publication may be reproduced or utilized
utilisée sous quelque forme que ce soit et par aucun procédé, in any form or by any means, electronic or mechanical,
électronique ou mécanique, y compris la photocopie et les including photocopying and microfilm, without permission
microfilms, sans l'accord écrit de l'éditeur. in writing from the publisher
Bureau central de la Commission Electrotechnique Internationale 3, rue de Varembé Genève Suisse
CODE PRIX
Commission Electrotechnique Internationale
PRICE CODE P
International Electrotechnical Commission
Pour prix, voir catalogue en vigueur
For price, see current catalogue

– 2 – 1754-7 © IEC:1996 (E)

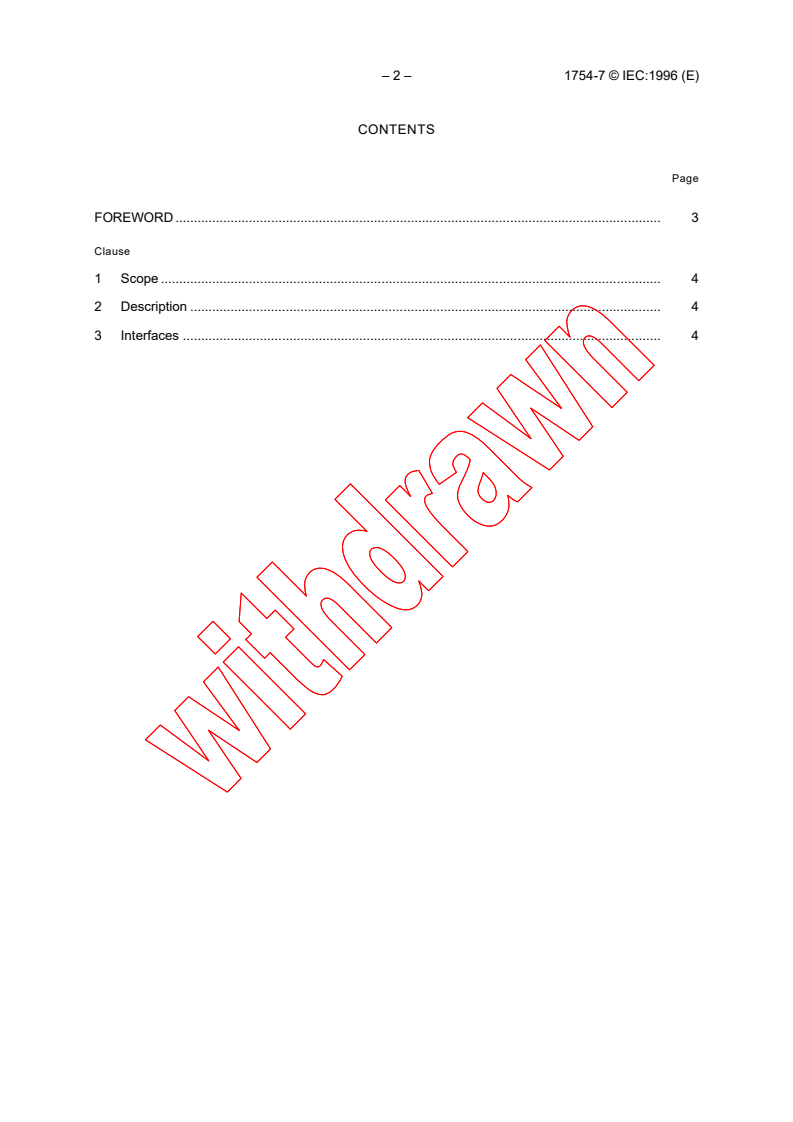

CONTENTS
Page
FOREWORD . 3

Clause
1 Scope. 4

2 Description. 4
3 Interfaces. 4

1754-7 © IEC:1996 (E) – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION

_________
FIBRE OPTIC CONNECTOR INTERFACES –

Part 7: Type MPO connector family

FOREWORD
1) The IEC (International Electrotechnical Commission) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of the IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, the IEC publishes International Standards. Their preparation is
entrusted to technical committees; any IEC National Committee interested in the subject dealt with may
participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. The IEC collaborates closely with the International Organization
for Standardization (ISO) in accordance with conditions determined by agreement between the two
organizations.
2) The formal decisions or agreements of the IEC on technical matters express, as nearly as possible, an
international consensus of opinion on the relevant subjects since each technical committee has representation
from all interested National Committees.
3) The documents produced have the form of recommendations for international use and are published in the form
of standards, technical reports or guides and they are accepted by the National Committees in that sense.
4) In order to promote international unification, IEC National Committees undertake to apply IEC International
Standards transparently to the maximum extent possible in their national and regional standards. Any
divergence between the IEC Standard and the corresponding national or regional standard shall be clearly
indicated in the latter.
5) The IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with one of its standards.
6) Attention is drawn to the possibility that some of the elements of this International Standard may be the subject
of patent rights. The IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 1754-7 has been prepared by subcommittee 86B: Fibre optic
interconnecting devices and passive components, of IEC technical committee 86: Fibre optics.
The text of this standard is based on the following documents:
FDIS Report on voting
86B/836/FDIS 86B/926/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.

– 4 – 1754-7 © IEC:1996 (E)
FIBRE OPTIC CONNECTOR INTERFACES –

Part 7: Type MPO connector family

1 Scope
This part of IEC 1754 defines the standard interface dimensions for type MPO family of

connectors.
2 Description
The parent connector for type MPO connector family is a multiway plug connector charac-
terized by a rectangular ferrule normally 6,4 mm × 2,5 mm which utilizes two pins of 0,7 mm
diameter as its alignment. It is applicable to a joint of multiple fibres up to 12 fibres by arraying
them between two pin-positioning holes in the ferrule. The connector includes a push-pull
coupling mechanism and a ferrule spring loaded in the direction of the optical axis. The
connector has a single male key which may be used to orient and limit the relative position
between the connector and the component to which it is mated.
Connector interfaces are configured using a female plug without pins, a male plug with pins fixed
and an adaptor as shown in figure 1. The female plug is intermateable with the male plug.
Connector interfaces with different numbers of optical datum targets will intermate and will
correctly align the lower defined numbers of optical datum targets.
3 Interfaces
This standard contains the following standard interfaces.
Interface 7-1: MPO female plug connector angled interface – Push/pull
Interface 7-2: MPO male plug connector angled interface – Push/pull
Interface 7-3: MPO adaptor interface – Push/pull

1754-7 © IEC:1996 (E) – 5 –
Interface 7-1 Interface 7-3 Interface 7-2

Figure 1 – MPO connector configurations

– 6 – 1754-7 © IEC:1996 (E)
Figure 2a – MPO female plug connector angled interface

1754-7 © IEC:1996 (E) – 7 –
Table 1a – Dimensions of the MPO female plug connector angled interface

Reference Dimensions Notes
Minimum Maximum
A 0,699 mm 0,701 mm 1
B 7,9 mm 8,1 mm
C 4,597 mm 4,603 mm 2
D 6,3 mm 6,5 mm
E 8,34 mm 8,54 mm
F 9,49 mm 9,59 mm
G 10,85 mm
11,05 mm
H 12,19 mm 12,59 mm
I 8,8 mm 9,2 mm 3
J 7,9 mm 8,1 mm
K 1,4 mm –
L 0,2 mm 0,8 mm 4 and 5
M 2,4 mm 2,6 mm
N 2,8 mm 3,0 mm
O 4,89 mm 4,99 mm
P 5,59 mm 5,69 mm
Q 5,7 mm –
R – 7,7 mm
S 2,9 mm 3,1 mm
T – 0,8 mm
U 2,4 mm 2,5 mm
AA 42º 45º
AB – 45º
AC – 45º
AD 7,5º 8,5º
NOTES
1 Each pin-hole shall accept a gauge pin as shown in figure 2c to a depth of 5,5 mm with a maximum force of 1,7 N.
In addition, two pin-holes of a plug shall accept a gauge as shown in figure 2d to a depth of 5,5 mm with a
maximum force of 3,4 N.
2 Dimension C is defined as the distance between two pin-hole centres.
3 Dimension I is given for a fibre endface centre of a plug end when not mated. It is noticed that a ferrule is
movable by a certain axial compression force, and therefore the dimension I is variable. Ferrule compression force
shall be 7,8 N to 11,8 N when a position of the fibre endface from the datum Z is in the range of 8,2 mm to 8,4 mm.

4 Coupling sleeve shall be movable by a certain axial compression force. Dimension L is given for a coupling
sleeve end when not mated. Coupling sleeve compression force shall be 2,9 N to 6,9 N when a position of the
coupling sleeve endface from datum Z is in the range of 0 to 0,1 mm.
5 An adaptor coupling part shall be unlocked by a left-direction movement of a coupling sleeve, when it is separate
from an adaptor. When the coupling sleeve is moved for unlocking, a position of the coupling sleeve endface shall
be larger than 2,0 mm in the left direction from the datum Z.

– 8 – 1754-7 © IEC:1996 (E)
Figure 2b – Optical datum target location diagrams
NOTE – The optical datum target location diagram is shown in the figure. Here, datum X is defined as the line
passing through two pin-hole centres, and datum Y is defined as the line perpendicular to datum X and passing
through the midpoint of two pin-hole centres.

1754-7 © IEC:1996 (E) – 9 –
Figure 2c – Gauge pin
Table 1b – Dimensions of the gauge pin
Dimensions
Reference mm Notes
Minimum Maximum
A 0,6985 0,6990 1
B 10,8 11,2
BA 0,2 0,4
BB 0,2 0,5
BC 6,0 –
NOTES
1  Surface roughness R = 0,1 μm for the length of dimension BC.
z
2  Typical dimensions.
– 10 – 1754-7 © IEC:1996 (E)
Figure 2d – Gauge for plug
Table 1c – Dimensions of the gauge for plug
Dimensions
Reference mm Notes
Minimum Maximum
A 0,6985 0,6990 for two pins, 1
C 4,5995 4,6005
D 6,3 6,5 2
U 2,4 2,5 2
BA 0,2 0,4
BB 0,2 0,5
BC 6,0 6,5
NOTES
1 Surface roughness R = 0,1 μm.
z
2 Typical dimensions.
1754-7 © IEC:1996 (E) – 11 –
Figure 3a – MPO male plug connector angled interface

– 12 – 1754-7 © IEC:1996 (E)
Table 2a – Dimensions of the MPO male plug connector angled interface

Reference Dimensions Notes
Minimum Maximum
A 0,699 mm 0,701 mm 1
B 7,9 mm 8,1 mm
C 4,597 mm 4,603 mm 2
D 6,3 mm 6,5 mm
E 8,34 mm 8,54 mm
F 9,49 mm 9,59 mm
G 10,85 mm 11,05 mm
H 12,19 mm 12,59 mm
8,8 mm 9,2 mm 3
I
8,1 mm
J 7,9 mm
–
K 1,4 mm
4 and 5
L 0,2 mm 0,8 mm
M 2,4 mm 2,6 mm
N 2,8 mm 3,0 mm
O 4,89 mm 4,99 mm
P 5,59 mm 5,69 mm
Q 5,7 mm –
R – 7,7 mm
S 2,9 mm 3,1 mm
T – 0,8 mm
U 2,4 mm 2,5 mm
AA 42º 45º
AB – 45º
AC – 45º
AD 7,5º 8,5º
CA 1,6 mm 3,3 mm
NOTES
1 Dimension A is the inner diameter of each pin-hole before two guide-pins are fixed in the plug. Each
pin-hole shall accept a gauge pin as shown in figure 2c to a depth of 5,5 mm with a maximum force
of 1,7 N. In addition, two pin-holes of a plug shall accept a gauge as shown in figure 2d to a depth of 5,5 mm
with a maximum force of 3,4 N. After the guide-pins as shown in figure 3 b are fixed in the plug, each

guide pin shall be retained with a minimum force of 3,4 N.
2 Dimension C is defined as the distance between two pin-hole centres before two guide-pins are fixed
in the plug.
3 Dimension I is given for a fibre endface centre of a plug end when not mated. It is noticed that a
ferrule is movable by a certain axial compression force, and therefore the dimension I is variable. Ferrule
compression force shall be 7,8 N to 11,8 N when a position of the fibre endface from the datum Z is in the
range of 8,2 mm to 8,4 mm.
4 Coupling sleeve shall be movable by a certain axial compression force. Dimension L is given for a
coupling sleeve end when not mated. Coupling sleeve compression force shall be 2,9 N to 6,9 N when a
position of the coupling sleeve endface from datum Z is in the range of 0 to 0,1 mm.
5 An adaptor coupling part shall be unlocked by a left-direction movement of a coupling sleeve, when it
is separate from an adaptor. When the coupling sleeve is moved for unlocking, a position of the coupling
sleeve endface shall be larger than 2,0 mm in the left direction from the datum Z.

1754-7 © IEC:1996 (E) – 13 –
Figure 3b – Guide pin
Table 2b – Dimensions of the guide pin
Dimensions
Reference mm Notes
Minimum Maximum
A 0,697 0,699
B 10,8 11,2
See note
BA 0,2 0,4
BB 0,2 0,5
NOTE – Typical dimensions.
– 14 – 1754-7 © IEC:1996 (E)
Figure 4 – MPO adaptor interface
NOTE – The adaptor may be of a structure as shown by an alternate long and short dash line in the figure.

1754-7 © IEC:1996 (E) – 15 –
Table 3 – Dimensions of the MPO adaptor interface

Reference Dimensions Notes
Minimum Maximum
E 8,54 mm 8,74 mm
F 9,6 mm 9,7 mm
H 12,6 mm –
I 8,2 mm 8,4 mm
K – 1,39 mm
L 0 0,1 mm
M 1,6 mm 2,0 mm
N 2,4 mm 2,6 mm
O 5,0 mm 5,1 mm
P 5,7 mm 5,9 mm
R 7,8 mm –
S 3,4 mm 3,6 mm
V 0,95 mm 1,15 mm
W 11,8 mm 12,2 mm
X 3,4 mm –
AA 45° 48°
AB 45° 50°
Standards Survey
We at the IEC want to know how our standards are used once they are published.

The answers to this survey will help us to improve IEC standards and standard related

information to meet your future needs

Would you please take a minute to answer the survey on the other side and mail or fax to:

Customer Service Centre (CSC)
International Electrotechnical Commission
3, rue de Varembé
Case postale 131
1211 Geneva 20
Switzerland
or
Fax to: CSC at +41 22 919 03 00
Thank you for your contribution to the standards making process.
Nicht frankieren
Ne pas affranchir
A Prioritaire
Non affrancare
No stamp required
RÉPONSE PAYÉE
SUISSE
Customer Service Centre (CSC)
International Electrotechnical Commission
3, rue de Varembé
Case postale 131
1211 GENEVA 20
Switzerland
1. 7. 13.
No. of IEC standard: Please rate the standard in the following If you said yes to 12 then how many
areas as (1) bad, (2) below average, volumes:
(3) average, (4) above average,
.......................................................
(5) exceptional, (0) not applicable:
................................................

clearly written
2.
14.
logically arranged
Tell us why you have the standard.

Which standards organizations
(check many as apply). I am:
information given by tables
published the standards in your

library (e.g. ISO, DIN, ANSI, BSI,
the buyer
illustrations
etc.):
the user
technical information
a librarian
8. .
a researcher
I would like to know how I can legally
15.
reproduce this standard for:
an  engineer
My organization supports the
internal use
a safety expert standards-making process (check as
many as apply):
sales information
involved in testing
product demonstration
with a government agency
buying standards
other.
in industry
using standards
other. 9.
membership in standards
organization
In what medium of standard does your
3.
organization maintain most of its
serving on standards
standards (check one):
development committee
This standard was purchased from?
paper
other.
.......................................................
microfilm/microfiche
16.
mag tapes
My organization uses (check one)
4.
CD-ROM
This standard will be used
French text only
floppy disk
(check as many as apply):
English text only
on line
for reference
Both English/French text
in a standards library
9A.
17.
to develop a new product
If your organization currently maintains
part or all of its standards collection in
Other comments:
to write specifications
electronic media please indicate the
to use in a tender format(s):
........................................................
for educational purposes raster image
........................................................
for a lawsuit
full text
for quality assessment
10.
........................................................
for certification
In what medium does your organization
intend to maintain its standards collection
........................................................
for general information
in the future (check all that apply):
for design purposes
paper
........................................................
for testing
microfilm/microfiche
other.
........................................................
mag tape
CD-ROM
5. 18.
floppy disk
This standard will be used in conjunction
Please give us information about you

with (check as many as apply): and your company
on line
IEC
10A.
name: .
ISO
For electronic media which format will be
corporate chosen (check one)
job title:.
other (published by. ) raster image
company: .
full text
other (published by. )
other (published by. )
11.
address:.
My organization is in the following sector
6.
(e.g. engineering, manufacturing) .
This standard meets my needs
...............................................
(check one)
........................................................
12.
not at all
........................................................
Does your organization have a standards
almost
library:
fairly well
No. employees at your location:.
yes
exactly
no
turnover/sales:.

Enquête sur les normes
La CEI se préoccupe de savoir comment ses normes sont accueillies et utilisées.

Les réponses que nous procurera cette enquête nous aideront tout à la fois à améliorer nos

normes et les informations qui les concernent afin de toujours mieux répondre à votre attente.

Nous aimerions que vous nous consacriez une petite minute pour remplir le questionnaire

joint que nous vous invitons à retourner au:
Centre du Service Clientèle (CSC)
Commission Electrotechnique Internationale
3, rue de Varembé
Case postale 131
1211 Genève 20
Suisse
Télécopie: IEC/CSC +41 22 919 03 00
Nous vous remercions de la contribution que vous voudrez bien apporter ainsi
à la Normalisation Internationale
Nicht frankieren
Ne pas affranchir
A
Prioritaire
Non affrancare
No stamp required
RÉPONSE PAYÉE
SUISSE
Centre du Service
...
