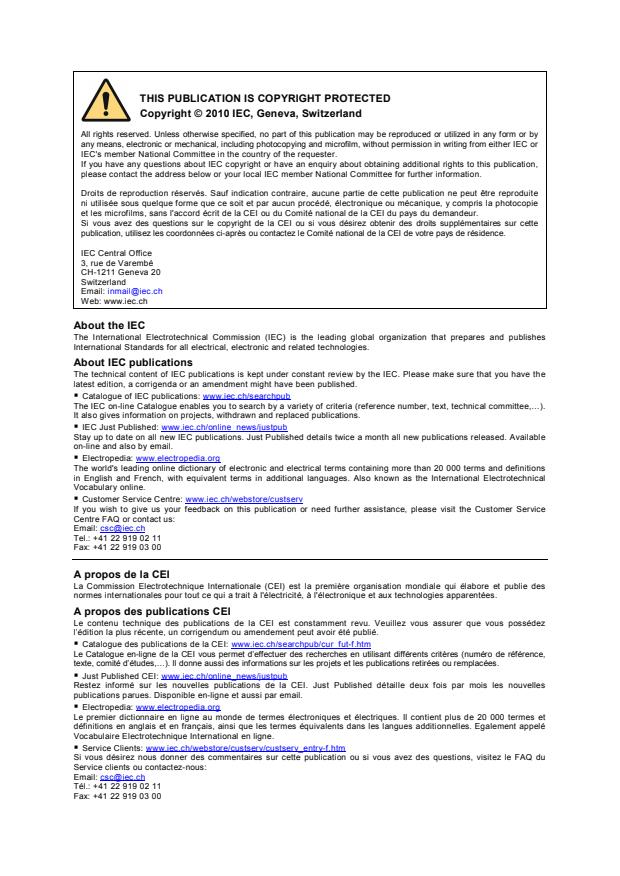

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either IEC or
IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: inmail@iec.ch
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
§ Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
§ IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
§ Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
§ Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: csc@iec.ch
Tel.: +41 22 919 02 11
Fax: +41 22 919 03 00
A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
§ Catalogue des publications de la CEI: www.iec.ch/searchpub/cur_fut-f.htm
Le Catalogue en-ligne de la CEI vous permet d’effectuer des recherches en utilisant différents critères (numéro de référence,
texte, comité d’études,…). Il donne aussi des informations sur les projets et les publications retirées ou remplacées.
§ Just Published CEI: www.iec.ch/online_news/justpub
Restez informé sur les nouvelles publications de la CEI. Just Published détaille deux fois par mois les nouvelles
publications parues. Disponible en-ligne et aussi par email.
§ Electropedia: www.electropedia.org
Le premier dictionnaire en ligne au monde de termes électroniques et électriques. Il contient plus de 20 000 termes et
définitions en anglais et en français, ainsi que les termes équivalents dans les langues additionnelles. Egalement appelé
Vocabulaire Electrotechnique International en ligne.
§ Service Clients: www.iec.ch/webstore/custserv/custserv_entry-f.htm
Si vous désirez nous donner des commentaires sur cette publication ou si vous avez des questions, visitez le FAQ du
Service clients ou contactez-nous:
Email: csc@iec.ch
Tél.: +41 22 919 02 11
Fax: +41 22 919 03 00
IEC 61803 ®
Edition 1.0 2010-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
AMENDMENT 1
AMENDEMENT 1
Determination of power losses in high-voltage direct current (HVDC) converter
stations with line-commutated converters

Détermination des pertes en puissance dans les postes de conversion en
courant continu à haute tension (CCHT) munis de convertisseurs commutés par
le réseau
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
F
CODE PRIX
ISBN 978-2-88912-272-1
ICS 29.200

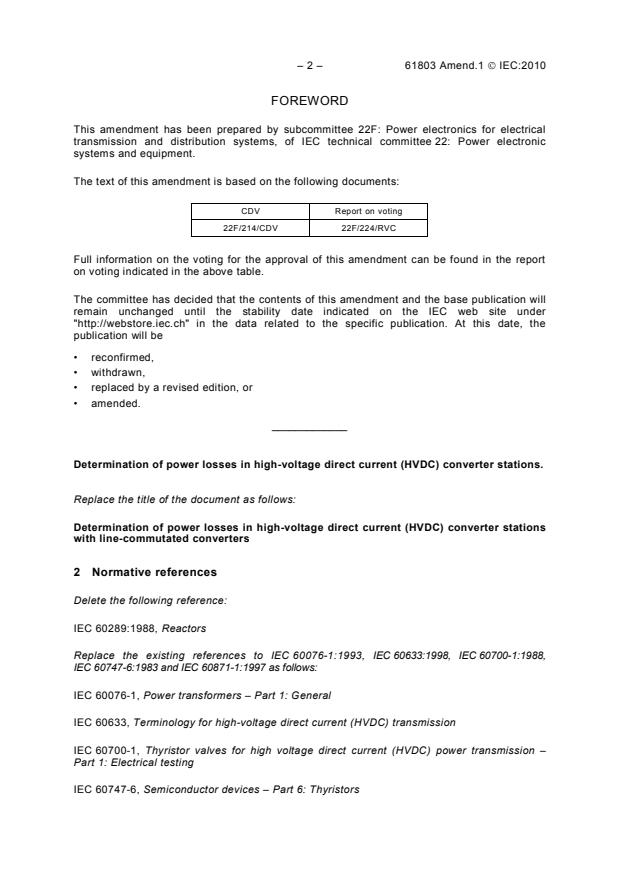

– 2 – 61803 Amend.1 Ó IEC:2010
FOREWORD
This amendment has been prepared by subcommittee 22F: Power electronics for electrical
transmission and distribution systems, of IEC technical committee 22: Power electronic
systems and equipment.
The text of this amendment is based on the following documents:
CDV Report on voting
22F/214/CDV 22F/224/RVC
Full information on the voting for the approval of this amendment can be found in the report
on voting indicated in the above table.
The committee has decided that the contents of this amendment and the base publication will
remain unchanged until the stability date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
_____________
Determination of power losses in high-voltage direct current (HVDC) converter stations.
Replace the title of the document as follows:
Determination of power losses in high-voltage direct current (HVDC) converter stations
with line-commutated converters
2 Normative references
Delete the following reference:
IEC 60289:1988, Reactors
Replace the existing references to IEC 60076-1:1993, IEC 60633:1998, IEC 60700-1:1988,
IEC 60747-6:1983 and IEC 60871-1:1997 as follows:
IEC 60076-1, Power transformers – Part 1: General
IEC 60633, Terminology for high-voltage direct current (HVDC) transmission
IEC 60700-1, Thyristor valves for high voltage direct current (HVDC) power transmission –
Part 1: Electrical testing
IEC 60747-6, Semiconductor devices – Part 6: Thyristors

61803 Amend.1 Ó IEC:2010 – 3 –
IEC 60871-1, Shunt capacitors for a.c. power systems having a rated voltage above 1 000 V –
Part 1: General
Add the following new reference:
IEC 60076-6, Power transformers – Part 6: Reactors
3 Definitions and symbols
3.1 Definitions
Add the following new definition
3.1.7
station essential auxiliary load
load whose failure will affect the conversion capability of the HVDC converter station (e.g.
valve cooling), as well as load that must remain working in case of complete loss of a.c.
power supply (e.g. battery chargers, operating mechanisms)
NOTE Total “operating losses” minus “no load operation losses” may be considered as being quantitatively
equivalent to “load losses” as in conventional a.c. substation practice.
3.2 Letter symbols
Replace the definitions of letter symbols α, µ, Id, R and U as follows:
v0
α (trigger) delay angle, in radians (rad)
µ overlap angle, in radians (rad)
I direct current, in amperes (A)
d
R resistance value, in ohms (W)
U r.m.s. value of the phase-to-phase no-load voltage on the valve side of the converter
v0
transformer excluding harmonics, in volts (V)
4.2.1 Outdoor standard reference temperature
Add, after the first sentence, the following new sentence:
Corresponding valve hall temperature may be defined by the supplier if necessary.
Add the following note:
NOTE If not defined, the wet-bulb temperature is recommended to be 14 °C which corresponds to approximately
50 % RH at 20 °C dry bulb temperature.
4.3 Operating parameters
Add the following words at the end of the fourth paragraph:
“… or as decided by the control system for the defined operating condition”.

– 4 – 61803 Amend.1 Ó IEC:2010
5.1 Thyristor valve losses
Replace, in the first line of the third paragraph, the words “Symbol t combines …” with
“Symbol th combines …”.
5.1.4 D.C. voltage-dependent loss per valve
Replace the following equation for P :
v4
U 2
ì ü
4 3 6 m- 12 m- 7
ï ï
v0
P = + [cos()2a+ cos(2a+ 2m)]+ [sin()2a- sin(2a+2m)+2m]
í ý
V4
ï ï
R
2p  î 3 4 8 þ
DC
with the following new equation:
ì ü
U
4 3 6m- 12m- 7
ï ï
v0
P= p+ [cos ()2a+ cos (2a+ 2m)]+ [sin ()2a- sin (2a+2m)+2m]
í ý
v4
2p  R 3 4 8
ï ï
DC
î þ
5.2.3 Operating losses
Add the following note at the end of the subclause:
NOTE 3 The measured values for P , P , and P are based on the reference temperature as given in
R SE1 WE1
IEC 60076-1. Values should be corrected to the operating temperature of the transformer.
5.2.4 Auxiliary power losses
Replace the final sentence as follows::
They shall be measured separately during factory test.
5.3.1 General
Add, at the end of the subclause, the following new paragraph:
For the calculation, it shall be assumed that the a.c. system operates at nominal frequency
and the filter components are at their nominal values.
5.3.2 AC filter capacitor losses
Add, at the end of the subclause, the following new paragraph:
Losses in low voltage capacitors (for filters with 2 or more tuning frequencies) are very small
and can be neglected.
5.3.3 AC filter reactor losses
Replace, in the third line, the phrase “.corrected to the maximum operating temperature of
the winding.” with “…corrected to the operating temperature of the winding.”.
5.5 Shunt reactor losses
Replace, in the first paragraph, the reference to “IEC 60289” by “IEC 60076-6”:.

61803 Amend.1 Ó IEC:2010 – 5 –
5.6 DC smoothing reactor losses
Replace, in the third paragraph, the reference to “IEC 60289” by “IEC 60076-6”.
Replace the last sentence of the last paragraph as follows:
They shall be measured separately during the factory test.
5.7.3 DC filter reactor losses
Replace in the first paragraph, fourth line, the phrase “.corrected to the maximum operating
temperature of the winding.” with “.corrected to the operating temperature of the winding”.
5.8 Auxiliaries and station service losses
Add, at the end of th
...
