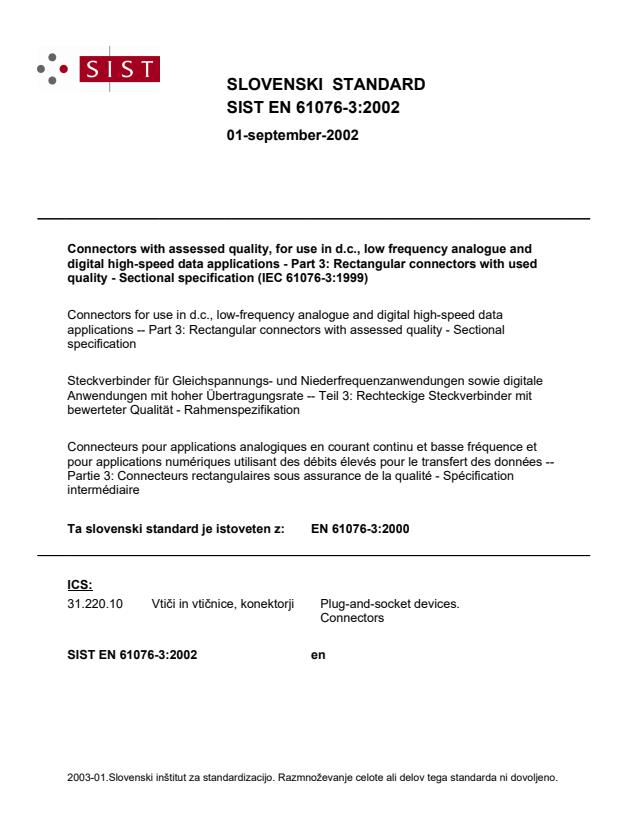

EN 61076-3:2000

SLOVENSKI STANDARD
01-september-2002
Connectors with assessed quality, for use in d.c., low frequency analogue and
digital high-speed data applications - Part 3: Rectangular connectors with used
quality - Sectional specification (IEC 61076-3:1999)
Connectors for use in d.c., low-frequency analogue and digital high-speed data
applications -- Part 3: Rectangular connectors with assessed quality - Sectional
specification
Steckverbinder für Gleichspannungs- und Niederfrequenzanwendungen sowie digitale
Anwendungen mit hoher Übertragungsrate -- Teil 3: Rechteckige Steckverbinder mit
bewerteter Qualität - Rahmenspezifikation
Connecteurs pour applications analogiques en courant continu et basse fréquence et
pour applications numériques utilisant des débits élevés pour le transfert des données --
Partie 3: Connecteurs rectangulaires sous assurance de la qualité - Spécification
intermédiaire
Ta slovenski standard je istoveten z: EN 61076-3:2000
ICS:
31.220.10 9WLþLLQYWLþQLFHNRQHNWRUML Plug-and-socket devices.
Connectors
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

INTERNATIONAL IEC
STANDARD
61076-3
QC 480200
First edition
1999-11
Connectors for use in d.c., low-frequency analogue
and digital high-speed data applications –
Part 3:
Rectangular connectors with assessed quality –
Sectional specification
Connecteurs pour applications analogiques en courant continu
et basse fréquence et pour applications numériques utilisant
des débits élevés pour le transfert des données –
Partie 3:
Connecteurs rectangulaires sous assurance de la qualité –
Spécification intermédiaire
 IEC 1999  Copyright - all rights reserved
No part of this publication may be reproduced or utilized in any form or by any means, electronic or
mechanical, including photocopying and microfilm, without permission in writing from the publisher.
International Electrotechnical Commission 3, rue de Varembé Geneva, Switzerland
Telefax: +41 22 919 0300 e-mail: inmail@iec.ch IEC web site http://www.iec.ch
Commission Electrotechnique Internationale
PRICE CODE
S
International Electrotechnical Commission
For price, see current catalogue

– 2 – 61076-3 © IEC:1999(E)
CONTENTS
Page
FOREWORD . 3
Clause
1 General. 5
1.1 Scope . 5
1.2 Normative references. 5
2 Technical information. 6
2.1 Terminology. 6
2.2 Classification into climatic categories. 6
2.3 Creepage and clearance distances . 6
2.4 Current-carrying capacity. 6
2.5 IEC type designation. 6
2.6 Marking. 7
3 Quality assessment procedures . 7
4 Tests and test schedules . 7
4.1 General. 7
4.2 Test procedures and measuring methods. 8
4.3 Pre-conditioning. 8
4.4 Wiring and mounting of specimens. 8
4.4.1 Wiring . 8
4.4.2 Mounting. 8
4.5 Test schedules . 8
4.5.1 Basic (minimum) test schedule. 9
4.5.2 Full test schedule. 10
4.5.2.1 Test group P – Preliminary . 10
4.5.2.2 Test group AP – Dynamic/climatic . 11
4.5.2.3 Test group BP – Mechanical endurance. 13
4.5.2.4 Test group CP – Moisture. 15
4.5.2.5 Test group DP – Electrical load . 15
4.5.2.6 Test group EP – Mechanical resistivity . 16
4.5.2.7 Test group FP – Chemical resistivity. 17
4.5.2.8 Test group GP – Terminations . 17
4.5.2.9 Test group HP – Additional. 18
4.5.3 Qualification approval test schedule. 18
4.5.4 Quality conformance inspection, lot-by-lot tests . 20
4.5.5 Quality conformance inspection, periodic tests. 20
4.5.6 Delayed delivery, re-inspection . 22
5 Blank detail specification – General . 22

61076-3 © IEC:1999(E) – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
––––––––––––
CONNECTORS FOR USE IN DC, LOW-FREQUENCY ANALOGUE
AND DIGITAL HIGH-SPEED DATA APPLICATIONS –
Part 3: Rectangular connectors with assessed quality –
Sectional specification

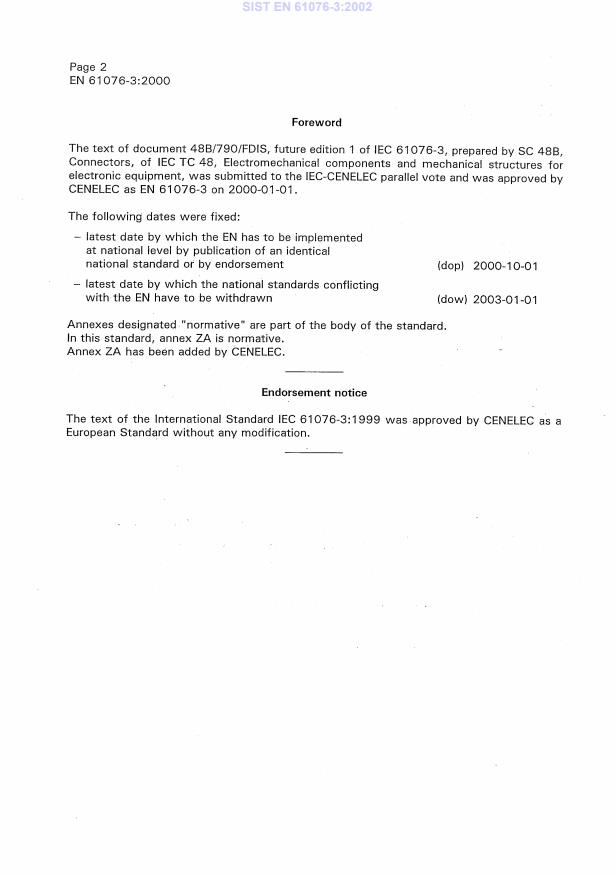

FOREWORD
1) The IEC (International Electrotechnical Commission) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of the IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, the IEC publishes International Standards. Their preparation is
entrusted to technical committees; any IEC National Committee interested in the subject dealt with may
participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. The IEC collaborates closely with the International
Organization for Standardization (ISO) in accordance with conditions determined by agreement between the
two organizations.
2) The formal decisions or agreements of the IEC on technical matters express, as nearly as possible, an
international consensus of opinion on the relevant subjects since each technical committee has representation
from all interested National Committees.
3) The documents produced have the form of recommendations for international use and are published in the form
of standards, technical specifications, technical reports or guides and they are accepted by the National
Committees in that sense.
4) In order to promote international unification, IEC National Committees undertake to apply IEC International
Standards transparently to the maximum extent possible in their national and regional standards. Any
divergence between the IEC Standard and the corresponding national or regional standard shall be clearly
indicated in the latter.
5) The IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with one of its standards.
6) Attention is drawn to the possibility that some of the elements of this International Standard may be the subject
of patent rights. The IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61076-3 has been prepared by subcommittee 48B: Connectors, of
IEC technical committee 48: Electromechanical components and mechanical structures for
electronic equipment.
The text of this standard is based on the following documents:
FDIS Report on voting
48B/790/FDIS 48B/819/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 3.
This part 3 constitutes the sectional specification in the IEC quality assessment system for
electronic components (IECQ) for rectangular connectors.

– 4 – 61076-3 © IEC:1999(E)
The other parts form the generic specification and the sectional specifications, some being
under consideration or in preparation. For these publications, the QC 480XXX has been
reserved.
IEC 61076 was reserved for these series of documents as well as QC 480000; the documents
available or under preparation are:
IEC 61076-1: Generic specification
IEC 61076-2: Sectional specification – Circular connectors
IEC 61076-3: Sectional specification – Rectangular connectors
IEC 61076-4: Sectional specification – Printed board connectors
IEC 61076-5: Sectional specification – In-line socket devices
IEC 61076-6: Sectional specification – Loose part contacts
The QC number that appears on the cover of this publication is the specification number of
the IEC Quality Assessment System for Electronic Components (IECQ).
The committee has decided that this publication remains valid until 2004. At this date, in
accordance with the committee’s decision, the publication will be
reconfirmed;
withdrawn;
replaced by a revised edition, or
amended.
A bilingual version of this standard may be issued at a later date.

61076-3 © IEC:1999(E) – 5 –
CONNECTORS FOR USE IN DC, LOW-FREQUENCY ANALOGUE
AND DIGITAL HIGH-SPEED DATA APPLICATIONS –
Part 3: Rectangular connectors with assessed quality –
Sectional specification
1 General
1.1 Scope
This part of IEC 61076 establishes uniform specifications, type testing requirements and
quality assessment procedures for a subfamily of rectangular connectors. It should be used in
conjunction with the generic specification IEC 61076-1 and with relevant detail specifications.
1.2 Normative references
The following normative documents contain provisions which, through reference in this text,
constitute provisions of this part of IEC 61076. For dated references, subsequent
amendments to or revisions of, any of these publications do not apply. However, parties to
agreements based on this part of IEC 61076 are encouraged to investigate the possibility of
applying the most recent editions of the normative documents indicated below. For undated
references, the latest edition of the normative document referred to applies. Members of IEC
and ISO maintain registers of currently valid International Standards.
IEC 60068-1:1988, Environmental testing – Part 1: General and guidance
IEC 60352-1:1997, Solderless connectors – Part 1: Wrapped connections – General
requirements, test methods and practical guidance
IEC 60352-2:1990, Solderless connections – Part 2: Solderless crimped connections –
General requirements, test methods and practical guidance
IEC 60352-3:1993, Solderless connections – Part 3: Solderlesss accessible insulation
displacement connections – General requirements, test methods and practical guidance
IEC 60352-4:1994, Solderless connections – Part 4: Solderless non-accessible insulation
displacement connections – General requirements, test methods and practical guidance
IEC 60352-5:1995, Solderless connections – Part 5: Solderless press-in connections –
General requirements, test methods and practical guidance
IEC 60410:1973, Sampling plans and procedures for inspection by attributes
IEC 60512 (all parts), Electromechanical components for electronic equipment – Basic testing
procedures and measuring methods
IEC 61076-1:1995, Connectors with assessed quality, for use in d.c. low-frequency analogue
and digital high-speed data applications – Part 1: Generic specification

– 6 – 61076-3 © IEC:1999(E)
2 Technical information
The detail specification shall contain information which contributes to a proper application of
the connectors. It will also provide specificities to enable a better understanding of the
connectors and/or the connector family.
2.1 Terminology
In addition to the terminology used in, and applicable to, the detail specification, as stated
in 2.1 of IEC 61076-1, it is recommended that those definitions which are unique to the
connectors specified in the detail specification be listed.
2.2 Classification into climatic categories
Unless impractical, the lower and upper temperatures and the duration for the damp heat,
steady-state test shall be described in a table similar to the example given in 2.2 of
IEC 61076-1.
2.3 Creepage and clearance distances
The detail specification shall specify creepage and clearance distances in accordance with
requirements of 2.3 of IEC 61076-1.
2.4 Current-carrying capacity
The detail specification shall specify the current-carrying capacity of connectors in
accordance with the requirements of 2.4 of IEC 61076-1.
2.5 IEC type designation
Connectors to which this standard applies shall be designated by the following indications and
in the order given.
a) The letters "IEC"
b) The number of the detail specification (without dashes), being nine characters (e.g.
610763100)
c) A letter denoting the style of the connector (the system shall be specified in the detail
specification).
d) The number of contacts of connectors or of contact cavities of connector bodies, the
number of digits used shall be in accordance with the maximum possible number of
contacts or cavities.
e) A letter denoting the type of contact of two-part connectors or the number of electrically
independent rows of edge-socket connectors. The following letters shall be used.
– Two-part connector F female contact
H hermaphroditic contact
M male contact
– Edge-socket connector D double row (separated)
Ssingle row
f) A number, being a combination of three digits, describing the contact arrangement, which
may include
– pre-mating contact levels;
– loaded contact rows;
– loaded contact patterns.
61076-3 © IEC:1999(E) – 7 –
g) A letter denoting the basic type of the terminations, followed by a character defining the
variation.
The following letters shall be used.
A screw S solder
Ccrimp T tab
I insulation displacement/piercing W wrap
Z no terminations
h) If prescribed in the detail specification, the type designation may optionally be extended to
cover further information, such as climatic category, printed board dimensions, contact
finish, etc.
i) Where the detail specification provides for a variation of performance and assessment
levels, a single digit and a letter shall be used to denote performance level (PL) and
assessment level (AL) respectively. The digit and letter shall be prescribed in the detail
specification and shall be included as the final characters of the type designation.
j) Grouping information
The indications (a-i) above shall be grouped to clarify the type of entity:
– basic description: a, b, c, d, and e;
– contact arrangement: f;
– terminations: g;
– performance: h, i.
2.6 Marking
Each connector and its associated package shall be marked in accordance with the
requirements specified in 2.6 of IEC 61076-1.
3 Quality assessment procedures
See clause 3 of IEC 61076-1.
4 Tests and test schedules
4.1 General
See clause 4 of IEC 61076-1.
The detail specification shall state the test sequence (in accordance with this standard), and
the number of specimens for each test sequence (not less than four).
Individual variants may be submitted to type tests for approval of those particular variants.
It is permissible to limit the number of variants tested to a selection representative of the
whole range for which approval is required (which may be less than the range covered by the
detail specification), but each feature and characteristic shall be proved.
The connectors shall have been processed in a careful and workmanlike manner, in
accordance with good current practices.

– 8 – 61076-3 © IEC:1999(E)
4.2 Test procedures and measuring methods
The test methods specified and given in the relevant standards are the preferred methods but
not necessarily the only ones which can be used. In case of dispute, however, the specified
method shall be used as the referee method.
Unless otherwise specified, all tests shall be carried out under standard atmospheric
conditions for testing as specified in IEC 60068-1.
Where approval procedures are involved and alternative methods are employed, it is the
responsibility of the manufacturer to satisfy the authority granting approval that any
alternative methods which he may use give results equivalent to those obtained by the
methods specified.
4.3 Pre-conditioning
Before the tests are made, the connectors shall be pre-conditioned under standard
atmospheric conditions for testing as specified in IEC 60068-1 for a period of 24 h unless
otherwise specified by the detail specification.
4.4 Wiring and mounting of specimens
4.4.1 Wiring
Where wiring of test specimens is required, the detail specification shall contain information
suitable to comply with the selected methods of test.
4.4.2 Mounting
When mounting is required in a test, unless otherwise specified, the connectors shall be
rigidly mounted on a metal plate, a printed board or to specified accessories, whichever is
applicable, using the normal mounting method, fixing devices and panel cut-out as laid down
in the detail specification.
4.5 Test schedules
To provide for different applications of connectors, the extent of the test schedule may be
different in the various detail specifications.
The basic (minimum) test schedule is given in 4.5.1.
The detail specification shall state the tests to be carried out and shall specify the
requirements to be fulfilled.
It is a requirement of this standard that in no case shall the tests required by the detail
specification be less than those listed in 4.5.1.
A full test schedule is laid down in 4.5.2.
For many connector types, an intermediate test schedule may be appropriate. Such
intermediate test schedule shall then be formed by using the full test schedule and omitting
entire groups and/or those tests and/or conditionings that are not necessary.
Test phase numbers shall not be modified but used as given in 4.5.2.

61076-3 © IEC:1999(E) – 9 –
The same is applicable when the sequence of the test phases in a test group is not entirely
appropriate to a particular type or style. In that case the sequence of the tests, but not the
measurement to be performed subsequent to tests, may be altered for that particular detail
specification.
The test phase reference shall be retained for each test thereby affording clarity should such
alterat
...
