EN 62002-2:2006

6/29(16., 6,67(1

67$1'$5'
MDQXDU
0RELOQLLQSUHQRVQLUDGLMVNLGRVWRSYVLVWHPX'9%7+GHO3UHVNXãDQMH
]PRJOMLYRVWLYPHVQLND,(&
LVWRYHWHQ(1
0RELOHDQGSRUWDEOH'9%7+UDGLRDFFHVV3DUW,QWHUIDFHFRQIRUPDQFHWHVWLQJ
,(&
,&6 5HIHUHQþQDãWHYLOND

6,67(1HQ
!"#$%&’( )&!*+,%- .
EUROPEAN STANDARD
EN 62002-2
NORME EUROPÉENNE
November 2006
EUROPÄISCHE NORM
ICS 33.170
English version
Mobile and portable DVB-T/H radio access
Part 2: Interface conformance testing
(IEC 62002-2:2005)
Accès radio DVB-T/H vers les mobiles  Mobiler und tragbarer Funkzugang
et les portables zu DVB-T/H
Partie 2 : Contrôles de conformité Teil 2: Konformitätsprüfung
de l'interface der Schnittstelle
(CEI 62002-2:2005) (IEC 62002-2:2005)

This European Standard was approved by CENELEC on 2006-10-01. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in two official versions (English and German). A version in any other language
made by translation under the responsibility of a CENELEC member into its own language and notified to the
Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Cyprus, the Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: rue de Stassart 35, B - 1050 Brussels

© 2006 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 62002-2:2006 E

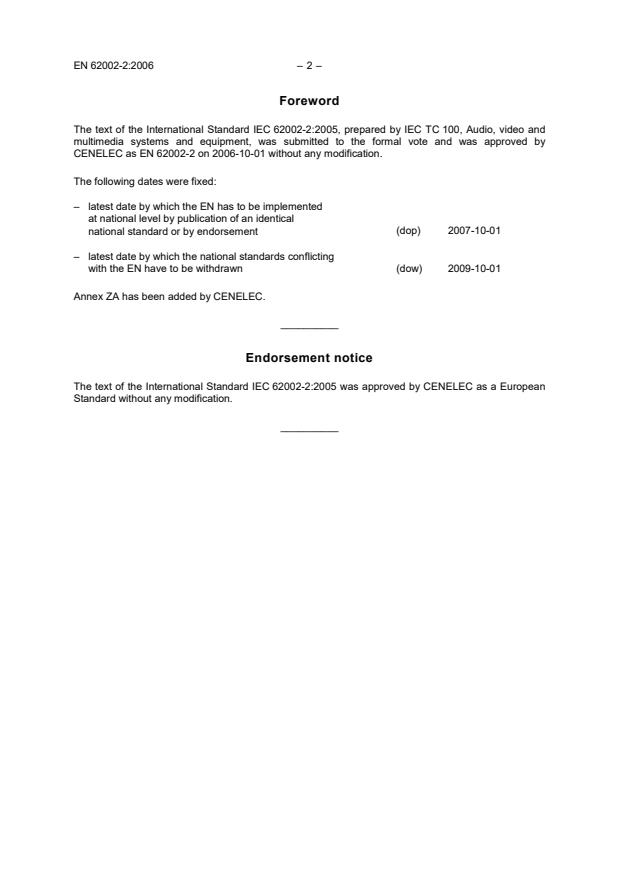

Foreword
The text of the International Standard IEC 62002-2:2005, prepared by IEC TC 100, Audio, video and
multimedia systems and equipment, was submitted to the formal vote and was approved by
CENELEC as EN 62002-2 on 2006-10-01 without any modification.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2007-10-01
– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2009-10-01
Annex ZA has been added by CENELEC.
__________
Endorsement notice
The text of the International Standard IEC 62002-2:2005 was approved by CENELEC as a European
Standard without any modification.
__________
– 3 – EN 62002-2:2006
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
NOTE  Where an International Publication has been modified by common modifications, indicated by (mod), the relevant
EN/HD applies.
Publication Year Title EN/HD Year
1)
IEC 62002-1 Mobile and portable DVB-T/H radio access - EN 62002-1 2006
–
Part 1: Interface specification
– – Digital Video Broadcasting (DVB); Framing ETSI EN 300 744 2004
structure, channel coding and modulation for (V1.5.1)
digital terrestrial television

———————
1)
Undated reference.
INTERNATIONAL IEC
STANDARD 62002-2
First edition
2005-10
Mobile and portable DVB-T/H radio access –
Part 2:
Interface conformance testing
 IEC 2005  Copyright - all rights reserved
No part of this publication may be reproduced or utilized in any form or by any means, electronic or
mechanical, including photocopying and microfilm, without permission in writing from the publisher.
International Electrotechnical Commission, 3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, Switzerland
Telephone: +41 22 919 02 11 Telefax: +41 22 919 03 00 E-mail: inmail@iec.ch Web: www.iec.ch
PRICE CODE
Commission Electrotechnique Internationale W
International Electrotechnical Commission
МеждународнаяЭлектротехническаяКомиссия
For price, see current catalogue

– 2 – 62002-2  IEC:2005(E)
CONTENTS
FOREWORD.5

1 Scope.7
2 Normative references .7
3 Abbreviations .7
4 Test conditions .10
4.1 General test conditions.10
4.2 Terminal categories and summarized measurement conditions .10
4.3 Required equipment .11
4.4 Reference model and test point .11
4.5 Degradation criteria.12
4.6 Definition of C/N .14
4.7 Definition of measurement signals.14
5 C/N performance .16
5.1 Definition and applicability.16
5.2 Minimum requirements .16
5.3 Test purpose .17
5.4 Method of test .17
5.5 Test requirement .19
6 Receiver minimum and maximum input signal levels.19
6.1 Definition and applicability.19
6.2 Minimum requirements .19
6.3 Test purpose .20
6.4 Method of test .20
6.5 Test requirement .21
7 Immunity to analogue and/or digital signals in other channels.21
7.1 Definition and applicability.21
7.2 Minimum requirements .21
7.3 Test purpose .23
7.4 Method of test .23
7.5 Test requirement .27
8 Immunity to co-channel interference from analogue TV signals.27
8.1 Definition and applicability.27
8.2 Minimum requirements .27
8.3 Test purpose .28
8.4 Method of test .28
8.5 Test requirement .29
9 Guard interval utilization: echoes within guard interval .29
9.1 Definition and applicability.29
9.2 Minimum requirements .29
9.3 Test purpose .29
9.4 Method of test .29
9.5 Test requirement .30

62002-2  IEC:2005(E) – 3 –
10 Guard interval utilization: echoes outside the guard interval .30
10.1 Definition and applicability.30
10.2 Minimum requirements .31
10.3 Test purpose .31
10.4 Method of test .32
10.5 Test requirement .32
11 Tolerance to impulse interference.33
11.1 Definition and applicability.33
11.2 Minimum requirements .33
11.3 Test purpose .34
11.4 Method of test .34
11.5 Test requirement .35

Bibliography.36

Figure 1 – Reference model.12
Figure 2 – PAL interfering signals .15
Figure 3 – SECAM L interfering signal .15
Figure 4. Example of a possible measurement setup in C/N performance tests. .18
Figure 5 – Example of a possible measurement setup in minimum and maximum
receiver signal input level tests.20
Figure 6 – Pattern S1: Wanted DVB-T channel with N + 1 or N – 1 analogue interferer.23
Figure 7 – Pattern S2: Wanted DVB-T channel with N + 1 or N – 1 digital DVB-T
interferer.24
Figure 8 – Pattern L1: Wanted DVB-T channel with one analogue signal on N + 4
channel and one digital DVB-T signal on N + 2 channel. .25
Figure 9 – Pattern L2: Wanted DVB-T channel with one analogue signal on N + 4
channel and another analogue signal on N + 2 channel.25
Figure 10 – Pattern L3: Wanted DVB-T signal with one digital DVB-T signal on N + 4
channel and another digital DVB-T signal on N + 2 channel. .26
Figure 11 – Example of a possible measurement setup in immunity to analogue and/or
digital signals in other channels test. .26
Figure 12 – Example of a possible measurement setup in immunity to co-channel
interference from analogue TV signals test. .28
Figure 13 – Example of a possible measurement setup in echoes within guard interval
test. .29
Figure 14 – Echo outside guard interval mask.31
Figure 15 – Example of a possible measurement setup in echoes outside guard
interval test.32
Figure 16 – Definition of the impulse interference test pattern.33
Figure 17 – Example of a possible measurement setup in impulse noise interference
test. .34

Table 1 – Valid conformance measurements for different terminal categories .10
Table 2 – Delta values between picture failure point and reference BER.13
Table 3 – C/N (dB) in Gaussian channel.16
Table 4 – C/N (dB) in portable channel.16

– 4 – 62002-2  IEC:2005(E)
–4
Table 5 – C/N (dB) for PER = 1 × 10 in typical urban channel .17
Table 6 – C/N (dB) for MFER 5 % for DVB-H .17
Table 7 – Immunity to pattern S1 .21
Table 8 – Immunity to pattern S2 .22
Table 9 – Immunity to pattern L1.22
Table 10 – Immunity to pattern L2.22
Table 11 – Immunity to pattern L3.23
Table 12 – Immunity to analogue co-channel .27
Table 13 – Performance with echoes within guard interval .29
Table 14 – Paths in echoes within guard interval measurement .30
Table 15 – Delay of the corner point Tc.31
Table 16 – Definition of the value Δ .31
Table 17 – Definition of the inflection point .31
Table 18 – Measurement conditions and modes used in measurements.33
Table 19 – Minimum required performance in presence of impulsive interference. .34

62002-2  IEC:2005(E) – 5 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
MOBILE AND PORTABLE DVB-T/H RADIO ACCESS –

Part 2: Interface conformance testing

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62002-2 has been prepared by Technical Area 1: Terminals for
audio, video and data services, of IEC technical committee 100: Audio, video and multimedia
systems and equipment.
The text of this standard is based on the following documents:
CDV Report on voting
100/921/CDV 100/1013/RVC
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

– 6 – 62002-2  IEC:2005(E)
IEC 62002 consists of the following parts, under the general title Mobile and portable DVB-
T/H radio access:
Part 1: Interface specification
Part 2: Interface conformance testing
The committee has decided that the contents of this publication will remain unchanged until
the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in
the data related to the specific publication. At this date, the publication will be
• reconfirmed;
• withdrawn;
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.

62002-2  IEC:2005(E) – 7 –
MOBILE AND PORTABLE DVB-T/H RADIO ACCESS –

Part 2: Interface conformance testing

1 Scope
This part of IEC 62002 provides the conformance testing rules and guidelines for equipment
built to meet the mobile and portable DVB-T/H radio access interface specification
(IEC 62002-1).
The purpose of this standard is to limit the required test cases to a practical level.
Nevertheless, the manufacturer is responsible for guaranteeing that the terminal fulfils the
mobile and portable DVB-T/H radio access interface specification (IEC 62002-1) in all its
aspects.
2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
IEC 62002-1, Mobile and portable DVB-T/H radio access – Part 1: Interface specification
ETSI EN 300 744, V1.5.1:2004, Digital Video Broadcasting (DVB) – Framing structure,
channel coding and modulation for digital terrestrial television
3 Abbreviations
For the purposes of this document, the following abbreviations apply.
λ Lambda, wavelength (λ = c/f)
A2 German analogue TV stereo system
A Coupling between antennas
A
AGC Automatic gain control
A Stop-band attenuation of the GSM reject filter
GSM
B Bandwidth
BER Bit error ratio
C Carrier power (in band carrier power including any echoes)
C
Speed of light c = 3,0 × 10 m/s
Ci Power contribution from the i-th signal
Ct Total useful carrier power
C/N
Carrier-to-noise ratio
C/N Minimum C/N
min
CPE
Common phase error
CR Code rate
dB Decibel
– 8 – 62002-2  IEC:2005(E)
dBc dB compared to carrier power C
dBd Antenna gain in dB compared to reference dipole (0 dBd = –2,14 dBi)
dBi Antenna gain in dB compared to isotropic antenna (0 dBi = 2,14 dBd)
dB(mW) Power in dB compared to 1 mW
DUT Device under test
DVB, DVB-T Digital video broadcasting, terrestrial digital video broadcasting
DVB-H Digital video broadcasting to hand-held terminals
DVB-RCT DVB terrestrial return channel
E Field strength V/m
E(dBµV/m) Field strength in dB compared to 1 µV
EDGE Enhanced data rates for GSM/global evolution
EMC Electromagnetic compatibility
END
Equivalent noise degradation
ENF Equivalent noise floor
ESR
Erroneous second ratio
f Frequency in Hz
f (MHz)
Frequency in MHz
fc Centre frequency
F
Noise factor
fd, Fd Doppler frequency
Fd
Doppler frequency with minimum C/N requirement raised by 3 dB
3dB
FER Frame error rate
G
Gain
Ga Antenna gain
GI
Guard interval
GPRS General packet radio service
GSM Global system for mobile communications
I Interfering power
ICI
Intercarrier interference
J Joule
-26
k Boltzmann’s constant k = 1,38 × 10 J/K
K Kelvin
L1, L2, L3 Linearity patterns
L Insertion loss of the GSM reject filter
GSM
LNA Low noise amplifier
MER Modulation error ratio
MFER MPE-FEC frame error rate
MHz Megahertz
MPEG-2 Motion pictures expert group, video compression standard
n, m, N Channel indexes
62002-2  IEC:2005(E) – 9 –
NF Noise figure in dB
NICAM Additional sound carrier for analogue TV, modulated with a near
instantaneous compended audio multiplex
PA Power amplifier
PAL, PAL B, PAL G, Phase alternation line, TV systems using PAL
PAL I, PAL I1
PER Packet error ratio
PFP Picture failure point
P
Input power W
in
P (dB(mW)) Input power dB compared to 1 mW
in
P Maximum power
max
ppm Parts per million
PSI/SI Program specific information, service information
P Transmission power
TX
Px Excess noise power dBc
QAM16, QAM64 Quadrature amplitude modulation, 16-level and 64-level versions
QEF Quasi error free
QoS Quality of service
QPSK Quaternary phase shift keying
RF Radiofrequency
RS Reed Solomon
Rx Receiver
S1,S2 Selectivity patterns
SECAM, SECAM L Sequential à mémoire, TV system using SECAM
SFN Single frequency network
SFP Subjective failure point
T Temperature in kelvins
Tc Corner point
Te Total duration of the gating pulses
ti Time of arrival for the i-th signal
TS Transport stream
Tg Guard interval duration
Tu Active symbol duration
Tx Transmitter
UHF Ultra high frequency
UMTS Universal mobile telecommunications system
VHF Very high frequency
W Watt
WCDMA Wide-band code division multiple access
Wi Weighting coefficient for the i-th component

– 10 – 62002-2  IEC:2005(E)
4 Test conditions
4.1 General test conditions
4.1.1 General
The general test conditions are set out below. Manufacturers should note that the actual
conditions of use could be more stringent.
4.1.2 Temperature
The terminal shall be tested in the normal laboratory conditions defined below:
+ 5 °C to +35 °C For normal conditions (with relative humidity of 25 % to 75 %)
4.1.3 Voltage
All tests are performed under nominal operating voltage as defined by the manufacturer.
4.2 Terminal categories and summarized measurement conditions
Table 1 shows which conformance measurements are performed with different terminal
categories and summaries the measurement conditions.
Table 1 – Valid conformance measurements for different terminal categories
Terminal Terminal Terminal Terminal
Clause Conditions category a category b1 category b2 category c
hand-held
car portable TVs pocketable
convergence
terminals TVs
terminals
Ch 45
Gaussian All modulations, 2k/4k/8k
Portable All modulations, 2k/4k/8k
5 C/N performance
QPSK 1/2 , QPSK 1/2 ,
16QAM 1/2 16QAM 1/2
Mobile - -
and 2/3 and 2/3
GI 1/4 GI 1/4
Ch 21, 45, 64 (UHF), Ch 8, 12 (VHF)
6 Receiver minimum Minimum and
and maximum input maximum input
signal levels levels
QPSK 1/2
N ± 1: Ch 45 (UHF), Ch 8 (VHF) with 64QAM 2/3 additionally Ch
21, 64 (UHF), Ch 5, 12 (VHF). N±2: Ch 45 (UHF), Ch 8 (VHF)
S1
16QAM 3/4 , 16QAM 2/3, 16QAM 1/2 , 64QAM 3/4 , 64QAM 2/3
GI1/8
7 Immunity to
analogue and/or
Ch 45 (UHF), Ch 8 (VHF)
digital signals in other
S2
channels
64QAM 2/3, GI 1/8
Ch 21,45,64 (UHF) Ch 8 (VHF)
L1-L3
16QAM 2/3, GI 1/8
Ch 45 (UHF)
8 Immunity to co-
channel interference
from analogue TV
signals
All modulations, GI 1/8
62002-2  IEC:2005(E) – 11 –
Table 1 (continued)
Terminal Terminal Terminal Terminal
Clause Conditions category a category b1 category b2 category c
hand-held
car portable TVs pocketable
convergence
terminals TVs
terminals
Ch 45 (UHF)
9 Guard interval
utilization: echoes
within guard interval
8k, 64QAM 2/3, GI 1/8
8k, 16QAM 1/2, GI 1/8
Ch 45 (UHF)
10 Guard interval
utilization: echoes
outside the guard
8k, 64QAM 2/3, GI 1/8
interval
8k, 16QAM 1/2, GI 1/8
8k, 16QAM 2/3, GI 1/8
Ch 45 (UHF)
11 Tolerance to
8k, 64QAM 2/3, GI 1/8
impulse interference
8k, 16QAM 1/2, GI 1/8
8k, 16QAM 2/3, GI 1/8
4.3 Required equipment
The following list gives an overview of the measurement equipment required for the entire set
of conformance testing. Capabilities and features of the actual equipment may vary and there
could be alternative ways of performing the measurements. Therefore, no detailed instructions
for various measurements are given and the list of the required equipment is an example.
• 3 DVB-T/H signal sources
• Wideband noise source
• 2 PAL/SECAM analogue TV-signal sources
• Spectrum analyser
• Channel simulator
• RF power meter
• Impulse noise source
• MPEG-2 source
• MPEG-2 decoder
• DVB-H IP encapsulator
• Step attenuators, power dividers, cables and other standard RF measurement accessories
4.4 Reference model and test point
The receiver performance is defined according to the reference model shown in Figure 1.

– 12 – 62002-2  IEC:2005(E)
Field
strength
Antenna Optional external
E
gain antenna connector
G
a
Only in DVB-H receiver
Noise
IP out
factor
DVB-H DVB-H DVB-H
F
DVB-T
time MPE- IP-de-
demodulator
Input
slicing FEC encapsulation
Optional
power
GSM
P
in
reject
filter
RF reference TS reference
IP reference
L
GSM point point
point
FER MFER
reference reference
point point
Figure 1 – Reference model
The receiver performance figures are all specified at the reference point, which is the input of
the receiver. All conformance testing is performed at the same point.
In the case where the GSM rejection filter is included (terminal category c), the measurements
can be carried out in the front of the GSM rejection filter and the allowed noise figure
degradation is at most 1 dB. This degradation is to be included in the receiver minimum input
signal level values. For all other measurements, the reference point can be moved to the front
of the GSM rejection filter and all other requirements remain the same.
In the case of a DVB-H receiver, the manufacturer shall provide the specified test mode in
which the following parameters can be monitored.
• TS-BER after Viterbi decoder
• TS-PER
• MPE-FEC FER
4.5 Degradation criteria
Four different degradation criteria are used. The criteria a and b are used in the non-mobile
cases. Criterion c is for mobile reception and criterion d for DVB-H reception.
–4
a) Reference BER, defined as BER = 2 × 10 after Viterbi decoding
This criterion corresponds to the DVB-T standard defined QEF criterion, causing ”less
than one uncorrected error event per hour”. In the stationary reception cases, QEF is
equivalent to the reference BER after Viterbi decoding.
b) Picture failure point (PFP)
The PFP is defined as the C/N or C/I value where visible picture errors start to appear on
the screen. This is more convenient for some of the measurements than the normal
reference BER criterion, which might be unreachable. A more objective definition can be
made using the ESR (erroneous second ratio 5 %) criterion, which allows one erroneous
second within the 20 s observation period in the transport stream. Note that the reception
quality is poor at PFP as one possible error in each 20 s interval is too much for fixed TV
reception. The criterion is nevertheless suitable for measurements, and a 1-2 dB carrier
power increase will improve the reception quality to QEF level. A useful method to reduce
the uncertainty of visual PFP is to use the two out of three method. Here 2 out of 3
consecutive 10 s periods shall be good (no artefacts), i.e. 1 out of 3 can contain artefacts.
More complex M out of N periods can lead to more accurate results but will increase the
measurement time. Table 2 shows the correlation between the PFP and the reference BER

62002-2  IEC:2005(E) – 13 –
error criterion for various measurements. When the PFP is used in the measurement, the
measured value can be converted to corresponding reference BER value by using Table 2.
Table 2 – Delta values between picture failure point and reference BER
Measurement Delta
dB
C/N in Gaussian channel 1,3
Minimum input level 1,3
Immunity to other channels 2,0
Immunity to co-channel 2,0
C/N in portable channels 1,3
c) Subjective failure point in mobile reception (SFP)
The reference BER, meaning perfect “quality of transmission”, is unfortunately not suitable
in the mobile environment due to the fast channel variations. In mobile cases, the
reference BER criterion may give unstable values, which could result in an underestimation
of DVB-T mobile capabilities. Within the motivate project [5] , a subjective quality has
been defined, referred to as the SFP. The SFP corresponds to: “on average, one visible
error in the video, during an observation period of 20 s”. This corresponds to the ESR
(erroneous second ratio 5 %) criterion, which allows one erroneous second within the 20 s
observation period. Thus, the ESR method can be used to measure the SFP. The SFP
–4
corresponds also fairly well to a PER = 10 after RS decoder at the demodulator TS
output. The observation period for the PER measurement should be at least 800 k TS
packets, corresponding roughly to 2 min with 16QAM CR = 1/2 GI = 1/4 mode.
d) DVB-H error criterion
In DVB-H a suitable degradation criterion is the MPE-FEC frame error rate (MFER),
referring to the error rate of the time-sliced burst protected with the MPE-FEC. As an
erroneous frame will destroy the service reception for the whole interval between the
bursts, it is appropriate to fix the degradation point to the frequency of lost frames.
Obviously, the used burst and IP parameters will affect the final service quality obtained
with certain fixed MFER, but experience has shown that the behaviour is very steep and a
very small change in C/N will result in a large change in MFER.
MFER is the ratio of the number of erroneous frames (i.e. not recoverable) and total
number of received frames. To provide sufficient accuracy, at least 100 frames shall be
analysed.
Number of erroneous frames × 100
MFER[]% =
Total number of frames
It has been agreed that 5 % MFER is used to mark the degradation point of the DVB-H
service. Note that the service reception quality at the 5 % MFER degradation point may not
meet the QoS requirement in all cases. The criterion is nevertheless suitable for
measurements, and a small 0,5 to 1dB carrier power increase will improve the reception
quality to less than 1 % MFER.
It is also possible to estimate the MFER with good accuracy without performing the actual
MPE-FEC calculation by just observing row by row the number of erroneous bytes and
comparing this with the error correction capability of the RS code used and marking the
row erroneous or non-erroneous. If all rows are non-erroneous, the frame is non-
erroneous. With this method, it is possible to decode all services (i.e. the whole transport
stream) in parallel and shorten the observation time for the 100 frames needed.
———————
Figures in square brackets refer to the Bibliography.

– 14 – 62002-2  IEC:2005(E)
In DVB-H receivers with no MPE-FEC, the frame error rate criterion can be used in a
slightly different way. A frame is marked as erroneous if any TS packet within the frame is
erroneous. This criterion is called FER and degradation point is set to 5 % value. Note that
5 % FER may lead to better actual QoS than 5 % MFER as in FER it is possible that only a
few TS packets within the frame are erroneous, but in MFER a non-recoverable frame is
probably highly corrupted. The actual performance figures with FER 5 % are very similar
what would be achieved using ESR criterion to the transport stream directly.
4.6 Definition of C/N
C/N is measured from the test signals by measuring the noise level in dB(mW) present at the
received channel bandwidth (5,71 MHz, 6,67 MHz or 7,61 MHz) and comparing the DVB-T/H
signal level (dB(mW)) to the measured noise level.
Example: Measured noise level at 7,61 MHz channel bandwidth is –70 dB(mW). Measured
DVB-T/H signal level is –50 dB(mW). Resulting C/N is 20 dB.
4.7 Definition of measurement signals
4.7.1 Wanted DVB-T/H signal and interfering DVB-T signal definition
The DVB-T signal is according to ETSI EN 300 744.
In the case of DVB-H, the signal used in measurements has a burst size of 2 Mbits. The DVB-
H burst bit rate is always 4 Mbit/s independent of modulation. MPE-FEC parameters are 1 024
rows, CR 3/4. These parameters will result approximately in a duration of 0,5 s time-slicing
bursts. The repetition rate of bursts can vary, and higher rates than typically used in real
networks can be used to speed up the measurement. As an example, a repetition rate with a
50 % on/off period can be used.
4.7.2 Interfering signal definitions
Figure 2 shows the PAL B/G/I1 interfering signals. Modulating signals are: 75 % colour bars
for the vision carrier, 1 kHz FM sound with ±50 kHz deviation and any modulation for NICAM.
The level of the FM sound carrier relative to the vision carrier is –13 dB. The level of the
NICAM signal relative to the vision carrier is –20 dB. Note that the filter roll-off factor for PAL
B/G NICAM is 40 % and PAL I1 NICAM is 100 %.

62002-2  IEC:2005(E) – 15 –
8 MHz channel
7 MHz channel
5,85 MHz
NICAM
-20 dB
carrier
5,5 MHz
0 dB
Sound
sub carrier
-13 dB
PAL-B/G with NICAM
1,25 MHz
8 MHz channel
7 MHz channel
carrier
0 dB 5,5 and 5,74 MHz
Sound
sub carriers
-13 dB and -20 dB
PAL-B/G with A2
1,25 MHz
8 MHz channel
6,522 MHz
NICAM
carrier 6,0 MHz
-20 dB
0 dB Sound
sub carrier
-13 dB
PAL-I1
1,25 MHz
Figure 2 – PAL interfering signals
SECAM L
Figure 3 shows the standard SECAM signal with NICAM sound (1,25 MHz vestigial sideband
bandwidth).
8 MHz channel
5,85 MHz
NICAM 6,5 MHz
AM Sound
Picture -27 dB
carrier sub carrier
Colour
-10 dB
0 dB
subcarrier
-16 dB
SECAM L
1,25 MHz
Figure 3 – SECAM L interfering signal
The level of the sound subcarrier is –10 dB relative to the vision carrier. The level of the
NICAM signal relative to the analogue vision carrier is –27 dB. Note that the filter roll-off
factor for SECAM L NICAM is 40 %. Modulating signals are 75 % colour bars for the vision
carrier and 1 kHz with 54 % AM for the AM sound carrier.

– 16 – 62002-2  IEC:2005(E)
5 C/N performance
5.1 Definition and applicability
This test measures the required carrier-to-noise ratio to reach the appropriate failure point
criterion.
The requirements and this test shall apply to all terminal categories specified in IEC 62002-1
with the following exception: for terminal category b, the performance is measured only in
Gaussian and portable channels.
5.2 Minimum requirements
5.2.1 C/N performance in Gaussian channel
The requirements are shown in Table 3.
Table 3 – C/N (dB) in Gaussian channel
Modulation Code rate C/N (dB) Ref C/N (dB)
PFP
BER
QPSK 1/2 5,6 4,3
QPSK 2/3 7,4 6,1
QPSK 3/4 8,4 7,1
16-QAM 1/2 11,3 10,0
16-QAM 2/3 13,7 12,4
16-QAM 3/4 15,1 13,8
64-QAM 1/2 17,0 15,7
64-QAM 2/3 19,2 17,9
64-QAM 3/4 20,8 19,5
5.2.2 C/N performance in portable channel
The requirements are shown in Table 4.
Table 4 – C/N (dB) in portable channel
Modulation Code rate C/N (dB) Ref C/N (dB)
BER PFP
QPSK 1/2 7,9 6,6
QPSK 2/3 10,9 9,6
QPSK 3/4 13,2 11,9
16-QAM 2/1 13,8 12,5
16-QAM 2/3 16,8 15,5
16-QAM 3/4 19,4 18,1
64-QAM 1/2 18,7 17,4
64-QAM 2/3 22,1 20,9
64-QAM 3/4 24,8 23,5
62002-2  IEC:2005(E) – 17 –
5.2.3 C/N performance in mobile channels
The performance in IEC 62002-1 is specified at 1/32 guard interval, but the conformance
measurement is carried out with the more practical guard interval of 1/4. The performance
expected at the 1/4 guard interval is 85 % of that with 1/32 guard interval and the calculated
figures are shown in Table 5.
–4
Table 5 – C/N (dB) for PER = 1x10 in typical urban channel
Guard interval = 1/4 2k Speed at Fd at 8k Speed at Fd at
C/N + 3 dB C/N + 3 dB
min min
(km/h) (km/h)
Modulation Bit rate Code Fd at 200 500 800 Fd at 200 500 800
C/N Fd C/N Fd
min max min max
(Mbit/s) rate (dB) (Hz) C/N (dB) (Hz) C/N
min min
MHz MHz MHz MHz MHz MHz
+ 3 dB + 3 dB
QPSK 4,98 1/2 13,0 270 220 1188 475 297 13,0 65 55 297 119 74
16-QAM 9,95 1/2 18,5 190 155 837 335 209 18,5 50 40 216 86 54
16-QAM 13,27 2/3 21,5 150 125 675 270 169 21,5 35 30 162 65 41

For DVB-H these values are given in Table 6.
Table 6 – C/N (dB) for MFER 5 % for DVB-H
Guard interval = 1/4 2k Speed at 4k Speed at 8k Speed at
Fd Fd Fd
3dB 3dB 3dB
(km/h) (km/h) (km/h)
Modulation Code Bit rate C/N Fd 474 698 C/N Fd 474 698 C/N Fd 474 698
min 3dB min 3dB min 3dB
rate (dB) (Hz) (dB) (Hz) (dB) (Hz)
Mbit/s) MHz MHz MHz MHz MHz MHz
QPSK 1/2 4,98 9,5 380 866 588 9,5 190 433 294 9,5 95 216 147
QPSK 2/3 6,64 12,5 360 820 557 12,5 180 410 279 12,5 90 205 139
16-QAM 1/2 9,95 15,5 340 775 526 15,5 170 387 263 15,5 85 194 132
16-QAM 2/3 13,27 18,5 320 729 495 18,5 160 365 248 18,5 80 182 124
NOTE These values are preliminary.

5.3 Test purpose
The purpose of this test is to verify the C/N performance of the receiver in different channel
conditions specified in Table 3, 4 and 5.
The purpose of the C/N test performed in Gaussian channel conditions is to verify the
operation of the terminal under ideal channel conditions. The portable channel conditions are
used to test the performance of the terminal under conditions where the channel is stationary
multipath channel without direct path. The mobile channel model is used to verify the
operation of the terminal while moving in a car.
5.4 Method of test
5.4.1 Initial conditions
Frequencies to be tested: the measurements are performed at channel 45 (666 MHz).
Reception modes to be tested:
In Gaussian channels: all modes specified in IEC 62002-1, 10.7.1. The test can be carried out
with 2 k or 4 k or 8 k modes or any combination of these.

– 18 – 62002-2  IEC:2005(E)
In portable channels: all modes specified in IEC 62002-1, 10.7.2 are tested. The test can be
carried out with 2 k or 4 k or 8 k modes or any combination of these.
In mobile channels: the modes QPSK 1/2, 16QAM 1/2 and 16QAM 2/3, all using guard interval
1/4. The highest available FFT-size is selected.
For DVB-H receivers with MPE-FEC when measuring with mobile channels, the failure point
criterion is DVB-H error criterion (failure criterion d) using DVB-H performance target figure.
DVB-H receivers without MPE-FEC are measured using FER criterion and the performance
target figure of DVB-T. Other measurements are done with the same criteria as DVB-T.
5.4.2 Measurement setup
The measurement setup is shown in Figure 4.
DVB-T/H Channel
Noise source DUT
source simulator
Figure 4 – Example of a possible measurement setup in C/N performance tests
a) Connect the DVB-T/H signal source to the channel simulator and noise source. Feed the
signal into the terminal reference point shown in Figure 1. If the C/N of the DVB-T/H signal
source can be set, it can be used in measurements instead of noise source.
b) Set the correct channel model to the channel simulator.
c) Set correct modulation and signal parameters to the DVB-T/H signal source.
d) Set the DVB-T/H signal source to channel 45 (666 MHz).
e) Set the DVB-T/H signal source power level to –50 dB(mW), when measured from the
terminal reference point.
f) Tune the terminal to channel 45 (666 MHz).
g) Perform the measurement as described in 5.4.3.
5.4.3 Procedure
5.4.3.1 Gaussian channel
The C/N value is adjusted by changing the noise source signal level until the receiver reaches
–4
reference BER criterion 2 × 10 after the Viterbi decoder (failure criterion a) (for D
...
