EN 61076-2-001:2011

SLOVENSKI STANDARD
01-oktober-2011
Konektorji za elektronsko opremo - Zahteve za izdelke - 2-001. del: Okrogli
konektorji - Okvirna podrobna specifikacija
Connectors for electronic equipment - Product requirements - Part 2-001: Circular
connectors - Blank detail specification
Connecteurs pour équipements électroniques - Exigences de produit - Partie 2-001:
Connecteurs circulaires - Spécification particulière-cadre
Ta slovenski standard je istoveten z: EN 61076-2-001:2011
ICS:
31.220.10 9WLþLLQYWLþQLFHNRQHNWRUML Plug-and-socket devices.
Connectors
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 61076-2-001
NORME EUROPÉENNE
August 2011
EUROPÄISCHE NORM
ICS 31.220.10 Supersedes EN 61076-2-001:2001

English version
Connectors for electronic equipment -
Product requirements -
Part 2-001: Circular connectors -
Blank detail specification
(IEC 61076-2-001:2011)
Connecteurs pour équipements Steckverbinder für elektronische
électroniques - Einrichtungen -
Exigences de produit - Produktanforderungen -
Partie 2-001: Connecteurs circulaires - Teil 2-001: Rundsteckverbinder -
Spécification particulière cadre Vordruck für Bauartspezifikation
(CEI 61076-2-001:2011) (IEC 61076-2-001:2011)

This European Standard was approved by CENELEC on 2011-07-26. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia,
Spain, Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2011 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 61076-2-001:2011 E

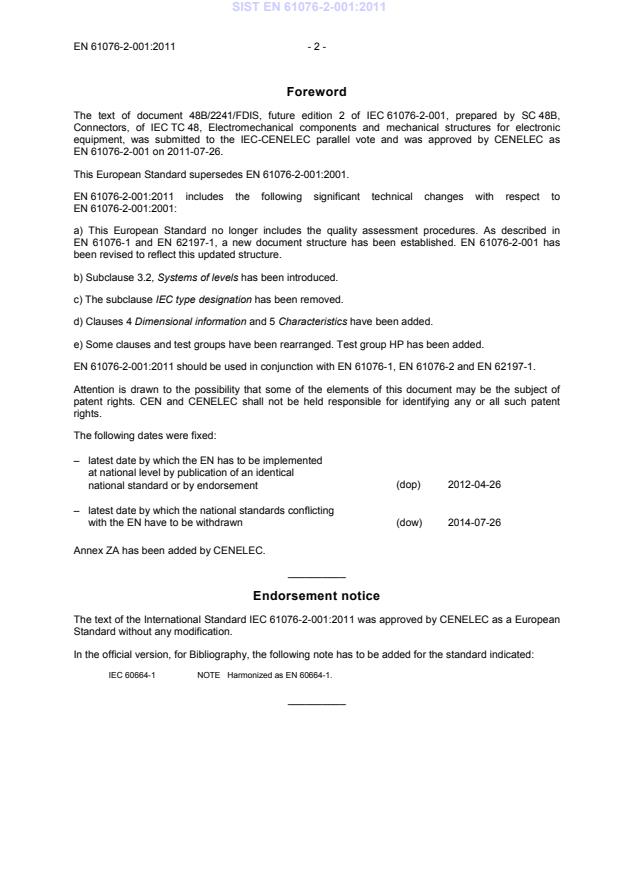

Foreword
The text of document 48B/2241/FDIS, future edition 2 of IEC 61076-2-001, prepared by SC 48B,
Connectors, of IEC TC 48, Electromechanical components and mechanical structures for electronic
equipment, was submitted to the IEC-CENELEC parallel vote and was approved by CENELEC as
EN 61076-2-001 on 2011-07-26.
This European Standard supersedes EN 61076-2-001:2001.
EN 61076-2-001:2001:
a) This European Standard no longer includes the quality assessment procedures. As described in
EN 61076-1 and EN 62197-1, a new document structure has been established. EN 61076-2-001 has
been revised to reflect this updated structure.
b) Subclause 3.2, Systems of levels has been introduced.
c) The subclause IEC type designation has been removed.
d) Clauses 4 Dimensional information and 5 Characteristics have been added.
e) Some clauses and test groups have been rearranged. Test group HP has been added.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN and CENELEC shall not be held responsible for identifying any or all such patent
rights.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
(dop) 2012-04-26
national standard or by endorsement
– latest date by which the national standards conflicting
(dow) 2014-07-26
with the EN have to be withdrawn
Annex ZA has been added by CENELEC.
__________
Endorsement notice
The text of the International Standard IEC 61076-2-001:2011 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following note has to be added for the standard indicated:
IEC 60664-1 NOTE  Harmonized as EN 60664-1.
__________
- 3 - EN 61076-2-001:2011
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.

NOTE  When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year

IEC 60068-1 - Environmental testing - EN 60068-1 -
Part 1: General and guidance
IEC 60352 Series Solderless connections EN 60352 Series

IEC 60512 Series Connectors for electronic equipment - Tests EN 60512 Series
and measurements
IEC 60512-1 - Connectors for electronic equipment - Tests EN 60512-1 -
and measurements -
Part 1: General
IEC 60512-1-100 - Connectors for electronic equipment - Tests EN 60512-1-100 -
and measurements -
Part 1-100: General - Applicable publications

IEC 60999-1 - Connecting devices - Electrical copper EN 60999-1 -
conductors - Safety requirements for screw-
type and screwless-type clamping units -
Part 1: General requirements and particular
requirements for clamping units for conductors
from 0,2 mm² up to 35 mm² (included)

IEC 60999-2 - Connecting devices - Electrical copper EN 60999-2 -
conductors - Safety requirements for screw-
type and screwless-type clamping units -
Part 2: Particular requirements for clamping
units for conductors above 35 mm² up to 300
mm² (included)
IEC 61076-1 2006 Connectors for electronic equipment - EN 61076-1 2006
Product requirements -
Part 1: Generic specification
IEC 61076-2 2011 Connectors for electronic equipment - EN 61076-2 2011
Product requirements -
Part 2: Sectional specification for circular
connectors
IEC 62197-1 - Connectors for electronic equipment - Quality EN 62197-1 -
assessment requirements -
Part 1: Generic specification
IEC 61076-2-001 ®
Edition 2.0 2011-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Connectors for electronic equipment – Product requirements –
Part 2-001: Circular connectors – Blank detail specification

Connecteurs pour équipements électroniques – Exigences de produit –
Partie 2-001: Connecteurs circulaires – Spécification particulière cadre

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX XC
ICS 31.220.10 ISBN 978-2-88912-561-6

– 2 – 61076-2-001  IEC:2011
CONTENTS
FOREWORD . 5
INTRODUCTION . 7
1 Scope . 9
2 Normative references . 11
3 Technical information . 13
3.1 Terms and definitions . 13
3.2 Systems of levels . 13
3.2.1 Performance levels . 13
3.2.2 Compatibility levels, according to IEC 61076-1 Ed. 2.0 . 13
3.3 Classification into climatic categories . 13
3.4 Creepage and clearance distances . 15
3.5 Current-carrying capacity . 15
3.6 Marking . 15
4 Dimensional information . 17
4.1 General . 17
4.2 Isometric view and common features . 17
4.2.1 Common features . 19
4.2.2 Reference system . 19
4.3 Engagement (mating) information . 21
4.3.1 Engaging (mating) direction . 21
4.3.2 Perpendicular to the engaging (mating) direction . 21
4.3.3 Inclination . 21
4.4 Fixed connectors . 21
4.4.1 Dimensions . 21
4.4.2 Terminations . 21
4.5 Free connectors . 23
4.5.1 Dimensions . 23
4.5.2 Terminations . 23
4.6 Accessories . 23
4.7 Mounting information for connectors . 23
4.7.1 Mounting on panels . 25
4.8 Gauges . 25
4.8.1 Sizing gauges and retention force gauges . 25
4.8.2 Mechanical function, engaging/separating/insertion/withdrawal force
gauges . 27
4.8.3 Probes . 27
4.8.4 Contact resistance gauge . 27
4.8.5 Test panel (for voltage proof test) . 27
4.8.6 Test panel (for EMC/ crosstalk etc.) . 27
5 Characteristics . 29
5.1 General . 29
5.2 Pin assignment and other definitions . 29
5.3 Classification into climatic categories . 29
5.4 Electrical characteristics . 29
5.4.1 Creepage and clearance distances . 29
5.4.2 Voltage proof . 31

61076-2-001  IEC:2011 – 3 –
5.4.3 Current-carrying capacity. 31
5.4.4 Contact and shield resistance . 31
5.4.5 Insulation resistance . 31
5.4.6 Impedance. 33
5.5 Mechanical characteristics . 35
5.5.1 Mechanical operation . 35
5.5.2 Effectiveness of connector coupling devices . 35
5.5.3 Engaging and separating forces (or insertion and withdrawal forces) . 35
5.5.4 Contact retention in insert . 35
5.5.5 Polarizing and coding method . 35
5.6 Other characteristics . 37
5.6.1 Shock and vibration (method either random or sine) . 37
5.6.2 Degree of protection provided by enclosures (IP code) . 37
5.6.3 Screen and shielding properties . 37
5.7 Environmental aspects . 39
5.7.1 Marking of insulation material (plastics) . 39
5.7.2 Design/ use of material . 39
6 Test schedule . 41
6.1 General . 41
6.1.1 Climatic category . 41
6.1.2 Creepage and clearance distances . 43
6.1.3 Arrangement for contact resistance measurement . 43
6.1.4 Arrangement for dynamic stress tests . 43
6.1.5 Arrangement for testing static load; axial . 43
6.1.6 Wiring of specimens . 43
6.2 Test schedules . 45
6.2.1 Basic (minimum) test schedule . 45
6.2.2 Full test schedule . 49
6.3 Test procedures and measuring methods . 73
6.4 Pre-conditioning . 73
6.5 Wiring and mounting of specimens . 73
6.5.1 Wiring . 73
6.5.2 Mounting . 73
Annex A (normative) New tests and additional test phases . 74
Bibliography . 75

Table 1 – Performance levels . 13
Table 2 – Isometric view and common features . 17
Table 3 – Performance levels, example . 28
Table 4 – Performance levels . 29
Table 5 – Creepage and clearance distances . 29
Table 6 – Performance levels . 41
Table 7 – Creepage and clearance distances . 43
Table 8 – Tests, example . 44
Table 9 – Basic tests . 45
Table 10 – Number of test specimens and contacts . 49
Table 11 – Test group P . 49

– 4 – 61076-2-001  IEC:2011
Table 12 – Test group AP . 53
Table 13 – Test group BP . 59
Table 14 – Test group CP . 63
Table 15 – Test group DP . 65
Table 16 – Test group EP . 67
Table 17 – Test group FP . 67
Table 18 – Test group GP . 69
Table 19 – Test group HP . 69
Table 20 – Test group KP . 71
Table 21 – Test group LP . 71

61076-2-001  IEC:2011 – 5 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
CONNECTORS FOR ELECTRONIC EQUIPMENT –
PRODUCT REQUIREMENTS –
Part 2-001: Circular connectors –
Blank detail specification
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61076-2-001 has been prepared by subcommittee 48B:
Connectors, of IEC technical committee 48: Electromechanical components and mechanical
structures for electronic equipment.
This International Standard cancels and replaces the first edition of IEC 61076-2-001 (2001).
This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) This International Standard no longer includes the quality assessment procedures. As
described in IEC 61076-1 and IEC 62197-1, a new document structure has been
established. IEC 61076-2-001 has been revised to reflect this updated structure.
b) Subclause 3.2, Systems of levels has been introduced.
c) The subclause IEC type designation has been removed.

– 6 – 61076-2-001  IEC:2011
d) Clauses 4 Dimensional information and 5 Characteristics have been added.
e) Some clauses and test groups have been rearranged. Test group HP has been added.
The text of this standard is based on the following documents:
FDIS Report on voting
48B/2241/FDIS 48B/2248/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts of the IEC 61076 series, published under the general title Connectors for
electronic equipment – Product requirements, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
61076-2-001  IEC:2011 – 7 –
INTRODUCTION
This blank detail product specification is a supplementary document to the sectional product
specification IEC 61076-2 and contains requirements for style, layout and content of detail
product specifications for circular connectors. It should be used in conjunction with the
following publications: IEC 61076-1 and IEC 61076-2 for product requirements as well as
IEC 62197-1 for quality requirements.
The main content of this blank detail product specification is divided into two parts: on one
page the example for a blank detail product specification, on the other page the guidance
notes referring to the example. The guidance notes have the same numbering as the relevant
paragraphs of the example pages.
The sample pages can be used like a template when preparing a detail product specification
within the scope of this document. This document is not intended to replace the templates and
guidance notes of IEC, but to assist in their application. All users are reminded to adhere to
relevant directives and guidelines of the IEC when preparing a standard.
NOTE 1 A detail quality specification IEC 62197-2-1xx should be prepared, based on the blank detail quality
specification for circular connectors IEC 62197-2-001 and its references and should be used in conjunction with the
detail product specification IEC 61076-2-1xx.
NOTE 2 The quality assessment requirements for connectors according to the IEC 61076 series are detailed in
IEC 62197-1.
– 8 – 61076-2-001  IEC:2011
Guidance notes
The following pages give a recommended layout of a detail product specification. The
contents of this page give guidance on the information which should, wherever possible, be
given on the front page of a detail product specification (see IEC Guide 102).
For the scope and definition of a detail product specification, see 1.2.3 of IEC 61076-1.
The numbers between brackets on the front page of the detail product specification
correspond to the following information.
Identification of the detail product specification
[1] The International Electrotechnical Commission or the national standards organization
under whose authority the detail product specification is drafted. It shall also be stated
where the detail product specification may be obtained.
[2] The IEC number of the detail product specification and date of issue.
[3] The IEC number and issue number of the generic and the sectional specifications.
[4] The national number of the detail product specification, if it differs from the IEC number.
Identification of the connector
[5] A short description of the type of connector.
[6] Information on the typical construction of the connector, for example, it should be stated
whether the connector is suitable for mounting on printed boards.
[7] Outline drawing, preferably of isometric or similar projection, from which the connector
may be clearly identified.
[8] Information on performance level(s) and assessment level(s) specified in the document,
if applicable.
[9] Reference data on the most important properties, to allow comparison between the
various connector types.
NOTE It may be convenient to give some of this information in tabular form.

61076-2-001  IEC:2011 – 9 –
[1] IEC
Detail product specification
number
[2]
Generic specification number National number of detail product
specification
Electronic components of assessed quality in accordance with: (it is not necessary to use this if the
IEC number is identical)
[3] [4]
Outline drawing Product description
[5]
[7]
[6]
[8]
Performance level(s):
Assessment level(s):
Combination of
performance levels
and assessment
levels:
Reference data
[9]
1 Scope
– 10 – 61076-2-001  IEC:2011
Guidance notes
2 Normative references
It may be necessary to refer to other documents in addition to those stated, in which case the
list of related documents shall be extended beyond those referenced.
If standards are referenced which are already listed in IEC 61076-1 and IEC 61076-2, their
reference shall not be repeated in 1.2 of the detail product specification.

61076-2-001  IEC:2011 – 11 –
2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
IEC 60068-1, Environmental testing – Part 1: General and guidance
IEC 60352 (all parts), Solderless connectors
IEC 60512 (all parts), Connectors for electronic equipment – Tests and measurements
IEC 60512-1, Connectors for electronic equipment – Tests and measurements –
Part 1: General
IEC 60512-1-100, Connectors for electronic equipment – Tests and measurements –
Part 1-100: General – Applicable publications
IEC 60999-1, Connecting devices – Electrical copper conductors – Safety requirements for
screw-type and screwless-type clamping units – Part 1: General requirements and particular
2 2
up to 35 mm (included)
requirements for clamping units for conductors from 0,2 mm
IEC 60999-2, Connecting devices – Electrical copper conductors – Safety requirements for
screw-type and screwless-type clamping units – Part 2: Particular requirements for clamping
units for conductors above 35 mm2 up to 300 mm2 (included)
IEC 61076-1:2006, Connectors for electronic equipment – Product requirements – Part 1:
Generic specification
IEC 61076-2:2011, Connectors for electronic equipment – Product requirements – Part 2:
Sectional specification for circular connectors
IEC 62197-1, Connectors for electronic equipment – Quality assessment requirements –
Part 1: Generic specification
– 12 – 61076-2-001  IEC:2011
Guidance notes
3 Technical information
The detail product specification should contain information which contributes to a proper
application of the connectors. It will also provide specificities for a better understanding of the
detail product specification.
3.1 Terms and definitions
Terminology used in and applicable to this specification is stated in 2.1 of IEC 61076-1:2006.
IEC 60512-1 also contains applicable terms. Any term used in the detail product specification
which is currently not defined in the above cited terminology shall be defined in the detail
product specification under this clause.
3.2 Systems of levels
If appropriate, the detail product specification shall contain information about the different
performance levels and/ or the compatibility levels. These levels, if they are appropriate, shall
be indicated in the detail product specification according to the definitions of
IEC 61076-1 Ed.2.0.
The information may be provided in a table. Table 1 may serve as an example.
3.3 Classification into climatic categories
This classification requires the assignment of the following parameters to the connector:
– lower limiting temperature;
– upper limiting temperature;
– duration (days) of the relevant damp heat steady state test of IEC 60512.
See also 5.3 in this standard.

61076-2-001  IEC:2011 – 13 –
3 Technical information
3.1 Terms and definitions
3.2 Systems of levels
3.2.1 Performance levels
Table 1 – Performance levels
Performance level
Connector style
3.2.2 Compatibility levels, according to IEC 61076-1 Ed. 2.0

3.3 Classification into climatic categories

– 14 – 61076-2-001  IEC:2011
Guidance notes
3.4 Creepage and clearance distances
See 6.1.2 in this standard.
3.5 Current-carrying capacity
See 5.4.3 in this standard.
3.6 Marking
The marking of the connector and the package shall be in accordance with 2.7 of
IEC 61076-1.
61076-2-001  IEC:2011 – 15 –
3.4 Creepage and clearance distances

3.5 Current-carrying capacity
3.6 Marking
– 16 – 61076-2-001  IEC:2011
Guidance notes
4 Dimensional information
In order to facilitate comparison of various specifications, a uniform presentation of drawing
information is recommended in accordance with 3.1 to 3.5 of IEC 61076-1:2006.
Drawings and dimensions shall cover
a) isometric view showing the basic design including common characteristics of related
connectors;
b) fixed connectors;
c) free connectors and/or board-edge of printed boards;
d) mating information;
e) accessories;
f) mounting information for fixed connectors;
g) mounting information for free connectors, if applicable;
h) mounting information for connectors with accessories;
i) testing gauges, probes and test panels.
4.1 General
It shall be stated in the detail product specification if original dimensions are millimetres or
inches.
It shall be stated in the detail product specification if drawings are shown in first-angle or in
third-angle projection.
The system of lettering shall be as described by 3.2 of IEC 61076-1:2006.
The following statement shall be included in the detail product specification:
The shape of the connectors may deviate from those given in the following drawings as
long as the specified dimensions are not influenced.
Wherever practical, the same dimension letters shall be used for corresponding dimensions of
fixed and free connectors.
4.2 Isometric view and common features
An isometric view shall be included and shall show the main characteristics of the design
including common features, if applicable.
It is convenient to show the dimension reference, the dimension and the feature description in
the form of a table (see Table 2).

61076-2-001  IEC:2011 – 17 –
4 Dimensional information
4.1 General
The shape of the connectors may deviate from those given in the following drawings as long
as the specified dimensions are not influenced.

4.2 Isometric view and common features
Table 2 – Isometric view and common features
Reference Dimension Feature description

– 18 – 61076-2-001  IEC:2011
Guidance notes
4.2.1 Common features
A description of all the common features relating to the style of connectors covered by the
detail product specification shall be included.
Data which could be specified includes
a) datum point or datum line with reference to the datum;
b) position of the mounting hole(s) of the fixed connector;
c) position of the terminations of the fixed connector;
d) position of the free or edge-socket connector;
e) position of the mounting holes of the free connector or the terminations of an edge-socket
connector;
f) position of the printed board;
g) position of the grid of the printed board.
4.2.2 Reference system
The detail product specification shall state the coordination dimensions to allow for (modular)
arrangement of the connector parts. When such a reference system is based on guidelines for
mechanical structures, it is recommended to refer to such information.

61076-2-001  IEC:2011 – 19 –
4.2.1 Common features
4.2.2 Reference system
Coordination dimensions are dimensions without tolerances which indicate the boundary or
centre-line references in order to allow for (modular) arrangement.

– 20 – 61076-2-001  IEC:2011
Guidance notes
4.3 Engagement (mating) information
Details of the limiting factors within which correct engagement (mating) is ensured relates to
dimensional data on the following:
4.3.1 Engaging (mating) direction
The range over which the specified contact resistance is ensured in the plug-in direction.
4.3.1.1 Contact levels and sequencing
Dimensional parameters of the different contact levels and their sequence, if applicable.
4.3.2 Perpendicular to the engaging (mating) direction
The maximum allowable displacement in the perpendicular direction which can be accommo-
dated.
4.3.3 Inclination
The maximum allowable inclination in the longitudinal and transverse axes in the form of
appropriate drawings and tables.
NOTE The specification may be given with the aid of drawings if this ensures clarity.
4.4 Fixed connectors
4.4.1 Dimensions
The detail product specification shall include (an) outline drawing(s) of the fixed connector(s)
showing the prime dimensions and associated geometrical tolerances.
For clarity the value of the dimensions may be included as tables which may be separated for
those dimensions which are common to all styles/variants and those dimensions which are
particular to styles/variants.
Details of marking of contact positions; within a row by numbers and marking of contact rows
by letters shall be included in the drawing(s).
4.4.2 Terminations
When different types of terminations are possible, information on use shall be presented in
the detail product specification in tabular form.
The detail product specification shall include termination length, width, thickness, and
diagonal dimensions, as appropriate.

61076-2-001  IEC:2011 – 21 –
4.3 Engagement (mating) information

4.3.1 Engaging (mating) direction

4.3.1.1 Contact levels and sequencing

4.3.2 Perpendicular to the engaging (mating) direction

4.3.3 Inclination
4.4 Fixed connectors
4.4.1 Dimensions
4.4.2 Terminations
– 22 – 61076-2-001  IEC:2011
Guidance notes
4.5 Free connectors
4.5.1 Dimensions
(An) outline drawing(s) with prime dimensional and geometrical tolerances shall be included in
the detail product specification.
4.5.2 Terminations
The detail product specification shall include termination length, width, thickness, and
diagonal dimensions, as appropriate.
4.6 Accessories
When accessories provide an essential support to the application of the connectors, the
features and use shall be outlined in the detail product specification, where applicable.
In cases where accessories may be used with the connectors, outline drawings with prime
dimensions shall be included in the detail product specification.
Accessories may take the form of optional mounting hardware, coding devices, shielded
contacts, high current contacts, etc., which are not normally provided fitted to the connector.
Information on accessories may be presented as outline drawings with associated tabular
data similar to that used for the connector dimensional details.
When coding or mounting devices, which are not an integral part of the connector, are used,
separate information shall be given in the detail product specification. The same is valid also
for shielding and/or grounding features, which do not form an integral part of the connector or
its accessories.
4.7 Mounting information for connectors

61076-2-001  IEC:2011 – 23 –
4.5 Free connectors
4.5.1 Dimensions
4.5.2 Terminations
4.6 Accessories
4.7 Mounting information for connectors

– 24 – 61076-2-001  IEC:2011
Guidance notes
4.7.1 Mounting on panels
The detail product specification shall show a plan view drawing of the required panel aperture
and the position(s) and size of mounting hole(s).
The minimum sizes of the dimensions of the panel aperture shall be stated together with the
relative position of the aperture to the mounting holes.
Where appropriate, dimensional references shall be the same as those used in 4.4.1.
4.8 Gauges
4.9.1 Sizing gauges and retention force gauges
Drawings of the gauges required to size and measure the retention force of resilient contacts
shall be included in the detail product specification.
The drawings of the gauges shall specify the material to be used for the gauges, the minimum
hardness value of the gauges, the surface according to ISO 1302 and the surface finish to be
applied, if any.
The dimensions and tolerances stated shall include wear allowance.
Sizing gauges shall simulate the maximum conditions, retention force gauges shall simulate
the minimum conditions.
The mass of the retention gauges shall be stated.

61076-2-001  IEC:2011 – 25 –
4.7.1 Mounting on panels
4.8 Gauges
4.8.1 Sizing gauges and retention force gauges

– 26 – 61076-2-001  IEC:2011
Guidance notes
4.8.2 Mechanical function, engaging/separating/insertion/withdrawal force gauges
Where appropriate, drawings of the gauges required to conduct endurance testing and for
measurement of engaging/separating forces or insertion/withdrawal forces shall be included in
the detail product specification. The drawings of the gauges shall specify the material to be
used for the gauges, the surface according to ISO 1302, and the surface finish to be applied.
The gauges shall simulate nominal conditions.
4.8.3 Probes
Probe damage testing is intended to apply only to female contacts.
The test probe shall be specified in the detail product specification in accordance with the
requirements of test 16a of IEC 60512.
4.8.4 Contact resistance gauge
For edge-socket and other types of one-part connectors, the contact resistance measurement
shall be made using a gauge made of copper alloy (or other appropriate material) of minimum
thickness or a suitable printed board as defined in the detail product specification.
A surface condition according to ISO 1302, and a suitable surface finish compatible with that
