EN 55016-2-3:2010

SLOVENSKI STANDARD
01-december-2010
1DGRPHãþD
SIST EN 55016-2-3:2007
Specifikacija merilnih naprav in metod za merjenje radijskih motenj in odpornosti -
2-3. del: Metode za merjenje radijskih motenj in odpornosti - Merjenje sevanih
motenj
Specification for radio disturbance and immunity measuring apparatus and methods -
Part 2-3: Methods of measurement of disturbances and immunity - Radiated disturbance
measurements
Anforderungen an Geräte und Einrichtungen sowie Festlegung der Verfahren zur
Messung der hochfrequenten Störaussendung (Funkstörungen) und Störfestigkeit - Teil
2-3: Verfahren zur Messung der hochfrequenten Störaussendung (Funkstörungen) und
Störfestigkeit - Messung der gestrahlten Störaussendung
Spécifications des méthodes et des appareils de mesure des perturbations
radioélectriques et de l'immunité aux perturbations radioélectriques - Partie 2-3:
Méthodes de mesure des perturbations et de l'immunité - Mesures des perturbations
rayonnées
Ta slovenski standard je istoveten z: EN 55016-2-3:2010
ICS:
17.240 Merjenje sevanja Radiation measurements
33.100.20 Imunost Immunity
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 55016-2-3
NORME EUROPÉENNE
June 2010
EUROPÄISCHE NORM
ICS 33.100.10; 33.100.20 Supersedes EN 55016-2-3:2006

English version
Specification for radio disturbance and immunity measuring apparatus
and methods -
Part 2-3: Methods of measurement of disturbances and immunity -
Radiated disturbance measurements
(CISPR 16-2-3:2010)
Spécifications des méthodes  Anforderungen an Geräte
et des appareils de mesure und Einrichtungen sowie Festlegung
des perturbations radioélectriques der Verfahren zur Messung
et de l'immunité aux perturbations der hochfrequenten Störaussendung
radioélectriques - (Funkstörungen) und Störfestigkeit -
Partie 2-3: Méthodes de mesure Teil 2-3: Verfahren zur Messung
des perturbations et de l'immunité - der hochfrequenten Störaussendung
Mesures des perturbations rayonnées (Funkstörungen) und Störfestigkeit -
(CISPR 16-2-3:2010) Messung der gestrahlten Störaussendung
(CISPR 16-2-3:2010)
This European Standard was approved by CENELEC on 2010-06-01. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia,
Spain, Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2010 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 55016-2-3:2010 E

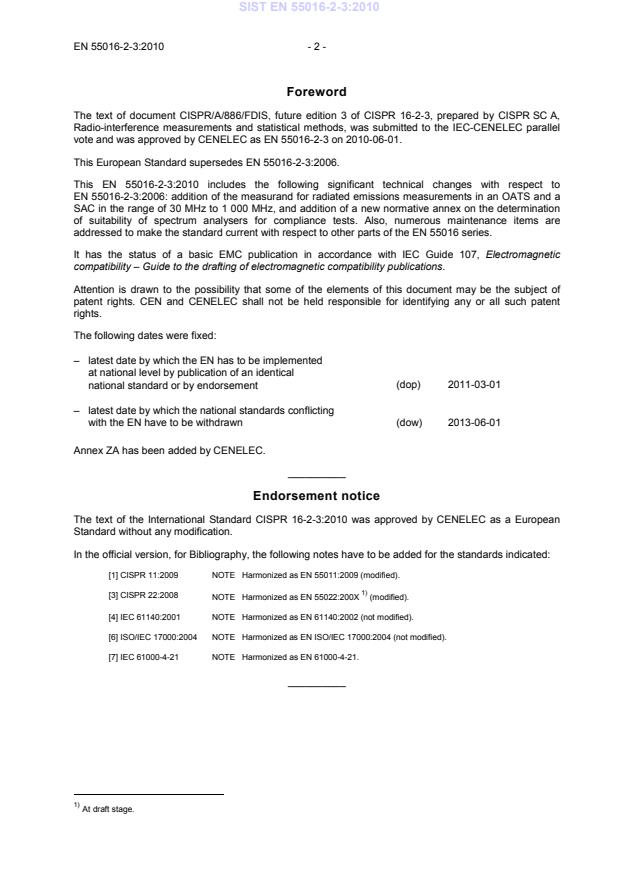

Foreword
The text of document CISPR/A/886/FDIS, future edition 3 of CISPR 16-2-3, prepared by CISPR SC A,
Radio-interference measurements and statistical methods, was submitted to the IEC-CENELEC parallel
vote and was approved by CENELEC as EN 55016-2-3 on 2010-06-01.
This European Standard supersedes EN 55016-2-3:2006.
This EN 55016-2-3:2010 includes the following significant technical changes with respect to
EN 55016-2-3:2006: addition of the measurand for radiated emissions measurements in an OATS and a
SAC in the range of 30 MHz to 1 000 MHz, and addition of a new normative annex on the determination
of suitability of spectrum analysers for compliance tests. Also, numerous maintenance items are
addressed to make the standard current with respect to other parts of the EN 55016 series.
It has the status of a basic EMC publication in accordance with IEC Guide 107, Electromagnetic
compatibility – Guide to the drafting of electromagnetic compatibility publications.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN and CENELEC shall not be held responsible for identifying any or all such patent
rights.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
(dop) 2011-03-01
national standard or by endorsement
– latest date by which the national standards conflicting
(dow) 2013-06-01
with the EN have to be withdrawn
Annex ZA has been added by CENELEC.
__________
Endorsement notice
The text of the International Standard CISPR 16-2-3:2010 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:
[1] CISPR 11:2009 NOTE  Harmonized as EN 55011:2009 (modified).
1)
[3] CISPR 22:2008
NOTE  Harmonized as EN 55022:200X (modified).
[4] IEC 61140:2001 NOTE  Harmonized as EN 61140:2002 (not modified).
[6] ISO/IEC 17000:2004 NOTE  Harmonized as EN ISO/IEC 17000:2004 (not modified).
[7] IEC 61000-4-21 NOTE  Harmonized as EN 61000-4-21.
__________
1)
At draft stage.
- 3 - EN 55016-2-3:2010
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.

NOTE  When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year

CISPR 14-1 2005 Electromagnetic compatibility - Requirements EN 55014-1 2006
for household appliances, electric tools and
similar apparatus -
Part 1: Emission
CISPR 16-1-1 - Specification for radio disturbance and EN 55016-1-1 -
immunity measuring apparatus and methods -
Part 1-1: Radio disturbance and immunity
measuring apparatus - Measuring apparatus

CISPR 16-1-2 2003 Specification for radio disturbance and EN 55016-1-2 2004
immunity measuring apparatus and methods -
Part 1-2: Radio disturbance and immunity
measuring apparatus - Ancillary equipment -
Conducted disturbances
CISPR 16-1-4 2010 Specification for radio disturbance and EN 55016-1-4 2010
immunity measuring apparatus and methods -
Part 1-4: Radio disturbance and immunity
measuring apparatus - Antennas and test
sites for radiated disturbance measurements

CISPR 16-2-1 2008 Specification for radio disturbance and EN 55016-2-1 2009
immunity measuring apparatus and methods -
Part 2-1: Methods of measurement of
disturbances and immunity - Conducted
disturbance measurements
CISPR 16-4-1 - Specification for radio disturbance and - -
immunity measuring apparatus and methods -
Part 4-1: Uncertainties, statistics and limit
modelling - Uncertainties in standardized EMC
tests
CISPR 16-4-2 - Specification for radio disturbance and EN 55016-4-2 -
immunity measuring apparatus and methods -
Part 4-2: Uncertainties, statistics and limit
modelling - Uncertainty in EMC
measurements
CISPR/TR 16-4-5 - Specification for radio disturbance and - -
immunity measuring apparatus and methods -
Part 4-5: Uncertainties, statistics and limit
modelling - Conditions for the use of
alternative test methods
Publication Year Title EN/HD Year

IEC 60050-161 1990 International Electrotechnical Vocabulary - -
(IEV) -
Chapter 161: Electromagnetic compatibility

IEC 61000-4-3 2006 Electromagnetic compatibility (EMC) - EN 61000-4-3 2006
Part 4-3: Testing and measurement
techniques - Radiated, radio-frequency,
electromagnetic field immunity test

IEC 61000-4-20 - Electromagnetic compatibility (EMC) - EN 61000-4-20 -
Part 4-20: Testing and measurement
techniques - Emission and immunity testing in
transverse electromagnetic (TEM)
waveguides
CISPR 16-2-3 ®
Edition 3.1 2010-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
INTERNATIONAL SPECIAL COMMITTEE ON RADIO INTERFERENCE
COMITÉ INTERNATIONAL SPÉCIAL DES PERTURBATIONS RADIOÉLECTRIQUES
BASIC EMC PUBLICATION
PUBLICATION FONDAMENTALE EN CEM
Specification for radio disturbance and immunity measuring apparatus and
methods –
Part 2-3: Methods of measurement of disturbances and immunity – Radiated
disturbance measurements
Spécifications des méthodes et des appareils de mesure des perturbations
radioélectriques et de l’immunité aux perturbations radioélectriques –
Partie 2-3: Méthodes de mesure des perturbations et de l'immunité –
Mesures des perturbations rayonnées

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CN
CODE PRIX
ICS 33.100.10; 33.100.20 ISBN 978-2-88912-123-6
– 2 – CISPR 16-2-3 © IEC:2010+A1:2010
CONTENTS
FOREWORD.7
1 Scope.10
2 Normative references .10
3 Terms and definitions .11
4 Types of disturbance to be measured .15
4.1 General .15
4.2 Types of disturbance .16
4.3 Detector functions .16
5 Connection of measuring equipment.16
6 General measurement requirements and conditions .17
6.1 General .17
6.2 Disturbance not produced by the equipment under test .17
6.2.1 General .17
6.2.2 Compliance (conformity assessment) testing .17
6.3 Measurement of continuous disturbance.17
6.3.1 Narrowband continuous disturbance .17
6.3.2 Broadband continuous disturbance.17
6.3.3 Use of spectrum analyzers and scanning receivers.18
6.4 Operating conditions of the EUT.18
6.4.1 Normal load conditions .18
6.4.2 The time of operation.18
6.4.3 Running-in time .18
6.4.4 Supply .18
6.4.5 Mode of operation.18
6.5 Interpretation of measuring results .18
6.5.1 Continuous disturbance .18
6.5.2 Discontinuous disturbance.19
6.5.3 Measurement of the duration of disturbance .19
6.6 Measurement times and scan rates for continuous disturbance .19
6.6.1 General .19
6.6.2 Minimum measurement times .19
6.6.3 Scan rates for scanning receivers and spectrum analyzers.20
6.6.4 Scan times for stepping receivers .21
6.6.5 Strategies for obtaining a spectrum overview using the peak detector .22
6.6.6 Timing considerations using FFT-based instruments .27
7 Measurement of radiated disturbances .30
7.1 Introductory remarks .30
7.2 Loop-antenna system measurements (9 kHz to 30 MHz) .31
7.2.1 General .31
7.2.2 General measurement method.31
7.2.3 Test environment.32
7.2.4 Configuration of the equipment under test .33
7.2.5 Measurement uncertainty for LAS.33
7.3 Open-area test site or semi-anechoic chamber measurements (30 MHz to
1 GHz) .33
7.3.1 Measurand .33

CISPR 16-2-3 © IEC:2010+A1:2010 – 3 –
7.3.2 Test site requirements .34
7.3.3 General measurement method.34
7.3.4 Measurement distance.35
7.3.5 Antenna height variation.35
7.3.6 Product specification details .35
7.3.7 Measurement instrumentation.37
7.3.8 Field-strength measurements on other outdoor sites.37
7.3.9 Measurement uncertainty for OATS and SAC .37
7.4 Fully-anechoic room measurements (30 MHz to 1 GHz) .38
7.4.1 Test set-up and site geometry .38
7.4.2 EUT position.40
7.4.3 Cable layout and termination .41
7.4.4 Measurement uncertainty for FAR .42
7.5 Radiated emission measurement method (30 MHz to 1 GHz) and radiated
immunity test method (80 MHz to 1 GHz) with common test set-up in semi-
anechoic chamber .42
7.5.1 Applicability .42
7.5.2 EUT perimeter definition and antenna-to-EUT separation distance .42
7.5.3 Uniform test volume.43
7.5.4 Specifications for EUT set-up in common emissions/immunity test
setup .44
7.5.5 Measurement uncertainty for common emission/immunity set-up and
method .49
7.6 Fully-anechoic room and absorber-lined OATS/SAC measurements (1 GHz
to 18 GHz).49
7.6.1 Quantity to measure .49
7.6.2 Measurement distance.49
7.6.3 Set-up and operating conditions of the equipment under test (EUT).49
7.6.4 Measurement site .50
7.6.5 Measurement instrumentation.50
7.6.6 Measurement procedure .50
7.6.7 Measurement uncertainty for FAR .57
7.7 In situ measurements (9 kHz to 18 GHz) .57
7.7.1 Applicability of and preparation for in situ measurements .57
7.7.2 Field-strength measurements in situ in the frequency range 9 kHz to
30 MHz.58
7.7.3 Field-strength measurements in situ in the frequency range above
30 MHz.59
7.7.4 In situ measurement of the disturbance effective radiated power
using the substitution method .60
7.7.5 Documentation of the measurement results .64
7.7.6 Measurement uncertainty for in situ method .64
7.8 Substitution measurements (30 MHz to 18 GHz) .64
7.8.1 General .64
7.8.2 Test site .64
7.8.3 Test antennas.65
7.8.4 EUT configuration.65
7.8.5 Test procedure .65
7.8.6 Measurement uncertainty for substitution method .66

– 4 – CISPR 16-2-3 © IEC:2010+A1:2010
7.9 Reverberation chamber measurements (80 MHz to 18 GHz).66
7.10 TEM waveguide measurements (30 MHz to 18 GHz) .66
8 Automated measurement of emissions .66
8.1 Introduction – precautions for automated measurements.66
8.2 Generic measurement procedure.67
8.3 Pre-scan measurements.67
8.3.1 General .67
8.3.2 Determination of the required measurement time.67
8.3.3 Pre-scan requirements for different types of measurements .68
8.4 Data reduction.69
8.5 Emission maximization and final measurement.70
8.6 Post-processing and reporting.71
8.7 Emission measurement strategies with FFT-based measuring instruments .71

Annex A (informative) Measurement of disturbances in the presence of ambient
emissions .72
Annex B (informative) Use of spectrum analyzers and scanning receivers .86
Annex C (informative) Scan rates and measurement times for use with the average
detector .89
Annex D (informative) Explanation of APD measurement method applying to the
compliance test.93
Annex E (normative) Determination of suitability of spectrum analyzers for compliance
tests .95

Bibliography.96

Figure 1 – Measurement of a combination of a CW signal (NB) and an impulsive signal
(BB) using multiple sweeps with maximum hold .23
Figure 2 – Example of a timing analysis.24
Figure 3 – A broadband spectrum measured with a stepped receiver .25
Figure 4 – Intermittent narrowband disturbances measured using fast short repetitive
sweeps with maximum hold function to obtain an overview of the emission spectrum.26
Figure 5 – Concept of magnetic field induced current measurements made with the
loop antenna system.32
Figure 6 – Concept of electric field strength measurements made on an open-area test
site (OATS) or semi-anechoic chamber (SAC) showing the direct and reflected rays
arriving at the receiving antenna .34
Figure 7 – Typical FAR site geometry, where a, b, c, e depend upon the room
performance .38
Figure 8 – Typical test set-up for table-top equipment within the test volume of a FAR .39
Figure 9 – Typical test set-up for floor-standing equipment within the test volume of a
FAR .40
Figure 10 – Positions of reference planes for uniform field calibration (top-view) .43
Figure 11 – Test set-up for table-top equipment.47
Figure 12 – Test set-up for table-top equipment – Top view .47
Figure 13 – Test set-up for floor-standing equipment .48
Figure 14 – Test set-up for floor-standing equipment – Top view .48

CISPR 16-2-3 © IEC:2010+A1:2010 – 5 –
Figure 15 – Measurement method above 1 GHz, receive antenna in vertical
polarization.51
Figure 16 – Illustration of height scan requirements for two different categories of
EUTs .53
Figure 17 – Determination of the transition distance .63
Figure 18 – Substitution method set-up geometries for: a) measurement, b) calibration .65
Figure 19 – Process to give reduction of measurement time .67
Figure 20 – FFT scan in segments .28
Figure 21 – Frequency resolution enhanced by FFT-based measuring instrument.29
Figure A.1 – Flow diagram for the selection of bandwidths and detectors and the
estimated measurement errors due to that selection .74
Figure A.2 – Relative difference in adjacent emission amplitudes during preliminary
testing .76
Figure A.3 – Disturbance by an unmodulated signal (dotted line) .77
Figure A.4 – Disturbance by an amplitude-modulated signal (dotted line).77
Figure A.5 – Indication of an amplitude-modulated signal as a function of modulation
frequency with the QP detector in CISPR bands B, C and D .78
Figure A.6 – Indication of a pulse-modulated signal (pulse width 50 μs) as a function of
pulse repetition frequency with peak, QP and average detectors.79
Figure A.7 – Disturbance by a broadband signal (dotted line) .79
Figure A.8 – Unmodulated EUT disturbance (dotted line) .80
Figure A.9 – Amplitude-modulated EUT disturbance (dotted line).81
Figure A.10 – Increase of peak value with superposition of two unmodulated signals.82
Figure A.11 – Determination of the amplitude of the disturbance signal by means of the
amplitude ratio d and the factor i [see Equation (A.3) and Equation (A.6)].83
Figure A.12 – Increase of average indication measured with a real receiver and
calculated from Equation (A.8).84
Figure C.1 – Weighting function of a 10 ms pulse for peak (PK) and average detections
with (CISPR AV) and without (AV) peak reading: meter time constant 160 ms .91
Figure C.2 – Weighting functions of a 10 ms pulse for peak (PK) and average
detections with (CISPR AV) and without (AV) peak reading: meter time constant
100 ms.91
Figure C.3 – Example of weighting functions (of a 1 Hz pulse) for peak (PK) and
average detections as a function of pulse width: meter time constant 160 ms .92
Figure C.4 – Example of weighting functions (of a 1 Hz pulse) for peak (PK) and
average detections as a function of pulse width: meter time constant 100 ms .92
Figure D.1 – Example of APD measurement Method 1 for fluctuating disturbances .93
Figure D.2 – Example of APD measurement Method 2 for fluctuating disturbances .94

Table 1 – Minimum scan times for the three CISPR bands with peak and quasi-peak
detectors .20
Table 2 – Applicable frequency ranges and document references for CISPR radiated
emission test sites and test methods.
Table 3 – Minimum dimension of w (w ) .52
min
Table 4 – Example values of w for three antenna types.53
Table 5 – Horizontal polarization correction factors as a function of frequency.62
Table 6 – Recommended antenna heights to guarantee signal interception (for pre-
scan) in the frequency range 30 MHz to 1 000 MHz .69

– 6 – CISPR 16-2-3 © IEC:2010+A1:2010
Table 7 – Minimum measurement times for the four CISPR bands .20
Table A.1 – Combinations of EUT disturbance and ambient emissions.73
Table A.2 – Measurement error depending on the detector type and on the combination
of ambient and disturbing signal spectra .85
Table C.1 – Pulse suppression factors and scan rates for a 100 Hz video bandwidth .90
Table C.2 – Meter time constants and the corresponding video bandwidths and
maximum scan rates .90
Table E.1 – Maximum amplitude difference between peak and quasi-peak detected
signals .95

CISPR 16-2-3 © IEC:2010+A1:2010 – 7 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
INTERNATIONAL SPECIAL COMMITTEE ON RADIO INTERFERENCE
____________
SPECIFICATION FOR RADIO DISTURBANCE AND IMMUNITY
MEASURING APPARATUS AND METHODS –

Part 2-3: Methods of measurement of disturbances and immunity –
Radiated disturbance measurements

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

This consolidated version of CISPR 16-2-3 consists of the third edition (2010)
[documents CISPR/A/886/FDIS and CISPR/A/892/RVD and its amendment 1 (2010)
[documents CISPR/A/878/CDV and CISPR/A/894/RVC]. It bears the edition number 3.1.
The technical content is therefore identical to the base edition and its amendment and
has been prepared for user convenience. A vertical line in the margin shows where the
base publication has been modified by amendment 1. Additions and deletions are
displayed in red, with deletions being struck through.

– 8 – CISPR 16-2-3 © IEC:2010+A1:2010
International Standard CISPR 16-2-3 has been prepared by CISPR subcommittee A: Radio-
interference measurements and statistical methods.
This edition includes the following significant technical changes with respect to the previous
edition: addition of the measurand for radiated emissions measurements in an OATS and a
SAC in the range of 30 MHz to 1 000 MHz, and addition of a new normative annex on the
determination of suitability of spectrum analysers for compliance tests. Also, numerous
maintenance items are addressed to make the standard current with respect to other parts of
the CISPR 16 series.
It has the status of a basic EMC publication in accordance with IEC Guide 107,
Electromagnetic compatibility – Guide to the drafting of electromagnetic compatibility
publications.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts of the CISPR 16 series, published under the general title Specification for
radio disturbance and immunity measuring apparatus and methods, can be found on the IEC
website.
The committee has decided that the contents of the base publication and its amendments will
remain unchanged until the stability date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the publication will
be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
CISPR 16-2-3 © IEC:2010+A1:2010 – 9 –
INTRODUCTION
(to amendment 1)
The recent addition of FFT-based measuring instrumentation in CISPR 16-1-1 necessitates
the addition of related specifications for the test methods covered in CISPR 16-2-3. Those
new specifications are introduced in this amendment.

– 10 – CISPR 16-2-3 © IEC:2010+A1:2010
SPECIFICATION FOR RADIO DISTURBANCE AND IMMUNITY
MEASURING APPARATUS AND METHODS –

Part 2-3: Methods of measurement of disturbances and immunity –
Radiated disturbance measurements

1 Scope
This part of CISPR 16 specifies the methods of measurement of radiated disturbance
phenomena in the frequency range of 9 kHz to 18 GHz. The aspects of measurement
uncertainty are specified in CISPR 16-4-1 and CISPR 16-4-2.
NOTE In accordance with IEC Guide 107, CISPR 16-2-3 is a basic EMC publication for use by product
committees of the IEC. As stated in Guide 107, product committees are responsible for determining the
applicability of the EMC standard. CISPR and its sub-committees are prepared to co-operate with product
committees in the evaluation of the value of particular EMC tests for specific products.
2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
CISPR 14-1:2005, Electromagnetic compatibility – Requirements for household appliances,
electric tools and similar apparatus – Part 1: Emission
CISPR 16-1-1, Specification for radio disturbance and immunity measuring apparatus and
methods – Part 1-1: Radio disturbance and immunity measuring apparatus –
Measuring apparatus
CISPR 16-1-2:2003, Specification for radio disturbance and immunity measuring apparatus
and methods – Part 1-2: Radio disturbance and immunity measuring apparatus – Ancillary
equipment – Conducted disturbances
Amendment 1 (2004)
Amendment 2 (2006)
CISPR 16-1-4:2010, Specification for radio disturbance and immunity measuring apparatus
and methods – Part 1-4: Radio disturbance and immunity measuring apparatus – Ancillary
equipment – Radiated disturbances
CISPR 16-2-1:2008, Specification for radio disturbance and immunity measuring apparatus
and methods – Part 2-1: Methods of measurement of disturbances and immunity – Conducted
disturbance measurements
CISPR 16-4-1, Specification for radio disturbance and immunity measuring apparatus and
methods – Part 4-1: Uncertainties, statistics and limit modelling – Uncertainties in
standardized EMC tests
CISPR 16-4-2, Specification for radio disturbance and immunity measuring apparatus and
methods – Part 4-2: Uncertainties, statistics and limit modelling – Uncertainty in EMC
measurements
CISPR 16-2-3 © IEC:2010+A1:2010 – 11 –
CISPR 16-4-5, Specification for radio disturbance and immunity measuring apparatus and
methods – Part 4-5: Uncertainties, statistics and limit modelling – Conditions for the use of
alternative test methods
IEC 60050-161:1990, International Electrotechnical Vocabulary (IEV) – Chapter 161:
Electromagnetic compatibility
Amendment 1 (1997)
Amendment 2 (1998)
IEC 61000-4-3:2006, Electromagnetic compatibility (EMC) – Part 4-3: Testing and
measurement techniques – Radiated, radio-frequency, electromagnetic field immunity test
Amendment 1 (2007)
IEC 61000-4-20, Electromagnetic compatibility (EMC) – Part 4-20: Testing and measurement
techniques – Emission and immunity testing in transverse electromagnetic (TEM) waveguides
3 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 60050-161, as well
as the following apply.
3.1
absorber-lined OATS/SAC
OATS or SAC with ground plane partially covered by RF-energy absorbing material
3.2
ancillary equipment
transducers (e.g. current and voltage probes and artificial networks) connected to a
measuring receiver or (test) signal generator and used in the disturbance signal transfer
between the EUT and the measuring or test equipment
3.3
antenna beam
main lobe of the antenna pattern (gain pattern) of the receive antenna (usually the direction
with maximum sensitivity or lowest antenna factor) that is directed towards the EUT
3.4
antenna beamwidth
angle between the half-power (3 dB) points of the main lobe of the antenna beam, when
referenced to the maximum power of the main lobe. It may be expressed for the H plane or for
the E plane of the antenna
NOTE Antenna beamwidth is expressed in degrees.
3.5
associated equipment
AE
apparatus, that is not part of the system under test, but needed to help exercise the EUT
3.6
auxiliary equipment
AuxEq
peripheral equipment that is part of the system under test
3.7
basic standard
standard that has a wide-ranging coverage or contains general provisions for one particular
field
– 12 – CISPR 16-2-3 © IEC:2010+A1:2010
NOTE A basic standard may function as a standard for direct application or as a basis for other standards.
[ISO/IEC Guide 2, definition 5.1]
3.8
coaxial cable
cable containing one or more coaxial lines, typically used for a matched connection of
ancillary equipment to the measuring equipment or (test-) signal generator providing a
specified characteristic impedance and a specified maximum allowable cable transfer
impedance
3.9
common-mode absorption device
CMAD
device that may be applied on cables leaving the test volume in radiated emission
measurements to reduce the compliance uncertainty
[CISPR 16-1-4, 3.1.4]
3.10
conformity assessment
demonstration that specified requirements relating to a product, process, system, person or
body are fulfilled
NOTE The subject field of conformity assessment includes activities defined elsewhere in ISO/IEC 17000:2004,
such as testing, inspection and certification, as well as the accreditation of conformity assessment bodies.
[ISO/IEC 17000:2004, 2.1, modified]
3.11
continuous disturbance
RF disturbance with duration of more than 200 ms at the IF-output of a measuring receiver
that causes a deflection on the meter of a measuring receiver in quasi-peak detection mode,
and that does not decrease immediately
[IEC 60050-161:1990, 161-02-11, modified]
3.12
(electromagnetic) emission
phenomenon by that electromagnetic energy emanates from a source
[IEC 60050-161:1990, 161-01-08]
3.13
emission limit (from a disturbing source)
specified maximum emission level of a source of electromagnetic disturbance
[IEC 60050-161:1990, 161-03-12]
3.14
equipment-under-test
EUT
equipment (devices, appliances and systems) subjected to EMC (emission) compliance
(conformity assessment) tests
3.15
fully-anechoic room
FAR
shielded enclosure, the internal surfaces of which are lined with radio-frequency
...
