EN 1300:2004

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Wertbehältnisse - Klassifizierung von Hochsicherheitsschlössern nach ihrem Widerstandswert gegen unbefugtes ÖffnenUnités de stockage en lieux sur - Classification des serrures haute sécurité en fonction de leur résistance a l'éffractionSecure storage units - Classification for high security locks according to their resistance to unauthorized opening35.220.99Druge naprave za shranjevanje podatkovOther data storage devices13.310Varstvo pred kriminalomProtection against crimeICS:Ta slovenski standard je istoveten z:EN 1300:2004SIST EN 1300:2004en01-november-2004SIST EN 1300:2004SLOVENSKI
STANDARDSIST ENV 1300:19991DGRPHãþD

EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 1300June 2004ICS 13.310Supersedes ENV 1300:1999English versionSecure storage units - Classification for high security locksaccording to their resistance to unauthorized openingUnités de stockage en lieux sûrs - Classification desserrures haute sécurité en fonction de leur résistance àl'éffractionWertbehältnisse - Klassifizierung vonHochsicherheitsschlössern nach ihrem Widerstandswertgegen unbefugtes ÖffnenThis European Standard was approved by CEN on 24 March 2004.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Central Secretariat or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2004 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 1300:2004: ESIST EN 1300:2004

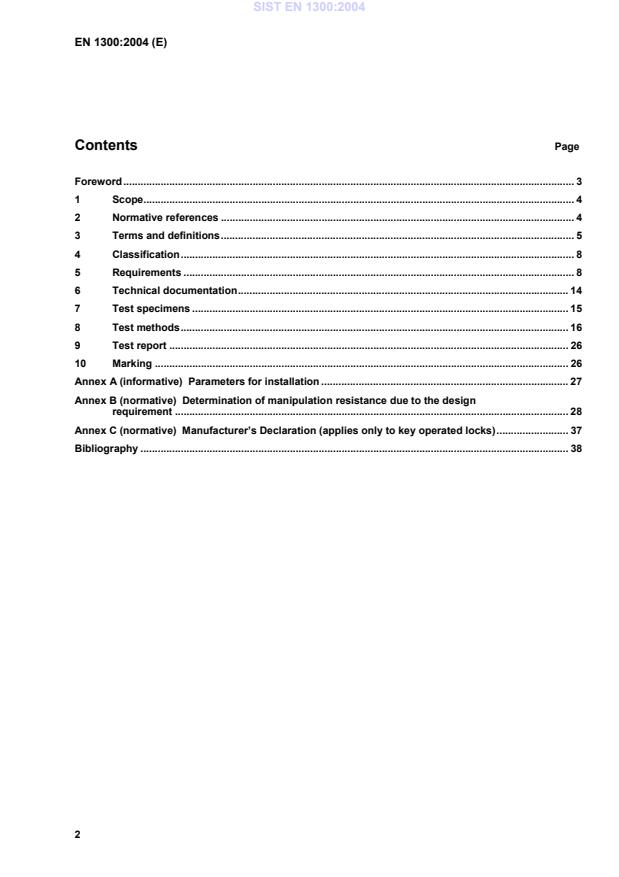

Parameters for installation.27 Annex B (normative)
Determination of manipulation resistance due to the design requirement.28 Annex C (normative)
Manufacturer’s Declaration (applies only to key operated locks).37 Bibliography.38
Part 1: Data cabinets EN 1047-2, Secure storage units — Classification and methods of test for resistance to fire —
Part 2: Data rooms and data containers EN 1143-1, Secure storage units - Requirements, classification and methods of test for resistance to burglary - Part 1: Safes, strongroom doors and strongrooms EN 1143-2, Secure storage units — Requirements, classification and methods of test for resistance to burglary — Part 2: Deposit systems According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EN 1143-1 Secure storage units — Requirements, classification and methods of test for resistance to burglary — Part 1: Safes, strongroom doors and strongrooms EN 50130-4, Alarm systems — Part 4: Electromagnetic compatibility — Product family standard. Immunity requirements for components of fire, intruder and social alarm systems EN 60068-2-1, Environmental testing; part 2: tests; tests
A: cold (IEC 60068-2-1:1990) EN 60068-2-2, Basic environmental testing procedures; part 2: tests; tests B:
dry heat (IEC 60068-2-2:1974 +
IEC 60068-2-2A:1976) EN 60068-2-6, Environmental testing — Part 2: Tests – Tests Fc: Vibration (sinusoidal) (IEC
60068-2-6:1995 + Corrigendum 1995) EN 61000-4-2, Electromagnetic compatibility (EMC) — Part 4: Testing and measument techniques — Section 2: Electrostatic discharge immunity test - Basic EMC publication (IEC 61000-4-2:1995) EN 61000-4-4, Electromagnetic compatibility (EMC) — Part 4: Testing and measurement techniques — Section 4: Electrical fast transient / burst immunity test — Basic EMV publication
(IEC 61000-4-4:1995) SIST EN 1300:2004

EN ISO 6988:, Metallic and other non-organic coatings - Sulfur dioxide test with general condensation of moisture (ISO 6988:1985) 3 Terms and definitions For the purposes of this European Standard, the following terms and definitions apply. 3.1 High Security Lock (HSL) independent assembly normally fitted to doors of secure storage units, into which codes can be entered for comparison with memorized codes (processing unit) a correct match of an opening code allows movement of a blocking feature 3.2 code identification information required which can be entered into a HSL and which, if correct, enables the security status of the HSL to be changed 3.2.1 opening code identification information which allows the HSL to be opened 3.2.2 recognized code identification information which allows access to the processing unit. It may also be an opening code 3.2.3 duress code parallel code which initiates some additional function 3.2.4 parallel code opening code which has identical function to that of an existing opening code but constructed of different figures 3.3 coding means any method by which the code is held 3.3.1 material code code defined by the physical features or other properties of a token 3.3.2 mnemonic code remembered code consisting of numeric and/or alphabetic information SIST EN 1300:2004

operating 3.25 operating condition after testing, the HSL specimen is in the secured HSL condition and can be unlocked with the opening code(s), but not all design functions are operable 3.26 fail secure after testing, the HSL specimen is in the secured HSL condition, but not all design functions are operable therefore it cannot be unlocked with the opening code(s) 3.27 resistance unit RU:
Burglary resistance which results from one minute’s use of a tool carrying the coefficient of 1 and the basic value: 0 SIST EN 1300:2004

General requirements (see 5.1 and 5.2, 5.3) security and reliability requirements shall be met. NOTE HSL class A has the lowest requirements and HSL class D has the highest requirements. 5 Requirements 5.1 General requirements 5.1.1 Requirements for all Classes 5.1.1.1 By evaluation according to 8.1.2, the opening code(s) shall be retained as the only valid opening code(s) until deliberately reset. 5.1.1.2 Where mnemonic codes are used with a HSL these must be able to be changed. 5.1.1.3 By evaluation according to 8.1.2, any supplementary device (e.g. micro switch) which is fitted by the HSL manufacturer shall not be capable of being used to obtain information about the code. 5.1.1.4 An input unit is a necessary part of a HSL although one input unit may operate more than one HSL (processing unit). Each HSL shall have a processing unit to accept the correct code from the input unit. Each HSL shall also incorporate a blocking feature or be capable of causing movement of a blocking feature. If this feature has to be activated before first use a note to this effect is to be included in the instructions for the use of the lock. 5.1.1.5 If the blocking feature is not moved manually there shall be a means of indicating whether the HSL has been secured, locked and scrambled. 5.1.1.6 By evaluation according to 8.1.2 an opening code shall not be capable of being altered or being changed other than by a recognised code. 5.1.2 Class D HSL 5.1.2.1 Means shall be provided by which the locking status, locked or unlocked, is made obvious. 5.1.2.2 By evaluation according to 8.1.2 a mechanical combination HSL shall be in a scrambled condition after locking. 5.1.2.3 A Class D HSL shall contain a device which indicates the scrambled condition. 5.1.3 Mechanical Key Operated HSL
5.1.3.1 By evaluation according to 8.1.2, for Class A HSL (see Clause 4), the same code shall not be repeated until at least 80% of the usable codes have been used.
5.1.5.2 When the electronic HSL is secured further communication with the processing unit shall only be possible by inputting a recognised code and to display the lock status.
5.1.5.3 The input unit of Classes B, C and D of electronic HSL shall be fixed to the door to be secured or to the door frame of the secure storage unit and shall not be capable of being forcibly removed without causing permanent traces or damage or a signal obvious to the user. This shall be verified in accordance with 8.1.2.
5.1.5.4 Unauthorised attempts to gain access to the security relevant parts of the input unit of Classes B, C and D electronic HSL shall not be possible without causing permanent traces or damage or a signal obvious to the user. This shall be verified according to 8.1.2. 5.1.5.5 Class A electronic HSL input units can be separated from the HSL but they should remain permanently and visibly connected to the door or door frame of the secure storage unit with a shielded cable.
5.1.5.6 If the Penalty Time is active there shall be a clear indication, in all classes of HSL, to the user. 5.1.5.7 Low Battery Indication: battery powered locks shall be able to operate for at least 3000 complete lock openings. The battery capacity shall be monitored. In the case of a low battery/low batteries an audible or visual signal shall occur during or immediately after an opening process. After the first low battery signal at least ten (10) complete opening and locking processes shall still be possible. Where it is possible to connect power from the outside it will not be necessary to meet this requirement. SIST EN 1300:2004

the minimum number of usable codes shall be multiplied by the number of possible parallel codes. HSL with variable opening code lengths:
the smallest number of used figures which the HSL is able to accept for opening code input shall be used for the calculation of usable codes. It shall not be possible to open mechanical key operated HSL with additional keys when tested in accordance with 8.2.1.3. 5.2.2 HSL having over ride feature HSL with an over ride feature (e.g. an electronic HSL having a mechanical override) shall be classified by the least secure system used. 5.2.3 Manipulation resistance 5.2.3.1 Limit of trials The maximum number of trials per hour which can be made shall be as shown in Table 1. NOTE Mechanical token HSL are not included in Table 1 because the time taken for changing tokens sufficiently limits the rate of trials. 5.2.3.2 Manipulation The minimum resistance values, M, given in Table 1 shall be exceeded by at least two of the three test specimens in the tests for manipulation resistance made according to 8.2.2. 5.2.4 Destructive burglary resistance The minimum resistance values given in Table 1 shall be exceeded in tests in which an external force is applied according to 8.2.3. 5.2.5 Spying resistance 5.2.5.1 Any information entered into an electronic HSL shall be unrecognisable 30 s after entry, even if only part of the opening code has been entered. 5.2.5.2 For HSL classes C and D the included angle over which code information can optically be observed shall be not more than 30° about the centre-line (i.e. 60° included angle) in the horizontal plane (see 8.2.4). 5.2.5.3 Direct code input via the keypad using the fixed position of figures is not permitted for Class D HSL. 5.2.6 Electrical and electromagnetic resistance 5.2.6.1 Mains powered electronic HSL shall remain in the normal condition during mains supply voltage variations, voltage dips and short interruptions; tested according to 8.2.5.5. SIST EN 1300:2004

5.2.6.5 After testing electronic HSL for surge immunity according to 8.2.5.8 the requirements of Table 2 shall be met. During this testing specimens shall not change from the secured HSL condition for longer than 5 ms. 5.2.7 Physical environmental resistance All HSLs shall be tested according to 8.2.6.1 and 8.2.6.2 for resistance to vibration and shock. The tester shall decide whether the test specimen design is such that it is necessary for the secure condition to be continuously monitored during this testing. Continuously monitored specimens shall not be insecure for more than 5 ms during this testing. Specimens not continuously monitored shall be in the secure condition after the vibration and shock exposure. All specimens shall be in an operating condition at the conclusion of these tests. 5.2.8 Temperature resistance 5.2.8.1 Cold The electronic HSL shall be in its normal condition after the test in accordance with 8.2.7.1 for 16 h at –10 °C. 5.2.8.2 Heat During testing in accordance with 8.2.7.2, for 16 h at +55 °C the electronic HSL shall be in its normal condition. SIST EN 1300:2004

M Destructive burglary resistance D
records of
Minimum Minimum
opening
Resistance Resistance
events
units RU units RU
Any
Mnemonic
Material
Mnemonic
Coding Coding 2)
A
Electronic None 25 000 80 000 300 30 80
Mechanical Not 25 000 80 000 Not 30 80
applicable
applicable
B
Electronic 10 100 000 100 000 100 60 135
Mechanical Not
applicable 100 000 100 000 Not applicable 60 135 C
Electronic 50 1 000 000 1 000 000 30 100 250
Mechanical Not 1 000 000 1 000 000 Not applicable 100 250
Applicable
D
Electronic 500 3 000 000 3 000 000 10 620 500
Mechanical Not 3 000 000 3 000 000 10 1) 620 500
applicable
1)
Excluding key operated locks.
2)
The minimum number of figures required,
for electronic locks only, is six (6).
Resistance to radio-frequency electromagnetic fields
HSL class
Lock conditions 1)
A N2) O2) FS FS FS2) FS
B N2) O O2) FS FS2) FS
C N2) O O O2) FS2) FS
D N2) O O O O2) FS2)
Voltage level V 3 10 10 10 10 10
Test Frequency range 150 kHz to 100 Mhz
(test method EN 61000-4-6) conditions Field strength V/m 3 10 20 30 503) 504)
Frequency range 80 MHz to 1 Ghz5)
(test method EN 61000-4-6) Resistance to electrostatic discharge, fast transient bursts and high energy voltage surge
HSL class
Lock conditions1)
A to D N O FS
EN 61000-4-2 3 4
Test
level EN 61000-4-4 3
EN 61000-4-5 3
1) N > Normal operations. O > Operable.
FS > Fall secure 2) Denotes the condition under which the HSL should be tested. 3) This figure is the highest current test equipment can meet. 4) This figure should be raised to 100 when test equipment is available. 5) EN 50130-4 and EN 61000-4-2 covers only a range up to 1 GHz. When an appropriate amendment to EN 50130-4 is available this figure should be raised to 2 GHz.
(g peak) variation(Octaves per (Hz)
minute)
A 1 3 10 to 150 B 1 2 10 to 150 C 2 2 10 to 150 D 2 1 10 to 150
5.3 Reliability requirements 5.3.1 After being subjected to 10 000 cycles according to 8.3.1, the HSL shall be in its normal condition.
5.3.2 Code input by rotating a dial shall not deviate from the setting by more than 1 % of the total setting range after testing for dynamic code input to 8.3.2. 5.3.3 Code changeable HSL shall be in the normal condition after 100 code changes have been made, according to 8.3.2. 5.3.4 After testing for corrosion resistance by exposure to three cycles in accordance with EN ISO 6988 the HSL shall be in an operational condition. A completely assembled HSL is to be subjected to this test but batteries may be excluded.
6 Technical documentation 6.1 The following technical documentation shall accompany the test specimen: 6.2 Detailed construction drawings, with dimensions and tolerances. 6.3 The calculation of usable codes and all relevant parameters for that calculation. 6.4 Characteristics of detaining features including:  dimension of the bolt head or other blocking component;  blocking feature movement during locking of the bolt head or blocking element. 6.5 All dimensional values necessary for linking or connecting the HSL to external devices (e.g. code input device, means by which blocking feature is moved) including:  size of code entry hole (e.g. keyhole);  sizes of spindles, dials and dial rings;  size(s) of cable connections. 6.6 Detailed description of the means for setting and changing codes and any precautions to be observed. 6.7 Recommended methods of installation. 6.8 Software and hardware documentation for electronic HSL including: SIST EN 1300:2004

Test specimens are tested for their security and reliability. In security tests the objective is to unlock the test specimen or cause it to fail
...
