Safety of machinery - Relationship with ISO 12100 - Part 1:
How ISO 12100 relates to type-B and type-C standards
(ISO/TR 22100-1:2015)
Sécurité des machines - Relation avec l'ISO 12100 -
Partie 1: Relation entre l'ISO 12100 et les normes de
type B et type C (ISO/TR 22100-1:2015)

This Technical Report was approved by CEN on 27 June 2017. It has been drawn up by the Technical Committee CEN/TC 114.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2017 CEN All rights of exploitation in any form and by any means reserved Ref. No. CEN ISO/TR 22100-1:2017 E
worldwide for CEN national Members.

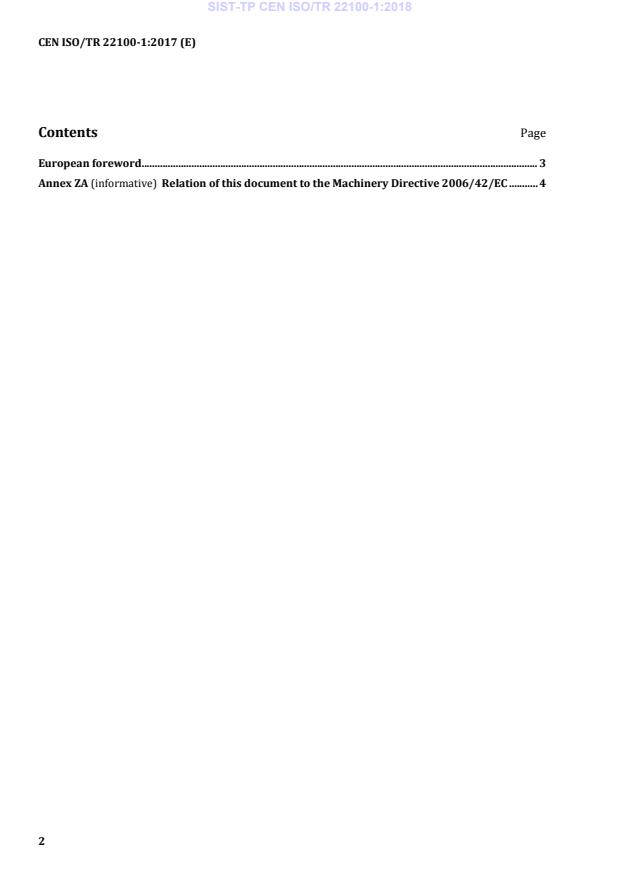

Contents Page
European foreword . 3
Annex ZA (informative) Relation of this document to the Machinery Directive 2006/42/EC . 4

European foreword
This document (CEN ISO/TR 22100-1:2017) has been prepared by Technical Committee ISO/TC 199
"Safety of machinery" in collaboration with Technical Committee CEN/TC 114 “Safety of machinery” the
secretariat of which is held by DIN.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of EU Directive.
For relationship with EU Directive, see informative Annex ZA, which is an integral part of this
document.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to announce this Technical Report: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands,
Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
the United Kingdom.
Endorsement notice
The text of ISO/TR 22100-1:2015 has been approved by CEN as CEN ISO/TR 22100-1:2017 without any
modification.
Annex ZA
(informative)
Relation of this document to the Machinery Directive 2006/42/EC
ZA.1 General
CEN ISO/TR 22100-1 (identical to ISO/TR 22100-1:2015) provides for the first time a transparent
guideline how to choose the appropriate machinery safety standard(s) representing the state of the art
and to apply it/them correctly in order to achieve at a given time a level of tolerable risk by adequate
risk reduction for an actual machine. In this document, the term tolerable risk should be read as
residual risk as defined in ISO 12100-1 to be compliant with European Union (EU) legislation.
NOTE While the residual risk is defined as the risk remaining after risk reduction measures have been
implemented (see ISO/IEC Guide 51:2014, 3.8), tolerable risk is the level of risk that is accepted in a given context
based on the current values of society (see 3.2). It is generally accepted that the residual risk is equal or lower
than the tolerable risk.
Compared to the international level (where no common legal framework for machinery safety exists) at
the European Union (EU) machinery safety standards are developed by CEN and CENELEC within the
1)
legal framework of the New Approach (New Legislative Framework) to provide presumption of
2)
conformity with relevant Essential Requirements of the EU Machinery Directive 2006/42/EC .
Those standards are harmonized and provide presumption of conformity to 2006/42/EC when cited in
3)
the Official Journal of the EU .
ZA.2 Special relevance of this document for harmonized standards (type-C)
providing presumption of conformity
The methodology as specified in Clause 6 of this document provides detailed guidance for the machine
manufacturer how to choose and evaluate harmonised standards (type-C) in order to achieve
presumption of conformity with Essential Requirements of 2006/42/EC for his actual machine in
accordance with the following statement given in §111 of the Guide to the application of the Machinery
Directive 2006/42/EC:
"Application of the specifications of a C-type standard confers a presumption of conformity with the
essential health and safety requirements of the Machinery Directive covered by the standard provided
the manufacturer has determined in his risk assessment that the scope and the significant hazards
covered by the standard correspond with his actual machinery. Further practical guidance is provided
by ISO/TR 22100-1:2015."
1)
Further information to the New Approach (New Legislative Framework) are provided in the Blue Guide:
http://ec.europa.eu/DocsRoom/documents/18027
2)
http://eur-lex.europa.eu/legal-content/DE/TXT/?uri=CELEX%3A32006L0042
3)
Example for a citation of Harmonized Standards to 2006/42/EC see
http://eur-lex.europa.eu/legal-content/DE/TXT/?uri=uriserv:OJ.C_.2016.173.01.0001.01.DEU&toc=OJ:C:2016:173:TOC
TECHNICAL ISO/TR
REPORT 22100-1
First edition
2015-05-15
Safety of machinery — Relationship
with ISO 12100 —
Part 1:
How ISO 12100 relates to type-B and
type-C standards
Sécurité des machines — Relation avec l’ISO 12100 —
Partie 1: Relation entre l’ISO 12100 et les normes de type B et type C
Reference number
ISO/TR 22100-1:2015(E)
©
ISO 2015
ISO/TR 22100-1:2015(E)
© ISO 2015, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2015 – All rights reserved

ISO/TR 22100-1:2015(E)
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 General structure of the system of machinery safety standards . 2
5 System of type-A, type-B and type-C standards . 2
5.1 Type-A standard (ISO 12100) . 2
5.2 Type-B standards . 6
5.2.1 General. 6
5.2.2 Type-B1 standards . 6
5.2.3 Type-B2 standards . 6
5.3 Type-C standards . 6
5.3.1 General. 6
5.3.2 Content provided by type-C standards . 7
5.3.3 Deviations in a type-C standard from a type-B standard . 7
6 Practical application of ISO 12100, type-B and type-C standards in order to design a
machine to achieve a level of tolerable risk by adequate risk reduction .7
6.1 General . 7
6.2 Application of an appropriate type-C standard . 8
6.2.1 General. 8
6.2.2 Steps to be followed . 9
7 Navigating appropriate type-B machinery safety standards .10
Annex A (informative) Iterative process of risk assessment and risk reduction .12
Annex B (informative) Types of documents .13
Bibliography .14
ISO/TR 22100-1:2015(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of any
patent rights identified during the development of the document will be in the Introduction and/or on
the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical Barriers
to Trade (TBT), see the following URL: Foreword — Supplementary information.
The committee responsible for this document is ISO/TC 199, Safety of machinery.
ISO/TR 22100 consists of the following parts, under the general title Safety of machinery — Relationship
with ISO 12100:
— Part 1: How ISO 12100 relates to type-B and type-C standards
— Part 2: How ISO 12100 relates to ISO 13849-1
The following parts are under preparation:
— Part 3: Implementation of ergonomic principles in safety standards
iv © ISO 2015 – All rights reserved

ISO/TR 22100-1:2015(E)
Introduction
This Technical Report is written to assist the designer/manufacturer of machinery and related
components in understanding and navigating the different types of ISO machinery safety standards.
It identifies the different kinds of documents in ISO (see Table B.1) and explains the type-A, type-B and
type-C structure of machinery safety standards and their interrelationship with regard to the practical
design of machinery subjected to adequate risk reduction to achieve tolerable risk.
This part of ISO/TR 22100 might be helpful for standard writing committees (type-B and type-C), too.
However, it does not provide specification of the general content that is expected to be included in the
different types of machinery safety standards. This specification is given in ISO Guide 78.
This part of ISO/TR 22100 includes a visual representation of many ISO machinery safety standards
to assist in improving understanding of the interrelationships and linkages between these documents.
TECHNICAL REPORT ISO/TR 22100-1:2015(E)
Safety of machinery — Relationship with ISO 12100 —
Part 1:
How ISO 12100 relates to type-B and type-C standards
1 Scope
This part of ISO/TR 22100 provides assistance to the designer/manufacturer of machinery and related
components as to how the system of existing type-A, type-B and type-C machinery safety standards should
be applied in order to design a machine to achieve a level of tolerable risk by adequate risk reduction.
It explains the general principles of ISO 12100 and how this type-A standard should be used for practical
cases in conjunction with type-B and type-C machinery safety standards.
This part of ISO/TR 22100 provides assistance to standards writing committees on how ISO 12100 and
type-B and type-C standards relate and explains their function in the risk assessment and risk reduction
process according to ISO 12100.
It includes an overview of existing categories of type-B standards to assist standards readers and
writers to navigate the many standards.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
ISO 12100:2010, Safety of machinery — General principles for design — Risk assessment and risk reduction
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 12100 and the following apply.
3.1
adequate risk reduction
risk reduction that is at least in accordance with legal requirements, taking into consideration the
current state of the art
[SOURCE: ISO 12100:2010, 3.18, modified — Note 1 to entry not taken over.]
3.2
tolerable risk
level of risk that is accepted in a given context based on the current values of society
Note 1 to entry: The terms “acceptable risk” and “tolerable risk” are considered to be synonymous.
[SOURCE: ISO/IEC Guide 51:2014, 3.15, modified — Wording “For the purpose of this Guide” deleted
from Note 1 to entry.]
ISO/TR 22100-1:2015(E)
4 General structure of the system of machinery safety standards
Standards on safety of machinery have the following structure:
— type-A standards (basic safety standards) giving basic concepts, principles for design, and general
aspects that can be applied to machinery;
— type-B standards (generic safety standards) dealing with one safety aspect or one type of safeguard
that can be used across a wide range of machinery;
— type-C standards (machine safety standards) dealing with detailed safety requirements for a
particular machine or group of machines.
As shown in Figure 1, ISO 12100 is the type-A standard specifying the general principles for safety of
machinery and applies to all machinery.
C
B
e.g. ISO 13857, ISO 14122
A
ISO 12100
Figure 1 — General structure of the system of machinery safety standards
5 System of type-A, type-B and type-C standards
5.1 Type-A standard (ISO 12100)
The type-A standard ISO 12100 specifies the principle strategy for safety of machinery. Risk assessment
and adequate risk reduction by an iterative three-step method are the imperative measures to design a
machine to achieve a level of tolerable risk.
To implement risk assessment and risk reduction, the following actions should be taken by the designer
in the order given (see Figure 2):
a) determine the limits of the machinery, which includes the intended use and any reasonably
foreseeable misuse thereof;
b) identify the hazards and associated hazardous situations;
c) estimate the risk for each identified hazard and hazardous situation;
d) evaluate the risk and decision whether a risk reduction is needed or not;
e) eliminate the hazard or reduction of the risk associated with the hazard by means of protective
measures/risk reduction measures.
NOTE 1 For the purposes of this Technical Report, the terms “protective measure” (see ISO 12100:2010, 3.19)
and “risk reduction measure” are synonymous and referred to any action or means used to eliminate hazards
and/or reduce risks.
2 © ISO 2015 – All rights reserved

ISO/TR 22100-1:2015(E)
Actions a) to d) are related to risk assessment and action e) to risk reduction.
Risk assessment is a series of logical steps to enable, in a systematic way, the identification of hazards as
well as the estimation and evaluation of the risks associated with machinery.
As a result of the risk assessment, the hazards requiring risk reduction are determined. Iteration of the
process of risk assessment can be necessary to eliminate newly generated hazards as far as reasonably
practicable or to adequately reduce associated risks by the implementation of protective measures/risk
reduction measures in order to achieve tolerable risk.
Protective measures/risk reduction measures are the combination of the measures implemented by the
designer and the user in accordance with Figure 3. Measures which can be incorporated at the design
stage are preferable to those implemented by the user and usually prove more effective.
The objective to be met is the greatest practicable risk reduction. The strategy defined in this clause is
represented by the flowchart in Figure 2. The process itself is iterative and several successive applications
can be necessary to reduce the risk, making the best use of available technology. In carrying out this
process, it is necessary to take into account these four factors, in the following order of preference:
— the safety of the machine during all the phases of its life cycle;
— the ability of the machine to perform its function;
— the usability of the machine;
— the manufacturing, operational and dismantling costs of the machine.
NOTE 2 The ideal application of these principles requires knowledge of the machine design and its intended
use, the practical use of the machine, the accident history and health records, available risk reduction techniques,
and the legal framework in which the machine is intended to be used (placed on the market).
ISO/TR 22100-1:2015(E)
Key
a
The first time the question is asked, it is answered by the result of the initial risk assessment.
For further information, see Figure A.1.
Figure 2 — Schematic representation of risk assessment and risk reduction process including
iterative three-step method according to ISO 12100:2010, Figure 1
4 © ISO 2015 – All rights reserved

ISO/TR 22100-1:2015(E)
Risk assessment
(based on deined limits and intended use of the machine)
RISK
Protective measures implemented by the
designer (see Figure 2)
Step 1 : Inherently safe design measures
Step 2 :  Safeguarding and
...
