EN 3375-012:2013
(Main)Aerospace series - Cable, electrical, for digital data transmission - Part 012: Single braid - Star Quad 100 ohms - 260 °C - Type KH - Product standard
Aerospace series - Cable, electrical, for digital data transmission - Part 012: Single braid - Star Quad 100 ohms - 260 °C - Type KH - Product standard
This European Standard specifies the dimensions, tolerances, required characteristics and the mass of an AWG 24 shielded quad cable, type KH, intended for high speed (100 Mbit/s) full duplex Ethernet networks.
Linked to this particular application, the operating temperatures of the cable are between – 65 °C and 260 °C.
This cable is laser markable, this marking satisfies the requirements of EN 3838.
The characteristics impedance must be (100 ± 15) Ω.
Luft- und Raumfahrt - Elektrische Leitungen für Digitaldatenübertragungen - Teil 012: Einfach geschirmt - Sternvierer 100 Ohm - 260 °C - Typ KH - Produktnorm
Série aérospatiale - Câbles électriques pour transmission de données numériques - Partie 012: Simple tresse - Quarte étoile 100 ohms - 260 °C - Type KH - Norme de produit
Aeronavtika - Električni kabli za digitalni prenos podatkov - 012. del: Enojni oplet - Štirižilni zvezdasti kabel, 100 ohmov - 260 °C - Tip KH- Standard za proizvod
General Information
- Status
- Published
- Publication Date
- 17-Dec-2013
- Withdrawal Date
- 29-Jun-2014
- Technical Committee
- ASD-STAN - Aerospace
- Drafting Committee
- ASD-STAN/D 2 - Electrical
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 21-Jan-2024
- Completion Date
- 21-Jan-2026
Relations
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Overview
EN 3375-012:2013 - Aerospace series: Cable, electrical, for digital data transmission - Part 012 - defines the product standard for a single-braid Star Quad shielded quad cable, Type KH (short designation: KH24). It specifies dimensions, materials, electrical and mechanical requirements for an AWG 24 quad cable designed for high‑speed 100 Mbit/s full‑duplex Ethernet use in aerospace environments with operating temperatures from −65 °C to 260 °C. The cable is laser markable in accordance with EN 3838 and has a characteristic impedance of (100 ± 15) Ω.
Key topics and requirements
- Construction & dimensions
- AWG 24 stranded conductor diameter 0.598–0.656 mm; outer cable diameter 4.35–4.55 mm; mass ≤ 45 g/m.
- Jacket colour: preferential light green; component pair colours: Pair 1 Red/Blue, Pair 2 Yellow/Green.
- Minimum bending radius: 10× outer diameter (dynamic), 5× (static).
- Materials
- Conductors and braid: nickel‑plated copper.
- Insulation, jacket and filler: fluoropolymer (high temperature resistance).
- Electrical performance
- Characteristic impedance: 100 ± 15 Ω (1 MHz–100 MHz).
- Maximum attenuation specified across frequencies (e.g., 17.3 dB/100 m at 31.25 MHz at 25 °C) with temperature adjustment rules.
- Capacitance ≤ 60 pF/m (1 kHz); velocity of propagation > 0.66 c at 31.25 MHz.
- Near End Cross‑Talk (NEXT) and transfer impedance limits defined (NEXT values and Zt max. in mΩ/m by frequency).
- Tests & quality
- Comprehensive electrical, mechanical and environmental tests referenced to EN 3475 series: thermal ageing, thermal shock, cold bend, bending, abrasion, strippability, laser markability, attenuation, NEXT, transfer impedance, etc.
- Quality assurance per EN 9133; marking and identification per EN 3375-002 and TR 6058.
Applications and users
- Intended for aerospace data networks requiring robust, high‑temperature capable Ethernet cabling - avionics harnesses, aircraft systems and onboard data links supporting 100 Mbit/s full‑duplex.
- Primary users:
- Aerospace electrical and avionics engineers
- Cable and harness manufacturers
- Procurement/specification teams for aircraft OEMs and MRO organizations
- Test and quality assurance engineers validating cable performance to aerospace standards
Related standards
- EN 3375-001 (Technical specification) and EN 3375-002 (General) - family context for digital data transmission cables
- EN 3475 (cable test methods) - referenced test procedures
- EN 3838 - requirements for user‑applied laser marking
- EN 9133 - quality management / qualification for aerospace standard parts
- TR 6058 - cable code identification list
EN 3375-012:2013 is essential when specifying high‑temperature, shielded quad cables for reliable 100 Mbit/s aerospace Ethernet links and when compliance with defined mechanical, thermal and electromagnetic performance is required.
Get Certified
Connect with accredited certification bodies for this standard
National Aerospace and Defense Contractors Accreditation Program (NADCAP)
Global cooperative program for special process quality in aerospace.
NSF-ISR
NSF International Strategic Registrations.
Orion Registrar Inc.
US-based certification body for management systems.
Sponsored listings
Frequently Asked Questions
EN 3375-012:2013 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Cable, electrical, for digital data transmission - Part 012: Single braid - Star Quad 100 ohms - 260 °C - Type KH - Product standard". This standard covers: This European Standard specifies the dimensions, tolerances, required characteristics and the mass of an AWG 24 shielded quad cable, type KH, intended for high speed (100 Mbit/s) full duplex Ethernet networks. Linked to this particular application, the operating temperatures of the cable are between – 65 °C and 260 °C. This cable is laser markable, this marking satisfies the requirements of EN 3838. The characteristics impedance must be (100 ± 15) Ω.
This European Standard specifies the dimensions, tolerances, required characteristics and the mass of an AWG 24 shielded quad cable, type KH, intended for high speed (100 Mbit/s) full duplex Ethernet networks. Linked to this particular application, the operating temperatures of the cable are between – 65 °C and 260 °C. This cable is laser markable, this marking satisfies the requirements of EN 3838. The characteristics impedance must be (100 ± 15) Ω.
EN 3375-012:2013 is classified under the following ICS (International Classification for Standards) categories: 49.090 - On-board equipment and instruments. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 3375-012:2013 has the following relationships with other standards: It is inter standard links to EN 3475-808:2002, EN 3475-408:2025, EN 3475-604:2010, EN 3475-508:2007, EN 3475-418:2019, EN 3475-404:2025, EN 3475-514:2007, EN 3475-811:2009, EN 3475-306:2005, EN 3475-407:2009, EN 3475-307:2005, EN 3475-603:2002, EN 3475-508:2002, EN 3475-801:2002, EN 3475-606:2024. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 3375-012:2013 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)

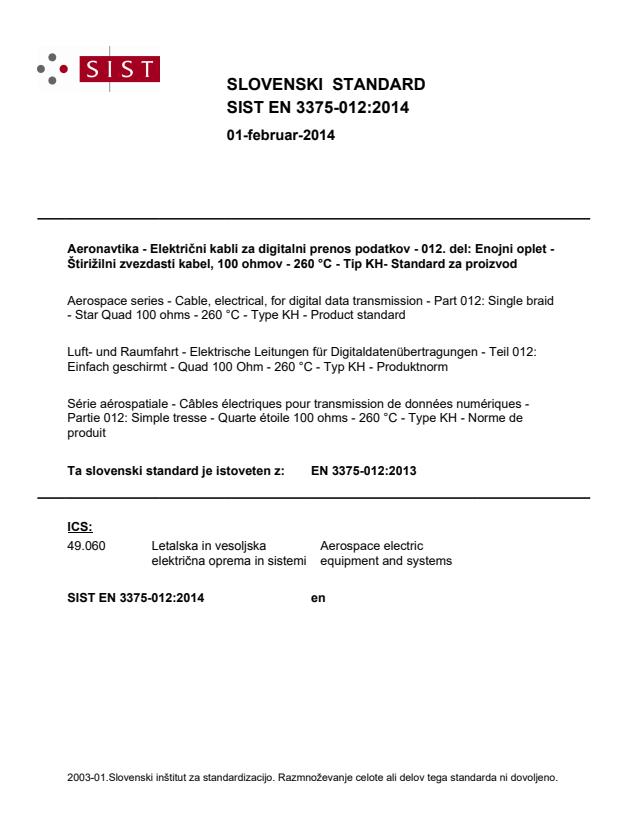

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Luft- und Raumfahrt - Elektrische Leitungen für Digitaldatenübertragungen - Teil 012: Einfach geschirmt - Quad 100 Ohm - 260 °C - Typ KH - ProduktnormSérie aérospatiale - Câbles électriques pour transmission de données numériques - Partie 012: Simple tresse - Quarte étoile 100 ohms - 260 °C - Type KH - Norme de produitAerospace series - Cable, electrical, for digital data transmission - Part 012: Single braid - Star Quad 100 ohms - 260 °C - Type KH - Product standard49.060Aerospace electric equipment and systemsICS:Ta slovenski standard je istoveten z:EN 3375-012:2013SIST EN 3375-012:2014en01-februar-2014SIST EN 3375-012:2014SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 3375-012
December 2013 ICS 49.090 English Version
Aerospace series - Cable, electrical, for digital data transmission - Part 012: Single braid - Star Quad 100 ohms - 260 °C - Type KH - Product standard
Série aérospatiale - Câbles électriques pour transmission de données numériques - Partie 012: Simple tresse - Quarte étoile 100 ohms - 260 °C - Type KH - Norme de produit
Luft- und Raumfahrt - Elektrische Leitungen für Digitaldatenübertragungen - Teil 012: Einfach geschirmt - Quad 100 Ohm - 260 °C - Typ KH - Produktnorm This European Standard was approved by CEN on 28 September 2013.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2013 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 3375-012:2013 ESIST EN 3375-012:2014
EN 9133, Aerospace series — Quality management systems — Qualification procedure for aerospace standard parts TR 6058, Aerospace series — Cable code identification list 1) 3 Terms and definitions For the purposes of this document, the terms and definitions given in EN 3475-100 apply.
1) Published as ASD-STAN Technical Report at the date of publication of this standard. http://www.asd-stan.org/ SIST EN 3375-012:2014
NOTE No. of elements in accordance with Table 2. Figure 1 — Configuration, dimensions and tolerances Table 1 — Dimensions, tolerances and general characteristics Stranded conductor (Ø A) 0,598 mm ≤ Ø ≤ 0,656 mm a Insulation diameter (single wire) 1,35 mm ≤ Ø ≤ 1,45 mm a Outer di
...
