EN 2713-004:2006
(Main)Aerospace series - Cables, electrical, single and multicore for general purpose - Operating temperatures between - 55 °C and 200 °C - Part 004: Screened (braided) and jacketed, ink jet printable - Product standard
Aerospace series - Cables, electrical, single and multicore for general purpose - Operating temperatures between - 55 °C and 200 °C - Part 004: Screened (braided) and jacketed, ink jet printable - Product standard
This standard specifies the characteristics of ink jet printable, single and multicore screened (braided) and jacketed electrical cables for use in the on-board electrical systems of aircraft, at operating temperatures between 55 °C and 200 °C.
It shall also be possible to mark these cables by hot stamp printing.
These markings shall be in accordance with EN 3838.
This standard is not valid for new study.
Luft- und Raumfahrt - Leitungen, elektrisch, ein- und mehradrig, für allgemeine Verwendung - Betriebstemperaturen zwischen - 55 °C und 200 °C - Teil 004: Geschirmt (Umflechtung) und ummantelt, tintenstrahl-bedruckbar - Produktnorm
Diese Norm legt die Eigenschaften von tintenstrahl bedruckbaren, ein und mehradrigen, geschirmten (Umflechtung) und ummantelten elektrischen Leitungen fest, die zur Verwendung in Bordnetzen von Luft¬fahrzeugen bei Betriebstemperaturen zwischen -55 °C und 200 °C bestimmt sind.
Es muss auch möglich sein, diese Leitungen mittels Heißprägung zu kennzeichnen.
Diese Kennzeichnungen müssen EN 3838 entsprechen.
Diese Norm gilt nicht für neue Untersuchungen.
Série aérospatiale - Câbles, électriques,mono et multiconducteurs d'usage général - Températures de fonctionnement comprises entre - 55 °C et 200 °C - Partie 004 : Blindés (tressés) et gainés, marquables au jet d'encre - Norme de produit
Aeronavtika - Eno- ali večžilni električni kabli za splošno uporabo - Delovne temperature med –55 °C in 200 °C - 004. del: Oklopljeni (opleteni) in oplaščeni, z možnostjo brizganega tiskanja - Standard za proizvod
General Information
- Status
- Published
- Publication Date
- 22-Aug-2006
- Withdrawal Date
- 27-Feb-2007
- Technical Committee
- ASD-STAN - Aerospace
- Drafting Committee
- ASD-STAN/D 2 - Electrical
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 01-Jun-2017
- Completion Date
- 28-Jan-2026
Relations
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Overview
EN 2713-004:2006 is a CEN aerospace product standard that defines screened (braided) and jacketed, ink-jet printable single and multicore electrical cables for on-board aircraft electrical systems. It covers cables rated for operating temperatures between −55 °C and 200 °C, including requirements for materials, construction, marking and performance verification. The standard also allows hot-stamp marking and requires markings to comply with EN 3838. (Note: the scope text states “This standard is not valid for new study.”)
Keywords: EN 2713-004:2006, aerospace cables, screened braided jacketed cables, ink jet printable, aircraft electrical systems, polyimide jacket.
Key topics and requirements
- Temperature range: Designed for continuous use from −55 °C up to 200 °C; specific endurance testing includes 40 000 h at 200 °C.
- Cable types: Single-core and 1–4 multicore constructions. 2–4 core cables are spiral screened and twisted together; filler cores are not allowed.
- Screening:Nickel-plated copper stranded braid (strand dimensions per the standard and EN 2083/EN 3475-100 tests).
- Outer jacket and coating: Polyimide jacket with nominal total wall thickness 30 µm, coated both sides with 2.5 µm fluorocarbon; a dispersion fluorocarbon top coat (≥15 µm) including additives to accept ink-jet marking.
- Marking: Ink-jet printable and hot-stamp options; markings must meet EN 3838 requirements for user-applied cable identification.
- Performance & test regime: Uses test methods in EN 3475-100 (visual, dimensions, ohmic resistance, voltage proof, insulation resistance, surface resistance), plus accelerated ageing (250 ±5 °C), thermal shock, cold-bend, bending, flammability (extinguishing time ≤ 3 s), notch propagation (40 µm), scrape abrasion and other aerospace-specific tests.
- Designation & identification: Example identity format: EN2713-004B002F (standard number + core count code + conductor size code + colour code).
Applications and users
- Who uses it: Aerospace cable manufacturers, electrical harness designers, aircraft OEMs, maintenance/repair organizations, procurement and certification teams.
- Typical applications: On-board wiring for avionics, sensors, control circuits and general-purpose aircraft electrical systems where high-temperature resistance, braided screening and traceable ink-jet marking are required.
- Practical value: Ensures material compatibility (polyimide/fluorocarbon top coats), electromagnetic screening, long-term thermal stability and standardized marking for traceability and maintenance.
Related standards
- EN 2235 - screened & jacketed cables technical specification
- EN 2266-003 - core insulation / ink-jet printable cores
- EN 2083 - copper/copper-alloy conductors
- EN 3475-100 - test methods for aircraft electrical cables
- EN 3838 - requirements for user-applied cable markings
- EN 9133 - quality assurance / qualification procedure
This summary helps engineers and procurement specialists quickly assess whether EN 2713-004:2006 is applicable when specifying screened, jacketed, ink-jet printable aerospace cables for high-temperature aircraft environments.
Get Certified
Connect with accredited certification bodies for this standard
National Aerospace and Defense Contractors Accreditation Program (NADCAP)
Global cooperative program for special process quality in aerospace.
NSF-ISR
NSF International Strategic Registrations.
Orion Registrar Inc.
US-based certification body for management systems.
Sponsored listings
Frequently Asked Questions
EN 2713-004:2006 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Cables, electrical, single and multicore for general purpose - Operating temperatures between - 55 °C and 200 °C - Part 004: Screened (braided) and jacketed, ink jet printable - Product standard". This standard covers: This standard specifies the characteristics of ink jet printable, single and multicore screened (braided) and jacketed electrical cables for use in the on-board electrical systems of aircraft, at operating temperatures between 55 °C and 200 °C. It shall also be possible to mark these cables by hot stamp printing. These markings shall be in accordance with EN 3838. This standard is not valid for new study.
This standard specifies the characteristics of ink jet printable, single and multicore screened (braided) and jacketed electrical cables for use in the on-board electrical systems of aircraft, at operating temperatures between 55 °C and 200 °C. It shall also be possible to mark these cables by hot stamp printing. These markings shall be in accordance with EN 3838. This standard is not valid for new study.
EN 2713-004:2006 is classified under the following ICS (International Classification for Standards) categories: 49.060 - Aerospace electric equipment and systems. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 2713-004:2006 has the following relationships with other standards: It is inter standard links to EN 3475-808:2002, EN 3475-504:2002, EN 3475-408:2025, EN 3475-403:2002, EN 3475-604:2010, EN 3475-508:2007, EN 3475-411:2018, EN 3475-418:2019, EN 3475-404:2025, EN 3475-514:2007, EN 3475-306:2005, EN 3475-811:2009, EN 3475-505:2023, EN 3475-407:2009, EN 3475-307:2005. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 2713-004:2006 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)

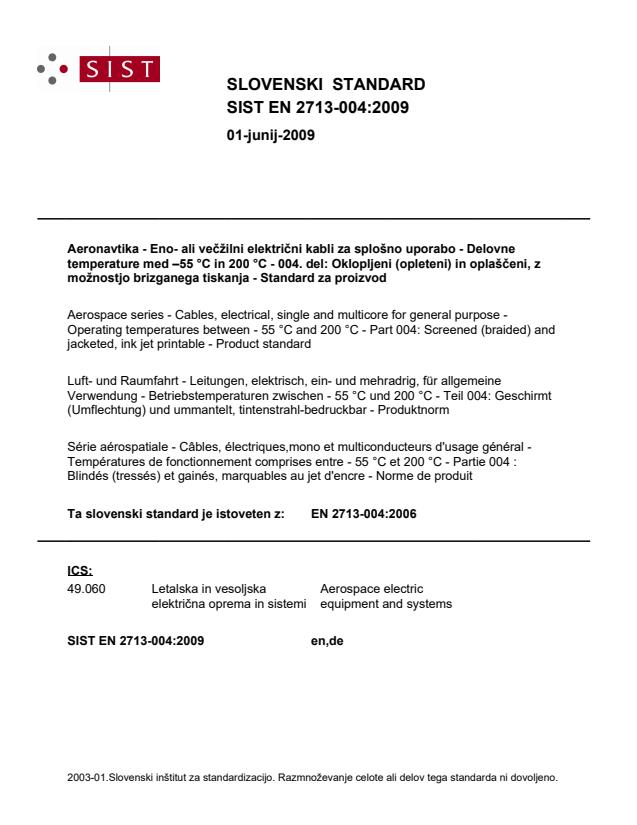

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Luft- und Raumfahrt - Leitungen, elektrisch, ein- und mehradrig, für allgemeine Verwendung - Betriebstemperaturen zwischen - 55 °C und 200 °C - Teil 004: Geschirmt (Umflechtung) und ummantelt, tintenstrahl-bedruckbar - ProduktnormSérie aérospatiale - Câbles, électriques,mono et multiconducteurs d'usage général - Températures de fonctionnement comprises entre - 55 °C et 200 °C - Partie 004 : Blindés (tressés) et gainés, marquables au jet d'encre - Norme de produitAerospace series - Cables, electrical, single and multicore for general purpose - Operating temperatures between - 55 °C and 200 °C - Part 004: Screened (braided) and jacketed, ink jet printable - Product standard49.060Aerospace electric equipment and systemsICS:Ta slovenski standard je istoveten z:EN 2713-004:2006SIST EN 2713-004:2009en,de01-junij-2009SIST EN 2713-004:2009SLOVENSKI
STANDARD

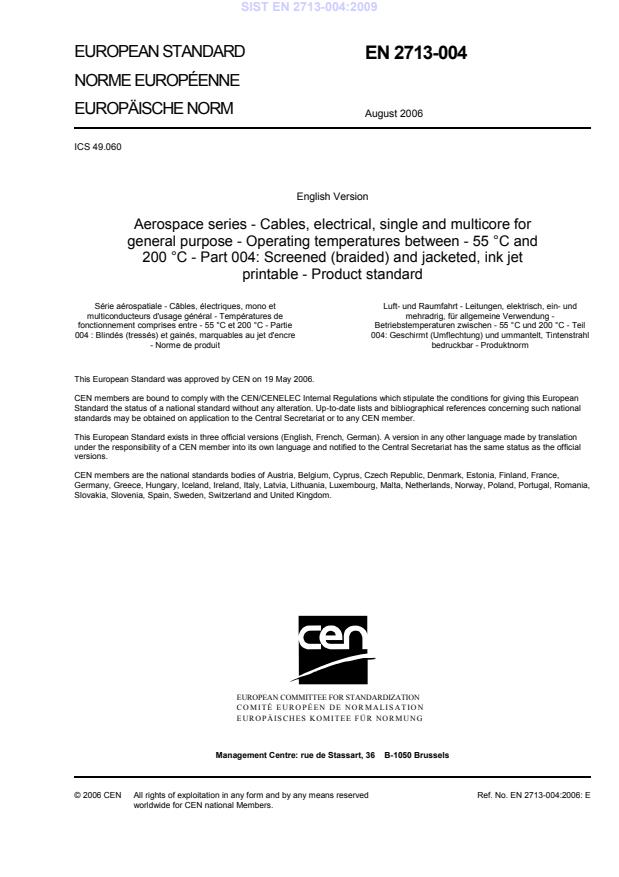

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 2713-004
August 2006 ICS 49.060 English Version
Aerospace series - Cables, electrical, single and multicore for general purpose - Operating temperatures between - 55 °C and 200 °C - Part 004: Screened (braided) and jacketed, ink jet printable - Product standard
Série aérospatiale - Câbles, électriques, mono et multiconducteurs d'usage général - Températures de fonctionnement comprises entre - 55 °C et 200 °C - Partie 004 : Blindés (tressés) et gainés, marquables au jet d'encre - Norme de produit
Luft- und Raumfahrt - Leitungen, elektrisch, ein- und mehradrig, für allgemeine Verwendung - Betriebstemperaturen zwischen - 55 °C und 200 °C - Teil 004: Geschirmt (Umflechtung) und ummantelt, Tintenstrahl bedruckbar - Produktnorm This European Standard was approved by CEN on 19 May 2006.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the Central Secretariat or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36
B-1050 Brussels © 2006 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 2713-004:2006: ESIST EN 2713-004:2009
These markings shall be in accordance with EN 3838. This standard is not valid for new study. 2 Normative r
...
