ASTM F2737-11(2021)

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
Designation:F2737 −11 (Reapproved 2021) An American National Standard
Standard Specification for
Corrugated High Density Polyethylene (HDPE) Water Quality
Units
This standard is issued under the fixed designation F2737; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope 2. Referenced Documents
2.1 ASTM Standards:
1.1 This specification covers materials, structural design,
D1600 Terminology forAbbreviatedTerms Relating to Plas-
physical dimensions and manufacturing requirements for
tics
monolithic or sectional corrugated high density polyethylene
D3212 Specification for Joints for Drain and Sewer Plastic
(HDPE) water quality units with volumes greater than or equal
3 Pipes Using Flexible Elastomeric Seals
to 86 ft or 640 gal (2400 L).
D3350 Specification for Polyethylene Plastics Pipe and Fit-
1.2 The corrugated HDPE water quality units are placed as
tings Materials
offline or inline treatment devices along storm drain pipe lines
F412 Terminology Relating to Plastic Piping Systems
to remove total suspended solids (TSS), heavy metals and F477 Specification for Elastomeric Seals (Gaskets) for Join-
phosphorous. Typical sources of pollutants include construc- ing Plastic Pipe
F714 Specification for Polyethylene (PE) Plastic Pipe (DR-
tion activity, automotive transportation related wear and debris
PR) Based on Outside Diameter
items, refuse, landscaping debris, agricultural activities, and
F2306/F2306M Specification for 12 to 60 in. [300 to 1500
other similar by-products.
mm] Annular Corrugated Profile-Wall Polyethylene (PE)
1.3 The values stated in inch-pound units are to be regarded
Pipe and Fittings for Gravity-Flow Storm Sewer and
as standard. The values given in parentheses are mathematical
Subsurface Drainage Applications
conversions to SI units that are provided for information only 3
2.2 Plastic Pipe Institute:
and are not considered standard.
PPI TR-4 PPI Listing of Hydrostatic Design Basis (HDB),
Pressure Design Basis (PDB), and Minimum Required
1.4 This specification covers horizontally laid corrugated
Strength (MRS) Ratings for Thermoplastic Plastic Pipes
HDPE water quality units as illustrated in Fig. 1.
2.3 AASHTO Standard
1.5 The following safety hazard caveat pertains only to the
LDFD Bridge Design Specifications
test methods portion, Section 9, of this specification. This
standard does not purport to address all of the safety concerns,
3. Terminology
if any, associated with its use. It is the responsibility of the user
3.1 For definitions of terms relating to plastics, see Termi-
of this standard to establish appropriate safety, health, and
nology F412 and abbreviations are in accordance with Termi-
environmental practices and determine the applicability of
nology D1600, unless otherwise specified.
regulatory limitations prior to use.
3.2 Definitions of Terms Specific to This Standard:
1.6 This international standard was developed in accor-
3.2.1 access opening, n—a hole in the top or crown of the
dance with internationally recognized principles on standard-
water quality unit for access to the interior for inspection,
ization established in the Decision on Principles for the
cleaning and removing of sediment, hydrocarbons, floating
Development of International Standards, Guides and Recom-
debris, and pollutants without personnel entry.
mendations issued by the World Trade Organization Technical
Barriers to Trade (TBT) Committee.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
Standards volume information, refer to the standard’s Document Summary page on
This specification is under the jurisdiction ofASTM Committee F17 on Plastic the ASTM website.
Piping Systems and is the direct responsibility of Subcommittee F17.26 on Olefin Available from Plastics Pipe Institute (PPI), 105 Decker Court, Suite 825,
Based Pipe. Irving, TX 75062, http://www.plasticpipe.org.
Current edition approved July 1, 2021. Published August 2021. Originally Available from American Association of State Highway and Transportation
approved in 2010. Last previous edition approved in 2017 as F2737–11(2017). Officials (AASHTO), 444 N. Capitol St., NW, Suite 249, Washington, DC 20001,
DOI:10.1520/F2737–11R21. http://www.transportation.org.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
F2737−11 (2021)
HDPE water quality units contain three (3) chambers. A side inlet may be used in lieu of the end inlet and flow diverter when a full height longitudinal partition is
constructed in the sediment chamber compartment to extend the particle travel length and isolate incoming flow from sediment build-up.

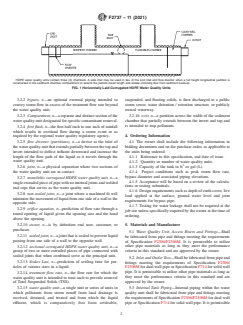

FIG. 1Horizontally Laid Corrugated HDPE Water Quality Units
3.2.2 bypass, n—an optional external piping intended to suspended, and floating solids, is then discharged to a public
convey storm flow in excess of the treatment flow rate beyond storm sewer, water detention / retention structure, or publicly
the water quality unit. owned waterway.
3.2.3 Compartment, n—aseparateanddistinctsectionofthe
3.2.16 weir, n—a partition across the width of the sediment
water quality unit designated for specific contaminant removal. chamber that partially extends between the invert and top and
is intended to trap pollutants.
3.2.4 first flush, n—the first half inch to one inch of rainfall
which results in overland flow during a storm event or as
4. Ordering Information
required by the regional water quality regulatory agency.
3.2.5 flow diverter (partitions), n—a device at the inlet of 4.1 The owner shall include the following information in
thewaterqualityunitthatextendspartiallybetweenthetopand bidding documents and on the purchase order, as applicable to
invert intended to deflect influent downward and increase the the units being ordered:
length of the flow path of the liquid as it travels through the 4.1.1 Reference to this specification, and date of issue.
water quality unit.
4.1.2 Quantity or number of water quality units.
4.1.3 Capacity of the tank in ft or gal (L).
3.2.6 joint, n—a physical separation where two sections of
4.1.4 Project conditions such as peak storm flow rate,
the water quality unit are in contact.
bypass diameter and associated piping elevations.
3.2.7 monolithic corrugated HDPE water quality unit, n—a
4.1.5 Acceptance will be based on a review of the calcula-
singleextrudedpieceofpipewithnointernaljointsandwelded
tions or testing submittals.
end caps that serves as the water quality unit.
4.1.6 Design requirements such as depth of earth cover, live
3.2.8 non-sealed joint, n—a joint where a machined fit will
load applied at the surface, ground water level and joint
minimizethemovementofliquidfromonesideofawalltothe
requirements for bypass pipe.
opposite side.
4.1.7 Testing for water leakage shall not be required at the
3.2.9 orifice equation, n—prediction of flow rate through a
job site unless specifically required by the owner at the time of
round opening of liquid given the opening size and the head
ordering.
above the opening.
3.2.10 owner, n—is by definition end user, customer, or
5. Materials and Manufacture
purchaser.
5.1 Water Quality Unit, Access Risers and Fittings—Shall
3.2.11 sealed joint, n—a joint that is sealed to prevent liquid
be fabricated from pipe and fittings meeting the requirements
passing from one side of a wall to the opposite wall.
of Specification F2306/F2306M. It is permissible to utilize
other pipe materials as long as they meet the performance
3.2.12 sectional corrugated HDPE water quality unit, n—a
group of two or more extruded pieces of pipe connected with criteria in this standard and are approved by the owner.
sealed joints that when combined serve as the principal unit.
5.2 Inlet and Outlet Tees—Shall be fabricated from pipe and
3.2.13 Stokes Law, n—prediction of settling time for par-
fittings meeting the requirements of Specification F2306/
ticles of various sizes in a liquid.
F2306M for dual wall pipe or Specification F714 for solid wall
pipe. It is permissible to utilize other pipe materials as long as
3.2.14 treatment flow rate, n—the flow rate for which the
they meet the performance criteria in this standard and are
water quality unit is intended to treat such to provide removal
approved by the owner.
of Total Suspended Solids (TSS).
3.2.15 water quality unit—a single unit or series of units in 5.3 Internal Tank Piping—Internal piping within the water
which pollutants from storm runoff from land drainage is quality unit shall be fabricated from pipe and fittings meeting
received, detained, and treated and from which the liquid the requirements of Specification F2306/F2306M for dual wall
effluent, which is comparatively free from settleable, pipe or Specification F714 for solid wall pipe. It is permissible
F2737−11 (2021)
to utilize other pipe materials as long as they meet the 7.2.1.2 Welding rod shall be of medium or high density
performance criteria in this standard and are approved by the polyethylene corresponding to the properties for the end plate
owner. materials in 5.4 with the exception that the tensile strength at
yield shall not be less than 5000 psi (3.5MKg/m ).
5.4 Weirs, Flow Diverters, and End Caps—Weirs, flow
7.2.2 Multiple units installed in series or parallel are accept-
diverters (partitions), and end caps shall be fabricated from
able.
either flat plates meeting the requirements of PPI TR-4 PE
7.2.3 Each compartment shall have an access riser for
3408 material.
inspection and maintenance.
5.5 Pipe Connections:
7.3 Inlet and Outlet Pipes:
5.5.1 Pipe to Water Quality Unit connections shall employ
7.3.1 The inlet pipe shall be no less than 10 in. (250 mm)
flexible watertight connectors conforming to the requirements
in diameter.
of Specification F477.
7.3.2 Theelevationdifferencebetweentheinvertoftheinlet
6. Structural Design Requirements pipe and the invert of the outlet pipe shall be a minimum of 2
in. (50 mm).
6.1 Pipe sections used in the fabrication of the water quality
7.3.3 Connections to inlet and outlet pipes shall be made
unit shall be design by calculation using the AASHTO LRFD
with a sealed flexible connector conforming to Specification
Bridge Specifications, Section 12, “ Buried Structures and
F477.
Tunnel Liners”
7.4 Bypass pipe:
6.2 Structural analysis and design of the water quality units
7.4.1 The bypass pipe shall be no less than 10 in. (250 mm)
shall be performed using commercially practicable methods
in diameter.
and may include computer aided analysis, field based analysis,
7.4.2 The bypass pipe shall be located between the connec-
or analytical calculations.
tions of the inlet pipe and the out
...
