ASTM F628-23

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.

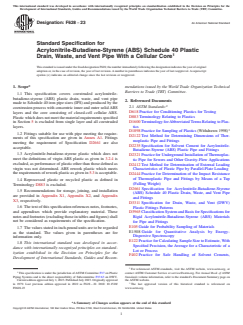

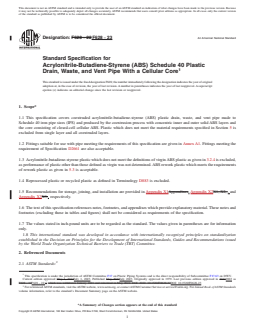

Designation: F628 − 22 F628 − 23 An American National Standard
Standard Specification for
Acrylonitrile-Butadiene-Styrene (ABS) Schedule 40 Plastic
Drain, Waste, and Vent Pipe With a Cellular Core
This standard is issued under the fixed designation F628; the number immediately following the designation indicates the year of original
adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A superscript
epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope*
1.1 This specification covers coextruded acrylonitrile-butadiene-styrene (ABS) plastic drain, waste, and vent pipe made to
Schedule 40 iron pipe sizes (IPS) and produced by the coextrusion process with concentric inner and outer solid ABS layers and
the core consisting of closed-cell cellular ABS. Plastic which does not meet the material requirements specified in Section 5 is
excluded from single layer and all coextruded layers.
1.2 Fittings suitable for use with pipe meeting the requirements of this specification are given in Annex A1. Fittings meeting the
requirement of Specification D2661 are also acceptable.
1.3 Acrylonitrile-butadiene-styrene plastic which does not meet the definitions of virgin ABS plastic as given in 3.2.4 is excluded,
as performance of plastic other than those defined as virgin was not determined. ABS rework plastic which meets the requirements
of rework plastic as given in 5.3 is acceptable.
1.4 Reprocessed plastic or recycled plastic as defined in Terminology D883 is excluded.
1.5 Recommendations for storage, joining, and installation are provided in Appendix X1Appendixes, Appendix X2X1, X2, , and
Appendix X3X3,, respectively.
1.6 The text of this specification references notes, footnotes, and appendixes which provide explanatory material. These notes and
footnotes (excluding those in tables and figures) shall not be considered as requirements of the specification.
1.7 The values stated in inch-pound units are to be regarded as the standard. The values given in parentheses are for information
only.
1.8 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2.1 ASTM Standards:
This specification is under the jurisdiction of ASTM Committee F17 on Plastic Piping Systems and is the direct responsibility of Subcommittee F17.63 on DWV.
Current edition approved May 1, 2022July 1, 2023. Published May 2022July 2023. Originally approved in 1979. Last previous edition approved in 20122022 as
ɛ3
F628 – 12F628 – 22. which was withdrawn January 2021 and reinstated in May 2022. DOI: 2022. 10.1520/F0628-22DOI: 10.1520/F0628-23
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States

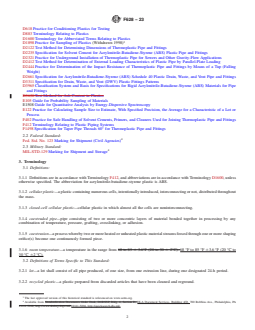

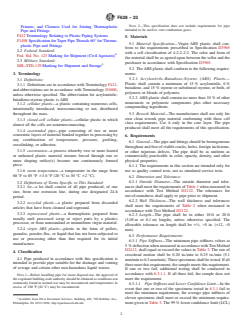

F628 − 23
D618 Practice for Conditioning Plastics for Testing
D883 Terminology Relating to Plastics
D1600 Terminology for Abbreviated Terms Relating to Plastics
D1898 Practice for Sampling of Plastics (Withdrawn 1998)
D2122 Test Method for Determining Dimensions of Thermoplastic Pipe and Fittings
D2235 Specification for Solvent Cement for Acrylonitrile-Butadiene-Styrene (ABS) Plastic Pipe and Fittings
D2321 Practice for Underground Installation of Thermoplastic Pipe for Sewers and Other Gravity-Flow Applications
D2412 Test Method for Determination of External Loading Characteristics of Plastic Pipe by Parallel-Plate Loading
D2444 Practice for Determination of the Impact Resistance of Thermoplastic Pipe and Fittings by Means of a Tup (Falling
Weight)
D2661 Specification for Acrylonitrile-Butadiene-Styrene (ABS) Schedule 40 Plastic Drain, Waste, and Vent Pipe and Fittings
D3311 Specification for Drain, Waste, and Vent (DWV) Plastic Fittings Patterns
D3965 Classification System and Basis for Specifications for Rigid Acrylonitrile-Butadiene-Styrene (ABS) Materials for Pipe
and Fittings
D5630 Test Method for Ash Content in Plastics
E105 Guide for Probability Sampling of Materials
E1508 Guide for Quantitative Analysis by Energy-Dispersive Spectroscopy
E122 Practice for Calculating Sample Size to Estimate, With Specified Precision, the Average for a Characteristic of a Lot or
Process
F402 Practice for Safe Handling of Solvent Cements, Primers, and Cleaners Used for Joining Thermoplastic Pipe and Fittings
F412 Terminology Relating to Plastic Piping Systems
F1498 Specification for Taper Pipe Threads 60° for Thermoplastic Pipe and Fittings
2.2 Federal Standard:
Fed. Std. No. 123 Marking for Shipment (Civil Agencies)
2.3 Military Standard:
MIL-STD-129 Marking for Shipment and Storage
3. Terminology
3.1 Definitions:
3.1.1 Definitions are in accordance with Terminology F412, and abbreviations are in accordance with Terminology D1600, unless
otherwise specified. The abbreviation for acrylonitrile-butadiene-styrene plastic is ABS.
3.1.2 cellular plastic—a plastic containing numerous cells, intentionally introduced, interconnecting or not, distributed throughout
the mass.
3.1.3 closed-cell cellular plastic—cellular plastic in which almost all the cells are noninterconnecting.
3.1.4 coextruded pipe—pipe consisting of two or more concentric layers of material bonded together in processing by any
combination of temperature, pressure, grafting, crosslinking, or adhesion.
3.1.5 coextrusion—a process whereby two or more heated or unheated plastic material streams forced through one or more shaping
orifice(s) become one continuously formed piece.
3.1.6 room temperature—a temperature in the range from 68 to 85 6 3.6°F (20 to 30 6 2°C). 68 °F to 85 °F 63.6 °F (20 °C to
30 °C 62 °C).
3.2 Definitions of Terms Specific to This Standard:
3.2.1 lot—a lot shall consist of all pipe produced, of one size, from one extrusion line, during one designated 24-h period.
3.2.2 recycled plastic—a plastic prepared from discarded articles that have been cleaned and reground.
The last approved version of this historical standard is referenced on www.astm.org.
Available from Standardization Documents Order Desk, DODSSP, Bldg. 4, Section D, DLA Document Services, Building 4/D, 700 Robbins Ave., Philadelphia, PA
19111-5098, http://www.dodssp.daps.mil.19111-5094, http://quicksearch.dla.mil.

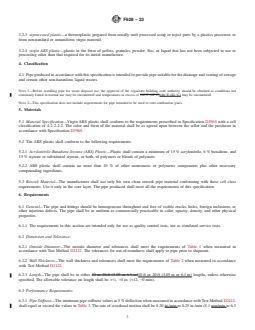

F628 − 23
3.2.3 reprocessed plastic—a thermoplastic prepared from usually melt processed scrap or reject parts by a plastics processor, or
from nonstandard or nonuniform virgin material.
3.2.4 virgin ABS plastic—plastic in the form of pellets, granules, powder, floc, or liquid that has not been subjected to use or
processing other than that required for its initial manufacture.
4. Classification
4.1 Pipe produced in accordance with this specification is intended to provide pipe suitable for the drainage and venting of sewage
and certain other non-hazardous liquid wastes.
NOTE 1—Before installing pipe for waste disposal use, the approval of the cognizant building code authority should be obtained as conditions not
commonly found in normal use may be encountered and temperatures in excess of 180°F (82°C)180 °F (82 °C) may be encountered.
NOTE 2—This specification does not include requirements for pipe intended to be used to vent combustion gases.
5. Materials
5.1 Material Specification—Virgin ABS plastic shall conform to the requirements prescribed in Specification D3965 with a cell
classification of 4-2-2-2-2. The color and form of the material shall be as agreed upon between the seller and the purchaser in
accordance with Specification D3965.
5.2 The ABS plastic shall conform to the following requirements:
5.2.1 Acrylonitrile-Butadiene-Styrene (ABS) Plastic—Plastic shall contain a minimum of 15 % acrylonitrile, 6 % butadiene, and
15 % styrene or substituted styrene, or both, of polymers or blends of polymers.
5.2.2 ABS plastic shall contain no more than 10 % of other monomeric or polymeric components plus other necessary
compounding ingredients.
5.3 Rework Material—The manufacturer shall use only his own clean rework pipe material conforming with these cell class
requirements. Use it only in the core layer. The pipe produced shall meet all the requirements of this specification.
6. Requirements
6.1 General—The pipe and fittings should be homogeneous throughout and free of visible cracks, holes, foreign inclusions, or
other injurious defects. The pipe shall be as uniform as commercially practicable in color, opacity, density, and other physical
properties.
6.1.1 The requirements in this section are intended only for use as quality control tests, not as simulated service tests.
6.2 Dimension and Tolerance:
6.2.1 Outside Diameter—The outside diameter and tolerances shall meet the requirements of Table 1 when measured in
accordance with Test Method D2122. The tolerances for out-of-roundness shall apply to pipe prior to shipment.
6.2.2 Wall Thickness—The wall thickness and tolerances shall meet the requirements of Table 2 when measured in accordance
with Test Method D2122.
6.2.3 Length—The pipe shall be in either 10 or 20-ft (3.05 or 6.1-m)10 ft or 20 ft (3.05 m or 6.1 m) lengths, unless otherwise
specified. The allowable tolerance on length shall be + ⁄2, −0 in. (+12, −0 mm).
6.3 Performance Requirements:
6.3.1 Pipe Stiffness—The minimum pipe stiffness values at 5 % deflection when measured in accordance with Test Method D2412,
shall equal or exceed the values in Table 3. The rate of crosshead motion shall be 0.20 in./min to 0.25 in./min (5.1 mm/min to 6.3

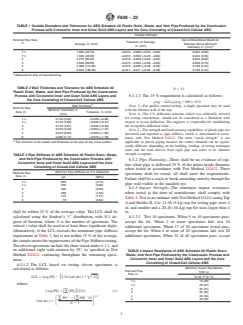

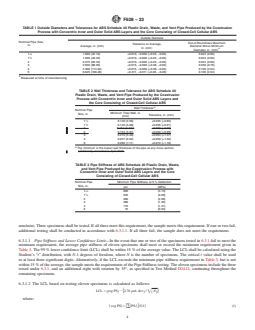

F628 − 23
TABLE 1 Outside Diameters and Tolerances for ABS Schedule 40 Plastic Drain, Waste, and Vent Pipe Produced by the Coextrusion
Process with Concentric Inner and Outer Solid ABS-Layers and the Core Consisting of Closed-Cell Cellular ABS
Outside Diameter
Nominal Pipe Size,
Out-of-Roundness Maximum
Tolerance on Average,
in.
Average, in. (mm) Diameter Minus Minimum
in. (mm)
A
Diameter, in. (mm)
1 ⁄4 1.660 (42.16) +0.010, −0.000 (+0.25, −0.00) 0.024 (0.60)
1 ⁄2 1.900 (48.26) +0.010, −0.000 (+0.25, −0.00) 0.024 (0.60)
2 2.375 (60.32) +0.010, −0.000 (+0.25, −0.00) 0.024 (0.60)
3 3.500 (88.90) +0.015, −0.000 (+0.38, −0.00) 0.030 (0.76)
4 4.500 (114.30) +0.015, −0.000 (+0.38, −0.00) 0.100 (2.54)
6 6.625 (168.28) +0.011, −0.011 (+0.28, −0.28) 0.100 (2.54)
A
Measured at time of manufacturing.
TABLE 2 Wall Thickness and Tolerance for ABS Schedule 40
Plastic Drain, Waste, and Vent Pipe Produced by the Coextrusion
Process with Concentric Inner and Outer Solid ABS Layers and
the Core Consisting of Closed-Cell Cellular ABS
A
Wall Thickness
Nominal Pipe
Minimum Total Wall, in.
Size, in.
Tolerance, in. (mm)
(mm)
1 ⁄4 0.140 (3.56) +0.035 (+0.89)
1 ⁄2 0.145 (3.68) +0.036 (+0.91)
†
2 0.154 (3.91) +0.039 (+0.99)
2 0.154 (3.91) +0.039 (+0.99)
3 0.216 (5.49) +0.054 (+1.37)
4 0.237 (6.02) +0.059 (+1.50)
6 0.280 (7.11) +0.070 (+1.78)
A
The minimum is the lowest wall thickness of the pipe at any cross section.
† Editorially corrected in April 2016.
TABLE 3 Pipe Stiffness of ABS Schedule 40 Plastic Drain, Waste,
and Vent Pipe Produced by the Coextrusion Process with
Concentric Inner and Outer Solid ABS Layers and the Core
Consisting of Closed-Cell Cellular ABS
Minimum Pipe Stiffness at 5 % Deflection
Nominal Pipe
Size, in.
psi (MPa)
1 ⁄4 600 (4.13)
1 ⁄2 535 (3.69)
2 300 (2.06)
3 280 (1.93)
4 175 (1.21)
6 75 (0.52)
mm/min). Three specimens shall be tested. If all three meet this requirement, the sample meets this requirement. If one or two fail,
additional testing shall be conducted in accordance with 6.3.1.1. If all three fail, the sample does not meet the requirement.
6.3.1.1 Pipe Stiffness and Lower Confidence Limit—In the event that one or two of the specimens tested in 6.3.1 fail to meet the
minimum requirement, the average pipe stiffness of eleven specimens shall meet or exceed the minimum requirement given in
Table 3. The 99 % lower confidence limit (LCL) shall be within 15 % of the average value. The LCL shall be calculated using the
Student’s “t” distribution, with N-1 degrees of freedom, where N is the number of specimens. The critical t value shall be used
to at least three significant digits. Alternatively, if the LCL exceeds the minimum pipe stiffness requirement in Table 3, but is not
within 15 % of the average, the sample meets the requirements of the Pipe Stiffness testing. The eleven specimens include the three
tested under 6.3.1, and an additional eight with rotation by 35°, as specified in Test Method D2412, continuing throughout the
remaining specimens.
6.3.1.2 The LCL based on testing eleven specimens is calculated as follows:
LCL 5 avg PS 2$2.76 std. dev. / = N %
~ ! ~ ! ~ !
where:
avg PS 5@ PS #/ 11 (1)
~ ! ~ ! ~ !
i
(

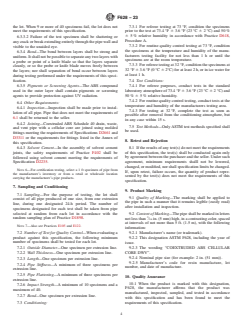

F628 − 23
2 1/2
PS 2~ PS! /N
( (
std. dev. 5
~ ! F G
N 2 1
N 5 11.
6.3.1.3 The 15 % requirement is calculated as follows:
avg 2 LCL / avg ×100 # 15 %
~ ! ~ !
NOTE 3—For quality control testing, a single specimen may be used with the thinnest wall at the top.
NOTE 4—The 5 % deflection criterion, which was arbitrarily selected for testing convenience, should not be considered as a limitation with respect to
in-use deflection. The engineer is responsible for establishing the acceptable deflection limit.
NOTE 5—The strength and load-carrying capabilities of plastic pipe are measured and reported as pipe stiffness, which is determined in accordance with
Test Method D2412. The term “crush strength” is not applicable to plastic piping because the values obtained can be significantly different, depending
on the bedding, loading, or testing technique used, and the term derives from rigid pipe and refers to its ultimate strength at rupture.
6.3.2 Pipe Flattening—There shall be no evidence of rupture when pipe is deflected 25 % of the initial inside diameter when tested
in accordance with Test Method D2412. Three specimens shall be tested; all shall meet the requirements. Failure shall be a crack
or break extending entirely through the pipe wall visible to the unaided eye.
6.3.3 Impact Strength—The minimum impact resistance, when tested at the time of manufacture, shall comply with Table 4. Test
in accordance with Test Method D2444 using Tup A and Holder B. Use 12–lb (5 kg) tup for testing pipe sizes 4 in. and smaller
and a 20–lb (10–kg) tup for sizes larger than 4 in.
6.3.3.1 Test 10 specimens. When 9 or 10 specimens pass, accept the lot. When 2 or more specimens fail, test 10 additional
specimens. When 17 of 20 specimens tested pass, accept the lot. When 4 or more of 20 specimens fail, test 20 additional specimens.
When 32 of 40 specimens pass, accept the lot. When 9 or more of 40 specimens fail, the lot does not meet the requirements of
this specification.
6.3.3.2 Failure of the test specimen shall be shattering or any crack or break extending entirely through the pipe wall and visible
to the unaided eye.
6.3.4 Bond—The bond between layers shall be strong and uniform. It shall not be possible to separate any two layers with a probe
or point of a knife blade so that the layers separate cleanly, or so the probe or knife blade moves freely between the layers; nor
shall separation of bond occur between layers during testing performed under the requirements of this specification.
6.3.5 Pigments or Screening Agents—The ABS compound used in the outer layer shall contain pigments or screening agents to
provide protection against UV radiation.
6.4 Other Requirements:
6.4.1 Inspection—Inspection shall be made prior to installation of all pipe. Pipe that does not meet the requirements of 6.1 shall
be returned to the seller.
TABLE 4 Impact Resistance of ABS Schedule 40 Plastic Drain,
Waste, and Vent Pipe Produced by the Coextrusion Process and
Concentric Inner and Outer Solid ABS Layers and the Core
Consisting of Closed-Cell Cellular ABS
Minimum Impact Resistance,
Nominal Pipe
ft·lbf (J)
Size, in.
At 32°F (0°C)32 °F (0 °C)
1 ⁄4 15 (20)
1 ⁄2 20 (27)
2 30 (41)
3 40 (54)
4 40 (54)
6 40 (54)
F628 − 23
6.4.2 Joining—Coextruded ABS Schedule 40 drain, waste, and vent pipe with a cellular core are joined using molded fittings
meeting the requirements of Specifications D2661 and D3311 or the requirements for fittings listed in the Annex of this
specification.
6.4.3 Solvent Cement—In the assembly of solvent cement joints, the safety requirements of Practice F402 shall be followed using
solvent cement meeting the requirements of Specification D2235.
NOTE 6—For certification testing, select a 1 ft specimen of pipe from the manufacturer’s inventory or from a retail or wholesale location carrying the
manufacturer’s pipe products.
6.4.4 Ash Content—Test in accordance with Test Method D5630. Maximum allowable ash content shall be 0.50 wt%. Retain the
ash obtained in this test for further testing described in 6.4.5.
6.4.5 Ash Composition—Test ash obtained in 6.4.4 for Bromine content in accordance with Guide E1508 or other suitable
analytical technique as agreed upon by the purchaser and seller. Measurement of Bromine content above detection limit shall
constitute failure to meet the requirements of Specification F628.
NOTE 6—For certification testing, select a 1 ft specimen of pipe from the manufacturer’s inventory or from a retail or wholesale location carrying the
manufacturer’s pipe products.
NOTE 7—Manufacturing of ABS cellular core pipe in Specification F628 is predicated on the use of virgin ABS materials. One potential source of
non-virgin, that is, recycled materials, is the cases of electronic components such as phones and personal computers. These products typically have flame
retardants within their polymer compounds, and one prolific flame retardant family consists of PBDE’s, or polybrominated diphenyl ethers. The intent
of 6.4.4 is to provide some demonstration that recycled materials are not used.
7. Sampling and Conditioning
7.1 Sampling—For the purpose of testing, the lot shall consist of all pipe produced of one size, from one extrusion line, during
one designated 24-h period. The number of specimens designated for each test shall be taken from pipe selected at random from
each lot in accordance with the random sampling plan of Practice D1898.
NOTE 7—Also see Practices E105 and E122.
7.2 Number of Test for Quality Control—When evaluating a product against this specification, the following minimum number of
specimens shall be tested for each lot.
7.2.1 Outside Diameter—One specimen per extrusion line.
7.2.2 Wall Thickness—One specimen per extrusion line.
7.2.3 Length—One specimen per extrusion line.
7.2.4 Pipe Stiffness—A minimum of three specimens per extrusion line.
7.2.5 Pipe Flattening—A minimum of three specimens per extrusion line.
7.2.6 Impact Strength—A minimum of 10 specimens and a maximum of 40.
7.2.7 Bond—One specimen per extrusion line.
7.3 Conditioning:
7.3.1 For referee testing at 73°F,73 °F, condition the specimens prior to the test at 73.4 6 3.6° (23 6 2°C) and 5073.4 °F 6 3.6 °F
(23 °C 6 2 °C) and 50 % 6 5 % relative humditityhumidity in accordance with Practice D618, Procedure A.
7.3.2 For routine quality control testing at 73°F,73 °F, condition the specimens at the tempertauretemperature and humidity of the
manufacturers testing facility for not less than 1 h or until the specimens are at the room temperature.
F628 − 23
7.3.3 For referee testing at 32°F,32 °F, condition the specimens at 32 6 3.6°F (032 °F 6 3.6 °F (0 °C 6 2°C) for at least 2 h, or
in ice water for at least 1 h.
7.4 Test Conditions:
7.4.1 For referee purposes, conduct tests in the standard laboratory atmosphere of 73.473.4 °F 6 3.6 F° (23 6 2°C) and 50°F
(23 °C 6 2 °C) and 50 % 6 5 % relative humidity.
7.4.2 For routine quality control testing, conduct tests at the temperature and humditiy of the manufacturers testing area.
7.4.3 For testing at 32°F,32 °F, complete the test as soon as possible after removal from the conditioning atmosphere, but in any
case within 15 s.
7.5 Test Methods—Only ASTM test methods specified shall be used.
8. Retest and Rejection
8.1 If the results of any test(s) do not meet the requirements of this specification,
...
