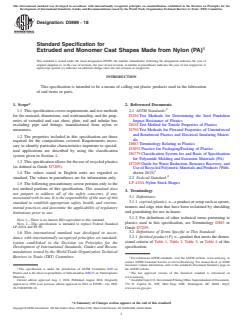

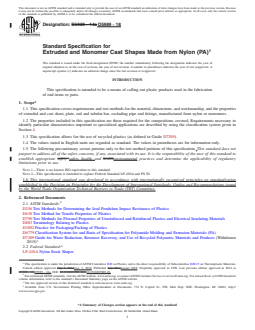

ASTM D5989-18

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.
Designation: D5989 − 14a D5989 − 18
Standard Specification for
Extruded and Monomer Cast Shapes Made from Nylon (PA)
This standard is issued under the fixed designation D5989; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
INTRODUCTION
This specification is intended to be a means of calling out plastic products used in the fabrication
of end items or parts.
1. Scope*
1.1 This specification covers requirements and test methods for the material, dimensions, and workmanship, and the properties
of extruded and cast sheet, plate, rod and tubular bar, excluding pipe and fittings, manufactured from nylon or monomers.
1.2 The properties included in this specification are those required for the compositions covered. Requirements necessary to
identify particular characteristics important to specialized applications are described by using the classification system given in
Section 4.
1.3 This specification allows for the use of recycled plastics (as defined in Guide D7209).
1.4 The values stated in English units are regarded as standard. The values in parentheses are for information only.
1.5 The following precautionary caveat pertains only to the test method portions of this specification. This standard does not
purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to
establish appropriate safety safety, health, and healthenvironmental practices and determine the applicability of regulatory
limitations prior to use.
NOTE 1—There is no known ISO equivalent to this standard.
NOTE 2—This specification is intended to replace Federal Standard LP-410A and PS 50.
1.6 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2.1 ASTM Standards:
D256 Test Methods for Determining the Izod Pendulum Impact Resistance of Plastics
D638 Test Method for Tensile Properties of Plastics
D790 Test Methods for Flexural Properties of Unreinforced and Reinforced Plastics and Electrical Insulating Materials
D883 Terminology Relating to Plastics
D3892 Practice for Packaging/Packing of Plastics
D6779 Classification System for and Basis of Specification for Polyamide Molding and Extrusion Materials (PA)
D7209 Guide for Waste Reduction, Resource Recovery, and Use of Recycled Polymeric Materials and Products (Withdrawn
2015)
2.2 Federal Standard:
LP-410A Nylon Stock Shapes
This specification is under the jurisdiction of ASTM Committee D20 on Plastics and is the direct responsibility of Subcommittee D20.15 on Thermoplastic Materials.
Current edition approved July 1, 2014Aug. 1, 2018. Published July 2014August 2018. Originally approved in 1998. Last previous edition approved in 2014 as
D5989 – 14.D5989 – 14a. DOI: 10.1520/D5989-14A.10.1520/D5989-18.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
The last approved version of this historical standard is referenced on www.astm.org.
Available from U.S. Government Printing Office Superintendent of Documents, 732 N. Capitol St., NW, Mail Stop: SDE, Washington, DC 20401, http://
www.access.gpo.gov.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
D5989 − 18

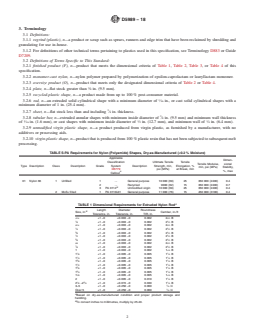

3. Terminology
3.1 Definitions:
3.1.1 regrind (plastic), n—a product or scrap such as sprues, runners and edge trim that have been reclaimed by shredding and
granulating for use in-house.
3.1.2 For definitions of other technical terms pertaining to plastics used in this specification, see Terminology D883 or Guide
D7209.
3.2 Definitions of Terms Specific to This Standard:
3.2.1 finished product (F), n—product that meets the dimensional criteria of Table 1, Table 2, Table 3, or Table 4 of this
specification.
3.2.2 monomer-cast nylon, n—nylon polymer prepared by polymerization of epsilon-caprolactam or lauryllactam monomer.
3.2.3 oversize product (O), n—product that meets only the designated dimensional criteria of Table 2 or Table 4.
3.2.4 plate, n—flat stock greater than ⁄8 in. (9.5 mm).
3.2.5 recycled-plastic shape, n—a product made from up to 100 % post-consumer material.
3.2.6 rod, n—an extruded solid cylindrical shape with a minimum diameter of ⁄16 in., or cast solid cylindrical shapes with a
minimum diameter of 1 in. (25.4 mm).
3.2.7 sheet, n—flat stock less than and including ⁄8 in. thickness.
3.2.8 tubular bar, n—extruded annular shapes with minimum inside diameter of ⁄8 in. (9.5 mm) and minimum wall thickness
1 1 1
of ⁄16 in. (1.6 mm), or cast shapes with minimum inside diameter of ⁄2 in. (12.7 mm), and minimum wall of ⁄4 in. (6.4 mm).
3.2.9 unmodified virgin plastic shape, n—a product produced from virgin plastic, as furnished by a manufacturer, with no
additives or processing aids.
3.2.10 virgin-plastic shape, n—product that is produced from 100 % plastic resin that has not been subjected to subsequent melt
processing.
TABLE S-PA Requirements for Nylon (Polyamide) Shapes, Dry-as-Manufactured (<0.2 % Moisture)
Applicable
Dimen-
Classification Ultimate Tensile Tensile
Tensile Modulus, sional
Type Description Class Description Grade System Description Strength, min, Elongation, %
min, psi (MPa) Stability,
D6779 psi (MPa) at Break, min
%, max
A
Callout
01 Nylon 66 1 Unfilled 1 . General purpose 10 000 (69) 25 350 000 (2400) 0.4
2 . Recycled 9000 (62) 15 350 000 (2400) 0.7
B
3 PA 0114 Unmodified virgin 10 000 (69) 25 350 000 (2400) 0.4
2 MoS filled 1 PA 0110L01 General purpose 11 000 (76) 15 450 000 (3100) 0.4
A

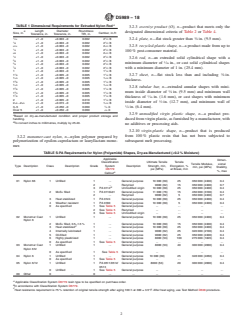

TABLE 1 Dimensional Requirements for Extruded Nylon Rod
Length Diameter Roundness
B
Size, in. Camber, in./ft
Tolerance, in. Tolerance, in. TIR, in.
1 1
⁄16 +1 −0 +0.003 −0 0.002 2 ⁄2 /8
1 1
⁄8 +1 −0 +0.003 −0 0.002 2 ⁄2 /8
3 1
⁄16 +1 −0 +0.003 −0 0.002 2 ⁄2 /8
1 1
⁄4 +1 −0 +0.003 −0 0.002 2 ⁄2 /8
3 1
⁄8 +1 −0 +0.003 −0 0.002 2 ⁄2 /8
1 1
⁄2 +1 −0 +0.003 −0 0.002 2 ⁄2 /8
5 1
⁄8 +1 −0 +0.003 −0 0.002 2 ⁄2 /8
3 1
⁄4 +1 −0 +0.003 −0 0.002 2 ⁄2 /8
7 1
⁄8 +1 −0 +0.003 −0 0.002 2 ⁄2 /8
1 +1 −0 +0.003 −0 0.002 1 ⁄4 /8
1 1
1 ⁄8 +1 −0 +0.005 −0 0.005 1 ⁄4 /8
1 1
1 ⁄4 +1 −0 +0.005 −0 0.005 1 ⁄4 /8
3 1
1 ⁄8 +1 −0 +0.005 −0 0.005 1 ⁄4 /8
1 1
1 ⁄2 +1 −0 +0.005 −0 0.005 1 ⁄4 /8
5 1
1 ⁄8 +1 −0 +0.005 −0 0.005 1 ⁄4 /8
3 1
1 ⁄4 +1 −0 +0.005 −0 0.005 1 ⁄4 /8
7 1
1 ⁄8 +1 −0 +0.005 −0 0.005 1 ⁄4 /8
2 +1 −0 +0.005 −0 0.010 1 ⁄4 /8
1 3 1
2 ⁄8 –2 ⁄4 +1 −0 +0.015 −0 0.030 1 ⁄4 /8
3–5 +1 −0 +0.250 −0 0.060 ⁄4 /4
Over 5 +1 −0 +0.250 −0 0.060 ⁄4 /4
A
Based on dry-as-manufactured condition and proper product storage and
handling.
B
To convert inches to millimetres, multiply by 25.40.
D5989 − 18
A

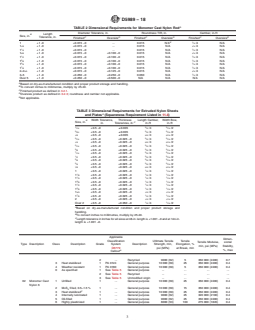

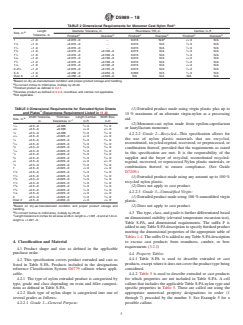

TABLE 2 Dimensional Requirements for Monomer Cast Nylon Rod
Diameter Tolerance, in. Roundness TIR, in. Camber, in./ft
Length
B
Size, in.
C D C D C D
Tolerance, in.
Finished Oversize Finished Oversize Finished Oversize
E
1 +1 -0 +0.015 −0 . 0.015 N/A ⁄4 /4 N/A
1 1
1 ⁄8 +1 -0 +0.015 −0 . 0.015 N/A ⁄4 /4 N/A
1 1
1 ⁄4 +1 -0 +0.015 −0 . 0.015 N/A ⁄4 /4 N/A
3 1
1 ⁄8 +1 -0 +0.015 −0 +0.100 −0 0.015 N/A ⁄4 /4 N/A
1 1
1 ⁄2 +1 -0 +0.015 −0 +0.100 −0 0.015 N/A ⁄4 /4 N/A
5 1
1 ⁄8 +1 -0 +0.015 −0 +0.100 −0 0.015 N/A ⁄4 /4 N/A
3 1
1 ⁄4 +1 -0 +0.015 −0 +0.100 −0 0.015 N/A ⁄4 /4 N/A
7 1
1 ⁄8 +1 -0 +0.015 −0 +0.100 −0 0.015 N/A ⁄4 /4 N/A
3 1
2–2 ⁄4 +1 -0 +0.015 −0 +0.125 −0 0.015 N/A ⁄4 /4 N/A
3–5 +1 -0 +0.250 −0 +0.250 −0 0.060 N/A ⁄4 /4 N/A
Over 5 +1 -0 +0.250 −0 +0.500 −0 N/A N/A N/A N/A
A
Based on dry-as-manufactured condition and proper product storage and handling.
B
To convert inches to millimetres, multiply by 25.40.
C
Finished product as defined in 3.2.1.
D
Oversize product as defined in 3.2.3; roundness and camber not applicable.
E
Not applicable.
TABLE 3 Dimensional Requirements for Extruded Nylon Sheets
A
and Plates (Squareness Requirement Listed in 11.4)
Width Tolerance, Thickness Length Camber, Width Bow,
B
Size, in.
C
in. Tolerances, in. in./ft in./ft
1 3 3
⁄16 +0.5 –0 ±0.005 ⁄4 /4 ⁄16 /2
3 3 3
⁄32 +0.5 –0 ±0.005 ⁄4 /4 ⁄16 /2
1 3 3
⁄8 +0.5 –0 ±0.005 ⁄4 /4 ⁄16 /2
3 3 3
⁄16 +0.5 –0 +0.025 −0 ⁄4 /4 ⁄16 /2
1 3 3
⁄4 +0.5 –0 +0.025 −0 ⁄4 /4 ⁄16 /2
5 3 3
⁄16 +0.5 –0 +0.025 −0 ⁄4 /4 ⁄16 /2
3 3 3
⁄8 +0.5 –0 +0.025 −0 ⁄4 /4 ⁄16 /2
7 3 3
⁄16 +0.5 –0 +0.025 −0 ⁄4 /4 ⁄16 /2
1 3 3
⁄2 +0.5 –0 +0.025 −0 ⁄4 /4 ⁄16 /2
5 3 3
⁄8 +0.5 –0 +0.025 −0 ⁄4 /4 ⁄16 /2
3 3 3
⁄4 +0.5 –0 +0.025 −0 ⁄4 /4 ⁄16 /2
7 3 3
⁄8 +0.5 –0 +0.025 −0 ⁄4 /4 ⁄16 /2
1 1
1 +0.5 –0 +0.025 −0 ⁄4 /4 ⁄16 /2
1 1 1
1 ⁄8 +0.5 –0 +0.025 −0 ⁄4 /4 ⁄16 /2
1 1 1
1 ⁄4 +0.5 –0 +0.025 −0 ⁄4 /4 ⁄16 /2
3 1 1
1 ⁄8 +0.5 –0 +0.025 −0 ⁄4 /4 ⁄16 /2
1 1 1
1 ⁄2 +0.5 –0 +0.025 −0 ⁄4 /4 ⁄16 /2
5 1 1
1 ⁄8 +0.5 –0 +0.025 −0 ⁄4 /4 ⁄16 /2
3 1 1
1 ⁄4 +0.5 –0 +0.025 −0 ⁄4 /4 ⁄16 /2
7 1 1
1 ⁄8 +0.5 –0 +0.025 −0 ⁄4 /4 ⁄16 /2
1 1
2 +0.5 –0 +0.025 −0 ⁄4 /4 ⁄16 /2
1 1
Over 2 +0.5 –0 +0.050 −0 ⁄4 /4 ⁄16 /2
A
Based on dry-as-manufactured condition and proper product storage and
handling.
B
To convert inches to millimetres, multiply by 25.40.
C
Length tolerance in inches for all sizes at 48-in. length is +1.001 –0 and at 144-in.
length is +1.001 –0.
Applicable
Dimen-
Classification Ultimate Tensile Tensile
Tensile Modulus, sional
Type Description Class Description Grade System Description Strength, min, Elongation, %
min, psi (MPa) Stability,
D6779 psi (MPa) at Break, min
%, max
A
Callout
2 . Recycled 9000 (62) 5 350 000 (2400) 0.7
3 Heat stabilized 1 PA 0124 General purpose 10 000 (69) 25 350 000 (2400) 0.4
4 Weather resistant 1 PA 0180 General purpose 10 000 (69) 5 350 000 (2400) 0.4
0 As specified 1 See Table 5 General purpose . . . .
2 See Table 5 Recycled . . . .
3 See Table 5 Unmodified virgin . . . .
02 Monomer Cast 1 Unfilled 1 . General purpose 10 000 (69) 25 350 000 (2400) 0.4
Nylon 6
2 MoS filled, 0.5–1.5 % 1 . General purpose 10 000 (69) 15 350 000 (2400) 0.4
C
3 Heat stabilized 1 . General purpose 10 000 (69) 25 350 000 (2400) 0.4
4 Internally lubricated 1 . General purpose 9000 (62) 25 320 000 (2100) 0.4
5 Oil-filled 1 . General purpose 9000 (62) 25 350 000 (2400) 0.4
6 Highly plasticized 1 . General purpose 8000 (53) 100 275 000 (1845) 0.4
D5989 − 18
A

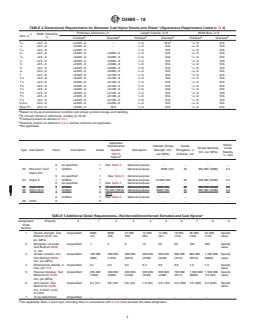

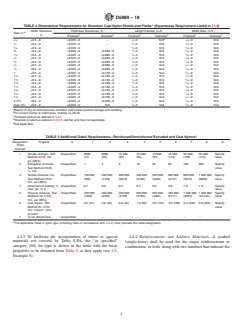

TABLE 4 Dimensional Requirements for Monomer Cast Nylon Sheets and Plates (Squareness Requirement Listed in 11.4)
Thickness Tolerances, in. Length Camber, in./ft Width Bow, in./ft
Width Tolerance,
B
Size, in.
C D C D C D
in.
Finished Oversize Finished Oversize Finished Oversize
E
3 1 1
⁄16 +0.5 –0 +0.025 −0 . ⁄4 /4 N/A ⁄16 /2 N/A
1 1 1
⁄4 +0.5 –0 +0.025 −0 . ⁄4 /4 N/A ⁄16 /2 N/A
5 1 1
⁄16 +0.5 –0 +0.025 −0 . ⁄4 /4 N/A ⁄16 /2 N/A
3 1 1
⁄8 +0.5 –0 +0.025 −0 +0.080 −0 ⁄4 /4 N/A ⁄16 /2 N/A
7 1 1
⁄16 +0.5 –0 +0.025 −0 +0.080 −0 ⁄4 /4 N/A ⁄16 /2 N/A
1 1 1
⁄2 +0.5 –0 +0.025 −0 +0.080 −0 ⁄4 /4 N/A ⁄16 /2 N/A
5 1 1
⁄8 +0.5 –0 +0.025 −0 +0.080 −0 ⁄4 /4 N/A ⁄16 /2 N/A
3 1 1
⁄4 +0.5 –0 +0.025 −0 +0.080 −0 ⁄4 /4 N/A ⁄16 /2 N/A
7 1 1
⁄8 +0.5 –0 +0.025 −0 +0.080 −0 ⁄4 /4 N/A ⁄16 /2 N/A
1 1
1 +0.5 –0 +0.025 −0 +0.100 −0 ⁄4 /4 N/A ⁄16 /2 N/A
1 1 1
1 ⁄8 +0.5 –0 +0.025 −0 +0.100 −0 ⁄4 /4 N/A ⁄16 /2 N/A
1 1 1
1 ⁄4 +0.5 –0 +0.025 −0 +0.100 −0 ⁄4 /4 N/A ⁄16 /2 N/A
3 1 1
1 ⁄8 +0.5 –0 +0.025 −0 +0.100 −0 ⁄4 /4 N/A ⁄16 /2 N/A
1 1 1
1 ⁄2 +0.5 –0 +0.025 −0 +0.100 −0 ⁄4 /4 N/A ⁄16 /2 N/A
5 1 1
1 ⁄8 +0.5 –0 +0.025 −0 +0.100 −0 ⁄4 /4 N/A ⁄16 /2 N/A
3 1 1
1 ⁄4 +0.5 –0 +0.025 −0 +0.100 −0 ⁄4 /4 N/A ⁄16 /2 N/A
7 1 1
1 ⁄8 +0.5 –0 +0.025 −0 +0.100 −0 ⁄4 /4 N/A ⁄16 /2 N/A
3 1 1
2–3 ⁄4 +0.5 –0 +0.025 −0 +0.200 −0 ⁄4 /4 N/A ⁄16 /2 N/A
3 1 1
Over 3 ⁄4 +0.5 –0 +0.025 −0 N/A ⁄4 /4 N/A ⁄16 /2 N/A
A
Based on dry-as-manufactured condition and proper product storage and handling.
B
To convert inches to millimetres, multiply by 25.40.
C
Finished product as defined in 3.2.1.
D
Oversize product as defined in 3.2.3; camber and bow not applicable.
E
Not applicable.
Applicable
Dimen-
Classification Ultimate Tensile Tensile
Tensile Modulus, sional
Type Description Class Description Grade System Description Strength, min, Elongation, %
min, psi (MPa) Stability,
D6779 psi (MPa) at Break, min
%, max
A
Callout
0 As specified 1 See Table 5 General purpose . . . .
03 Monomer Cast 1 Unfilled 1 . General purpose 8000 (53) 40 300 000 (2000) 0.4
Nylon 612
0 As specified 1 See Table 5 General purpose . . .
04 Nylon 6 1 Unfilled 1 . General purpose 10 000 (69) 25 328 000 (2260) 0.4
0 As specified 1 See Table 5 General purpose . . . .
05 Nylon 6/12 1 Unfilled 1 PA 0612/0613 General purpose 8000 (53) 20 300 000 (2000) 0.4
05 Nylon 6/12 1 Unfilled 1 PA 0511/0512/ General purpose 8000 (53) 20 300 000 (2000) 0.4
0 Unfilled 1 See Table 5 General purpose . . . .
00 Other 0 . 0 . . . . . .
A
TABLE 5 Additional Detail Requirements—Reinforced/Unreinforced Extruded and Cast Nylons
Designation Property 0 1 2 3 4 5 6 7 8 9
Order
Number
1 Tensile strength, Test Unspecified 6000 8000 10 000 12 000 14 000 16 000 20 000 25 000 Specify
Method D638, min, (41) (55) (69) (83) (97) (110) (138) (172) value
psi (MPa)
2 Elongation at break, Unspecified 1 3 5 10 20 50 100 200 Specify
Test Method D638, value
%, min
3 Tensile modulus min, Unspecified 100 000 200 000 300 000 400 000 500 000 600 000 800 000 1 000 000 Specify
Test Method D638, (690) (1379) (2073) (2760) (3448) (4137) (5516) (6895) value
min, psi (MPa)
4 Dimensional stability, % Unspecified 0.1 0.2 0.3 0.4 0.6 0.8 1.0 1.5 Specify
max, per 11.2 value
5 Flexural modulus, Test Unspecified 250 000 350 000 450 000 550 000 650 000 750 000 1 000 000 1 500 000 Specify
Methods for D790, (1649) (2400) (3100) (3792) (4482) (5171) (6895) (10 343) value
min, psi (MPa)
6 Izod impact, Test Unspecified 0.4 (21) 0.6 (32) 0.8 (43) 1.0 (53) 2.0 (107) 3.0 (160) 4.5 (240) 6.0 (320) Specify
Method for D256, value
min, ft lbs/in. (J/m)
of notch
7 To be determined Unspecified . . . . . . . .
A
The applicable Table 4 nylon type (including fillers in accordance with 4.4.4) must precede this table designation.
D5989 − 18
A
Applicable Classification System D6779 resin type to be specified on purchase order.
B
In accordance with Classification System D6779.
C
Heat resistance requirement is 75 % retention of original tensile strength after aging 100 h at 300 ± 3.5°F. After heat aging, use Test Method D638 procedure.
D5989 − 18
4. Classification and Material
4.1 Product shape and size as defined in the applicable purchase order.
4.2 This specification covers product extruded and cast as listed in Table S-PA. Products included in the designations reference
Classification System D6779 callouts where applicable.
4.2.1 The type of nylon extruded product is categorized by type, grade and class depending on resin and filler compositions as
defined in Table S-PA.
4.2.2 Each type of nylon shape is categorized into one of several grades as follows:
4.2.2.1 Grade 1—General Purpose:
(1) Extruded product made using virgin plastic plus up to 15 % maximum of an alternate virgin-nylon as a processing aid.
(2) Monomer-cast nylon made from epsilon-caprolactam or lauryllactam monomer.
4.2.2.2 Grade 2—Recycled—This specification allows for the use of nylon plastic materials that are recycled, reconstituted,
recycled-regrind, recovered, or preprocessed, or combination thereof,
...
