ASTM E1129/E1129M-19

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.
Designation: E1129/E1129M − 15 E1129/E1129M − 19
Standard Specification for
Thermocouple Connectors
This standard is issued under the fixed designation E1129/E1129M; the number immediately following the designation indicates the year
of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval.
A superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope
1.1 This specification covers separable single-circuit thermocouple connectors with two round pins. Connectors covered by this
specification must be rated for continuous use to at least 300°F (150°C),300 °F (150 °C), but they may optionally be rated to a
higher temperature.
1.2 This specification does not cover multiple-circuit connectors, multi-pin connectors, miniature connectors, or connectors
intended primarily for panel mounting. High temperature connectors (for example, those designed for continuous use at
temperatures above approximately 500°F (260°C))500 °F (260 °C)) are not intended to be covered by this specification.
1.3 The values stated in either inch-pound units or SI units are to be regarded separately as standard. The values stated in
brackets are not conversions to the values they succeed and therefore shall be used independently of the preceding values. The
values given in parentheses are conversions of the values they succeed. Combining values from the two systems may result in
non-conformance with the standard.
1.4 The following precautionary statement pertains only to the test methods portion, Section 9, of this specification. This
standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user
of this standard to establish appropriate safety safety, health, and healthenvironmental practices and determine the applicability
of regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2.1 The following documents of the latest issue form a part of this specification to the extent referenced herein. In case of
conflict between this specification and another referenced document, this specification shall take precedence.
2.2 ASTM Standards:
E220 Test Method for Calibration of Thermocouples By Comparison Techniques
E230/E230M Specification for Temperature-Electromotive Force (emf) Tables for Standardized Thermocouples
E344 Terminology Relating to Thermometry and Hydrometry
E608/E608M Specification for Mineral-Insulated, Metal-Sheathed Base Metal Thermocouples
E2820 Test Method for Evaluating Thermal EMF Properties of Base-Metal Thermocouple Connectors
3. Terminology
3.1 Definitions—The definitions given in Terminology E344 shall apply.
3.2 Definitions of Terms Specific to This Standard:
3.2.1 connector pair, n—an assembly consisting of a plug and a jack, each having both positive and negative contact inserts,
that will connect two parts of an electrical circuit and provide a means of physically disconnecting the two parts without the use
of a tool.
This specification is under the jurisdiction of ASTM Committee E20 on Temperature Measurement and is the direct responsibility of Subcommittee E20.13 on
Thermocouples - Materials and Accessories Specifications.
Current edition approved Dec. 1, 2015Nov. 1, 2019. Published January 2016November 2019. Originally approved in 1986. Last previous edition approved in 20142015
as E1129 – 14. – 15. DOI: 10.1520/E1129_E1129M-15.10.1520/E1129_E1129M-19.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
E1129/E1129M − 19
3.2.2 contact insert, n—metallic conductor assembly that, when installed in a connector body, provides a connection between
two parts of an electrical circuit. Plug connectors will contain projecting prong contacts, while jack connectors will contain
recessed sockets or receptacle contacts.
3.2.3 service life, n—period of time that a connector assembly can be put to use and retain all physical and thermoelectric
properties.
3.2.4 test difference, n—thermoelectric emf value attributable to mated connectors observed by the test procedure of this
specification.
4. Significance and Use
4.1 The widespread use of thermocouple connectors requires standardization of mating dimensions and performance
characteristics.
4.2 This specification describes standardized thermocouple connector dimensions and capabilities and includes test procedures
suitable for evaluating the performance of a particular specimen or design. The tests described are not intended for routine
inspection or rapid testing of large groups of connectors or for quality control purposes.
5. Classification
5.1 Plugs or Jacks:
5.1.1 Connectors shall be constructed as either plugs or jacks, and these two forms shall be designed to connect with each other.
5.1.2 Plug connectors shall have two external prong contacts of differing diameters to prevent improper mating. The negative
prong shall be the larger, as shown in Table 1 and Fig. 1.
5.1.3 Jack connectors shall have two internal socket contacts sized and spaced to receive and accommodate the prong contacts
of the mating plug. Jack connectors shall also include a means of producing and maintaining sufficient contact pressure to meet
all of the other requirements of this specification.
5.2 ANSI/ASTM Type:
5.2.1 Connectors shall be produced in versions to match each of the standardized ANSI/ASTM thermocouple types as given in
Table 2.
5.2.2 The insert materials of each plug and jack shall have thermoelectric properties conforming to the nominal characteristics
of the corresponding thermocouple type given in Specification E230/E230M over the operating temperature range specified in
Table 3.
5.2.3 Calibration conformance and gradient testing is not applicable to Type B thermoelectrically neutral (Cu/Cu) connectors.
6. Ordering Information
6.1 Orders for connectors under this specification shall include the following:
6.1.1 Quantity of plugs or jacks (specify which);
6.1.2 ANSI/ASTM thermocouple type (see Table 2);
TABLE 1 Dimensions
Minimum, Maximum,
A
Dimension Symbol
in. (mm) in. (mm)
Body length L . 1.505 (38.23)
Body width W . 1.088 (27.64)
Body thickness T . 0.515 (13.08)
Length of prong P 0.535 (13.59) 0.650 (16.51)
Depth of socket J 0.650 (16.51) .
Prong spacing X 0.432 (10.97) 0.442 (11.23)
Positive pin diameter D1 0.152 (3.86) 0.158 (4.02)
Negative pin diameter D2 0.182 (4.62) 0.190 (4.83)
Location of detent E 0.180 (4.57) 0.200 (5.08)
Depth of detent F 0.010 (0.25) 0.025 (0.64)
Width of detent G 0.040 (1.02) .
A
Symbols are according to Fig. 1.
E1129/E1129M − 19
NOTE 1—A solid prong is shown for clarity of design.

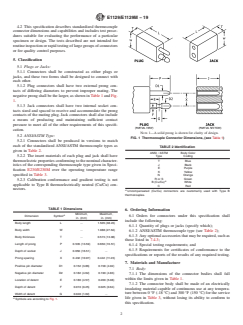

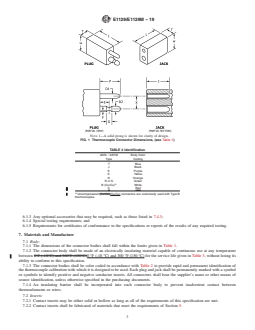

FIG. 1 Thermocouple Connector Dimensions, (see Table 1)
TABLE 2 Identification
ANSI ⁄ ASTM Body Color
Type Coding
T Blue
J Black
E Purple
K Yellow
N Orange
R or S Green
A
B (Cu/Cu) White
C Red
A
Uncompensated (Cu/CU)(Cu/Cu) connectors are customarily used with Type B
thermocouples.
6.1.3 Any optional accessories that may be required, such as those listed in 7.4.3;
6.1.4 Special testing requirements; and
6.1.5 Requirements for certificates of conformance to the specifications or reports of the results of any required testing.
7. Materials and Manufacture
7.1 Body:
7.1.1 The dimensions of the connector bodies shall fall within the limits given in Table 1.
7.1.2 The connector body shall be made of an electrically insulating material capable of continuous use at any temperature
between 0°F (-18°C) and 300°F (150°C)0 °F (-18 °C) and 300 °F (150 °C) for the service life given in Table 3, without losing its
ability to conform to this specification.
7.1.3 The connector bodies shall be color coded in accordance with Table 2 to provide rapid and permanent identification of
the thermocouple calibration with which it is designed to be used. Each plug and jack shall be permanently marked with a symbol
or symbols to identify positive and negative conductor inserts. All connectors shall bear the supplier’s name or other means of
source identification, unless otherwise specified in the purchasing documents.
7.1.4 An insulating barrier shall be incorporated into each connector body to prevent inadvertent contact between
thermoelements or wires.
7.2 Inserts:
7.2.1 Contact inserts may be either solid or hollow as long as all of the requirements of this specification are met.
7.2.2 Contact inserts shall be fabricated of materials that meet the requirements of Section 5.
