SIST EN 301 069-1 V1.2.2:2005

SLOVENSKI STANDARD
01-julij-2005
'LJLWDOQRRPUHåMH]LQWHJULUDQLPLVWRULWYDPL,6'16LJQDOL]DFLMDãW±,6'1
XSRUDEQLãNLGHO,683$SOLNDFLMVNLSUHQRVQLPHKDQL]HP$30GHO
6SHFLILNDFLMDSURWRNROD>SULSRURþLOR,7874VSUHPHQMHQR@
Integrated Services Digital Network (ISDN); Signalling System No.7; ISDN User Part
(ISUP); Application transport mechanism; Part 1: Protocol specification [ITU-T
Recommendation Q.765, modified]
Ta slovenski standard je istoveten z: EN 301 069-1 Version 1.2.2
ICS:
33.080 Digitalno omrežje z Integrated Services Digital
integriranimi storitvami Network (ISDN)
(ISDN)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN 301 069-1 V1.2.2 (1998-07)
European Standard (Telecommunications series)
Integrated Services Digital Network (ISDN);
Signalling System No.7;
ISDN User Part (ISUP);
Application transport mechanism;
Part 1: Protocol specification
[ITU-T Recommendation Q.765, modified]

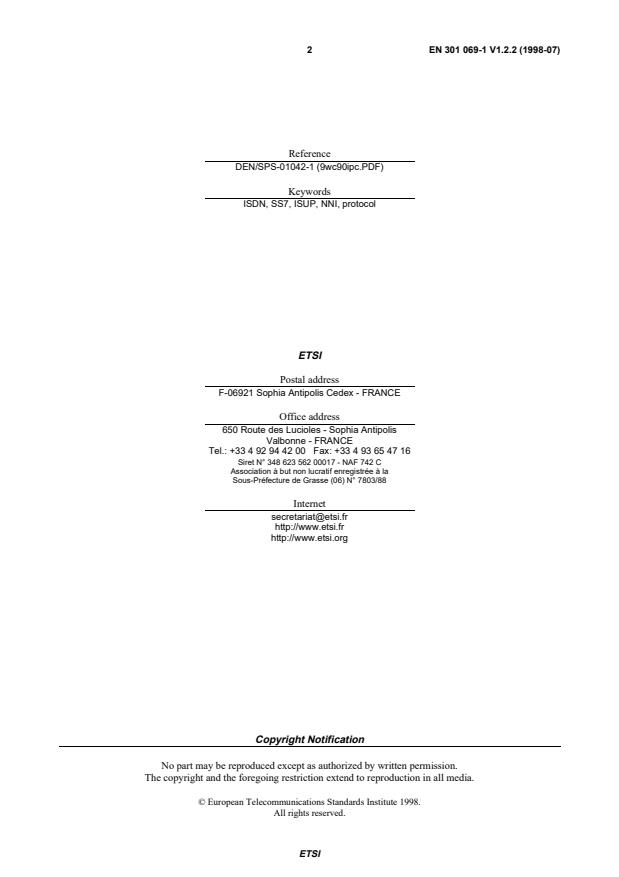

2 EN 301 069-1 V1.2.2 (1998-07)
Reference
DEN/SPS-01042-1 (9wc90ipc.PDF)
Keywords
ISDN, SS7, ISUP, NNI, protocol
ETSI
Postal address
F-06921 Sophia Antipolis Cedex - FRANCE
Office address
650 Route des Lucioles - Sophia Antipolis
Valbonne - FRANCE
Tel.: +33 4 92 94 42 00  Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Internet
secretariat@etsi.fr
http://www.etsi.fr
http://www.etsi.org
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 1998.
All rights reserved.
ETSI
3 EN 301 069-1 V1.2.2 (1998-07)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respect
of ETSI standards", which is available free of charge from the ETSI Secretariat. Latest updates are available on the
ETSI Web server (http://www.etsi.fr/ipr or http://www.etsi.org/ipr).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in SR 000 314 (or the updates on the ETSI Web server)
which are, or may be, or may become, essential to the present document.
Foreword
This European Standard (Telecommunications series) has been produced by ETSI Technical Committee Signalling
Protocols and Switching (SPS).
The present document is part 1 of a multi-part EN covering Integrated Services Digital Network (ISDN); Signalling
System No.7; ISDN User Part (ISUP); Application Transport Mechanism (APM), as identified below:
Part 1: "Protocol specification";
Part 2: "Protocol Implementation Conformance Statement (PICS) proforma specification";
Part 3: "Test Suite Structure and Test Purposes (TSS&TP)";
Part 4: "Abstract Test Suite (ATS)";
National transposition dates
Date of adoption of this EN: 17 April 1998
Date of latest announcement of this EN (doa): 31 July 1998
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 31 January 1999
Date of withdrawal of any conflicting National Standard (dow): 31 January 1999
Endorsement notice
The text of ITU-T Recommendation Q.765 was approved by ETSI as an EN with agreed modifications as given below.
NOTE 1: New or modified text is indicated using sidebars. In addition, underlining and/or strike-out are used to
highlight detailed modifications where necessary.
NOTE 2: ITU-T Recommendation Q.765 had not yet been adopted by ITU-T prior to the submission for Vote of
the present document. This endorsement is based upon the draft of that Recommendation which
accompanies the present document, located in an archive file named 9wc90ipc.lzh.
ETSI
4 EN 301 069-1 V1.2.2 (1998-07)
Clause 2, References
Replace this clause by:
Normative references
References may be made to:
a)  specific versions of publications (identified by date of publication, edition number, version number, etc.), in
which case, subsequent revisions to the referenced document do not apply; or
b)  all versions up to and including the identified version (identified by "up to and including" before the version
identity); or
c)  all versions subsequent to and including the identified version (identified by "onwards" following the version
identity); or
d)  publications without mention of a specific version, in which case the latest version applies.
A non-specific reference to an ETS shall also be taken to refer to later versions published as an EN with the same
number.
[1]            EN 300 356-1 (V3.1): "Integrated Services Digital Network (ISDN); Signalling System No. 7;
ISDN User Part (ISUP) version 3 for the international interface; Part 1: Basic services [ITU-T
Recommendations Q.761 to Q.764 (1997), modified]".
[2]            ITU-T Recommendation Q.1400 (1993): "Architecture framework for the development of
signalling and OA&M protocols using OSI concepts".
Throughout the text of ITU-T Recommendation Q.765
Replace references as shown below.
Reference in ITU-T Recommendation Q.765 Modified reference
ITU-T Recommendation Q.761 [1] EN 300 356-1 [1]
ITU-T Recommendation Q.762 [2] EN 300 356-1 [1]
ITU-T Recommendation Q.763 [3] EN 300 356-1 [1]
ITU-T Recommendation Q.764 [4] EN 300 356-1 [1]
Annex T EN 300 356-1 [1]
Annex T (temporary), Changes to ITU-T Recommendations Q.761,
Q.762, Q.763 and Q.764
Not supported, see EN 300 356-1 [1].
Appendix I, Example sequence diagrams of APM segmentation
Appendix I has the status of an informative annex.
ETSI
5 EN 301 069-1 V1.2.2 (1998-07)
Temporary Annex A (normative):
Modifications to ITU-T Recommendation Q.765
This annex contains the proposed changes to the text of the ITU-T Recommendation Q.765 as agreed by TC SPS in the
meeting which addressed the national comments received following PE9748. The complete text of this annex will be
contributed to the ITU-T resolution 1 procedure for approval of Q.765. Once this procedure is finished, it is intended
that the annex be removed from this EN.
Since it is possible that some of the modifications below will not be included in Q.765 those that will not create any
compatibility problems in the case of mismatch between Q.765 and the present docuement are to become a part of the
main body of this EN. The modifications that do not become part of Q.765 and may result in an incompatibility when a
Q.765 based service and an EN 301 069-1 based service interwork will be removed from this EN. Each of the proposals
below is, therefore, marked appropriately in one of the following two ways:
- if the item is to be removed from the EN "remove"
- if the item is to be included in the EN "keep"
Clause 4, Abbreviations keep
Modify in the following way:
ACM                Address Complete Message
APM-user Application Transport Mechanism User Application
CPG                 Call Progress Message
IAM                 Initial Address Message
PRI                 Pre-Release Information Message
Subclause 7.2.1, Introduction keep
Add the following note just before the third bullet point:
NOTE:   In the case that no such acknowledgement is received by the PIN before reception of either:
an ACM indicating "subscriber free", or
a CPG indicating "alerting", or
an ANM or CON
with no APP (for the appropriate context) then if the application association for the call was essential, the
call shall be release and the maintenance function shall be notified.
Subclause 8.3, Information flows related to messages received by
keep
the node
Modify the 2nd sentence of the 2nd paragraph as follows:
For received messages, the mapping of APM_U_Data, APM_Data and APM_Transfer (tables 4, 5 and 6) primitives is
the reverse to that described in the tables for outgoing messages sent by the node in subclause 6.28.2.
ETSI
6 EN 301 069-1 V1.2.2 (1998-07)
Subclause 9.1, Table 14/Q.765 - Primitives between ISUP ASE and
SACF keep
Replace note of table 14 by:
NOTE:   Primitive flow from SACF to ISUP ASE - ‹
Primitive flow from ISUP ASE to SACF - fi
Subclause 10.2.1, Normal Procedures - Sending keep
Replace the sentence "How this is determined is implementation specific" by:
APM segmentation procedures shall only apply if it is not possible to transfer all parameters in the IAM, ACM, CPG,
CON, ANM or PRI message and SGM, if simple segmentation procedures are used, because the 272 octet MTP limit
would be exceeded.
Subclause 10.2.4, Segmentation keep
Modify the 2nd paragraph as follows:
The initial segment for each context must be transported in the first message and this initial segment size may be of zero
lengt
...
