(Main)Integrated Services Digital Network (ISDN); Signalling System No.7 (SS7); Signalling Connection Control Part (SCCP) (connectionless and connection-oriented class 2) to support international interconnection; Part 2: Protocol Implementation Conformance Statement (PICS) proforma specification
General Information
- Abstract
PICS for REN/SPS-02041-1
- Status
- Published
- Publication Date
- 31-Mar-2003
- Technical Committee
- RES - Radio equipment and systems
- Current Stage
- 6060 - National Implementation/Publication (Adopted Project)
- Start Date
- 01-Apr-2003
- Due Date
- 01-Apr-2003
- Completion Date
- 01-Apr-2003
- Mandate
- BC-T-338
Overview
SIST EN 300 009-2 V1.4.1:2003 is a standardized specification within Europe for the Integrated Services Digital Network (ISDN) and its use of Signalling System No. 7 (SS7), focusing on the Signalling Connection Control Part (SCCP) in both connectionless and connection-oriented class 2 modes. This part of the standard provides the Protocol Implementation Conformance Statement (PICS) proforma-a comprehensive framework for evaluating protocol conformance, ensuring proper interconnection and interoperability in international telecommunications networks.
The standard, developed by SIST and harmonized with ETSI EN 300 009-2, aims to support service providers, manufacturers, and system integrators in verifying that their ISDN and SS7 SCCP protocol implementations meet rigorous requirements. The PICS proforma makes it straightforward to state which protocol features and options are implemented, supporting transparency and interoperability at a global scale.
Key Topics
Protocol Implementation Conformance Statement (PICS):
- Structured as a formal proforma (questionnaire) to document supported features
- Ensures traceable conformance to EN 300 009-1 specifications for protocol behavior
Scope of Coverage:
- Applies to SCCP (connectionless and connection-oriented class 2) in public and, optionally, private ISDN networks
- Focuses on supporting international interconnection scenarios where seamless communication between networks is critical
Conformance Requirements:
- Details specific mandatory, optional, and conditional protocol features that must be declared
- Requires clear identification of the implementation under test, system, and supplier details
Guidance and Structure:
- Provides instructions for completion and use of the PICS proforma
- Uses standardized terminology and referencing for clarity and consistency, referencing ITU-T Q.711-Q.716 and ISO/IEC guidelines
Applications
SIST EN 300 009-2 V1.4.1:2003 delivers critical value to organizations in the telecommunications sector:
Supplier Declaration of Conformance:
- Allows suppliers to provide verified, structured statements of protocol support for their ISDN/SS7/SCCP products
- Aids purchasers and network integrators in selecting compatible and interoperable equipment
Regulatory and Contractual Compliance:
- Supports compliance with national and international regulations for public network interconnection
- Facilitates contractual agreements by providing a transparent record of protocol implementation claims
Testing and Certification:
- Enables independent laboratories and certification bodies to assess implementations efficiently
- Forms the baseline for developing abstract test suites and extra information for interoperability testing
Network Planning and Integration:
- Assists network operators and planners in evaluating new network elements prior to deployment across ISDN and SS7 infrastructures
- Reduces risk by ensuring only conformant devices are deployed, supporting smooth international communication flows
Related Standards
For robust protocol implementation and conformance assessment, reference to the following related standards is recommended:
- EN 300 009-1: ISDN; SS7; SCCP; Protocol specification (reference specification for features)
- ISO/IEC 9646-1/7: Open Systems Interconnection; conformance testing methodology and framework
- ITU-T Q.711-Q.716: Detailed recommendations for SCCP functions, messages, formats, procedures, and performance
- EN 300 009-3: Abstract Test Suite and PIXIT proforma for further testing support
These associated standards ensure comprehensive coverage, supporting effective implementation, testing, and deployment of ISDN and SS7 SCCP protocols across global telecommunications networks.
Keywords: ISDN, SS7, SCCP, PICS proforma, protocol conformance, telecommunications interconnection, international standards, protocol testing
Get Certified
Connect with accredited certification bodies for this standard
ANCE
Mexican certification and testing association.
Intertek Slovenia
Intertek testing, inspection, and certification services in Slovenia.
LNE (Laboratoire National de Métrologie et d'Essais)
French national laboratory for metrology and testing.
Sponsored listings
Frequently Asked Questions
SIST EN 300 009-2 V1.4.1:2003 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Integrated Services Digital Network (ISDN); Signalling System No.7 (SS7); Signalling Connection Control Part (SCCP) (connectionless and connection-oriented class 2) to support international interconnection; Part 2: Protocol Implementation Conformance Statement (PICS) proforma specification". This standard covers: PICS for REN/SPS-02041-1
PICS for REN/SPS-02041-1
SIST EN 300 009-2 V1.4.1:2003 is classified under the following ICS (International Classification for Standards) categories: 33.080 - Integrated Services Digital Network (ISDN). The ICS classification helps identify the subject area and facilitates finding related standards.
SIST EN 300 009-2 V1.4.1:2003 is associated with the following European legislation: Standardization Mandates: BC-T-338. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
SIST EN 300 009-2 V1.4.1:2003 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Digitalno omrežje z integriranimi storitvami (ISDN) - Signalizacija št. 7 - Krmilni del signalizacijske zveze (SCCP) (nepovezavni in povezavni razred 2) za podporo mednarodnemu medsebojnemu povezovanju - 2. del: Izjava o skladnosti izvedbe protokola (PICS) - Proforma specifikacijeIntegrated Services Digital Network (ISDN); Signalling System No.7 (SS7); Signalling Connection Control Part (SCCP) (connectionless and connection-oriented class 2) to support international interconnection; Part 2: Protocol Implementation Conformance Statement (PICS) proforma specification33.080Digitalno omrežje z integriranimi storitvami (ISDN)Integrated Services Digital Network (ISDN)ICS:Ta slovenski standard je istoveten z:EN 300 009-2 Version 1.4.1SIST EN 300 009-2 V1.4.1:2003en01-april-2003SIST EN 300 009-2 V1.4.1:2003SLOVENSKI
STANDARD
ETSIEN300009-2V1.4.1(2002-04)EuropeanStandard(Telecommunicationsseries)IntegratedServicesDigitalNetwork(ISDN);SignallingSystemNo.7(SS7);SignallingConnectionControlPart(SCCP)(connectionlessandconnection-orientedclass2)tosupportinternationalinterconnection;Part2:ProtocolImplementationConformanceStatement(PICS)proformaspecificationSIST EN 300 009-2 V1.4.1:2003

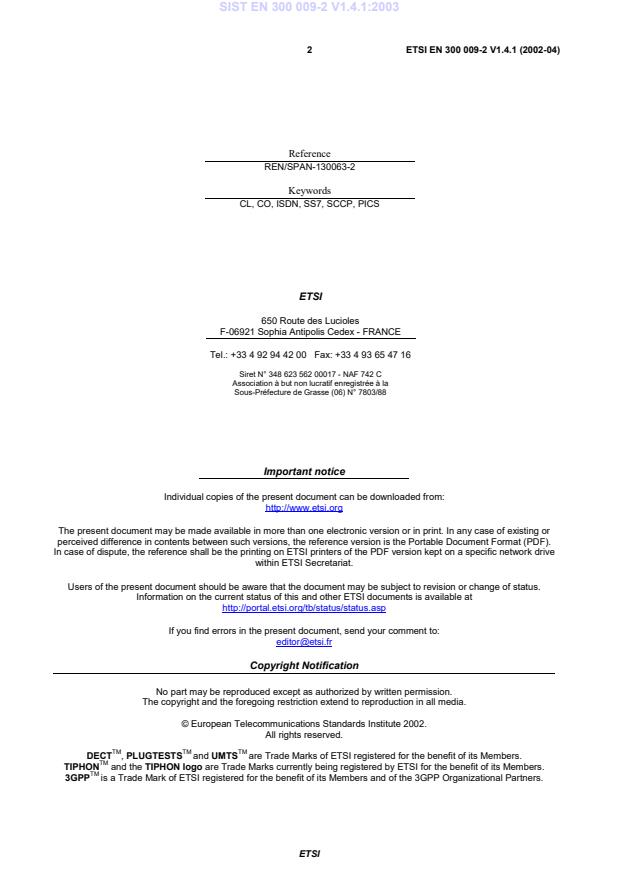

ETSIETSIEN300009-2V1.4.1(2002-04)2ReferenceREN/SPAN-130063-2KeywordsCL,CO,ISDN,SS7,SCCP,PICSETSI650RoutedesLuciolesF-06921SophiaAntipolisCedex-FRANCETel.:+33492944200Fax:+33493654716SiretN°34862356200017-NAF742CAssociationàbutnonlucratifenregistréeàlaSous-PréfecturedeGrasse(06)N°7803/88ImportantnoticeIndividualcopiesofthepresentdocumentcanbedownloadedfrom:http://www.etsi.orgThepresentdocumentmaybemadeavailableinmorethanoneelectronicversionorinprint.Inanycaseofexistingorperceiveddifferenceincontentsbetweensuchversions,thereferenceversionisthePortableDocumentFormat(PDF).Incaseofdispute,thereferenceshallbetheprintingonETSIprintersofthePDFversionkeptonaspecificnetworkdrivewithinETSISecretariat.Usersofthepresentdocumentshouldbeawarethatthedocumentmaybesubjecttorevisionorchangeofstatus.InformationonthecurrentstatusofthisandotherETSIdocumentsisavailableathttp://portal.etsi.org/tb/status/status.aspIfyoufinderrorsinthepresentdocument,sendyourcommentto:editor@etsi.frCopyrightNotificationNopartmaybereproducedexceptasauthorizedbywrittenpermission.Thecopyrightandtheforegoingrestrictionextendtoreproductioninallmedia.©EuropeanTelecommunicationsStandardsInstitute2002.Allrightsreserved.DECTTM,PLUGTESTSTMandUMTSTMareTradeMarksofETSIregisteredforthebenefitofitsMembers.TIPHONTMandtheTIPHONlogoareTradeMarkscurrentlybeingregisteredbyETSIforthebenefitofitsMembers.3GPPTMisaTradeMarkofETSIregisteredforthebenefitofitsMembersandofthe3GPPOrganizationalPartners.SIST EN 300 009-2 V1.4.1:2003
