2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.IMT cellular networks - Harmonised Standard covering the essential requirements of article 3.2 of Directive 2014/53/EU - Part 2: CDMA Direct Spread (UTRA FDD) User Equipment (UE)33.070.99Druge mobilne storitveOther mobile services33.060.99Druga oprema za radijske komunikacijeOther equipment for radiocommunicationsICS:Ta slovenski standard je istoveten z:ETSI EN 301 908-2 V11.1.2 (2017-08)SIST EN 301 908-2 V11.1.2:2017en01-oktober-2017SIST EN 301 908-2 V11.1.2:2017SLOVENSKI
STANDARD
HARMONISED EUROPEAN STANDARD SIST EN 301 908-2 V11.1.2:2017

ETSI ETSI EN 301 908-2 V11.1.2 (2017-08)2
Reference REN/MSG-TFES-11-02-RED-C1 Keywords 3G, 3GPP, cellular, digital, IMT, mobile, radio, regulation, UMTS, UTRA, WCDMA ETSI 650 Route des Lucioles F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00
Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C Association à but non lucratif enregistrée à la Sous-Préfecture de Grasse (06) N° 7803/88
Important notice The present document can be downloaded from: http://www.etsi.org/standards-search The present document may be made available in electronic versions and/or in print. The content of any electronic and/or print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any existing or perceived difference in contents between such versions and/or in print, the only prevailing document is the print of the Portable Document Format (PDF) version kept on a specific network drive within ETSI Secretariat. Users of the present document should be aware that the document may be subject to revision or change of status. Information on the current status of this and other ETSI documents is available at https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx If you find errors in the present document, please send your comment to one of the following services: https://portal.etsi.org/People/CommiteeSupportStaff.aspx Copyright Notification No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm except as authorized by written permission of ETSI. The content of the PDF version shall not be modified without the written authorization of ETSI. The copyright and the foregoing restriction extend to reproduction in all media.
© ETSI 2017. All rights reserved.
DECTTM, PLUGTESTSTM, UMTSTM and the ETSI logo are trademarks of ETSI registered for the benefit of its Members. 3GPPTM and LTE™ are trademarks of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners. oneM2M logo is protected for the benefit of its Members. GSM® and the GSM logo are trademarks registered and owned by the GSM Association. SIST EN 301 908-2 V11.1.2:2017

ETSI ETSI EN 301 908-2 V11.1.2 (2017-08)3 Contents Intellectual Property Rights . 7 Foreword . 7 Modal verbs terminology . 7 Introduction . 8 1 Scope . 9 2 References . 10 2.1 Normative references . 10 2.2 Informative references . 10 3 Definitions, symbols and abbreviations . 11 3.1 Definitions . 11 3.2 Symbols . 12 3.3 Abbreviations . 13 4 Technical requirements specifications . 14 4.1 Environmental profile . 14 4.2 Conformance requirements . 14 4.2.0 General . 14 4.2.1 Introduction. 14 4.2.2 Transmitter maximum output power. 15 4.2.2.1 Transmitter maximum output power . 15 4.2.2.1.1 Definition. 15 4.2.2.1.2 Limits . 15 4.2.2.1.3 Conformance . 16 4.2.2.2 Transmitter maximum output power for DC-HSUPA . 16 4.2.2.2.1 Definition for DC-HSUPA . 16 4.2.2.2.2 Limits for DC-HSUPA . 16 4.2.2.2.3 Conformance . 16 4.2.2.3 Transmitter maximum output power for UL OLTD . 16 4.2.2.3.1 Definition for UL OLTD . 16 4.2.2.3.2 Limits for UL OLTD . 16 4.2.2.3.3 Conformance . 17 4.2.3 Transmitter spectrum emission mask . 17 4.2.3.1 Transmitter spectrum emission mask . 17 4.2.3.1.1 Definition. 17 4.2.3.1.2 Limits . 17 4.2.3.1.3 Conformance . 18 4.2.3.2 Transmitter spectrum emission mask for DC-HSUPA . 18 4.2.3.2.1 Definition for DC-HSUPA . 18 4.2.3.2.2 Limits for DC-HSUPA . 18 4.2.3.2.3 Conformance . 18 4.2.3.3 Transmitter spectrum emission mask for UL OLTD . 19 4.2.3.3.1 Definition for UL OLTD . 19 4.2.3.3.2 Limits for UL OLTD . 19 4.2.3.3.3 Conformance . 19 4.2.3.4 Transmitter spectrum emission mask for UL CLTD Activation state 1 . 19 4.2.3.4.1 Definition for UL CLTD Activation state 1 . 19 4.2.3.4.2 Limits for UL CLTD Activation state 1 . 19 4.2.3.4.3 Conformance . 20 4.2.4 Transmitter spurious emissions . 20 4.2.4.1 Transmitter spurious emissions . 20 4.2.4.1.1 Definition. 20 4.2.4.1.2 Limits . 20 4.2.4.1.3 Conformance . 22 4.2.4.2 Transmitter spurious emissions for DC-HSUPA . 22 4.2.4.2.1 Definition for DC-HSUPA . 22 SIST EN 301 908-2 V11.1.2:2017

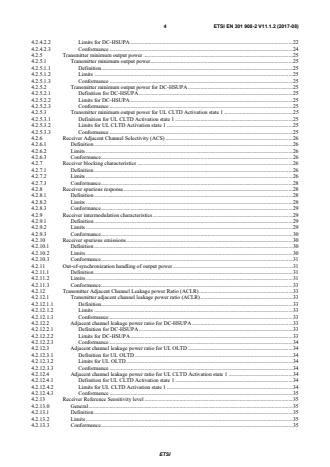

ETSI ETSI EN 301 908-2 V11.1.2 (2017-08)4 4.2.4.2.2 Limits for DC-HSUPA . 22 4.2.4.2.3 Conformance . 24 4.2.5 Transmitter minimum output power . 25 4.2.5.1 Transmitter minimum output power. 25 4.2.5.1.1 Definition. 25 4.2.5.1.2 Limits . 25 4.2.5.1.3 Conformance . 25 4.2.5.2 Transmitter minimum output power for DC-HSUPA . 25 4.2.5.2.1 Definition for DC-HSUPA . 25 4.2.5.2.2 Limits for DC-HSUPA . 25 4.2.5.2.3 Conformance . 25 4.2.5.3 Transmitter minimum output power for UL CLTD Activation state 1 . 25 4.2.5.3.1 Definition for UL CLTD Activation state 1 . 25 4.2.5.3.2 Limits for UL CLTD Activation state 1 . 25 4.2.5.3.3 Conformance . 25 4.2.6 Receiver Adjacent Channel Selectivity (ACS) . 26 4.2.6.1 Definition . 26 4.2.6.2 Limits . 26 4.2.6.3 Conformance . 26 4.2.7 Receiver blocking characteristics . 26 4.2.7.1 Definition . 26 4.2.7.2 Limits . 26 4.2.7.3 Conformance . 28 4.2.8 Receiver spurious response . 28 4.2.8.1 Definition . 28 4.2.8.2 Limits . 28 4.2.8.3 Conformance . 29 4.2.9 Receiver intermodulation characteristics . 29 4.2.9.1 Definition . 29 4.2.9.2 Limits . 29 4.2.9.3 Conformance . 30 4.2.10 Receiver spurious emissions . 30 4.2.10.1 Definition . 30 4.2.10.2 Limits . 30 4.2.10.3 Conformance . 31 4.2.11 Out-of-synchronization handling of output power . 31 4.2.11.1 Definition . 31 4.2.11.2 Limits . 31 4.2.11.3 Conformance . 33 4.2.12 Transmitter Adjacent Channel Leakage power Ratio (ACLR) . 33 4.2.12.1 Transmitter adjacent channel leakage power ratio (ACLR) . 33 4.2.12.1.1 Definition. 33 4.2.12.1.2 Limits . 33 4.2.12.1.3 Conformance . 33 4.2.12.2 Adjacent channel leakage power ratio for DC-HSUPA . 33 4.2.12.2.1 Definition for DC-HSUPA . 33 4.2.12.2.2 Limits for DC-HSUPA . 33 4.2.12.2.3 Conformance . 34 4.2.12.3 Adjacent channel leakage power ratio for UL OLTD . 34 4.2.12.3.1 Definition for UL OLTD . 34 4.2.12.3.2 Limits for UL OLTD . 34 4.2.12.3.3 Conformance . 34 4.2.12.4 Adjacent channel leakage power ratio for UL CLTD Activation state 1 . 34 4.2.12.4.1 Definition for UL CLTD Activation state 1 . 34 4.2.12.4.2 Limits for UL CLTD Activation state 1 . 34 4.2.12.4.3 Conformance . 35 4.2.13 Receiver Reference Sensitivity level . 35 4.2.13.0 General . 35 4.2.13.1 Definition . 35 4.2.13.2 Limits . 35 4.2.13.3 Conformance . 35 SIST EN 301 908-2 V11.1.2:2017

ETSI ETSI EN 301 908-2 V11.1.2 (2017-08)5 5 Testing for compliance with technical requirements . 35 5.1 Environmental conditions for testing . 35 5.2 Interpretation of the measurement results . 36 5.3 Essential radio test suites . 37 5.3.0 General . 37 5.3.1 Transmitter maximum output power. 37 5.3.1.1 Method of test . 37 5.3.1.1.1 UTRA . 37 5.3.1.1.1A DC-HSUPA . 38 5.3.1.1.1B UL OLTD . 38 5.3.1.2 Test requirements . 39 5.3.2 Transmitter spectrum emission mask . 39 5.3.2.1 Method of test . 39 5.3.2.1.1 UEs not supporting HSDPA and/or E-DCH . 39 5.3.2.1.1A UEs supporting HSDPA and/or E-DCH . 40 5.3.2.1.1B DC-HSUPA . 40 5.3.2.1.1C UL OLTD . 41 5.3.2.1.1D UL CLTD Activation state 1 . 42 5.3.2.2 Test requirements . 42 5.3.3 Transmitter spurious emissions . 42 5.3.3.1 Method of test . 42 5.3.3.1.1 UTRA . 42 5.3.3.1.1A DC-HSUPA . 43 5.3.3.2 Test requirements . 43 5.3.4 Transmitter minimum output power . 44 5.3.4.1 Method of test . 44 5.3.4.1.1 UTRA . 44 5.3.4.1.1A DC-HSUPA . 44 5.3.4.1.1B UL CLTD Activation state 1 . 45 5.3.4.2 Test requirements . 45 5.3.5 Receiver Adjacent Channel Selectivity (ACS) . 45 5.3.5.1 Method of test . 45 5.3.5.1.1 Initial conditions . 45 5.3.5.1.2 Procedure . 46 5.3.5.2 Test requirements . 46 5.3.6 Receiver blocking characteristics . 46 5.3.6.1 Method of test . 46 5.3.6.1.1 Initial requirements . 46 5.3.6.1.2 Procedure . 46 5.3.6.2 Test requirements . 46 5.3.7 Receiver spurious response . 47 5.3.7.1 Method of test . 47 5.3.7.1.1 Initial conditions . 47 5.3.7.1.2 Procedure . 47 5.3.7.2 Test requirements . 47 5.3.8 Receiver Intermodulation characteristics . 47 5.3.8.1 Method of test . 47 5.3.8.1.1 Initial conditions . 47 5.3.8.1.2 Procedure . 48 5.3.8.2 Test requirements . 48 5.3.9 Receiver spurious emissions . 48 5.3.9.1 Method of test . 48 5.3.9.1.1 Initial conditions . 48 5.3.9.1.2 Procedure . 48 5.3.9.2 Test requirements . 48 5.3.10 Out-of-synchronization handling of output power . 48 5.3.10.1 Method of test . 48 5.3.10.1.1 Initial conditions . 48 5.3.10.1.2 Procedure . 49 5.3.10.2 Test requirements . 49 5.3.11 Transmitter adjacent channel leakage power ratio . 49 5.3.11.1 Method of test . 49 SIST EN 301 908-2 V11.1.2:2017

ETSI ETSI EN 301 908-2 V11.1.2 (2017-08)6 5.3.11.1.1 UEs not supporting HSDPA and/or E-DCH . 49 5.3.11.1.1A UEs supporting HSDPA and/or E-DCH . 50 5.3.11.1.1B DC-HSUPA . 50 5.3.11.1.1C UL OLTD . 51 5.3.11.1.1D UL CLTD Activation state 1 . 51 5.3.11.2 Test requirements . 52 5.3.12 Receiver Reference Sensitivity level . 52 5.3.12.1 Method of test . 52 5.3.12.1.1 Initial conditions . 52 5.3.12.1.2 Procedure . 52 5.3.12.2 Test requirements . 52 Annex A (informative): Relationship between the present document and the essential requirements of Directive 2014/53/EU . 53 Annex B (normative): Environmental profile . 54 B.1 General . 54 B.1.1 Introduction . 54 B.1.2 Temperature . 54 B.1.3 Voltage . 54 B.1.4 Test environment . 54 Annex C (informative): Bibliography . 55 Annex D (informative): Change history . 56 History . 57
ETSI ETSI EN 301 908-2 V11.1.2 (2017-08)7 Intellectual Property Rights Essential patents IPRs essential or potentially essential to the present document may have been declared to ETSI. The information pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web server (https://ipr.etsi.org/). Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become, essential to the present document. Trademarks The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners. ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks. Foreword This Harmonised European Standard (EN) has been produced by ETSI Technical Committee Mobile Standards Group (MSG). The present document has been prepared under the Commission's standardisation request C(2015) 5376 final [i.9] to provide one voluntary means of conforming to the essential requirements of Directive 2014/53/EU on the harmonisation of the laws of the Member States relating to the making available on the market of radio equipment and repealing Directive 1999/5/EC [i.2]. Once the present document is cited in the Official Journal of the European Union under that Directive, compliance with the normative clauses of the present document given in table A-1 confers, within the limits of the scope of the present document, a presumption of conformity with the corresponding essential requirements of that Directive, and associated EFTA regulations. The present document is part 2 of a multi-part deliverable. Full details of the entire series can be found in part 1 [i.10].
National transposition dates Date of latest announcement of this EN (doa): 30 November 2017 Date of latest publication of new National Standard or endorsement of this EN (dop/e):
31 May 2018 Date of withdrawal of any conflicting National Standard (dow): 31 May 2019
Modal verbs terminology In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and "cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of provisions). "must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation. SIST EN 301 908-2 V11.1.2:2017

ETSI ETSI EN 301 908-2 V11.1.2 (2017-08)8 Introduction The present document is part of a set of standards developed by ETSI and is designed to fit in a modular structure to cover all radio and telecommunications terminal equipment within the scope of the Radio Equipment Directive [i.2]. The present document is produced following the guidance in ETSI EG 203 336 [i.3] as applicable.
ETSI ETSI EN 301 908-2 V11.1.2 (2017-08)9 1 Scope The present document applies to the following radio equipment type: • User Equipment for IMT-2000 CDMA Direct Spread (UTRA FDD). These radio equipment types are capable of operating in all or any part of the frequency bands given in table 1-1. Table 1-1: UTRA FDD operating bands UTRA FDD Band Direction of transmission UTRA FDD operating bands I Transmit 1 920 MHz to 1 980 MHz Receive 2 110 MHz to 2 170 MHz III Transmit 1 710 MHz to 1 785 MHz Receive 1 805 MHz to 1 880 MHz VII Transmit 2 500 MHz to 2 570 MHz Receive 2 620 MHz to 2 690 MHz VIII Transmit 880 MHz to 915 MHz Receive 925 MHz to 960 MHz XV Transmit 1 900 MHz to 1 920 MHz Receive 2 600 MHz to 2 620 MHz XVI Transmit 2 010 MHz to 2 025 MHz Receive 2 585 MHz to 2 600 MHz XX Transmit 832 MHz to 862 MHz Receive 791 MHz to 821 MHz XXII Transmit 3 410 MHz to 3 490 MHz Receive 3 510 MHz to 3 590 MHz
The present document covers requirements for UTRA FDD User Equipment from 3GPP™ Releases 99, 4, 5, 6, 7, 8, 9, 10 and 11 defined in ETSI TS 125 101 [4]. This include the requirements for UE operating bands from 3GPP™ Release 12 defined in ETSI TS 125 101 [4]. In addition, the present document covers requirements for UTRA FDD User Equipment in the operating bands specified in ETSI TS 102 735 [i.4]. NOTE: For Band XX: - for user equipment designed to be mobile or nomadic, the requirements in the present document measured at the antenna port also show conformity to the corresponding requirement defined as TRP (Total Radiated Power), as described in Commission Decision 2010/267/EU [i.6],
ECC Decision (09)03 [i.7] and CEPT Report 30 [i.8]; - for user equipment designed to be fixed or installed, the present document does not address the requirements described in Commission Decision 2010/267/EU [i.6], ECC Decision (09)03 [i.7] and CEPT Report 30 [i.8]. The present document contains requirements to demonstrate that radio equipment both effectively uses and supports the efficient use of radio spectrum in order to avoid harmful interference. The present document covers the essential requirements of article 3.2 of Directive 2014/53/EU [i.2] under the conditions identified in annex A. SIST EN 301 908-2 V11.1.2:2017
