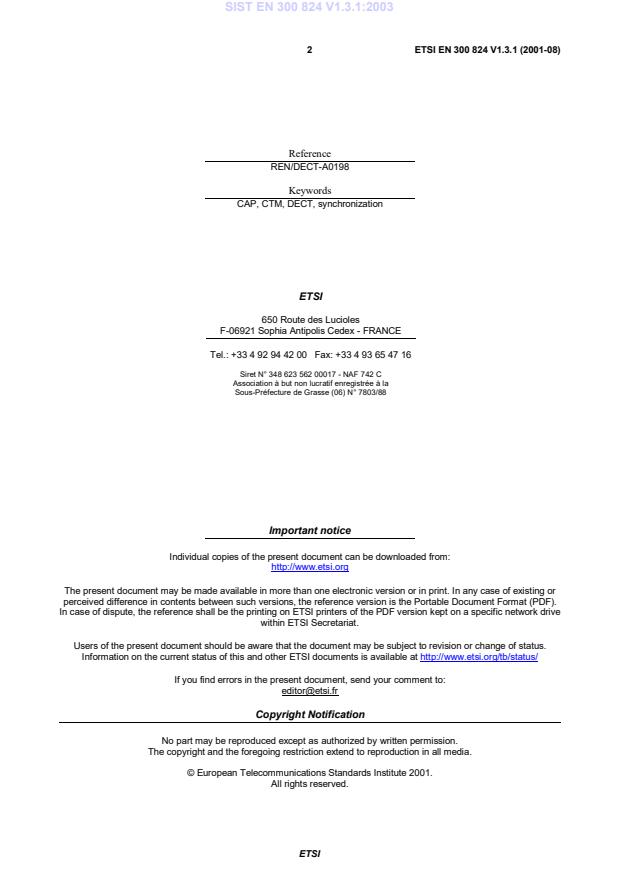

SIST EN 300 824 V1.3.1:2003 - Page 1 previewSIST EN 300 824 V1.3.1:2003 - Page 2 previewSIST EN 300 824 V1.3.1:2003 - Page 3 previewSIST EN 300 824 V1.3.1:2003 - Page 4 preview
PreviousNext
Standard

SIST EN 300 824 V1.3.1:2003

English language (49 pages)
Preview
Preview
e-Library read for
×1 day

Overview

SIST EN 300 824 V1.3.1:2003 specifies the technical requirements for the Digital Enhanced Cordless Telecommunications (DECT) systems supporting Cordless Terminal Mobility (CTM) through the CTM Access Profile (CAP). Developed by the Slovenian Institute for Standardization (SIST) and aligned with European standard EN 300 824, this standard ensures interoperability at the air interface for DECT Fixed Parts (FP) and Portable Parts (PP) operating with CAP functionalities.

CAP is an extension of the DECT Generic Access Profile (GAP), focusing on enhanced mobility features for cordless terminals across both public and private networks. The standard aims to enable users to maintain call continuity while moving within or between networks, provided adequate radio coverage and access rights are in place.

Key Topics

  • Air Interface Interoperability: Ensures seamless operation between DECT CAP Fixed Parts and Portable Parts, enabling cross-network mobility.
  • CTM Access Profile (CAP): Extends the mandatory requirements of GAP, adding necessary features to support CTM phase 2 as defined in EN 301 273.
  • External Handover: Introduces processes for transferring active calls from one fixed part to another without interruption, essential for enterprise and public cordless telephony.
  • Emergency Call Support: Facilitates emergency calling capabilities even without a valid subscription, enhancing user safety.
  • Enhanced Location Registration: Implements periodic and automatic location registration, ensuring the network is aware of the cordless terminal's position.
  • On-Air User Parameter Modification: Permits the fixed part to update active subscription data in the portable part over the air interface.
  • RFP Status and Extended Capabilities: Communicates the status and extended features of the Radio Fixed Part to the terminal, improving service awareness.
  • Prolonged Preamble for Diversity: Supports advanced antenna diversity techniques in both fixed and portable devices for improved radio performance.

Applications

SIST EN 300 824 V1.3.1:2003 is widely applicable in environments requiring robust cordless telecommunication solutions. Key use cases include:

  • Business and Enterprise Communication: Facilitates seamless mobility for employees within office campuses or multi-building corporate environments.
  • Public Service and Healthcare: Supports mobility for staff in hospitals, emergency services, and large public institutions, where maintaining call connection is critical.
  • Private DECT Networks: Enables advanced cordless services in private residential or industrial DECT installations with multiple fixed parts.
  • Telecommunications Equipment Development: Provides a framework for manufacturers to develop interoperable DECT handsets and base stations that support advanced mobility and roaming features.

Related Standards

To implement and fully benefit from SIST EN 300 824 V1.3.1:2003, familiarity with the following related DECT and CTM standards is recommended:

  • EN 300 175 Series: The DECT Common Interface (CI), which covers physical, MAC, DLC, network, and security layers.
  • EN 300 444: DECT Generic Access Profile (GAP) – the baseline for basic interoperability.
  • EN 301 273: Cordless Terminal Mobility (CTM) phase 2 service description.
  • TBR 6, TBR 10, TBR 22: Attachment and conformance requirements for DECT terminals and GAP applications.
  • ISO/IEC 9646-7: Methodology for conformant testing in open systems interconnection.

By adhering to this standard, manufacturers and service providers deliver enhanced cordless terminal mobility, ensuring user ergonomics, safety, and uninterrupted connectivity across diverse network environments.
