SIST ETS 300 608/A1 E1:2003
(Amendment)European digital cellular telecommunications system (Phase 2); Specification of the Subscriber Identity Module - Mobile Equipment (SIM - ME) interface (GSM 11.11)
General Information
- Abstract
.
- Status
- Published
- Publication Date
- 30-Nov-2003
- Current Stage
- 6060 - National Implementation/Publication (Adopted Project)
- Start Date
- 01-Dec-2003
- Due Date
- 01-Dec-2003
- Completion Date
- 01-Dec-2003
Overview
SIST ETS 300 608/A1 E1:2003 outlines specifications for the Subscriber Identity Module - Mobile Equipment (SIM-ME) interface in Phase 2 of the European digital cellular telecommunications system, based on GSM Technical Specification 11.11. This Slovenian standard, harmonized with ETSI specifications, details communication and data structures required for interoperability between SIM cards and mobile devices within GSM networks.
The standard provides essential guidance for manufacturers and network operators to ensure secure, reliable, and efficient mobile communications. By defining the procedures and file structures for the SIM-ME interface, this document plays a crucial role in global mobile telecommunications.
Key keywords: SIM-ME interface, GSM 11.11, mobile equipment, subscriber identity module, telecommunications standard, GSM Phase 2.
Key Topics
- SIM-ME Interface Structure: Specifies the transparent structure and mandatory access conditions for files exchanged between SIM and mobile devices.
- Service Table (SST): Defines available SIM services, including settings for functions such as abbreviated dialing, SMS storage, advice of charge, and capability configuration.
- Group Identifiers (GID1, GID2): Details optional group identifier files, allowing operators to establish application-specific groupings and security levels on SIMs.
- File Access & Security: Enforces security via access conditions such as CHV1 (PIN1) for reading and ADM (Administrative) rights for updates, invalidation, and rehabilitation of files.
- File Directory Structure: Provides an overview of file and directory arrangements on the SIM, facilitating standardized access and management by mobile equipment.
- Subscription Procedures: Lists MMI (Man-Machine Interface) and ME (Mobile Equipment) procedures linked to subscription services, number storage, SMS, group identifiers, and configuration parameters.
Applications
The SIM-ME Interface Standard is widely applied across several areas of the global telecommunications sector:
- Mobile Device Manufacturers: Ensures that mobile phones, smartphones, and related devices achieve compatibility with GSM-compliant SIM cards, promoting international interoperability.
- Network Operators: Enables secure user authentication, effective management of subscriber data, and implementation of operator-specific services by leveraging the standardized file structures and security features.
- SIM Card Producers: Guides the development of secure, reliable SIM cards that support a range of essential mobile services including SMS storage, call management, and group-based security features.
- System Integrators: Facilitates the integration and verification of new mobile solutions and services that interact with the SIM card, ensuring compliance with GSM network requirements.
- Telecommunications Certification: Acts as a benchmark for product and service conformity assessments, supporting regulatory compliance and fostering trust in GSM technologies.
Related Standards
- ETS 300 608: Original European Telecommunications Standard detailing the first edition of the SIM-ME interface specification.
- GSM TS 11.11: The core GSM Technical Specification providing foundational requirements for the SIM-ME interface across GSM networks.
- SIST TS 102 221: Covers requirements for UICC-terminal interface, relevant for SIM and multi-application cards.
- GSM TS 02.11: Defines PLMN (Public Land Mobile Network) selection procedures, referenced for timer and maximum value parameters within the SIM file system.
- ISO/IEC 7816 Series: International standards for integrated circuit cards, forming the basis for SIM card design, structure, and security.
In summary: SIST ETS 300 608/A1 E1:2003 is a vital resource for ensuring robust, efficient, and secure integration between subscriber identity modules and mobile equipment. Adhering to this standard keeps telecommunications products interoperable and future-proof within GSM-compliant networks.
Get Certified
Connect with accredited certification bodies for this standard
ANCE
Mexican certification and testing association.
Intertek Slovenia
Intertek testing, inspection, and certification services in Slovenia.
LNE (Laboratoire National de Métrologie et d'Essais)
French national laboratory for metrology and testing.
Sponsored listings
Frequently Asked Questions
SIST ETS 300 608/A1 E1:2003 is a amendment published by the Slovenian Institute for Standardization (SIST). Its full title is "European digital cellular telecommunications system (Phase 2); Specification of the Subscriber Identity Module - Mobile Equipment (SIM - ME) interface (GSM 11.11)". This standard covers: .
.
SIST ETS 300 608/A1 E1:2003 is classified under the following ICS (International Classification for Standards) categories: 33.070.50 - Global System for Mobile Communication (GSM). The ICS classification helps identify the subject area and facilitates finding related standards.
SIST ETS 300 608/A1 E1:2003 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
SLOVENSKI STANDARD
01-december-2003
(YURSVNLGLJLWDOQLFHOLþQLWHOHNRPXQLNDFLMVNLVLVWHP ID]D ±6SHFLILNDFLMD
YPHVQLNDPRELOQHRSUHPH]DQDURþQLãNRLGHQWLILNDFLMVNRNDUWLFR 6,00( *60
European digital cellular telecommunications system (Phase 2); Specification of the
Subscriber Identity Module - Mobile Equipment (SIM - ME) interface (GSM 11.11)
Ta slovenski standard je istoveten z: ETS 300 608/A1 Edition 1
ICS:
33.070.50 Globalni sistem za mobilno Global System for Mobile
telekomunikacijo (GSM) Communication (GSM)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
ETS 300 608
Amendment A1
July 1995
Source: ETSI TC-SMG Reference: RE/SMG-091111P1
ICS: 33.060.30
European digital cellular telecommunications system, Global System for Mobile communications
Key words:
(GSM)
This amendment A1 modifies
the European Telecommunication Standard ETS 300 608 (January 1995)
European digital cellular telecommunications system (Phase 2);
Specification of the Subscriber Identity Module -
Mobile Equipment (SIM - ME) interface
(GSM 11.11)
ETSI
European Telecommunications Standards Institute
ETSI Secretariat
F-06921 Sophia Antipolis CEDEX - FRANCE
Postal address:
650 Route des Lucioles - Sophia Antipolis - Valbonne - FRANCE
Office address:
c=fr, a=atlas, p=etsi, s=secretariat - secretariat@etsi.fr
X.400: Internet:
Tel.: +33 92 94 42 00 - Fax: +33 93 65 47 16
Copyright Notification: No part may be reproduced except as authorized by written permission. The copyright and the
foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 1995. All rights reserved.
New presentation - see History box

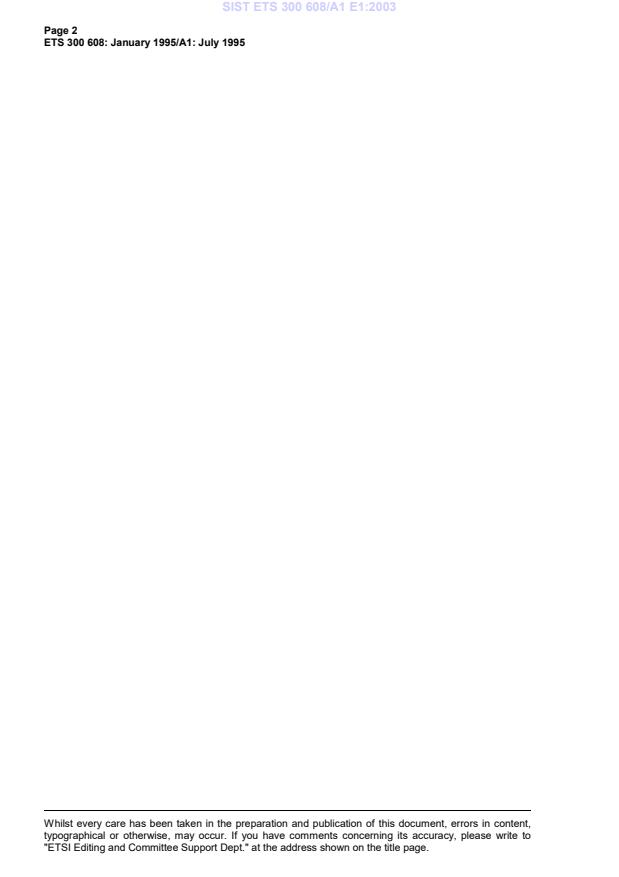

Page 2
ETS 300 608: January 1995/A1: July 1995
Whilst every care has been taken in the preparation and publication of this document, errors in content,
typographical or otherwise, may occur. If you have comments concerning its accuracy, please write to
"ETSI Editing and Committee Support Dept." at the address shown on the title page.
Page 3
ETS 300 608: January 1995/A1: July 1995
Foreword
This Amendment to ETS 300 608 (January 1995) has been produced by the Special Mobile Group (SMG)
Technical Committee of the European Telecommunications Standards Institute (ETSI).
This Amendment to ETS 300 608 (January 1995) corresponds to the changes to GSM Technical
Specification (GSM-TS) 11.11 from version 4.13.1 to version 4.14.0, as approved by TC-SMG.
This Amendment modifies pages 52, 54, 55, 56, 74, 76, 84 and 90.
Amendment
Page 52, subclause 10.2.5.
Replace subclause 10.2.5 with the following new subclause 10.2.5:
This EF contains the interval of time between searches for the HPLMN (see TS GSM 02.11 [5]).
�˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜´˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜´˜˜˜˜˜˜˜˜˜˜˜¿
‡ Identifier: ’6F31’ ‡ Structure: transparent ‡ Mandatory ‡
ˆ˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜`˜˜˜˜˜˜´˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜`˜˜˜˜˜˜˜˜˜˜˜·
‡ File size: 1 byte ‡ Update activity: low ‡
ˆ˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜`˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜·
‡ Access conditions: ‡
‡ READ CHV1 ‡
‡ UPDATE ADM ‡
‡ INVALIDATE ADM ‡
‡ REHABILITATE ADM ‡
ˆ˜˜˜˜˜˜˜˜˜´˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜´˜˜˜´˜˜˜˜˜˜˜˜˜˜·
‡ Bytes ‡ Description ‡M/O‡ Length ‡
ˆ˜˜˜˜˜˜˜˜˜¯˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜¯˜˜˜¯˜˜˜˜˜˜˜˜˜˜·
‡ 1 ‡ Time interval ‡ M ‡ 1 byte ‡
�˜˜˜˜˜˜˜˜˜`˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜`˜˜˜`˜˜˜˜˜˜˜˜˜˜�
- Time interval
Contents: The time interval between two searches.
Coding: The time interval is coded in integer multiples of n minutes. The range is from n minutes
to a maximum value. The value '00' indicates that no attempts shall be made to search for the
HPLMN. The encoding is:
- '00': No HPLMN search attempts
- '01': n minutes
- '02': 2n minutes
- : :
- 'YZ': (16Y+Z)n minutes (maximum value)
All other values shall be interpreted by the ME as a default period.
For specification of the integer timer interval n, the maximum value and the default period refer to TS GSM
02.11 [5].
Page 4
ETS 300 608: January 1995/A1: July 1995
Page 54, subclause 10.2.7.
Replace the existing table and service contents list with the following:
�˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜´˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜´˜˜˜˜˜˜˜˜˜˜˜¿
‡ Identifier: ’6F38’ ‡ Structure: transparent ‡ Mandatory ‡
ˆ˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜`˜˜˜˜˜˜´˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜`˜˜˜˜˜˜˜˜˜˜˜·
‡ File size: 4 bytes ‡ Update activity: low ‡
ˆ˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜`˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜·
‡ Access conditions : ‡
‡ READ CHV1 ‡
‡ UPDATE ADM ‡
‡ INVALIDATE ADM ‡
‡ REHABILITATE ADM ‡
ˆ˜˜˜˜˜˜˜˜˜´˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜´˜˜˜´˜˜˜˜˜˜˜˜˜˜·
‡ Bytes ‡ Description ‡M/O‡ Length ‡
ˆ˜˜˜˜˜˜˜˜˜¯˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜¯˜˜˜¯˜˜˜˜˜˜˜˜˜˜·
‡ 1 ‡ Services nł1 to nł4 ‡ M ‡ 1 byte ‡
ˆ˜˜˜˜˜˜˜˜˜¯˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜¯˜˜˜¯˜˜˜˜˜˜˜˜˜˜·
‡ 2 ‡ Services nł5 to nł8 ‡ M ‡ 1 byte ‡
ˆ˜˜˜˜˜˜˜˜˜¯˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜¯˜˜˜¯˜˜˜˜˜˜˜˜˜˜·
‡ 3 ‡ Services nł9 to nł12 ‡ M ‡ 1 byte ‡
ˆ˜˜˜˜˜˜˜˜˜¯˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜¯˜˜˜¯˜˜˜˜˜˜˜˜˜˜·
‡ 4 ‡ Services nł13 to nł16 ‡ M ‡ 1 byte ‡
�˜˜˜˜˜˜˜˜˜`˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜`˜˜˜`˜˜˜˜˜˜˜˜˜˜�
- Services
Contents:
Service n°1 : CHV1 disable function
Service n°2 : Abbreviated Dialling Numbers (ADN)
Service n°3 : Fixed Dialling Numbers (FDN)
Service n°4 : Short Message Storage (SMS)
Service n°5 : Advice of Charge (AoC)
Service n°6 : Capability Configuration Parameters (CCP)
Service n°7 : PLMN selector
Service n°8 : RFU
Service n°9 : MSISDN
Service n°10: Extension1
Service n°11: Extension2
Service n°12: SMS Parameters
Service n°13: Last Number Dialled (LND)
Service n°14: Cell Broadcast Message Identifier
Service n°15: Group Identifier Level 1
Service n°16: Group Identifier Level 2
Page 55,
Replace the existing "Fourth byte" coding with the following:
Fourth byte:
�˜˜´˜˜´˜˜´˜˜´˜˜´˜˜´˜˜´˜˜¿
‡b8‡b7‡b6‡b5‡b4‡b3‡b2‡b1‡
�´˜`´˜`´˜`´˜`´˜`´˜`´˜`´˜�
‡ ‡ ‡ ‡ ‡ ‡ �˜˜`˜˜ Service nł13
‡ ‡ ‡ ‡ �˜˜`˜˜˜˜˜˜˜˜ Service nł14
‡ ‡ �˜˜`˜˜˜˜˜˜˜˜˜˜˜˜˜˜ Service nł15
�˜˜`˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜ Service nł16
Page 5
ETS 300 608: January 1995/A1: July 1995
Page 56, subclause 10.2.9.
Insert the following new subclause 10.2.9 and new subclause 10.2.10 and renumber the existing
subclauses 10.2.9 through to 10.2.16 accordingly:
10.2.9 EF (Group Identifier Level 1)
GID1
This EF contains identifiers for particular SIM-ME associations. It can be used to identify a group of SIMs
for a particular application.
�˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜´˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜´˜˜˜˜˜˜˜˜˜˜˜¿
‡ Identifier: ’6F3E’ ‡ Structure: transparent ‡ Optional ‡
ˆ˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜`˜˜˜˜˜˜´˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜`˜˜˜˜˜˜˜˜˜˜˜·
‡ File size: 1-n bytes ‡ Update activity: low ‡
ˆ˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜`˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜·
‡ Access conditions : ‡
‡ READ CHV1 ‡
‡ UPDATE ADM ‡
‡ INVALIDATE ADM ‡
‡ REHABILITATE ADM ‡
ˆ˜˜˜˜˜˜˜˜˜´˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜´˜˜˜´˜˜˜˜˜˜˜˜˜˜·
‡ Bytes ‡
...
