SIST ETS 300 180 E1:2003

SLOVENSKI STANDARD
01-december-2003
Digitalno omrežje z integriranimi storitvami (ISDN) – Dopolnilna storitev: obvestilo
o ceni: informacija o stroških na koncu klica (AOC-E) – Opis storitve
Integrated Services Digital Network (ISDN); Advice of Charge: charging information at
the end of the call (AOC-E) supplementary service; Service description
Ta slovenski standard je istoveten z: ETS 300 180 Edition 1
ICS:
33.080 Digitalno omrežje z Integrated Services Digital
integriranimi storitvami Network (ISDN)
(ISDN)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN ETS 300 180
TELECOMMUNICATION October 1992
STANDARD
Source: ETSI TC-NA Reference: T/NA1(89)15
ICS: 33.080
ISDN, supplementary service
Key words:
Integrated Services Digital Network (ISDN);
Advice Of Charge: charging information
at the end of the call (AOC-E) supplementary service
Service description
ETSI
European Telecommunications Standards Institute
ETSI Secretariat
F-06921 Sophia Antipolis CEDEX - FRANCE
Postal address:
650 Route des Lucioles - Sophia Antipolis - Valbonne - FRANCE
Office address:
c=fr, a=atlas, p=etsi, s=secretariat - secretariat@etsi.fr
X.400: Internet:
Tel.: +33 92 94 42 00 - Fax: +33 93 65 47 16
Copyright Notification: No part may be reproduced except as authorized by written permission. The copyright and the
foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 1992. All rights reserved.
New presentation - see History box

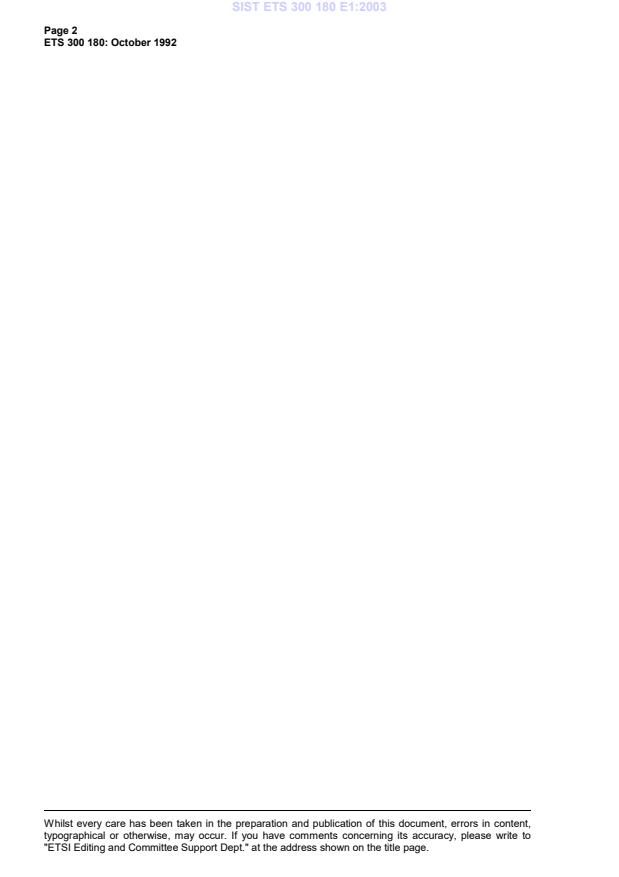

Page 2
ETS 300 180: October 1992
Whilst every care has been taken in the preparation and publication of this document, errors in content,
typographical or otherwise, may occur. If you have comments concerning its accuracy, please write to
"ETSI Editing and Committee Support Dept." at the address shown on the title page.

Page 3
ETS 300 180: October 1992
Contents
Foreword .5
1 Scope .7
2 Normative references.7
3 Definitions.8
4 Symbols and abbreviations .8
5 Description .8
6 Procedures.8
6.1 Provision and withdrawal .8
6.2 Normal procedures .9
6.2.1 Activation, deactivation and registration.9
6.2.2 Erasure.9
6.2.3 Invocation and operation .9
6.2.4 Interrogation .9
6.3 Exceptional procedures .9
6.3.1 Activation, deactivation and registration.9
6.3.2 Erasure.9
6.3.3 Invocation and operation .9
6.3.4 Interrogation .9
7 Intercommunication considerations.10
7.1 Interworking with non-ISDNs .10
7.2 Interworking with private ISDNs.10
8 Interaction with other supplementary services .10
8.1 Advice of charge .10
8.1.1 Charging information at call set-up time.10
8.1.2 Charging information during the call.10
8.1.3 Charging information at the end of the call.10
8.2 Call waiting.10
8.3 Call hold .10
8.4 Explicit call transfer.10
8.5 Number identification services.10
8.5.1 Calling line identification presentation .10
8.5.2 Calling line identification restriction .10
8.5.3 Connected line identification presentation.11
8.5.4 Connected line identification restriction.11
8.6 Closed user group.11
8.7 Completion of calls to busy subscriber .11
8.8 Conference services .11
8.8.1 Conference call, add-on .11
8.8.1.1 Conference controller .11
8.8.1.2 Conferees .12
8.8.2 Meet-me conference .12
8.9 Direct dialling in.12
8.10 Diversion services.12
8.10.1 Call forwarding unconditional .12
8.10.2 Call forwarding busy.13
8.10.3 Call forwarding no reply.13
8.10.4 Call deflection.13
8.11 Freephone.13

Page 4
ETS 300 180: October 1992
8.12 Malicious call identification. 13
8.13 Multiple subscriber number . 14
8.14 Subaddressing . 14
8.15 Terminal portability. 14
8.16 Three party. 14
8.17 User-to-user signalling . 14
Annex A (normative): Structure, contents and application of charging information. 15
A.1 Introduction. 15
A.2 Structure and contents of charging information. 15
A.2.1 Type of charging information. 15
A.2.2 Recorded charges. 15
A.2.3 Billing identification. 16
A.3 Application of charging information . 16
History. 17

Page 5
ETS 300 180: October 1992
Foreword
This European Telecommunication Standard (ETS) has been produced by the Network Aspects (NA)
Technical Committee of the European Telecommunications Standards Institute (ETSI).
In accordance with CCITT Recommendation I.130 [1], the following three level structure is used to
describe the supplementary telecommunications services as provided by European public
telecommunications operators under the pan-European Integrated Services Digital Network (ISDN):
- Stage 1: is an overall service description, from the user's standpoint;
- Stage 2: identifies the functional capabilities and information flows needed to support the service
described in stage 1; and
- Stage 3: defines the signalling system protocols and switching functions needed to implement the
service described in stage 1.
This ETS details the stage 1 aspects (overall service description) for the Advice Of Charge: charging
information at the end of a call (AOC-E) supplementary service. Stage 2 and stage 3 aspects are detailed
in ETS 300 181 (1992) and 300 182 (1992) respectively.

Page 6
ETS 300 180: October 1992
Blank page
Page 7
ETS 300 180: October 1992
1 Scope
This standard defines the stage one of the Advice Of Charge: charging information at the end of the call
(AOC-E) supplementary service for the pan-European Integrated Services Digital Network (ISDN) as
provided by European public telecommunications operators. Stage one is an overall service description
from the user's point of view (see CCITT Recommendation I.130 [1]), but does not deal with the details of
the human interface itself.
This standard defines the interworking requirements of private ISDNs with the public ISDN.
In addition, this standard specifies the base functionality where the service is provided to the user via a
private ISDN.
This standard does not specify the additional requirements where the service is provided to the user via a
telecommunications network that is not an ISDN but does include interworking requirements of other
networks with the public ISDN.
Charging principles are outside the scope of this standard.
Interaction with supplementary services not listed in Clause 8 are outside the scope of this standard.
The AOC-E supplementary service enables a user to receive information on the recorded charges for a
call when the call is terminated.
The AOC-E supplementary service is applicable to all circuit-switched telecommunications services.
This standard is applicable to the stage two and stage three standards for the ISDN AOC-E
supplementary service. The terms "stage two" and "stage three" are also defined in CCITT
Recommendation I.130 [1]. Where the text indicates the status of a requirement (i.e. as strict command or
prohibition, as authorisation leaving freedom, or as a capability or possibility), this shall be reflected in the
text of the relevant stage two and stage three standards.
Furthermore, conformance to this standard is met by conforming to the stage three standard with the field
of application appropriate to the equipment being implemented. Therefore, no method of testing is
provided for this standard.
2 Normative references
This standard incorporates, by dated or undated reference, provisions from other publications. These
normative references are cited at the appropriate places in the text and the publications are listed
hereafter. For dated references, subsequent amendments to, or revisions of, any of these publications
apply to this standard only when incorporated in it by amendment or revision. For undated references the
latest edition of the publication referred to applies.
[1] CCITT Recommendation I.130 (1988): "Method for the characterisation of the
telecommunication services supported by an ISDN and network capabilities of
an ISDN".
[2] CCITT Recommendation I.112 (1988): "Vocabulary of terms for ISDNs".
[3] CCITT Recommendation I.210 (1988): "Principles of telecommunication
services supported by an ISDN and the means to describe them".
[4] CCITT Recommendation Q.9 (1988): "Vocabulary of switching and signalling
terms".
Page 8
ETS 300 180: October 1992
3 Definitions
For the purpose of this standard, the following definitions apply:
Integrated Services Digital Network (ISDN): see CCITT Recommendation I.112 [2], § 2.3 definition 308.
Service; telecommunications service: see CCITT Recommendation I.112 [2], § 2.2 definition 201.
Supplementary service: see CCITT Recommendation I.210 [3], § 2.4.
Served user: The user to whom the AOC-E supplementary service is provided.
Basic access: see CCITT Recommendation Q.9 [4], § 1 definition 1551.
Primary rate access: see CCITT Recommendation Q.9 [4], § 1 definition 1552.
4 Symbols and abbreviations
AOC-E Advice of Charge: charging information at the end of the call
ISDN Integrated Services Digital Network
5 Description
The AOC-E supplementary service shall apply to the basic access and to the primary rate access.
The AOC-E supplementary service provides the served user with charging information for a call when the
call is terminated. The information can be sent for all calls, or on a per call basis. The charge information
given shall relate to the charges incurred on the network to which the served user is attached.
The structure, contents and application of the charging information is given in Annex A.
6 Procedures
6.1 Provision and withdrawal
The AOC-E supplementary service shall either be provided on a subscription basis or be generally
available. The AOC-E supplementary service can be offered with one subscription option. Only one value
can be selected.
Table 1
Subscription option Values
Invocation - For all calls automatically
- On a per call basis (NOTE)
NOTE: If the AOC-E supplementary service is generally available,
then the value "on a per-call basis" should be the default
value.
Withdrawal shall be at request of the subscriber or for service provi
...
