SIST EN 301 062-1 V1.2.2:2005

SLOVENSKI STANDARD
01-april-2005
'LJLWDOQRRPUHåMH]LQWHJULUDQLPLVWRULWYDPL,6'1±6LJQDOL]DFLMDãW±3RGSRUD
DSOLNDFLMDPQDYLGH]QHJD]DVHEQHJDRPUHåMD931]LQIRUPDFLMVNLPLWRNRYL
VLJQDOL]DFLMVNHJDVLVWHPD336YUHIHUHQþQLWRþNL4]DVHEQHJDRPUHåMD±
GHO6SHFLILNDFLMDSURWRNROD>SULSRURþLOL,7874LQ4VSUHPHQMHQL@
Integrated Services Digital Network (ISDN); Signalling System No.7; Support of Virtual
Private Network (VPN) applications with Private network Q reference point Signalling
System number 1 (PSS1) information flows; Part 1: Protocol specification [ITU-T
Recommendations Q.765.1 and Q.699.1, modified]
Ta slovenski standard je istoveten z: EN 301 062-1 Version 1.2.2
ICS:
33.080 Digitalno omrežje z Integrated Services Digital
integriranimi storitvami Network (ISDN)
(ISDN)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN 301 062-1 V1.2.2 (1998-07)
European Standard (Telecommunications series)
Integrated Services Digital Network (ISDN);
Signalling System No.7;
Support of Virtual Private Network (VPN) applications
with Private network Q reference point
Signalling System number 1 (PSS1) information flows;
Part 1: Protocol specification
[ITU-T Recommendations Q.765.1 and Q.699.1, modified]

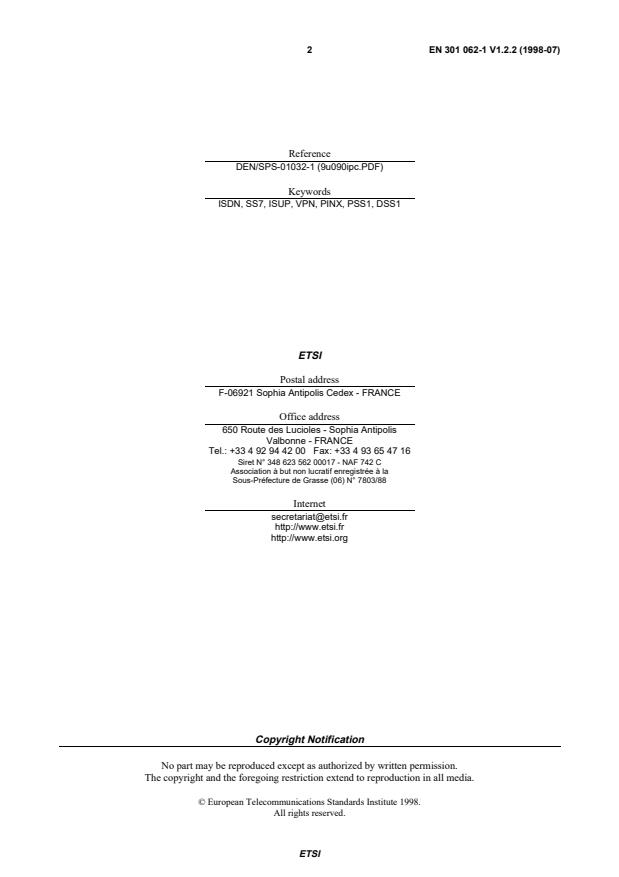

2 EN 301 062-1 V1.2.2 (1998-07)
Reference
DEN/SPS-01032-1 (9u090ipc.PDF)
Keywords
ISDN, SS7, ISUP, VPN, PINX, PSS1, DSS1
ETSI
Postal address
F-06921 Sophia Antipolis Cedex - FRANCE
Office address
650 Route des Lucioles - Sophia Antipolis
Valbonne - FRANCE
Tel.: +33 4 92 94 42 00  Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Internet
secretariat@etsi.fr
http://www.etsi.fr
http://www.etsi.org
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 1998.
All rights reserved.
ETSI
3 EN 301 062-1 V1.2.2 (1998-07)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respect
of ETSI standards", which is available free of charge from the ETSI Secretariat. Latest updates are available on the
ETSI Web server (http://www.etsi.fr/ipr or http://www.etsi.org/ipr).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in SR 000 314 (or the updates on the ETSI Web server)
which are, or may be, or may become, essential to the present document.
Foreword
This European Standard (Telecommunications series) has been produced by ETSI Technical Committee Signalling
Protocols and Switching (SPS).
National transposition dates
Date of adoption of this EN: 17 April 1998
Date of latest announcement of this EN (doa): 31 July 1998
Date of latest publication of new National Standard 31 January 1999
or endorsement of this EN (dop/e):
Date of withdrawal of any conflicting National Standard (dow): 31 January 1999
Endorsement notice
The text of draft ITU-T Recommendations Q.765.1 and Q.699.1 was approved by ETSI as an EN with agreed
modifications as given below.
Intellectual Property Rights.3
Foreword .3
Endorsement notice .3
Scope and References clauses . 5
Scope5
Normative references .5
Throughout . the text of ITU-T Recommendations Q.765.1 and Q.699.1 7
Modifications. to ITU-T Recommendation Q.765.1 7
Modifications. to ITU-T Recommendation Q.699.1 7
Annex A (normative): Modifications to ITU-T Recommendation Q.765.1.8
A.1 Modifications to be included in this EN if not adopted by ITU-T.8
Clause 4, Abbreviations:. 8
Clause 5, Recommendation structure. 8
Subclause 6.2.2, General model. 8
Subclause 7.2.1, Introduction. 9
A.2 Modifications to be removed from this EN on publication .9
Subclause 7.2.3.2.4, Acknowledgement from peer application (overlap sending). 9
ETSI
4 EN 301 062-1 V1.2.2 (1998-07)
Subclause 7.2.6, Primitive contents . 9
Subclause 11.8, ASN.1 module . 9
Subclause 14.1, Private network specific information to be carried within the Application Transport Parameter . 9
Subclause 14.2, NNI specific Information to be transported in the Application Transport Parameter . 10
Annex B (normative): Modifications to ITU-T Recommendation Q.699.1.11
B.1 Modifications to be included in this EN if not adopted by ITU-T.11
Clause 4, Abbreviations. 11
Subclause 5.3.1, Sending of the Initial address message (IAM) . 11
Subclause 5.3.1, Table 2/Q.699.1 . 12
Subclause 6.1.1, Table 25/Q.699.1 . 12
Subclause 6.1.2, Table 26/Q.699.1 . 12
B.2 Modifications to be removed from this EN on publication .12
History.13
not yet been adopted by ITU-T prior to the submission for Vote of the present document. This endorsement is based
upon the drafts of those Recommendations which accompany the present document, located in an archive
file named 9u090ipc.lzh.
ETSI
5 EN 301 062-1 V1.2.2 (1998-07)
Scope and References clauses
Delete the clauses "Scope", "References" from ITU-T Recommendations Q.765.1 and Q.699.1 and replace with the
following two clauses (Scope and Normative references):
Scope
The present document describes the extensions required for the support of Virtual Private Network (VPN) applications
over the public Network Node Interface (NNI). This application makes use of the Application Transport Mechanism
(APM) described in EN 301 069-1 for bearer related signalling, and the Transaction Capability (TC) for signalling
involving no bearer. The present document specifies the respective users (i.e. APM-user, TC-user) to support the PSS1
information flows continuity in VPN applications (Transparent transfer of PSS1 information flows between PINX
entities). The public NNI provides transparency to the services of the private network.
The private network functionality is defined by ISO in its series of standards for Private Integrated Services Network
(PISN). In addition, the concept of a "Relay node" is introduced by the present document.
The present document provides for a number of network options. These are summarized in table 1.
Table 1: Network options
Option Values Remarks
Support of GFP functionality at transit Full support
PINX nodes
(subclause 6.2.5) Partial support Not applicable in the international
network (note 1)
Support of GFP functionality at gateway Full support
PINX nodes
(subclause 6.2.6) No support (note 1)
Continuation of calls with no application Supported (note 2)
association
(subclause 6.2.6) Not supported (note 3)
Relocation of gateway function Supported
(subclause 6.2.6) Not supported
NOTE 1:  Use of these options might result in certain private network supplementary services behaving
in an unexpected manner or not working at all.
NOTE 2:  In this case VPN calls has to be routed using a mechanism which can correctly route the call to
the terminating access without use of the VPN procedures specified in the present document.
NOTE 3:  In this case, it is required that the VPN procedures are only used on calls which are routed to
addresses which are known to support the VPN application via signalling which supports the
APM, otherwise the call will be released.
In addition, this EN describes the interworking between Signalling System Number 7 (ISDN) and extended DSS1 for
the support of VPN applications with PSS1 information flows. For the interworking in this EN related to ISUP, these
replace that specified in ETS 300 899 whereas all other interworking of PSS1 information flows is according to that
specified in ETS 300 899.
The interworking described here provides a sub-set of all possible interworking scenarios and is therefore intended to
describe only the relevant mapping of information flows between the two interfaces being described.
Normative references
References may be made to:
a)  specific versions of publications (identified by date of publication, edition number, version number, etc.), in
which case, subsequent revisions to the referenced document do not apply; or
ETSI
6 EN 301 062-1 V1.2.2 (1998-07)
b)  all versions up to and including the identified version (identified by "up to and including" before the version
identity); or
c)  all versions subsequent to and including the identified version (identified by "onwards" following the version
identity); or
d)  publications without mention of a specific version, in which case the latest version applies.
A non-specific reference to an ETS shall also be taken to refer to later versions published as an EN with the same
number.
[1]            ISO/IEC 11574: " Information technology -- Telecommunications and information exchange
between systems -- Private Integrated Services Network -- Circuit-mode 64 kbit/s bearer services --
Service description, functional capabilities and information flows".
[2]            ISO/IEC 11572 Second edition and Amendments 1 and 2: "Information technology --
Telecommunications and information exchange between systems -- Private Integrated Services
Network -- Circuit mode bearer services -- Inter-exchange signalling procedures and protocol".
[3]            ISO/IEC 11582: " Information technology -- Telecommunications and information exchange
between systems -- Private Integrated
...
