- Abstract
This EN defines the management interfaces between Service Node (SN), Broadband Access Network (B-AN) and Telecommunication Management Network (TMN) for the support of configuration, fault and performance management functions associated with the VB5.2 reference point. It also defines the relationship between OAM flows and the object model.
- Status
- Published
- Publication Date
- 31-Oct-2003
- Technical Committee
- SPN - Services and Protocols for Networks
- Current Stage
- 6060 - National Implementation/Publication (Adopted Project)
- Start Date
- 01-Nov-2003
- Due Date
- 01-Nov-2003
- Completion Date
- 01-Nov-2003
Overview
SIST EN 301 754 V1.1.1:2003 is a European standard developed by the Slovenski inštitut za standardizacijo (SIST) in alignment with ETSI EN 301 754. This standard specifies the requirements for management interfaces within the Telecommunications Management Network (TMN) associated with the VB5.2 reference point. It particularly addresses the interaction and management of Service Nodes (SN), Broadband Access Networks (B-AN), and TMN systems, emphasizing configuration, fault, and performance management functions. Additionally, it outlines the relationships between Operations, Administration and Maintenance (OAM) flows and the object model relevant to VB5.2.
Key Topics
- Management Interfaces (Q3): Details the structure and role of Q3 interfaces between network elements and operations systems, supporting TMN principles.
- Configuration Management: Procedures for assigning and verifying VB5 interface identifiers, managing logical service and user ports, and coordinating Virtual Path Connections (VPCs) and Virtual Channels (VCs) between SN and B-AN.
- Fault and Performance Management: Defines requirements for alarm surveillance, fault localization, and performance reporting, including procedures for isolating faults and monitoring operational states via ATM OAM cells.
- Object Model Relationships: Explains how OAM flows correspond to managed objects, referencing the entity-relationship models and inheritance hierarchies.
- VB5.2 Interface Management: Specifies the management and consistency checks for VB5.2 interfaces, including startup, shutdown, blocking, unblocking, and VPCI consistency verification procedures.
Applications
SIST EN 301 754 V1.1.1:2003 is essential for network operators, equipment vendors, and integrators involved in:
- Deployment of Broadband Access Networks: Ensures standardized management of the interface between access networks and service nodes using VB5.2 for reliable broadband delivery.
- Operational Efficiency: Centralizes configuration and maintenance, allowing for automated fault detection, performance monitoring, and efficient fault localization, minimizing network downtime.
- Interoperability: Facilitates multi-vendor compatibility by adhering to standardized object models and management procedures consistent with TMN and related ITU-T recommendations.
- Service Assurance: Supports robust, real-time coordination between network elements, operations systems, and TMN for end-to-end service quality and resilience.
- Migration and Integration: Provides a framework for integrating new network elements into existing TMN environments, leveraging Q3 interface standards for future expansion.
Related Standards
SIST EN 301 754 V1.1.1:2003 references and is closely aligned with several key international standards, including:
- EN 301 271: Management interfaces for the VB5.1 reference point.
- ITU-T G.967.2: V-interfaces at the Service Node (SN): VB5.2 reference point specification.
- ITU-T Q.2931: B-ISDN user-network interface specification for basic call/connection control.
- ITU-T G.902: Functional access networks - architecture and management.
- ITU-T M.3100: Generic network information model for defining managed objects.
- ITU-T Q.811, Q.812: Protocol profiles for Q3 and X interfaces.
- ITU-T Q.832.2: VB5.2 management requirements.
- ITU-T I.751: ATM management - network element view.
Summary
By conforming to SIST EN 301 754 V1.1.1:2003, telecom operators can ensure their broadband access networks and service nodes are managed efficiently, interoperably, and in line with TMN best practices, resulting in improved network performance, rapid fault response, and future-ready scalability.
Get Certified
Connect with accredited certification bodies for this standard
ANCE
Mexican certification and testing association.
Intertek Slovenia
Intertek testing, inspection, and certification services in Slovenia.
LNE (Laboratoire National de Métrologie et d'Essais)
French national laboratory for metrology and testing.
Sponsored listings
Frequently Asked Questions
SIST EN 301 754 V1.1.1:2003 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Telecommunications Management Network (TMN); Management interfaces associated with the VB5.2 reference point". This standard covers: This EN defines the management interfaces between Service Node (SN), Broadband Access Network (B-AN) and Telecommunication Management Network (TMN) for the support of configuration, fault and performance management functions associated with the VB5.2 reference point. It also defines the relationship between OAM flows and the object model.
This EN defines the management interfaces between Service Node (SN), Broadband Access Network (B-AN) and Telecommunication Management Network (TMN) for the support of configuration, fault and performance management functions associated with the VB5.2 reference point. It also defines the relationship between OAM flows and the object model.
SIST EN 301 754 V1.1.1:2003 is classified under the following ICS (International Classification for Standards) categories: 33.040.35 - Telephone networks. The ICS classification helps identify the subject area and facilitates finding related standards.
SIST EN 301 754 V1.1.1:2003 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Telecommunications Management Network (TMN); Management interfaces associated with the VB5.2 reference point33.040.35Telefonska omrežjaTelephone networksICS:Ta slovenski standard je istoveten z:EN 301 754 Version 1.1.1SIST EN 301 754 V1.1.1:2003en01-november-2003SIST EN 301 754 V1.1.1:2003SLOVENSKI
STANDARD
ETSIEN301754V1.1.1(2001-09)EuropeanStandard(Telecommunicationsseries)TelecommunicationsManagementNetwork(TMN);ManagementinterfacesassociatedwiththeVB5.2referencepointSIST EN 301 754 V1.1.1:2003

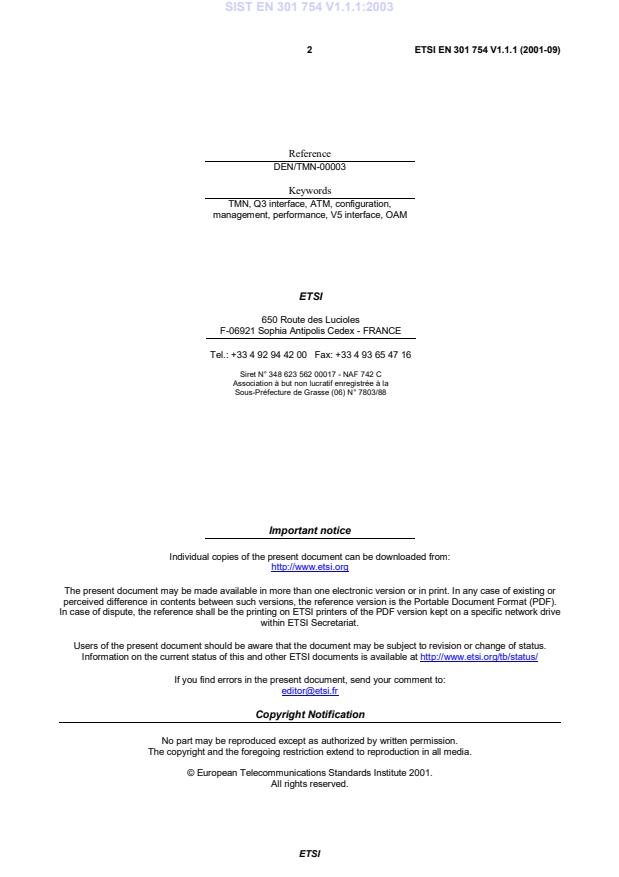

ETSIETSIEN301754V1.1.1(2001-09)2ReferenceDEN/TMN-00003KeywordsTMN,Q3interface,ATM,configuration,management,performance,V5interface,OAMETSI650RoutedesLuciolesF-06921SophiaAntipolisCedex-FRANCETel.:+33492944200Fax:+33493654716SiretN°34862356200017-NAF742CAssociationàbutnonlucratifenregistréeàlaSous-PréfecturedeGrasse(06)N°7803/88ImportantnoticeIndividualcopiesofthepresentdocumentcanbedownloadedfrom:http://www.etsi.orgThepresentdocumentmaybemadeavailableinmorethanoneelectronicversionorinprint.Inanycaseofexistingorperceiveddifferenceincontentsbetweensuchversions,thereferenceversionisthePortableDocumentFormat(PDF).Incaseofdispute,thereferenceshallbetheprintingonETSIprintersofthePDFversionkeptonaspecificnetworkdrivewithinETSISecretariat.Usersofthepresentdocumentshouldbeawarethatthedocumentmaybesubjecttorevisionorchangeofstatus.InformationonthecurrentstatusofthisandotherETSIdocumentsisavailableathttp://www.etsi.org/tb/status/Ifyoufinderrorsinthepresentdocument,sendyourcommentto:editor@etsi.frCopyrightNotificationNopartmaybereproducedexceptasauthorizedbywrittenpermission.Thecopyrightandtheforegoingrestrictionextendtoreproductioninallmedia.©EuropeanTelecommunicationsStandardsInstitute2001.Allrightsreserved.SIST EN 301 754 V1.1.1:2003
