SIST EN ISO 16089:2025
(Main)Machine tools - Safety - Stationary grinding machines (ISO 16089:2025)
Machine tools - Safety - Stationary grinding machines (ISO 16089:2025)
This document specifies the requirements and/or measures to eliminate the hazards or reduce the risks in the following groups of stationary grinding machines which are designed primarily to shape metal by grinding:
— Group 1: manually controlled grinding machines without power operated axes and without numerical control;
— Group 2: manually controlled grinding machines with power operated axes and limited numerically controlled capability, if applicable;
— Group 3: numerically controlled grinding machines.
NOTE 1 For detailed information on the groups of grinding machines, see 3.1 and 3.2.
NOTE 2 Requirements in this document are, in general, applicable to all groups of grinding machines. If requirements are applicable to some special group(s) of grinding machines only, then the special group(s) of grinding machine(s) is/are specified.
This document covers the significant hazards listed in Clause 4 and applies to ancillary devices (e.g. for workpieces, tools, workpiece holding devices and handling devices), which are integral to the machine.
This document also applies to machines which are integrated into an automatic production line or grinding cell in as much as the hazards and risks arising are comparable to those of machines working separately.
This document also includes in Clause 7 a minimum list of safety-relevant information which the manufacturer has to provide to the user. See also ISO 12100:2010, Figure 2, which illustrates the interaction of the manufacturer’s and user’s responsibility for the operational safety.
The user's responsibility to identify specific hazards (e.g. fire and explosion) and reduce the associated risks can be critical (e.g. whether the central extraction system is working correctly).
Where additional metalworking processes (e.g. milling, turning, laser processing) are involved, this document can be taken as a basis for safety requirements. Specific information on hazards arising from other metalworking processes are covered by other International Standards.
This document applies to machines that are manufactured after the date of issue of this document.
This document does not apply to stationary honing, polishing and belt grinding machines. This document does not apply to transportable motor-operated electric tools in accordance with IEC 61029-2-4 and IEC 61029-2-10.
Werkzeugmaschinen - Sicherheit - Ortsfeste Schleifmaschinen (ISO 16089:2025)
Dieses Dokument legt die Anforderungen und/oder Maßnahmen zur Beseitigung der Gefährdungen oder zur Begrenzung der Risiken für die folgenden Baugruppen von ortsfesten Schleifmaschinen fest, die vorzugsweise für die spanende Metallbearbeitung durch Schleifen bestimmt sind.
Baugruppe 1: handgesteuerte Schleifmaschinen ohne kraftbetriebene Achsen und ohne numerische Steuerung;
Baugruppe 2: handgesteuerte Schleifmaschinen mit kraftbetriebenen Achsen und ggf. begrenzten numerischen Steuerungsfähigkeiten;
Baugruppe 3: numerisch gesteuerte Schleifmaschinen.
ANMERKUNG 1 Für detaillierte Informationen über die Baugruppen von Schleifmaschinen siehe 3.1 und 3.4.
ANMERKUNG 2 Anforderungen in diesem Dokument sind im Allgemeinen für alle Schleifmaschinenbaugruppen anwendbar. Wenn Anforderungen nur für (eine) bestimmte Baugruppe(n) von Schleifmaschinen anwendbar sind, werden (wird) diese bestimmte Baugruppe(n) von Schleifmaschinen festgelegt.
Dieses Dokument deckt die in Abschnitt 4 aufgeführten signifikanten Gefährdungen ab und gilt für Zusatzeinrichtungen (z. B. für Werkstücke, Werkzeuge, Spanneinrichtungen und Handhabungseinrichtungen für Werkstücke), die integrale Bestandteile der Maschine sind.
Dieses Dokument gilt auch für Maschinen, die in eine automatische Fertigungslinie oder Schleifzelle integriert sind, wenn die auftretenden Gefährdungen und Risiken mit denen von separat arbeitenden Maschinen vergleichbar sind.
Dieses Dokument enthält in Abschnitt 7 ebenfalls eine Liste der sicherheitsrelevanten Informationen, die der Hersteller dem Betreiber mindestens zur Verfügung stellen muss. Siehe auch ISO 12100:2010, Bild 2, welches das Zusammenspiel der jeweiligen Verantwortlichkeit des Herstellers und des Betreibers hinsichtlich der Betriebssicherheit darstellt.
Die Verantwortung des Betreibers, bestimmte Gefährdungen (z. B. Feuer und Explosion) zu erkennen und die daraus resultierenden Risiken zu senken, kann ausschlaggebend sein (z. B. bei der Frage, ob die zentrale Absaugeinrichtung ordnungsgemäß funktioniert).
Wenn zusätzliche Metallbearbeitungsprozesse (z. B. Fräsen, Drehen, Laserbearbeitung) einbezogen werden, kann dieses Dokument als Basis für Sicherheitsanforderungen dienen. Genauere Informationen über Gefährdungen, die aus anderen Metallbearbeitungsprozessen hervorgehen, werden von anderen Internationalen Normen abgedeckt.
Dieses Dokument gilt für Maschinen, die nach dem Ausgabedatum dieses Dokuments hergestellt wurden.
Dieses Dokument gilt nicht für ortsfeste Hon , Polier- und Bandschleifmaschinen. Dieses Dokument gilt nicht für transportable motorbetriebene Elektrowerkzeuge nach IEC 61029 2 4 und IEC 61029 2 10.
Machines-outils - Sécurité - Machines à meuler fixes (ISO 16089:2025)
Le présent document spécifie les exigences et/ou mesures pour éliminer les phénomènes dangereux ou de réduire les risques sur les groupes suivants de machines à meuler fixes qui sont principalement destinés à la mise en forme des métaux par meulage:
— Groupe 1: machines à meuler à commande manuelle sans axes mécanisés et sans commande numérique;
— Groupe 2: machines à meuler à commande manuelle avec axes mécanisés et commande numérique limitée, le cas échéant;
— Groupe 3: machines à meuler à commande numérique.
NOTE 1 Pour des informations détaillées sur les groupes de machines à meuler, voir 3.1 et 3.2.
NOTE 2 Les exigences du présent document sont, en général, applicables à tous les groupes de machines à meuler. Lorsque des exigences ne sont applicables qu'à quelques groupes particuliers de machines à meuler, ceux-ci sont alors spécifiés.
Le présent document couvre les phénomènes dangereux significatifs énumérés dans l'Article 4 et s'applique aux dispositifs auxiliaires (par exemple, pour les pièces, les outils, les dispositifs porte-pièce et dispositifs de manutention) faisant partie intégrante de la machine.
Le présent document s'applique également aux machines intégrées dans une chaîne de production ou une unité de meulage automatisée, dans la mesure où les phénomènes dangereux et risques qui y sont liés sont comparables à ceux de machines isolées.
Le présent document inclut également, dans l'Article 7, une liste minimale d'informations relatives à la sécurité que le fabricant a à fournir à l'utilisateur. Voir également l'ISO 12100:2010, Figure 2, qui illustre l'interaction entre la responsabilité du fabricant et celle de l'utilisateur concernant la sécurité de fonctionnement.
La responsabilité de l’utilisateur pour identifier certains phénomènes dangereux spécifiques (par exemple, feu et explosion) et réduire les risques associés, peut être critique (par exemple, lorsque le système d'extraction central fonctionne correctement).
Lorsque des procédés supplémentaires de travail des métaux (par exemple, fraisage, tournage, traitement au laser) sont concernés, le présent document peut servir de base pour les exigences de sécurité. Les informations spécifiques concernant des phénomènes dangereux liés à d'autres procédés de travail des métaux sont couvertes par d'autres normes internationales.
Le présent document s'applique aux machines construites après sa date de publication.
Le présent document ne s’applique pas aux machines fixes à roder, à polir et à meuler à bande. Le présent document ne s'applique pas non plus aux machines-outils électriques semi-fixes conformes aux IEC 61029-2-4 et IEC 61029-2-10.
Obdelovalni stroji - Varnost - Nepremični brusilni stroji (ISO 16089:2025)
General Information
Relations
Standards Content (Sample)

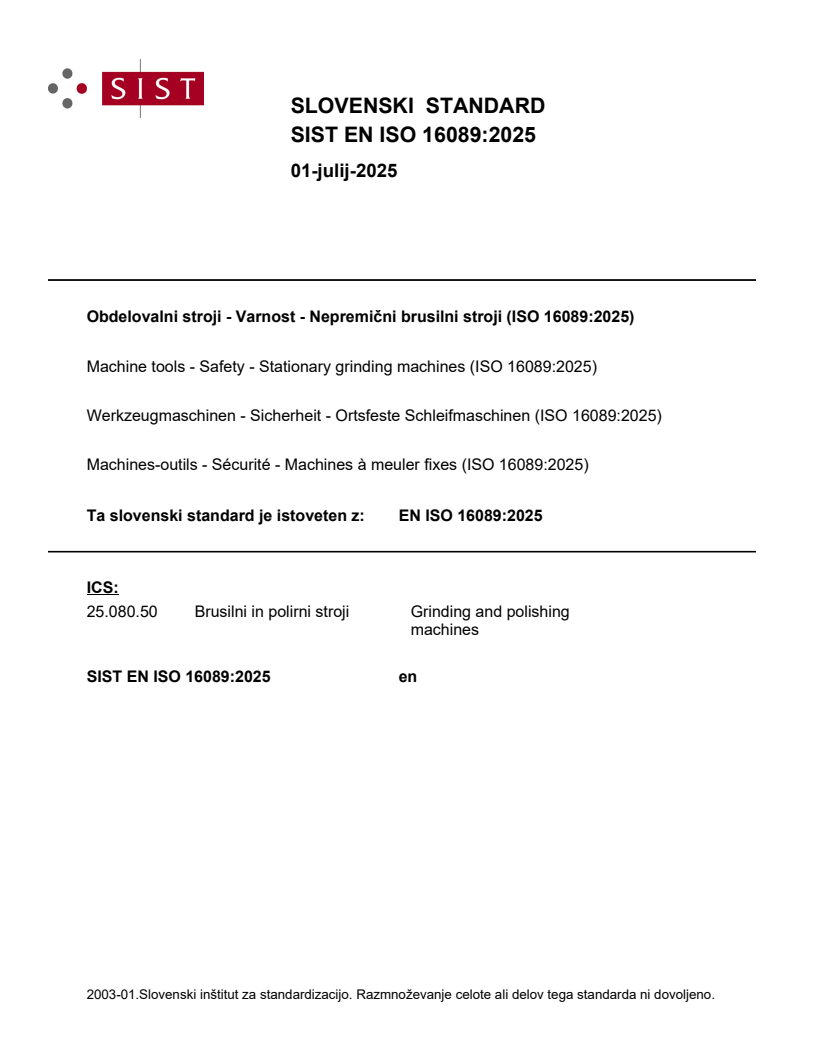

SLOVENSKI STANDARD
01-julij-2025
Obdelovalni stroji - Varnost - Nepremični brusilni stroji (ISO 16089:2025)
Machine tools - Safety - Stationary grinding machines (ISO 16089:2025)
Werkzeugmaschinen - Sicherheit - Ortsfeste Schleifmaschinen (ISO 16089:2025)
Machines-outils - Sécurité - Machines à meuler fixes (ISO 16089:2025)
Ta slovenski standard je istoveten z: EN ISO 16089:2025
ICS:
25.080.50 Brusilni in polirni stroji Grinding and polishing
machines
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

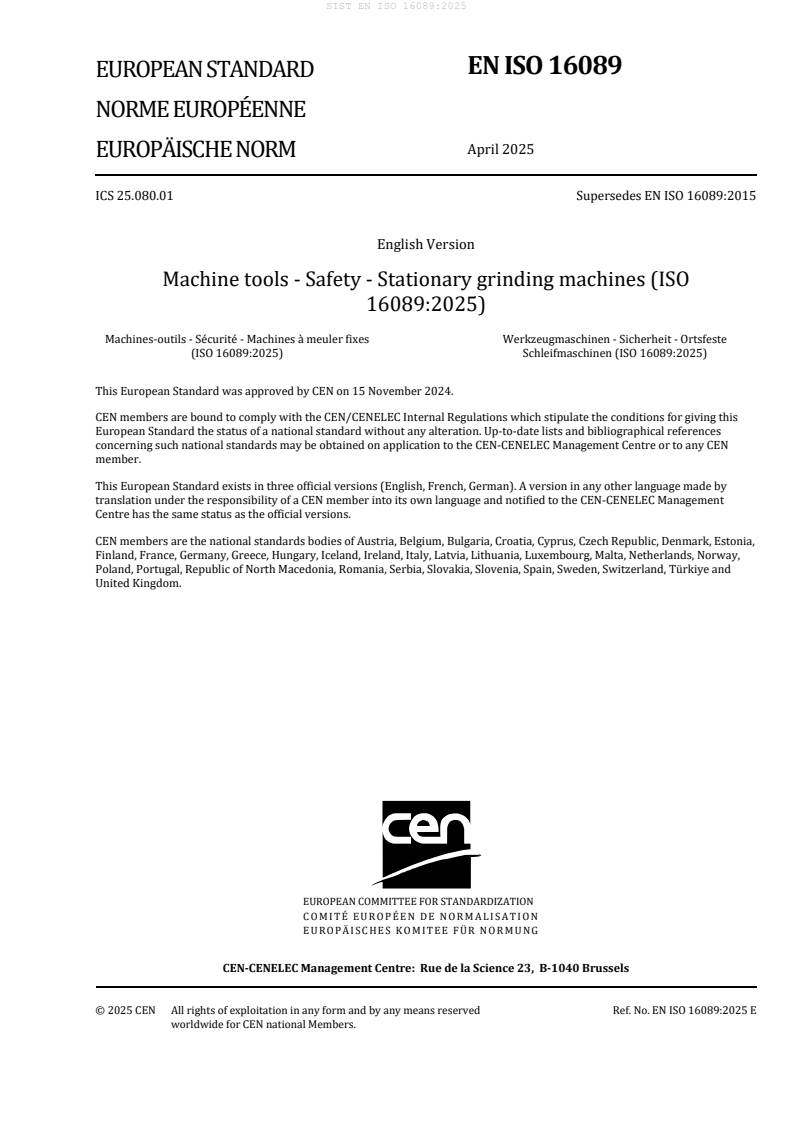

EN ISO 16089
EUROPEAN STANDARD
NORME EUROPÉENNE
April 2025
EUROPÄISCHE NORM
ICS 25.080.01 Supersedes EN ISO 16089:2015
English Version
Machine tools - Safety - Stationary grinding machines (ISO
16089:2025)
Machines-outils - Sécurité - Machines à meuler fixes Werkzeugmaschinen - Sicherheit - Ortsfeste
(ISO 16089:2025) Schleifmaschinen (ISO 16089:2025)
This European Standard was approved by CEN on 15 November 2024.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2025 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 16089:2025 E
worldwide for CEN national Members.
Contents Page
European foreword . 3
Annex ZA (informative) Relationship between this European Standard and the essential
requirements of EU Directive 2006/42/EC aimed to be covered . 4
European foreword
This document (EN ISO 16089:2025) has been prepared by Technical Committee ISO/TC 39 "Machine
tools" in collaboration with Technical Committee CEN/TC 143 “Machine tools - Safety” the secretariat of
which is held by SNV.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by October 2025, and conflicting national standards shall
be withdrawn at the latest by October 2025.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN ISO 16089:2015.
This document has been prepared under a standardization request addressed to CEN by the European
Commission. The Standing Committee of the EFTA States subsequently approves these requests for its
Member States.
For the relationship with EU Legislation, see informative Annex ZA, which is an integral part of this
document.
Any feedback and questions on this document should be directed to the users’ national standards
body/national committee. A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the
United Kingdom.
Endorsement notice
The text of ISO 16089:2025 has been approved by CEN as EN ISO 16089:2025 without any modification.
Annex ZA
(informative)
Relationship between this European Standard and the essential
requirements of EU Directive 2006/42/EC aimed to be covered
This European Standard has been prepared under a Commission’s standardization request M/396
“Mandate to CEN and CENELEC for standardisation in the field of machinery” to provide one voluntary
means of conforming to essential requirements of Directive 2006/42/EC of the European Parliament
and of the Council of 17 May 2006 on machinery, and amending Directive 95/16/EC (recast).
Once this standard is cited in the Official Journal of the European Union under that Directive compliance
with the normative clauses of this standard given in Table ZA.1 and application of the edition of the
normatively referenced standards as given in Table ZA.2 confers, within the limits of the scope of this
standard, a presumption of conformity with the corresponding essential requirements of that Directive
and associated EFTA regulations.
Table ZA.1 — Correspondence between this European Standard and Directive 2006/42/EC
Essential Requirements of Directive Clause(s)/sub-clause(s) Remarks/Notes
2006/42/EC of this EN
1.1.2 Principles of safety integration
1.1.2 (a) 5, 6
1.1.2 (c) 5, 6
1.1.2 (d) 5, 6
1.1.2 (e) 5, 6
1.1.3 Materials and products 5.7.1, 5.7.2,
5.7.3
Annex H
Annex I
Annex J
1.1.4 Lighting 5.8 e)
1.1.5. Design of machinery to facilitate its 5.2.6, 7.2.4, 7.2.11
handling
1.1.6. Ergonomics 5.8
1.1.7. Operating positions 5.8
1.1.8. Seating Not covered
1.2.1. Control Systems; Safety and reliability 5.12
of control systems
1.2.2. Control Devices 5.8
1.2.3. Starting 5.9
Essential Requirements of Directive Clause(s)/sub-clause(s) Remarks/Notes
2006/42/EC of this EN
1.2.4.1. Normal stop 5.12 Table 3
1.2.4.2 Operational stop 5.12 Table 3
1.2.4.3 Emergency stop 5.12 c)
1.2.4.4. Assembly of machinery 7.2.1
1.2.5. Selection of control or operating modes 5.2.7
1.2.6. Failure of the power supply 5.11
1.3.1. Risk of loss of stability 5.14
1.3.2. Risk of break-up during operation 5.1.2, Annex A
1.3.3. Risks due to falling or ejected objects 5.13
1.3.4. Risks due to surfaces, edges or angles 5.1.2, 5.2
1.3.7. Risks related to moving parts 5.1.2, 5.2, 5.9, 5.12
1.3.8. Choice of protection against risks 5.1.2, 5.2, Annex A
arising from moving parts
1.3.9. Risks of uncontrolled movements 5.9
1.4.1 General requirements 5.2.3.2, 5.13.1
1.4.2.1. Fixed guards 5.2.3.2, 5.13
1.4.2.2. Interlocking movable guards 5.2.3.2
1.4.3. Special requirements for protective 5.2.3.2 b)
devices
1.5.1. Electricity supply 5.3
1.5.2. Static electricity Not covered
1.5.3. Energy supply other than electricity 5.9, 7.1
1.5.6. Fire 5.7.3
Annex H,
Annex I,
1.5.7. Explosion 5.7.3
Annex H,
Annex I,
1.5.8. Noise 5.4
Annex E
1.5.9. Vibrations 5.5,
7.2.7
1.5.10. Radiation 5.6, 5.9 k)
1.5.11. External radiation 5.9 k)
1.5.12. Laser radiation 5.6,
Essential Requirements of Directive Clause(s)/sub-clause(s) Remarks/Notes
2006/42/EC of this EN
7.2.1 g)
1.5.13. Emissions of hazardous materials and 5.7
substances
1.5.14. Risk of being trapped in a machine 7.2.1 n)
1.5.15. Risk of slipping, tripping of falling 5.15
1.6.1. Machinery maintenance 5.1.1, 5.7.2.2 i), 7.2.1
1.6.2. Access to operating positions and 5.2.3.1, 5.2.8.3, 5.15
servicing points
1.6.3. Isolation of energy sources 5.11 f)
1.6.4. Operator intervention 3.5.2, 3.5.3, 3.5.4
1.6.5. Cleaning of internal parts 5.7.2.3 e)
7.2.11
1.7. Information 7
1.7.1. Information and warnings on the 7.1
machinery
1.7.1.1. Information and information devices 7.2
1.7.1.2. Warning devices 5.2.7.6, 5.10, 7.2.1
1.7.2. Warning of residual risks 7.2.9
1.7.3. Marking of machinery 7.1
1.7.4. Instructions 7.2
1.7.4.2 u) Contents of the instructions 7.2.6
Annex F
1.7.4.3. Sales literature Annex F
Table ZA.2 — Applicable Standards to confer presumption of conformity as described in this
Annex ZA
Column 1 Column 2 Column 3 Column 4
Reference in International Title Corresponding
Clause 2 Standard Edition European
Standard Edition
ISO 447 ISO 447:1984 Machine tools – Direction of For applicable standard
operation of controls edition see Column 2
ISO 2553 ISO 2553:2019 Welding and allied processes – EN ISO 2553:2019
Symbolic representation on
drawings – Welded joints
ISO 3834-1 ISO 3834-1:2021 Quality requirements for fusion EN ISO 3834-1:2021
welding of metallic materials –
Part 1: Criteria for the selection
of the appropriate level of quality
requirements
ISO 4413:2010 ISO 4413:2010 Hydraulic fluid power — General EN ISO 4413:2010
rules and safety requirements for
systems and their components
ISO 4414:2010 ISO 4414:2010 Pneumatic fluid power — EN ISO 4414:2010
General rules and safety
requirements for systems and
their components
ISO 4871 ISO 4871:1996 Acoustics — Declaration and EN ISO 4871:2009
verification of noise emission
values of machinery and
equipment
ISO 5817 ISO 5817:2014 Welding — Fusion-welded joints EN ISO 5817:2023
in steel, nickel, titanium and their
alloys (beam welding excluded)
— Quality levels for
imperfections
ISO 9355-1 ISO 9355-1:1999 Ergonomic requirements for the For applicable standard
design of displays and control edition see Column 2
actuators — Part 1: Human
interactions with displays and
control actuators
ISO 9355-2 ISO 9355-2:1999 Ergonomic requirements for the For applicable standard
design of displays and control edition see Column 2
actuators — Part 2: Displays
ISO 9355-3 ISO 9355-3:2006 Ergonomic requirements for the For applicable standard
design of displays and control edition see Column 2
actuators — Part 3: Control
actuators
ISO 9606-1 ISO 9606-1:2012 Qualification testing of welders EN ISO 9606-1:2017
— Fusion welding — Part 1:
Column 1 Column 2 Column 3 Column 4
Reference in International Title Corresponding
Clause 2 Standard Edition European
Standard Edition
Steels
ISO 9606-2 ISO 9606-2:2004 Qualification test of welders — EN ISO 9606-2:2004
Fusion welding — Part 2:
Aluminium and aluminium alloys
ISO 10218- ISO 10218-1:2006 Robots for industrial EN ISO 10218-1:2011
1:2006 environments — Safety
requirements — Part 1: Robots
ISO 11202 ISO 11202:2010 Acoustics — Noise emitted by EN ISO 11202:2010
EN ISO machinery and equipment — EN ISO
11202:2010/Amd.1 Determination of emission sound 11202:2010/A1:2021
:2020 pressure levels at a work station
and at other specified positions
applying approximate
environmental corrections
ISO 11161 ISO 11161:2007 Safety of machinery — EN ISO 11161:2007
ISO Integrated manufacturing EN ISO
11161:2007/Amd.1 systems — Basic requirements 11161:2007/A1:2010
:2010
ISO 12100:2010 ISO 12100:2010 Safety of machinery — General EN ISO 12100:2010
principles for design — Risk
assessment and risk reduction
ISO 13849- ISO 13849-1:2006 Safety of machinery — Safety- EN ISO 13849-1:2023
1:2006 related parts of control systems
— Part 1: General principles for
design
ISO 13850 ISO 13850:2015 Safety of machinery — EN ISO 13850:2015
Emergency stop — Principles for
design
ISO 13856-2 ISO 13856-2:2013 Safety of machinery — Pressure- EN ISO 13856-2:2013
sensitive protective devices —
Part 2: General principles for
design and testing of pressure-
sensitive edges and pressure-
sensitive bars
ISO 13857:2008 ISO 13857:2008 Safety of machinery — Safety EN ISO 13857:2019
distances to prevent hazard
zones being reached by upper
and lower limbs
ISO 14118:2000 ISO 14118:2000 Safety of machinery — EN ISO 14118:2018
Prevention of unexpected start-
up
ISO 14119:1998 ISO 14119:1998 Safety of machinery — EN ISO 14119:2013
Column 1 Column 2 Column 3 Column 4
Reference in International Title Corresponding
Clause 2 Standard Edition European
Standard Edition
Interlocking devices associated
with guards — Principles for
design and selection
ISO 14120:2002 ISO 14120:2002 Safety of machinery — Guards — EN ISO 14120:2015
General requirements for the
design and construction of fixed
and movable guards
ISO 14122-1 ISO 14122-1:2016 Safety of machinery ─ Permanent EN ISO 14122-1:2016
means of access to machinery ─
Part 1: Choice of fixed means of
access between two levels
ISO 14122-2 ISO 14122-2:2016 Safety of machinery ─ Permanent EN ISO 14122-2:2016
means of access to machinery ─
Part 2: Working platforms and
walkways
ISO 14122-3 ISO 14122-3:2016 Safety of machinery — EN ISO 14122-3:2016
Permanent means of access to
machinery — Part 3: Stairs,
stepladders and guard-rails
ISO 14122-4 ISO 14122-4:2016 Safety of machinery — EN ISO 14122-4:2016
Permanent means of access to
machinery — Part 4: Fixed
ladders
ISO 15607 ISO 15607:2019 Specification and qualification of EN ISO 15607:2019
welding procedures for metallic
materials — General rules
ISO 19719 ISO 19719:2010 Machine tools — Work holding For applicable standard
chucks — Vocabulary edition see Column 2
IEC 60204- IEC 60204-1:2009 Safety of machinery — Electrical EN 60204-1:2019
1:2009 equipment of machines — Part 1:
General requirements
IEC 60825-1 IEC
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
