SIST EN 301 080 V1.2.1:2003
(Main)Fixed Radio Systems; Point-to-multipoint equipment; Frequency Division Multiple Access (FDMA); Point-to-multipoint digital radio systems in frequency bands in the range 3 GHz to 11 GHz
General Information
- Abstract
Revision for alignment with latest EMC and spurious emission standards .
- Status
- Published
- Publication Date
- 30-Nov-2003
- Current Stage
- 6060 - National Implementation/Publication (Adopted Project)
- Start Date
- 01-Dec-2003
- Due Date
- 01-Dec-2003
- Completion Date
- 01-Dec-2003
Overview
SIST EN 301 080 V1.2.1:2003 is a European standard developed by the Slovenski inštitut za standardizacijo (SIST) and aligns with the ETSI EN 301 080 series. This standard addresses fixed radio systems with point-to-multipoint (P-MP) equipment using Frequency Division Multiple Access (FDMA). It covers systems that operate in the 3 GHz to 11 GHz frequency bands and specifies the minimum system parameters necessary to ensure compatibility, performance, and conformance with EMC and spurious emission standards, notably integrating updates aligned with CEPT/ERC Recommendation 74-01 concerning spurious emissions.
Key Topics
- Point-to-Multipoint Digital Radio Systems: Focuses on digital radio links supporting multiple subscribers from a central station.
- Frequency Division Multiple Access (FDMA): Details requirements for systems employing FDMA in the 3 GHz to 11 GHz range.
- EMC and Spurious Emissions: Revises system parameters for compliance with updated standards for electromagnetic compatibility and unwanted emissions.
- System Performance: Specifies features like system capacity, roundtrip delay, bit error ratio (BER), transparency, and voice/data coding methods.
- Environmental and Power Requirements: Covers performance under indoor and outdoor environmental conditions and standardized power supply interfaces.
- Network Interfaces: Provides provisions for compatible connections to public and private networks, including standardized digital and analogue interfaces.
Applications
SIST EN 301 080 V1.2.1:2003 is widely applicable in several key areas:
- Broadband Wireless Access: Used in developing new P-MP access networks, particularly for providing connectivity in both urban and regional areas with scattered subscribers.
- Public and Private Network Integration: Supports connectivity for PSTN, PDN, ISDN, digital video, and digital audio services.
- Efficient Spectrum Use: Enables network operators to serve many users-ranging from a few to thousands-over shared radio channels, optimizing radio spectrum and minimizing infrastructure costs.
- Rapid Deployment in Challenging Topographies: Especially useful where traditional cabling is impractical, FDMA P-MP radio systems facilitate cost-effective and swift installation.
- Supports Diverse Performance Requirements: Allows operators to tailor systems for different levels of service quality and network availability.
- Future-Proof Design: Capable of supporting evolving network needs, including support for technologies such as Asynchronous Transfer Mode (ATM).
These applications make the standard vital for network operators, wireless broadband providers, and equipment manufacturers seeking reliable, standards-compliant fixed radio links.
Related Standards
For complete conformity and interoperability, SIST EN 301 080 V1.2.1:2003 references and complements several related international standards, including:
- EN 300 385: EMC requirements for fixed radio links.
- CEPT/ERC Recommendation 74-01: Spurious emissions limits and frequency arrangements.
- EN 302 085 and EN 300 833: Antenna requirements for point-to-multipoint and point-to-point fixed radio systems.
- ITU-R Recommendations F.696-2, F.697-2, F.1189-1: Error performance and availability objectives in digital radio-relay systems.
- ITU-T Recommendations G.821, G.826: Error performance parameters for digital paths.
- ETS 300 019, ETS 300 132: Environmental and power supply standards for telecom equipment.
By aligning with these and other cited standards, SIST EN 301 080 V1.2.1:2003 ensures comprehensive regulatory compliance and technical compatibility for radio relay and fixed wireless networks.
Keywords: fixed radio systems, point-to-multipoint, FDMA, frequency division multiple access, 3 GHz to 11 GHz, EMC, spurious emissions, broadband wireless access, network interoperability, SIST standard, ETSI EN 301 080
Get Certified
Connect with accredited certification bodies for this standard
ANCE
Mexican certification and testing association.
Intertek Slovenia
Intertek testing, inspection, and certification services in Slovenia.
LNE (Laboratoire National de Métrologie et d'Essais)
French national laboratory for metrology and testing.
Sponsored listings
Frequently Asked Questions
SIST EN 301 080 V1.2.1:2003 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Fixed Radio Systems; Point-to-multipoint equipment; Frequency Division Multiple Access (FDMA); Point-to-multipoint digital radio systems in frequency bands in the range 3 GHz to 11 GHz". This standard covers: Revision for alignment with latest EMC and spurious emission standards .
Revision for alignment with latest EMC and spurious emission standards .
SIST EN 301 080 V1.2.1:2003 is classified under the following ICS (International Classification for Standards) categories: 33.040.20 - Transmission systems; 33.060.30 - Radio relay and fixed satellite communications systems. The ICS classification helps identify the subject area and facilitates finding related standards.
SIST EN 301 080 V1.2.1:2003 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Fixed Radio Systems; Point-to-multipoint equipment; Frequency Division Multiple Access (FDMA); Point-to-multipoint digital radio systems in frequency bands in the range 3 GHz to 11 GHz33.060.30Radiorelejni in fiksni satelitski komunikacijski sistemiRadio relay and fixed satellite communications systems33.040.20Prenosni sistemTransmission systemsICS:Ta slovenski standard je istoveten z:EN 301 080 Version 1.2.1SIST EN 301 080 V1.2.1:2003en01-december-2003SIST EN 301 080 V1.2.1:2003SLOVENSKI
STANDARD
ETSIEN301080V1.2.1(2000-02)EuropeanStandard(Telecommunicationsseries)FixedRadioSystems;Point-to-multipointequipment;FrequencyDivisionMultipleAccess(FDMA);Point-to-multipointdigitalradiosystemsinfrequencybandsintherange3GHzto11GHzSIST EN 301 080 V1.2.1:2003

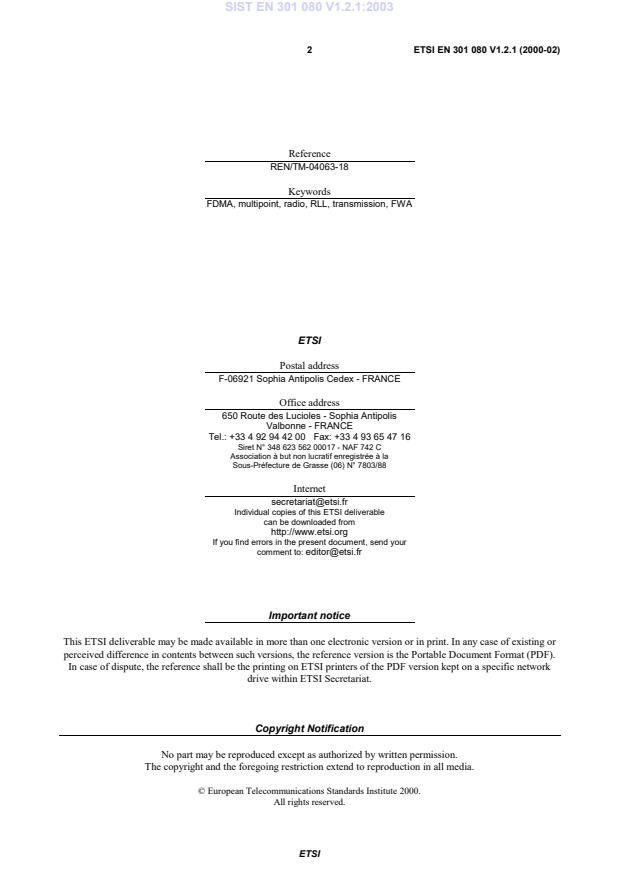

ETSIETSIEN301080V1.2.1(2000-02)2ReferenceREN/TM-04063-18KeywordsFDMA,multipoint,radio,RLL,transmission,FWAETSIPostaladdressF-06921SophiaAntipolisCedex-FRANCEOfficeaddress650RoutedesLucioles-SophiaAntipolisValbonne-FRANCETel.:+33492944200Fax:+33493654716SiretN°34862356200017-NAF742CAssociationàbutnonlucratifenregistréeàlaSous-PréfecturedeGrasse(06)N°7803/88Internetsecretariat@etsi.frIndividualcopiesofthisETSIdeliverablecanbedownloadedfromhttp://www.etsi.orgIfyoufinderrorsinthepresentdocument,sendyourcommentto:editor@etsi.frImportantnoticeThisETSIdeliverablemaybemadeavailableinmorethanoneelectronicversionorinprint.Inanycaseofexistingorperceiveddifferenceincontentsbetweensuchversions,thereferenceversionisthePortableDocumentFormat(PDF).Incaseofdispute,thereferenceshallbetheprintingonETSIprintersofthePDFversionkeptonaspecificnetworkdrivewithinETSISecretariat.CopyrightNotificationNopartmaybereproducedexceptasauthorizedbywrittenpermission.Thecopyrightandtheforegoingrestrictionextendtoreproductioninallmedia.©EuropeanTelecommunicationsStandardsInstitute2000.Allrightsreserved.SIST EN 301 080 V1.2.1:2003
