SIST-V ETSI/EG 201 718-1 V1.1.2:2003
(Main)Universal Mobile Telecommunications System (UMTS) - Mobility Management for evolved fixed networks - Part 1: Phase 1
General Information
- Abstract
This work item identifies the protocol requirementsto provide third generation mobility management capabilities in evolved fixed networks. The requirements will be used by protocol experts to define the adequate protocols for the evolution from fixed networks toward IMT-2000 core networks. The first deliverable addresses mobility management requirements for the first phase of UMTS as defined by SMG. Tha main constraint of this document is the very tight schedule for UMTS phase 1. Reference document: EG NA 061301, Q.1701, Q.1711 and Q.1751.
- Status
- Published
- Publication Date
- 31-Oct-2003
- Technical Committee
- SPN - Services and Protocols for Networks
- Current Stage
- 6060 - National Implementation/Publication (Adopted Project)
- Start Date
- 01-Nov-2003
- Due Date
- 01-Nov-2003
- Completion Date
- 01-Nov-2003
Overview
SIST-V ETSI/EG 201 718-1 V1.1.2:2003 outlines essential protocol requirements for delivering third-generation (3G) mobility management capabilities in evolved fixed networks. Focusing on the Universal Mobile Telecommunications System (UMTS) within the IMT-2000 framework, this standard addresses the first phase of transitioning fixed networks toward UMTS core networks, supporting compatibility, seamless roaming, and efficient mobility management.
The primary objective is to define clear criteria for protocol development, ensuring interoperability between legacy and evolved systems, including private and public network access. This foundational document facilitates alignment with 3GPP specifications and supports the move toward integrated mobile and fixed network services.
Key Topics
- Mobility Management in Evolved Fixed Networks
Identifies the essential mechanisms and procedures needed to manage subscriber location, authentication, and service profile mobility across interconnected fixed and mobile infrastructures. - Protocol Requirements for UMTS Phase 1
Outlines mandatory features for protocols to secure a smooth transition from GSM/GPRS to UMTS, including support for wired and cordless access. - Roaming Procedures and Interworking
Details requirements for seamless subscriber roaming both within single public networks and between different operator networks, including those with bilateral roaming agreements. - Reference Network Interfaces
Addresses integration and definition of critical interfaces (e.g., Uu, Iu, Wu, Zu) to connect mobile equipment, private networks, and public network domains. - Backward Compatibility
Emphasizes continuity with existing GSM and second-generation mobile protocols to enable "soft migration" and service consistency during network evolution.
Applications
This standard has broad practical value across the telecom sector, specifically for:
- Telecommunication Network Operators:
Ensures protocol support for seamless mobility management as fixed networks evolve toward UMTS. Enables roaming compatibility and alignment with international numbering and authentication schemes. - Protocol Developers and System Integrators:
Provides a reference for designing, updating, or validating network protocols to support third-generation mobility management, particularly in networks blending fixed and mobile infrastructures. - Private Networks and Enterprises:
Facilitates the integration of private access systems-both wired and cordless-into public UMTS networks, supporting business mobility requirements and secure access. - Equipment Manufacturers:
Guides device design to ensure compatibility with UMTS mobility management, supporting both traditional and next-generation network services.
By implementing these requirements, stakeholders can achieve greater flexibility, interoperability, and scalability in service provision, minimizing disruptions during the transition from legacy systems to advanced 3G mobile environments.
Related Standards
For comprehensive mobility management and smooth UMTS integration, refer to these related standards:
- TS 23.101: General UMTS Architecture
- TR 23.930: Iu Principles
- ITU-T Recommendation E.164: International Public Telecommunication Numbering Plan
- ETS 300 557: Digital cellular telecommunications system (GSM) - Mobile radio interface, Layer 3 specification
- ETS 300 359: Mobile-services Switching Centre - Base Station System interface
- ETS 300 974: Mobile Application Part (MAP) specification
- ETS 300 605: Information element mapping and signalling procedures
Also consider ITU-T Recommendations (Q.1701, Q.1711, Q.1751) and documents addressing ISDN-UMTS framework and fixed network evolution strategies.
For more details, visit the ETSI standards portal or consult the original SIST-V ETSI/EG 201 718-1 reference documentation.
Keywords: Mobility management, UMTS, evolved fixed network, protocol requirements, interoperability, IMT-2000, third generation mobile, roaming, GSM evolution.
Get Certified
Connect with accredited certification bodies for this standard
ANCE
Mexican certification and testing association.
Intertek Slovenia
Intertek testing, inspection, and certification services in Slovenia.
LNE (Laboratoire National de Métrologie et d'Essais)
French national laboratory for metrology and testing.
Sponsored listings
Frequently Asked Questions
SIST-V ETSI/EG 201 718-1 V1.1.2:2003 is a guide published by the Slovenian Institute for Standardization (SIST). Its full title is "Universal Mobile Telecommunications System (UMTS) - Mobility Management for evolved fixed networks - Part 1: Phase 1". This standard covers: This work item identifies the protocol requirementsto provide third generation mobility management capabilities in evolved fixed networks. The requirements will be used by protocol experts to define the adequate protocols for the evolution from fixed networks toward IMT-2000 core networks. The first deliverable addresses mobility management requirements for the first phase of UMTS as defined by SMG. Tha main constraint of this document is the very tight schedule for UMTS phase 1. Reference document: EG NA 061301, Q.1701, Q.1711 and Q.1751.
This work item identifies the protocol requirementsto provide third generation mobility management capabilities in evolved fixed networks. The requirements will be used by protocol experts to define the adequate protocols for the evolution from fixed networks toward IMT-2000 core networks. The first deliverable addresses mobility management requirements for the first phase of UMTS as defined by SMG. Tha main constraint of this document is the very tight schedule for UMTS phase 1. Reference document: EG NA 061301, Q.1701, Q.1711 and Q.1751.
SIST-V ETSI/EG 201 718-1 V1.1.2:2003 is classified under the following ICS (International Classification for Standards) categories: 33.070.50 - Global System for Mobile Communication (GSM). The ICS classification helps identify the subject area and facilitates finding related standards.
SIST-V ETSI/EG 201 718-1 V1.1.2:2003 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
SLOVENSKI STANDARD
01-november-2003
Univerzalni mobilni telekomunikacijski sistem (UMTS) - Upravljanje mobilnosti za
razvita fiksna omrežja - 1. del: Faza 1
Universal Mobile Telecommunications System (UMTS) - Mobility Management for
evolved fixed networks - Part 1: Phase 1
Ta slovenski standard je istoveten z: EG 201 718-1 Version 1.1.2
ICS:
33.070.50 Globalni sistem za mobilno Global System for Mobile
telekomunikacijo (GSM) Communication (GSM)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
ETSI Guide
Universal Mobile Telecommunication Service (UMTS);
Mobility Management for evolved fixed networks;
Part 1: Phase 1

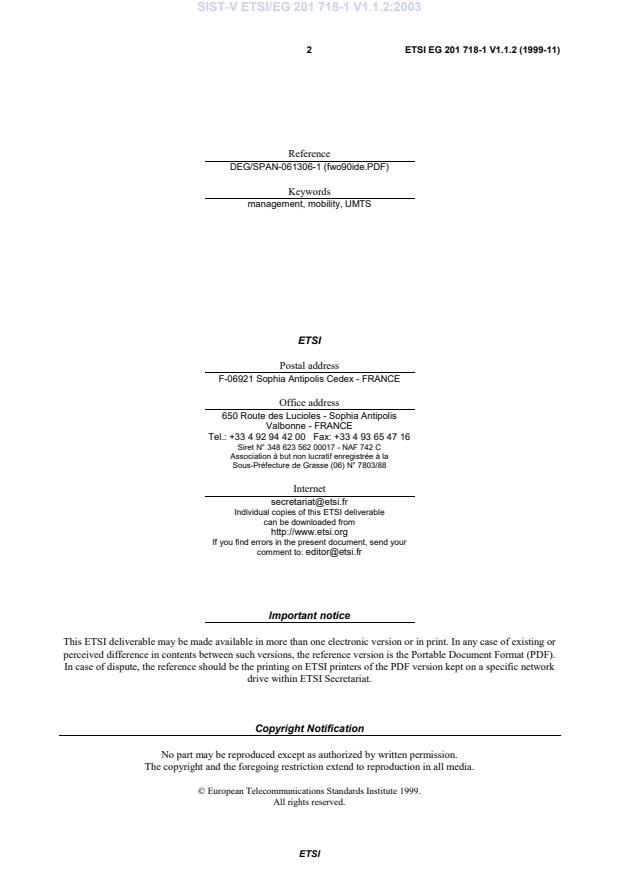

2 ETSI EG 201 718-1 V1.1.2 (1999-11)
Reference
DEG/SPAN-061306-1 (fwo90ide.PDF)
Keywords
management, mobility, UMTS
ETSI
Postal address
F-06921 Sophia Antipolis Cedex - FRANCE
Office address
650 Route des Lucioles - Sophia Antipolis
Valbonne - FRANCE
Tel.:+33492944200 Fax:+33493654716
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Internet
secretariat@etsi.fr
Individual copies of this ETSI deliverable
can be downloaded from
http://www.etsi.org
If you find errors in the present document, send your
comment to: editor@etsi.fr
Important notice
This ETSI deliverable may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference should be the printing on ETSI printers of the PDF version kept on a specific network
drive within ETSI Secretariat.
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 1999.
All rights reserved.
ETSI
3 ETSI EG 201 718-1 V1.1.2 (1999-11)
Contents
Intellectual Property Rights.4
Foreword.4
Introduction .4
1 Scope .5
2 References.5
3 Definitions and abbreviations .6
3.1 Definitions.6
3.2 Abbreviations .6
4 Architecture principles.7
5 Parameters relevant for mobility management.8
6 Description of mobility procedures.8
6.1 List of needed mobility management procedures .8
6.2 Roaming and interworking requirements.8
6.2.1 Roaming within a public network using public access systems .8
6.2.2 Roaming between public networks using public access systems.10
6.2.3 Other roaming scenarios .11
6.2.4 Conclusions on protocol requirements.12
6.3 Classification of mobility management procedures .13
Bibliography.14
History .15
ETSI
4 ETSI EG 201 718-1 V1.1.2 (1999-11)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respect
of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web server
(http://www.etsi.org/ipr).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in SR 000 314 (or the updates on the ETSI Web server)
which are, or may be, or may become, essential to the present document.
Foreword
This ETSI Guide (EG) has been produced by ETSI Technical Committee Services and Protocols for Advanced
Networks (SPAN).
The present document is part 1 of a multi-part EG covering the Universal Mobile Telecommunication Service (UMTS);
Mobility Management for evolved fixed networks, as identified below:
Part 1: "Phase 1";
Part 2: "Phase 2".
Introduction
UMTS is the European standard within the IMT2000 framework. UMTS will specify an IMT2000 system which will be
compatible with and use the IMT2000 standards to support the evolving services. It is therefore essential that the
features and the requirements identified for UMTS are related to the IMT2000 requirements.
Backward compatibility is a prerequisite of UMTS phase 1. It is expected that the transition from existing networks to
UMTS phase 1 will be as soft as possible. As a consequence, the protocol requirements work specified in the present
document, as well as the definition of protocols derived from it, should carefully consider the evolution from existing
mobility management protocols.
ETSI
5 ETSI EG 201 718-1 V1.1.2 (1999-11)
1 Scope
The present document defines the protocol requirements needed to provide third generation mobility management
capabilities in evolved fixed networks.
The present document focuses on the protocol requirements for the first phase of UMTS as defined by 3GPP.
3GPP defines G-UMTS based on GSM evolution. The present document studies how these 3GPP requirements can be
applied to the evolution from fixed networks towards UMTS.
In particular, the present document will address the case of cordless and fixed access to UMTS, including access from
private networks.
2 References
The following documents contain provisions which, through reference in this text, constitute provisions of the present
document.
• References are either specific (identified by date of publication, edition number, version number, etc.) or
non-specific.
• For a specific reference, subsequent revisions do not apply.
• For a non-specific reference, the latest version applies.
• A non-specific reference to an ETS shall also be taken to refer to later versions published as an EN with the same
number.
[1] TS 23.101: "General UMTS Architecture 3.0.1".
[2] TR 23.930: "Iu Principles 3.0.0".
[3] ITU-T Recommendation E.164 (1997): "The international public telecommunication numbering
plan".
[4] ETS 300 557: "Digital cellular telecommunications system (Phase 2); Mobile radio interface;
Layer 3 specification (GSM 04.08 version 4.22.1)".
[5] ETS 300 359: "Digital cellular telecommunications system (Phase 2); Mobile-services Switching
Centre - Base Station System (MSC - BSS) interface; Layer 3 specification (GSM 08.08
version 4.12.1)".
[6] ETS 300 974: "Digital cellular telecommunications system (Phase 2+); Mobile Application Part
(MAP) specification (GSM 09.02 version 5.12.1 Release 1996)".
[7] ETS 300 605: "Digital cellular telecommunications system (Phase 2); Information element
mapping between Mobile Station - Base Station System (MS - BSS) and Base Station System -
Mobile-services Switching Centre (BSS - MSC) signalling procedures and the Mobile Application
Part (MAP); (GSM 09.10 version 4.4.1)".
ETSI
6 ETSI EG 201 718-1 V1.1.2 (1999-11)
3 Definitions and abbreviations
3.1 Definitions
For the purposes of the present document, the following terms and definitions apply:
Private access system: access system owned and operated by customer, located within the customer's premises and
connected to a public network
Private network: self-contained network owned and operated by customer, located within the customer's premises,
possibly may interworking with other private or public core networks
3.2 Abbreviations
For the purposes of the present document, the following abbreviations apply:
GPRS General Packet Radio Service
GSM Global System for Mobile Communications
HLR Home Location Register
IMEI International Mobile station Equipment Identity
IMT-2000 International Mobile Telecommunications for year 2000
IMUI International Mobile User Identity
MAP Mobile Application Part
MSISDN Mobile Station International ISDN Number
TMUI Temporary Mobile User Identity
UMTS Universal Mobile Telecommunication System
UNI User to Network Interface
USIM User Services Identity Module
VHE Virtual Home Environment
VLR Visited Location Register
ETSI
7 ETSI EG 201 718-1 V1.1.2 (1999-11)
4 Architecture principles
Uu and Iu reference points are defined in documents TS 23.101 [1] "General UMTS Architecture 3.0.1" and [2].
TR 23.930 [2] "Iu Principles 3.0.0".
Cu [Wu] [Wu]
Third Party
Application
Domain
Fixed/
Uu
Portable
Equipment
[Xu]
Domain
Home
Private Network
Network Domain
Domain
USIM [Zu]
...
