SIST EN 300 367 V1.2.1:2003

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Digitalno omrežje z integriranimi storitvami (ISDN) – Dopolnilna storitev: nedvoumna predaja klica (ECT) – Opis storitveIntegrated Services Digital Network (ISDN); Explicit Call Transfer (ECT) supplementary service; Service description33.080Digitalno omrežje z integriranimi storitvami (ISDN)Integrated Services Digital Network (ISDN)ICS:Ta slovenski standard je istoveten z:EN 300 367 Version 1.2.1SIST EN 300 367 V1.2.1:2003en01-december-2003SIST EN 300 367 V1.2.1:2003SLOVENSKI
STANDARD
EN 300 367 V1.2.1 (1998-10)European Standard (Telecommunications series)Integrated Services Digital Network (ISDN);Explicit Call Transfer (ECT) supplementary service;Service descriptionSIST EN 300 367 V1.2.1:2003

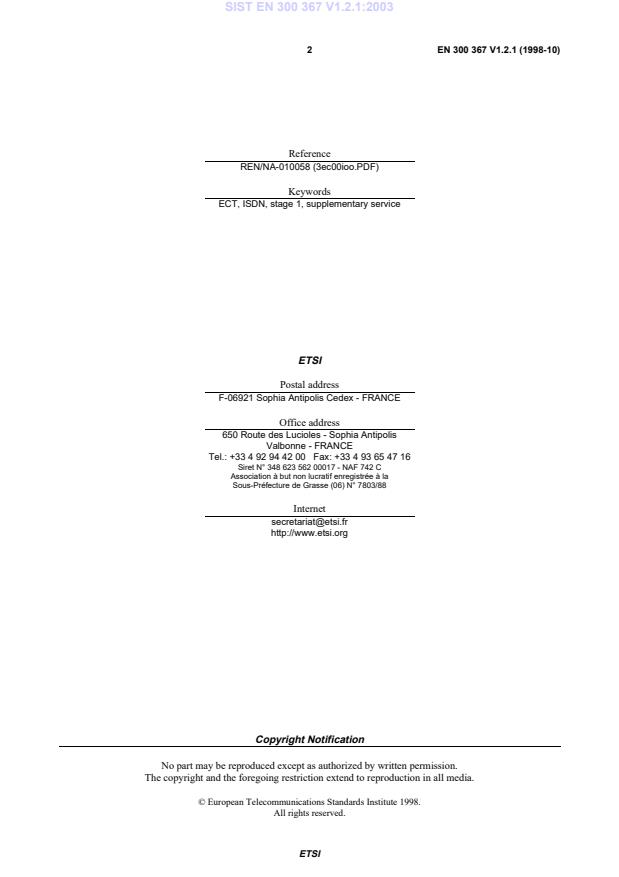

ETSIEN 300 367 V1.2.1 (1998-10)2ReferenceREN/NA-010058 (3ec00ioo.PDF)KeywordsECT, ISDN, stage 1, supplementary serviceETSIPostal addressF-06921 Sophia Antipolis Cedex - FRANCEOffice address650 Route des Lucioles - Sophia AntipolisValbonne - FRANCETel.: +33 4 92 94 42 00
Fax: +33 4 93 65 47 16Siret N° 348 623 562 00017 - NAF 742 CAssociation à but non lucratif enregistrée à laSous-Préfecture de Grasse (06) N° 7803/88Internetsecretariat@etsi.frhttp://www.etsi.orgCopyright NotificationNo part may be reproduced except as authorized by written permission.The copyright and the foregoing restriction extend to reproduction in all media.© European Telecommunications Standards Institute 1998.All rights reserved.SIST EN 300 367 V1.2.1:2003

ETSIEN 300 367 V1.2.1 (1998-10)3ContentsIntellectual Property Rights.5Foreword.51Scope.62Normatives references.63Definitions and abbreviations.73.1Definitions.73.2Abbreviations.74Description.85Procedures.85.1Provision and withdrawal.85.2Normal procedures.85.2.1Activation, deactivation and registration.85.2.2Erasure.85.2.3Invocation and operation.85.2.4Interrogation.95.3Exceptional procedures.105.3.1Activation, deactivation and registration.105.3.2Erasure.105.3.3Invocation and operation.105.3.4Interrogation.106Intercommunication considerations.106.1Interworking with non-ISDNs.116.2Interworking with private ISDNs.117Interaction with other supplementary services.117.1Advice of charge services.117.1.1Advice of charge at call set-up.117.1.2Advice of charge during the call.117.1.3Advice of charge at the end of a call.127.2Call waiting.127.3Call hold.127.4Explicit call transfer.127.5Number identification services.127.5.1Calling line identification presentation.127.5.2Calling line identification restriction.127.5.3Connected line identification presentation.137.5.4Connected line identification restriction.137.6Closed user group.137.7Completion of calls to busy subscriber.137.8Conference services.137.8.1Conference call, add-on.137.8.2Meet-me conference.137.9Direct dialling in.137.10Diversion services.137.10.1Call forwarding unconditional.137.10.2Call forwarding busy.147.10.3Call forwarding no reply.147.10.4Call deflection.147.11Freephone.147.12Malicious call identification.147.13Multiple subscriber number.147.14Subaddressing.147.15Terminal portability.14SIST EN 300 367 V1.2.1:2003

ETSIEN 300 367 V1.2.1 (1998-10)47.16Three party.157.17User-to-user signalling.15History.16SIST EN 300 367 V1.2.1:2003

ETSIEN 300 367 V1.2.1 (1998-10)5Intellectual Property RightsIPRs essential or potentially essential to the present document may have been declared to ETSI. The informationpertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be foundin SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respectof ETSI standards", which is available free of charge from the ETSI Secretariat. Latest updates are available on theETSI Web server (http://www.etsi.fr/ipr or http://www.etsi.org/ipr).Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guaranteecan be given as to the existence of other IPRs not referenced in SR 000 314 (or the updates on the ETSI Web server)which are, or may be, or may become, essential to the present document.ForewordThis European Standard (Telecommunications series) has been produced by ETSI Technical Committee NetworkAspects (NA).In accordance with CCITT Recommendation I.130, the following three level structure is used to describe thesupplementary telecommunications services as provided by European public telecommunications operators under thepan-European Integrated Services Digital Network (ISDN):-Stage 1: is an overall service description, from the user's standpoint;-Stage 2: identifies the functional capabilities and information flows needed to support the service described instage 1; and-Stage 3: defines the signalling system protocols and switching functions needed to implement the servicedescribed in stage 1.The present document is the second version of the stage 1 aspects (overall service description) for the Explicit CallTransfer (ECT) supplementary service. The stage 2 aspects are detailed in ETS 300 368 (1995) and the stage 3 aspectsare detailed in EN 300 369-1 and EN 300 356-14. Whilst there are some editorial changes, the present documentcontains functionality that is additional to that defined in the previous edition of the present document. The additionalfunctionality relates to a service provider option removing the requirement that one of the calls to be transferred is onhold.National transposition datesDate of adoption of this EN:9 October 1998Date of latest announcement of this EN (doa):31 January 1999Date of latest publication of new National Standardor endorsement of this EN (dop/e):31 July 1999Date of withdrawal of any conflicting National Standard (dow):31 July 1999SIST EN 300 367 V1.2.1:2003

ETSIEN 300 367 V1.2.1 (1998-10)61ScopeThe present document defines the stage one of the Explicit Call Transfer (ECT) supplementary service for thepan-European Integrated Services Digital Network (ISDN) as provided by European public telecommunicationsoperators. Stage one is an overall service description from the user's point of view (see CCITTRecommendation I.130 [1]), but does not deal with the details of the human interface itself.The present document defines the interworking requirements of private ISDNs with the public ISDN.In addition the present document specifies the base functionality where the service is provided to the user via a privateISDN.The present document does not specify the additional requirements where the service is provided to the user via atelecommunications network that is not an ISDN but does include interworking requirements of other networks with thepublic ISDN.Interactions with supplementary services not listed in clause 8 are outside the scope of the present document.Charging principles are outside the scope of the present document.The ECT supplementary service enables a user who has two calls, each of which can be an incoming call or an outgoingcall, to connect together the other users in the two calls, into one call.The ECT supplementary service is applicable to all circuit-switched basic telecommunication services.The present document is applicable to the stage two and stage three standards for the ISDN ECT supplementary service.The terms "stage two" and "stage three" are also defined in CCITT Recommendation I.130 [1]. Where the text indicatesthe status of a requirement, (i.e. as strict command or prohibition, as authorization leaving freedom, as a capability orpossibility), this shall be reflected in the text of the relevant stage two and stage three standards.Furthermore, conformance to the present document is met by conforming to the stage three standards with the field ofapplication appropriate to the equipment being implemented. Therefore no method of testing is provided for the presentdocument.2Normatives referencesReferences may be made to:a)specific versions of publications (identified by date of publication, edition number, version number, etc.), inwhich case, subsequent revisions to the referenced document do not apply; orb)all versions up to and including the identified version (identified by "up to and including" before the versionidentity); orc)all versions subsequent to and including the identified version (identified by "onwards" following the versionidentity); ord)publications without mention of a specific version, in which case the latest version applies.A non-specific reference to an ETS shall also be taken to refer to later versions published as an EN with the samenumber.[1]CCITT Recommendation I.130 (1988): "Method for the characterization of telecommunicationservices supported by an ISDN and network capabilities of an ISDN".[2]ITU-T Recommendation I.112 (1993): "Vocabulary of terms for ISDNs".[3]ITU-T Recommendation E.164 (1997): "The international public telecommunication numberingplan".[4]ITU-T Recommendation I.210 (1993): "Principles of telecommunication services supported by anISDN and the means to describe them".SIST EN 300 367 V1.2.1:2003

ETSIEN 300 367 V1.2.1 (1998-10)7[5]ETS 300 345: "Integrated Services Digital Network (ISDN); Interworking between public ISDNsand private ISDNs for the provision of telecommunication services; General aspects".3Definitions and abbreviations3.1DefinitionsFor the purposes of the present document, the following definitions apply:Integrated Services Digital Network (ISDN): See ITU-T Recommendation I.112 [2], subclause 2.3, definition 308.service; telecommunication service: See ITU-T Recommendation I.112 [2], subclause 2.2, definition 201.supplementary service: See ITU-T Recommendation I.210 [4], subclause 2.4.ISDN number: A number conforming to the numbering plan and structure specified in ITU-TRecommendation E.164 [3].user A: The user to whom the ECT supplementary service is provided.user B: The other user in one of user A's calls. By convention, in the present document, it is considered that theconnection has been established on this call.user C: The other user in another of user A's calls.network operator: The entity which provides the network operating elements and resources for the execution of theECT supplementary service.service provider: The entity which offers subscription to the ECT supplementary service. The network operator may bethe service provider.basic access: See ITU-T Recommendation I.112 [2], subclause 2.4, definition 425.primary rate access: See ITU-T Recommendation I.112 [2], subclause 2.4, definition 426.subaddress: See ITU-T Recommendation E.164 [3], subclause 12.2.held call: A call on which the call hold supplementary service is currently in operation.active call: A call on which the call hold supplementary service is not currently in operation.NOTE:In other contexts, an active call is a call on which the connection has already been established. This is notthe usage of this term for the present document.3.2AbbreviationsFor the purposes of the present document, the following abbreviations apply:ECTExplicit Call TransferISDNIntegrated Services Digital NetworkSIST EN 300 367 V1.2.1:2003

ETSIEN 300 367 V1.2.1 (1998-10)84DescriptionThe ECT supplementary service enables a user (user A) to transform two of that user's calls, each of which can be anincoming call or an outgoing call, into a new call between user B and user C.Prior to transfer, the connection shall have been established on the call between user A and user B. On the call betweenuser A and user C, either the connection shall have been established prior to transfer, or, as a service provider option,transfer can occur while user C is being informed of the call (i.e. the connection has not yet been established).NOTE:Service providers may reject a request for the ECT supplementary service depending on criteria outsidethe scope of the present document (e.g. for operational reasons under certain circumstances). Theassociated procedures are outside the scope of the present document.The ECT supplementary service can be available to users who are connected to the network via a basic access or aprimary rate access.5Procedures5.1Provision and withdrawalThe ECT supplementary service shall be provided to the user after prior arrangement with the service provider.The ECT supplementary service shall be withdrawn by the service provider upon request of the subscriber or for serviceprovider reasons.5.2Normal procedures5.2.1Activation, deactivation and registrationNot applicable.5.2.2ErasureNot applicable.5.2.3Invocation and operationUser A, who has two calls (one with user B and one with user C), each of which can be an incoming call or an outgoingcall, can request the invocation of the ECT supplementary service with respect to the two calls.NOTE 1:It is the responsibility of user A to ensure that the two calls are compatible.The connection shall have been established on one of the calls (referred to as the call between user A and user B). Theservice provider
...
