SIST ETS 300 128 E1:2003

SLOVENSKI STANDARD
01-december-2003
Digitalno omrežje z integriranimi storitvami (ISDN) – Dopolnilna storitev:
identifikacija zlonamernega klica (MCID) – Opis storitve
Integrated Services Digital Network (ISDN); Malicious Call Identification (MCID)
supplementary service; Service description
Ta slovenski standard je istoveten z: ETS 300 128 Edition 1
ICS:
33.080 Digitalno omrežje z Integrated Services Digital
integriranimi storitvami Network (ISDN)
(ISDN)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN ETS 300 128
TELECOMMUNICATION March 1992
STANDARD
Source: ETSI TC-NA Reference: T/NA1(89)03
ICS: 33.080
ISDN, malicious call, supplementary service
Key words:
Integrated Services Digital Network (ISDN);
Malicious Call Identification (MCID) supplementary service
Service description
ETSI
European Telecommunications Standards Institute
ETSI Secretariat
F-06921 Sophia Antipolis CEDEX - FRANCE
Postal address:
650 Route des Lucioles - Sophia Antipolis - Valbonne - FRANCE
Office address:
c=fr, a=atlas, p=etsi, s=secretariat - secretariat@etsi.fr
X.400: Internet:
Tel.: +33 92 94 42 00 - Fax: +33 93 65 47 16
Copyright Notification: No part may be reproduced except as authorized by written permission. The copyright and the
foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 1992. All rights reserved.
New presentation - see History box

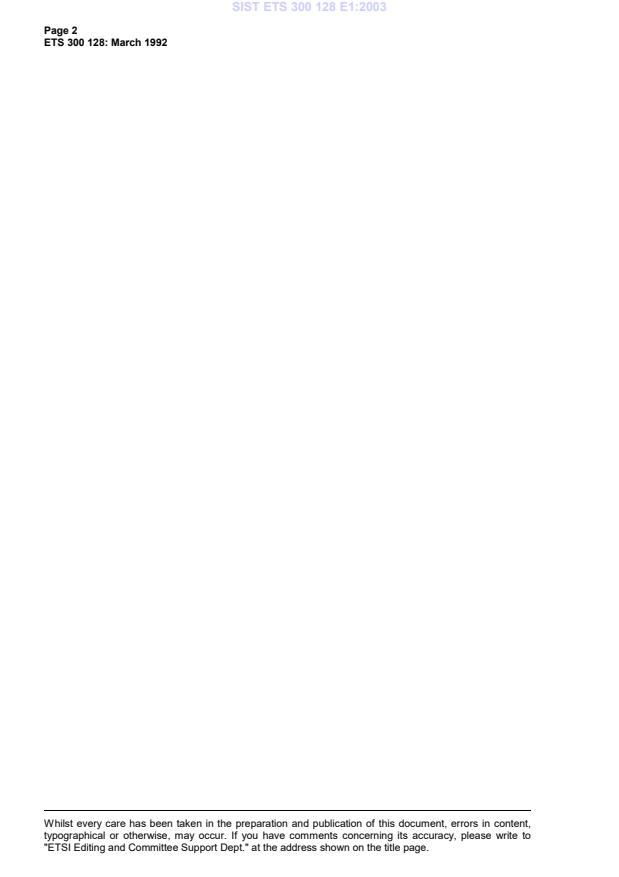

Page 2
ETS 300 128: March 1992
Whilst every care has been taken in the preparation and publication of this document, errors in content,
typographical or otherwise, may occur. If you have comments concerning its accuracy, please write to
"ETSI Editing and Committee Support Dept." at the address shown on the title page.

Page 3
ETS 300 128: March 1992
Contents
Foreword .5
1 Scope .7
2 Normative references.7
3 Definitions.8
4 Symbols and abbreviations .8
5 Description .8
6 Procedures.9
6.1 Provision and withdrawal .9
6.2 Normal procedures .9
6.2.1 Activation, deactivation and registration.9
6.2.2 Erasure.9
6.2.3 Invocation and operation .9
6.2.4 Interrogation .10
6.3 Exceptional procedures .10
6.3.1 Activation, deactivation and registration.10
6.3.2 Erasure.10
6.3.3 Invocation and operation .10
6.3.4 Interrogation .10
7 Intercommunication considerations.10
7.1 Interworking with non-ISDNs .10
7.2 Interworking with private ISDNs.10
8 Interaction with other supplementary services .11
8.1 Advice of charge services.11
8.1.1 Charging information at call set-up time.11
8.1.2 Charging information during the call.11
8.1.3 Charging information at the end of the call.11
8.2 Call waiting.11
8.3 Call hold .11
8.4 Call transfer.11
8.4.1 Explicit call transfer .11
8.4.2 Single step call transfer.11
8.5 Number identification services.11
8.5.1 Calling line identification presentation .11
8.5.2 Calling line identification restriction .12
8.5.3 Connected line identification presentation.12
8.5.4 Connected line identification restriction.12
8.6 Closed user group.12
8.7 Completion of calls to busy subscriber .12
8.8 Conference services .12
8.8.1 Conference call, add-on .12
8.8.2 Meet-me conference .12
8.9 Direct dialling in.12
8.10 Diversion services.12
8.10.1 Call forwarding unconditional .12
8.10.2 Call forwarding busy.13
8.10.3 Call forwarding no reply.13
8.10.4 Call deflection.13
8.11 Freephone.13

Page 4
ETS 300 128: March 1992
8.12 Malicious call identification. 13
8.13 Multiple subscriber number . 13
8.14 Sub-addressing . 13
8.15 Terminal portability. 14
8.16 Three party service. 14
8.17 User-to-user signalling . 14
History. 15

Page 5
ETS 300 128: March 1992
Foreword
This European Telecommunication Standard (ETS) has been produced by the Network Aspects (NA)
Technical Committee of the European Telecommunications Standards Institute (ETSI).
In accordance with CCITT Recommendation I.130 [1], the following three level structure is used to
describe the supplementary telecommunications services as provided by European public
telecommunications operators under the pan-European Integrated Services Digital Network (ISDN):
- Stage 1: is an overall service description, from the user's stand-point;
- Stage 2: identifies the functional capabilities and information flows needed to support the service
described in stage 1; and
- Stage 3: defines the signalling system protocols and switching functions needed to implement the
service described in stage 1.
This standard details the stage 1 aspects (overall service description) for the Malicious Call Identification
(MCID) supplementary service. The stage 2 and stage 3 aspects are detailed in ETS 300 129 (1992) and
ETS 300 130 (1992) respectively.

Page 6
ETS 300 128: March 1992
Blank page
Page 7
ETS 300 128: March 1992
1 Scope
This standard defines the stage one of the Malicious Call Identification (MCID) supplementary service for
the pan-European Integrated Services Digital Network (ISDN) as provided by European public
telecommunications operators. Stage one is an overall service description from the user's point of view
(see CCITT Recommendation I.130 [1]), but does not deal with the details of the human interface itself.
This standard defines the interworking requirements of private ISDNs with the public ISDN.
In addition this standard specifies the base functionality where the service is provided to the user via a
private ISDN.
This standard does not specify the additional requirements where the service is provided to the user via a
telecommunications network that is not an ISDN but does include interworking requirements of other
networks with the public ISDN.
Interactions with supplementary services not listed in Clause 8 are outside the scope of this standard.
Charging principles are outside the scope of this standard.
The MCID supplementary service enables a user to request that the source of an incoming call is
identified and registered by the network.
The MCID supplementary service is applicable to all circuit switched telecommunications services.
This standard is applicable to the stage two and stage three standards for the ISDN MCID supplementary
service. The terms "stage two" and "stage three" are also defined in CCITT Recommendation I.130 [1].
Where the text indicates the status of a requirement (i.e. as strict command or prohibition, as
authorisation leaving freedom, or as a capability or possibility), this shall be reflected in the text of the
relevant stage two and stage three standards.
Furthermore, conformance to this standard is met by conforming to the stage three standard with the field
of application appropriate to the equipment being implemented. Therefore no method of testing is
provided for this standard.
2 Normative references
This ETS incorporates, by dated or undated reference, provisions from other publications. These
normative references are cited at the appropriate places in the text and the publications are listed
hereafter. For dated references, subsequent amendments to, or revisions of, any of these publications
apply to this ETS only when incorporated in it by amendment or revision. For undated references the latest
edition of the publication referred to applies.
[1] CCITT Recommendation I.130 (1988): "Method for the characterisation of
telecommunication services supported by an ISDN and network capabilities of
an ISDN".
[2] CCITT Recommendation I.112 (1988): "Vocabulary of terms for ISDNs".
[3] CCITT Recommendation E.164 (1988): "Numbering plan for the ISDN era".
[4] CCITT Recommendation I.210 (1988): "Principles of telecommunication
services supported by an ISDN and the means to describe them".
[5] CCITT Recommendation Q.9 (1988): "Vocabulary of switching and signalling
terms".
Page 8
ETS 300 128: March 1992
3 Definitions
For the purposes of this standard, the following definitions apply:
Calling party number: A number provided by the public network which identifies either the calling party
or at least the access into the public network of the call from the calling user.
Served user: A called user to whom the Malicious Call Identification (MCID) supplementary service has
been provided.
Subaddress: See CCITT Recommendation E.164 [3], § 11.2.
Basic access: See CCITT Recommendation Q.9 [5], § 1, definition 1551.
Primary rate access: See CCITT Recommendation Q.9 [5], § 1, definition 1552.
Integrated Services Digital Network (ISDN): See CCITT Recommendation I.112 [2], § 2.3, definition
308.
Service; teleco
...
