SIST EN 301 489-2 V2.1.1:2019

HARMONISED EUROPEAN STANDARD
ElectroMagnetic Compatibility (EMC)
standard for radio equipment and services;
Part 2: Specific conditions for radio paging equipment;
Harmonised Standard covering the essential requirements
of article 3.1(b) of Directive 2014/53/EU

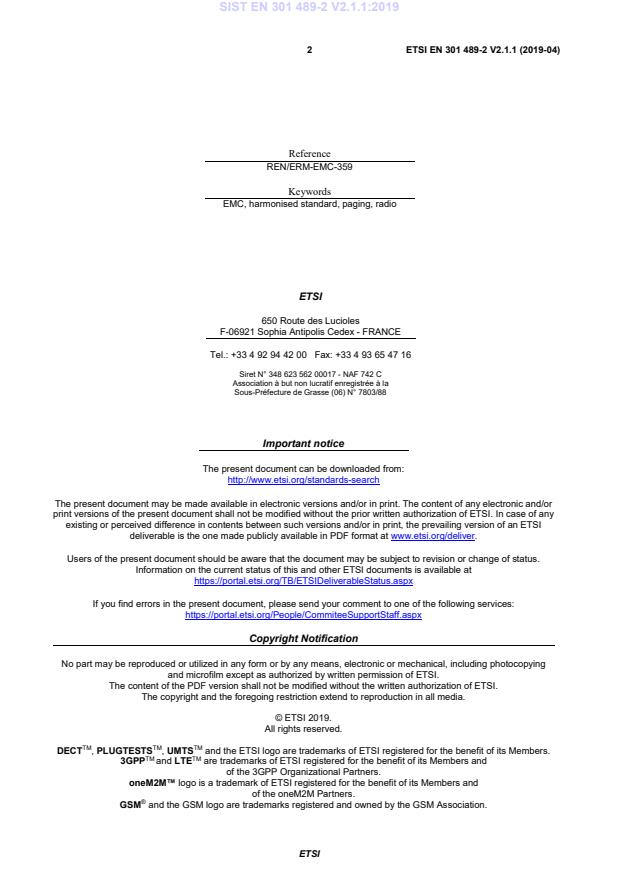

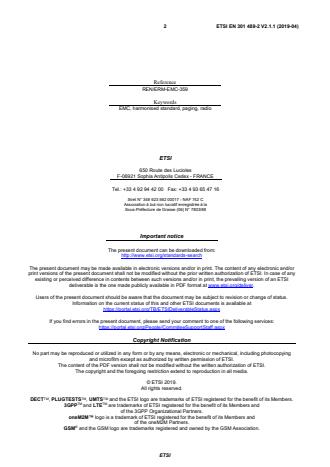

2 ETSI EN 301 489-2 V2.1.1 (2019-04)

Reference
REN/ERM-EMC-359
Keywords
EMC, harmonised standard, paging, radio

ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: +33 4 92 94 42 00  Fax: +33 4 93 65 47 16

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI
deliverable is the one made publicly available in PDF format at www.etsi.org/deliver.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying
and microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.

© ETSI 2019.
All rights reserved.
TM TM TM
DECT , PLUGTESTS , UMTS and the ETSI logo are trademarks of ETSI registered for the benefit of its Members.
TM TM
3GPP and LTE are trademarks of ETSI registered for the benefit of its Members and
of the 3GPP Organizational Partners.
oneM2M™ logo is a trademark of ETSI registered for the benefit of its Members and
of the oneM2M Partners. ®
GSM and the GSM logo are trademarks registered and owned by the GSM Association.
ETSI
3 ETSI EN 301 489-2 V2.1.1 (2019-04)
Contents
Intellectual Property Rights . 5
Foreword . 5
Modal verbs terminology . 5
1 Scope . 6
2 References . 6
2.1 Normative references . 6
2.2 Informative references . 6
3 Definitions and abbreviations . 7
3.1 Definitions . 7
3.2 Abbreviations . 7
4 Test conditions . 8
4.1 General . 8
4.1.1 Introduction. 8
4.1.2 Receivers . 8
4.1.3 Transmitters . 8
4.2 Arrangements for test signals . 9
4.2.1 General . 9
4.2.2 Arrangements for test signals at the input of transmitters . 9
4.2.3 Arrangements for test signals at the output of transmitters . 9
4.2.4 Arrangements for test signals at the input of receivers . 9
4.2.5 Arrangements for test signals at the output of receivers . 10
4.3 Exclusion bands . 10
4.3.1 General . 10
4.3.2 Receiver exclusion bands . 10
4.3.3 Transmitter exclusion band . 10
4.4 Narrow band responses of receivers . 10
4.5 Normal test modulation . 11
4.5.1 General . 11
4.5.2 Fixed, mobile and pocket paging receivers . 11
4.5.3 Base receivers . 11
4.5.4 Mobile and pocket transmitters . 11
4.5.5 Base transmitters . 11
5 Performance assessment . 11
5.1 General . 11
5.2 Standard paging equipment . 11
5.3 Ancillary eq uip me nt . 12
5.4 Equipment classification . 12
6 Performance criteria . 12
6.1 General . 12
6.2 Performance criteria for Continuous phenomena applied to Transmitters (CT) . 13
6.3 Performance criteria for Transient phenomena applied to Transmitters (TT). 13
6.4 Performance criteria for Continuous phenomena applied to Receivers (CR) . 14
6.5 Performance criteria for Transient phenomena applied to Receivers (TR) . 14
6.6 Performance criteria for ancillary equipment tested on a stand-alone basis . 14
7 Applicability overview . 15
7.1 Emission . 15
7.1.1 General . 15
7.1.2 Special conditions . 15
7.2 Immunity . 15
7.2.1 General . 15
7.2.2 Special conditions . 15
ETSI

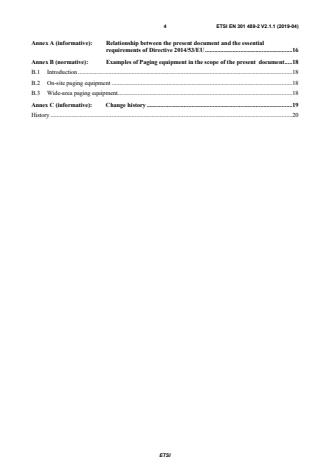

4 ETSI EN 301 489-2 V2.1.1 (2019-04)
Annex A (informative): Relationship between the present document and the essential
requirements of Directive 2014/53/EU . 16
Annex B (normative): Examples of Paging equipment in the scope of the present document . 18
B.1 Introduction . 18
B.2 On-site paging equipment . 18
B.3 Wide-area paging equipment . 18
Annex C (informative): Change history . 19
History . 20

ETSI
5 ETSI EN 301 489-2 V2.1.1 (2019-04)
Intellectual Property Rights
Essential patents
IPRs essential or potentially essential to normative deliverables may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (https://ipr.etsi.org/).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Trademarks
The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.
ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no
right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does
not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.
Foreword
This Harmonised European Standard (EN) has been produced by ETSI Technical Committee Electromagnetic
compatibility and Radio spectrum Matters (ERM).
The present document has been prepared under the Commission's standardisation request C(2015) 5376 final [i.2] to
provide one voluntary means of conforming to the essential requirements of Directive 2014/53/EU on the harmonisation
of the laws of the Member States relating to making available on the market of radio equipment and repealing Directive
1999/5/EC [i.1].
Once the present document is cited in the Official Journal of the European Union under that Directive, compliance with
the normative clauses of the present document given in table A.1 confers, within the limits of the scope of the present
document, a presumption of conformity with the corresponding essential requirements of that Directive and associated
EFTA regulations.
The present document is part 2 of a multi-part deliverable. Full details of the entire series can be found in part 1 [1].

National transposition dates
Date of adoption of this EN: 26 June 2017
Date of latest announcement of this EN (doa): 31 July 2019
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 31 January 2020
Date of withdrawal of any conflicting National Standard (dow): 31 January 2021

Modal verbs terminology
In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and
"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of
provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
ETSI
6 ETSI EN 301 489-2 V2.1.1 (2019-04)
1 Scope
The present document, together with ETSI EN 301 489-1 [1], specifies technical characteristics and methods of
measurements for radio paging equipment (receivers, transmitters and combined equipment) and associated ancillary
equipment.
NOTE 1: Examples of paging equipment are given in annex B.
The present document covers the essential requirements of article 3.1(b) of Directive 2014/53/EU [i.1] under the
conditions identified in annex A.
Technical specifications related to the antenna ports and emissions from the enclosure ports of paging equipment, are not
included in the present document.
NOTE 2: Such technical specifications are found in the relevant product standard for the effective use of the radio
spectrum.
In case of differences (for instance concerning special conditions, definitions, abbreviations) between the present
document and ETSI EN 301 489-1 [1], the provisions of the present document take precedence.
2 References
2.1 Normative references
References are specific, identified by date of publication and/or edition number or version number. Only the cited
version applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long- term validity.
The following referenced documents are necessary for the application of the present document.
[1] ETSI EN 301 489-1 (V2.2.0) (03-2017): "ElectroMagnetic Compatibility (EMC) standard for
radio equipment and services; Part 1: Common technical requirements; Harmonised Standard
covering the essential requirements of article 3.1(b) of Directive 2014/53/EU and the essential
requirements of article 6 of Directive 2014/30/EU".
[2] ETSI EN 300 224 (V2.0.0) (03-2017): "Land Mobile Service; Radio Equipment for use in a
Paging Service operating within the frequency range 25 MHz - 470 MHz; Harmonised Standard
covering the essential requirements of article 3.2 of Directive 2014/53/EU".
2.2 Informative references
References are either specific (identified by date of publication and/or edition number or version number) or non-
specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long-term validity.
The following referenced documents are not necessary for the application of the present document, but they assist the
user with regard to a particular subject area.
[i.1] Directive 2014/53/EU of the European Parliament and of the council of 16 April 2014 on the
harmonisation of the laws of the Member States relating to the making available on the market of
radio equipment and repealing Directive 1999/5/EC.
ETSI
7 ETSI EN 301 489-2 V2.1.1 (2019-04)
[i.2] Commission Implementing Decision C (2015) 5376 final of 4.8.2015 on a standardisation request
to the European Committee for Electro-technical Standardisation and to the European
Telecommunications Standards Institute as regards radio equipment in support of Directive
2014/53/EU of the European Parliament and of the Council.
3 Definitions and abbreviations
3.1 Definitions
For the purposes of the present document, the terms and definitions given in ETSI EN 301 489-1 [1], clause 3 and the
following apply:
alignment range: frequency range over which the receiver or transmitter can be programmed and/or re-aligned to
operate without any physical change of components other than programmable and frequency controlling devices
base receiver: receiver at a fixed location
base transmitter: transmitter at a fixed location
calling function: transmission of a message via the base transmitter to the paging receiver in order to alert and/or
inform the carrier of the paging receiver
paging receiver: equipment for the reception and decoding of paging transmissions; either fixed, or portable
pocket receiver: stand-alone pocket paging receiver, or a receiver being part of a pocket paging transceiver, typically for
portable use (portable equipment)
pocket transmitter: stand-alone pocket paging transmitter using the return channel, or a transmitter being part of a
pocket paging transceiver, typically for portable use (portable equipment)
standby mode (base transmitter): mode of operation in which the transmitter is ready to transmit, waiting for a start
control signal to actual start transmitting
standby mode (pocket transmitter): mode of operation in which the transmitter is ready to transmit, waiting for a
control signal to start the transmitting sequence
standby mode (receiver): mode of operation in which the receiver is capable of receiving calls
talk-back function: transmitting of a message from the pocket transmitter (normally combined in a transceiver) which is
sent to a central receiver (base receiver) and further processed by the central processing unit
3.2 Abbreviations
For the purposes of the present document, the abbreviations given in ETSI EN 301 489-1 [1], clause 3 and the following
apply:
CR Continuous phenomena applied to Receivers
CT Continuous phenomena applied to Transmitters
EUT Equipment Under Test
RF Radio Frequency
TR Transient phenomena applied to Receivers
TT Transient phenomena applied to Transmitters
ETSI
8 ETSI EN 301 489-2 V2.1.1 (2019-04)
4 Test conditions
4.1 General
4.1.1 Introduction
For the purposes of the present document, the test conditions of ETSI EN 301 489-1 [1], clause 4 shall apply as
appropriate. Further product related test conditions for PMR equipment are specified in the present document.
For emission and immunity tests, the test modulation, test arrangements, etc., as specified in the present document
clauses 4.1 to 4.5, shall apply.
4.1.2 Receivers
Whenever a receiver is provided with a detachable antenna, the EUT shall be tested with the antenna fitted in a manner
typical of normal intended use.
The individual immunity tests shall be performed with the receiver in the standby mode.
Fixed, mobile or pocket paging receivers:
• before the individual tests the receiver shall be set into the standby mode, a communications link shall be
established and the message memory of the receiver shall be loaded with recognizable messages, if applicable
(performance check);
• during the individual tests the wanted RF input signal shall not be applied to the receiver, except for the spot
frequency test as part of the radio frequency electromagnetic field immunity test;
• after the individual tests and the termination of the required performance assessment (e.g. by means of the
stored messages in the message memory of the receiver, see clauses 6.3 and 6.4) the communications link shall
be re-established and another performance check shall be carried out to verify that the EUT is still operational.
Base receivers:
• base receivers are not subject to the spot frequency test as part of the radio frequency electromagnetic field
immunity test;
• before the individual tests the base receiver shall be set into the standby mode, a communications link shall be
established and the output of the receiver shall be monitored (performance check);
• during the individual tests the wanted RF input signal (the unmodulated carrier, see clause 4.2) remains applied
to the base receiver;
• after the individual tests of the base receiver (see clauses 6.3 and 6.4) and the termination of the required
performance assessment (e.g. by means of audio breakthrough measurements at the output of the base receiver,
see clauses 6.3 and 6.4) the maintained communications link is switched off and re-established to ensure that the
base receiver is still able to receive new incoming requests.
4.1.3 Transmitters
Mobile and pocket transmitters:
• the mobile or pocket transmitter is not subject to the spot frequency test as part of the radio frequency
electromagnetic field immunity test;
• the mobile or pocket transmitter shall operate in transmit mode with an unmodulated carrier, at its maximum
rated output power. If unmodulated operation is not possible, the manufacturer shall specify the method of
performance assessment and the acceptable degradation of performance.
ETSI
9 ETSI EN 301 489-2 V2.1.1 (2019-04)
Base transmitters:
• the base transmitter shall operate in the standby mode, except for the spot frequency test as part of the radio
frequency electromagnetic field immunity test (see clause 7.2.2, table 1), where the transmitter shall be tested
additionally operated at its maximum rated output power, modulated with normal
...

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.]LUDQL(8ElectroMagnetic Compatibility (EMC) standard for radio equipment and services - Part 2: Specific conditions for radio paging equipment - Harmonised Standard covering the essential requirements of article 3.1(b) of Directive 2014/53/EU33.100.01Elektromagnetna združljivost na splošnoElectromagnetic compatibility in general33.060.20Sprejemna in oddajna opremaReceiving and transmitting equipmentICS:Ta slovenski standard je istoveten z:ETSI EN 301 489-2 V2.1.1 (2019-04)SIST EN 301 489-2 V2.1.1:2019en01-junij-2019SIST EN 301 489-2 V2.1.1:2019SLOVENSKI
STANDARD
HARMONISED EUROPEAN STANDARD SIST EN 301 489-2 V2.1.1:2019

ETSI ETSI EN 301 489-2 V2.1.1 (2019-04) 2
Reference REN/ERM-EMC-359 Keywords EMC, harmonised standard, paging, radio ETSI 650 Route des Lucioles F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00
Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C Association à but non lucratif enregistrée à la Sous-Préfecture de Grasse (06) N° 7803/88
Important notice The present document can be downloaded from: http://www.etsi.org/standards-search The present document may be made available in electronic versions and/or in print. The content of any electronic and/or print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI deliverable is the one made publicly available in PDF format at www.etsi.org/deliver. Users of the present document should be aware that the document may be subject to revision or change of status. Information on the current status of this and other ETSI documents is available at https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx If you find errors in the present document, please send your comment to one of the following services: https://portal.etsi.org/People/CommiteeSupportStaff.aspx Copyright Notification No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm except as authorized by written permission of ETSI. The content of the PDF version shall not be modified without the written authorization of ETSI. The copyright and the foregoing restriction extend to reproduction in all media.
© ETSI 2019. All rights reserved.
DECTTM, PLUGTESTSTM, UMTSTM and the ETSI logo are trademarks of ETSI registered for the benefit of its Members. 3GPPTM and LTETM are trademarks of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners. oneM2M™ logo is a trademark of ETSI registered for the benefit of its Members and of the oneM2M Partners. GSM® and the GSM logo are trademarks registered and owned by the GSM Association. SIST EN 301 489-2 V2.1.1:2019

ETSI ETSI EN 301 489-2 V2.1.1 (2019-04) 3 Contents Intellectual Property Rights . 5 Foreword . 5 Modal verbs terminology . 5 1 Scope . 6 2 References . 6 2.1 Normative references . 6 2.2 Informative references . 6 3 Definitions and abbreviations . 7 3.1 Definitions . 7 3.2 Abbreviations . 7 4 Test conditions . 8 4.1 General . 8 4.1.1 Introduction. 8 4.1.2 Receivers . 8 4.1.3 Transmitters . 8 4.2 Arrangements for test signals . 9 4.2.1 General . 9 4.2.2 Arrangements for test signals at the input of transmitters . 9 4.2.3 Arrangements for test signals at the output of transmitters . 9 4.2.4 Arrangements for test signals at the input of receivers . 9 4.2.5 Arrangements for test signals at the output of receivers . 10 4.3 Exclusion bands . 10 4.3.1 General . 10 4.3.2 Receiver exclusion bands . 10 4.3.3 Transmitter exclusion band . 10 4.4 Narrow band responses of receivers . 10 4.5 Normal test modulation . 11 4.5.1 General . 11 4.5.2 Fixed, mobile and pocket paging receivers . 11 4.5.3 Base receivers . 11 4.5.4 Mobile and pocket transmitters . 11 4.5.5 Base transmitters . 11 5 Performance assessment . 11 5.1 General . 11 5.2 Standard paging equipment . 11 5.3 Ancillary equipment . 12 5.4 Equipment classification . 12 6 Performance criteria . 12 6.1 General . 12 6.2 Performance criteria for Continuous phenomena applied to Transmitters (CT) . 13 6.3 Performance criteria for Transient phenomena applied to Transmitters (TT). 13 6.4 Performance criteria for Continuous phenomena applied to Receivers (CR) . 14 6.5 Performance criteria for Transient phenomena applied to Receivers (TR) . 14 6.6 Performance criteria for ancillary equipment tested on a stand-alone basis . 14 7 Applicability overview . 15 7.1 Emission . 15 7.1.1 General . 15 7.1.2 Special conditions . 15 7.2 Immunity . 15 7.2.1 General . 15 7.2.2 Special conditions . 15 SIST EN 301 489-2 V2.1.1:2019

ETSI ETSI EN 301 489-2 V2.1.1 (2019-04) 4 Annex A (informative): Relationship between the present document and the essential requirements of Directive 2014/53/EU . 16 Annex B (normative): Examples of Paging equipment in the scope of the present document . 18 B.1 Introduction . 18 B.2 On-site paging equipment . 18 B.3 Wide-area paging equipment . 18 Annex C (informative): Change history . 19 History . 20
ETSI ETSI EN 301 489-2 V2.1.1 (2019-04) 5 Intellectual Property Rights Essential patents IPRs essential or potentially essential to normative deliverables may have been declared to ETSI. The information pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web server (https://ipr.etsi.org/). Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become, essential to the present document. Trademarks The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners. ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks. Foreword This Harmonised European Standard (EN) has been produced by ETSI Technical Committee Electromagnetic compatibility and Radio spectrum Matters (ERM). The present document has been prepared under the Commission's standardisation request C(2015) 5376 final [i.2] to provide one voluntary means of conforming to the essential requirements of Directive 2014/53/EU on the harmonisation of the laws of the Member States relating to making available on the market of radio equipment and repealing Directive 1999/5/EC [i.1]. Once the present document is cited in the Official Journal of the European Union under that Directive, compliance with the normative clauses of the present document given in table A.1 confers, within the limits of the scope of the present document, a presumption of conformity with the corresponding essential requirements of that Directive and associated EFTA regulations. The present document is part 2 of a multi-part deliverable. Full details of the entire series can be found in part 1 [1].
National transposition dates Date of adoption of this EN: 26 June 2017 Date of latest announcement of this EN (doa): 31 July 2019 Date of latest publication of new National Standard or endorsement of this EN (dop/e):
31 January 2020 Date of withdrawal of any conflicting National Standard (dow): 31 January 2021
Modal verbs terminology In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and "cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of provisions). "must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation. SIST EN 301 489-2 V2.1.1:2019

ETSI ETSI EN 301 489-2 V2.1.1 (2019-04) 6 1 Scope The present document, together with ETSI EN 301 489-1 [1], specifies technical characteristics and methods of measurements for radio paging equipment (receivers, transmitters and combined equipment) and associated ancillary equipment. NOTE 1: Examples of paging equipment are given in annex B. The present document covers the essential requirements of article 3.1(b) of Directive 2014/53/EU [i.1] under the conditions identified in annex A. Technical specifications related to the antenna ports and emissions from the enclosure ports of paging equipment, are not included in the present document. NOTE 2: Such technical specifications are found in the relevant product standard for the effective use of the radio spectrum. In case of differences (for instance concerning special conditions, definitions, abbreviations) between the present document and ETSI EN 301 489-1 [1], the provisions of the present document take precedence. 2 References 2.1 Normative references References are specific, identified by date of publication and/or edition number or version number. Only the cited version applies. Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference. NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee their long- term validity. The following referenced documents are necessary for the application of the present document. [1] ETSI EN 301 489-1 (V2.2.0) (03-2017): "ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements; Harmonised Standard covering the essential requirements of article 3.1(b) of Directive 2014/53/EU and the essential requirements of article 6 of Directive 2014/30/EU". [2] ETSI EN 300 224 (V2.0.0) (03-2017): "Land Mobile Service; Radio Equipment for use in a Paging Service operating within the frequency range 25 MHz - 470 MHz; Harmonised Standard covering the essential requirements of article 3.2 of Directive 2014/53/EU". 2.2 Informative references References are either specific (identified by date of publication and/or edition number or version number) or non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the referenced document (including any amendments) applies. NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee their long-term validity. The following referenced documents are not necessary for the application of the present document, but they assist the user with regard to a particular subject area. [i.1] Directive 2014/53/EU of the European Parliament and of the council of 16 April 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of radio equipment and repealing Directive 1999/5/EC. SIST EN 301 489-2 V2.1.1:2019

ETSI ETSI EN 301 489-2 V2.1.1 (2019-04) 7 [i.2] Commission Implementing Decision C (2015) 5376 final of 4.8.2015 on a standardisation request to the European Committee for Electro-technical Standardisation and to the European Telecommunications Standards Institute as regards radio equipment in support of Directive 2014/53/EU of the European Parliament and of the Council. 3 Definitions and abbreviations 3.1 Definitions For the purposes of the present document, the terms and definitions given in ETSI EN 301 489-1 [1], clause 3 and the following apply: alignment range: frequency range over which the receiver or transmitter can be programmed and/or re-aligned to operate without any physical change of components other than programmable and frequency controlling devices base receiver: receiver at a fixed location base transmitter: transmitter at a fixed location calling function: transmission of a message via the base transmitter to the paging receiver in order to alert and/or inform the carrier of the paging receiver paging receiver: equipment for the reception and decoding of paging transmissions; either fixed, or portable pocket receiver: stand-alone pocket paging receiver, or a receiver being part of a pocket paging transceiver, typically for portable use (portable equipment) pocket transmitter: stand-alone pocket paging transmitter using the return channel, or a transmitter being part of a pocket paging transceiver, typically for portable use (portable equipment) standby mode (base transmitter): mode of operation in which the transmitter is ready to transmit, waiting for a start control signal to actual start transmitting standby mode (pocket transmitter): mode of operation in which the transmitter is ready to transmit, waiting for a control signal to start the transmitting sequence standby mode (receiver): mode of operation in which the receiver is capable of receiving calls talk-back function: transmitting of a message from the pocket transmitter (normally combined in a transceiver) which is sent to a central receiver (base receiver) and further processed by the central processing unit 3.2 Abbreviations For the purposes of the present document, the abbreviations given in ETSI EN 301 489-1 [1], clause 3 and the following apply: CR Continuous phenomena applied to Receivers CT Continuous phenomena applied to Transmitters EUT Equipment Under Test RF Radio Frequency TR Transient phenomena applied to Receivers TT Transient phenomena applied to Transmitters SIST EN 301 489-2 V2.1.1:2019

ETSI ETSI EN 301 489-2 V2.1.1 (2019-04) 8 4 Test conditions 4.1 General 4.1.1 Introduction For the purposes of the present document, the test conditions of ETSI EN 301 489-1 [1], clause 4 shall apply as appropriate. Further product related test conditions for PMR equipment are specified in the present document. For emission and immunity tests, the test modulation, test arrangements, etc., as specified in the present document clauses 4.1 to 4.5, shall apply. 4.1.2 Receivers Whenever a receiver is provided with a detachable antenna, the EUT shall be tested with the antenna fitted in a manner typical of normal intended use. The individual immunity tests shall be performed with the receiver in the standby mode. Fixed, mobile or pocket paging receivers: • before the individual tests the receiver shall be set into the standby mode, a communications link shall be established and the message memory of the receiver shall be loaded with recognizable messages, if applicable (performance check); • during the individual tests the wanted RF input signal shall not be applied to the receiver, except for the spot frequency test as part of the radio frequency electromagnetic field immunity test; • after the individual tests and the termination of the required performance assessment (e.g. by means of the stored messages in the message memory of the receiver, see clauses 6.3 and 6.4) the communications link shall be re-established and another performance check shall be carried out to verify that the EUT is still operational. Base receivers: • base receivers are not subject to the spot frequency test as part of the radio frequency electromagnetic field immunity test; • before the individual tests the base receiver shall be set into the standby mode, a communications link shall be established and the output of the receiver shall be monitored (performance check); • during the individual tests the wanted RF input signal (the unmodulated carrier, see clause 4.2) remains applied to the base receiver; • after the individual tests of the base receiver (see clauses 6.3 and 6.4) and the termination of the required performance assessment (e.g. by means of audio breakthrough measurements at the output of the base receiver, see clauses 6.3 and 6.4) the maintained communications link is switched off and re-established to ensure that the base receiver is still able to receive new incoming requests. 4.1.3 Transmitters Mobile and pocket transmitters: • the mobile or pocket transmitter is not subject to the spot frequency test as part of the radio frequency electromagnetic field immunity test; • the mobile or pocket transmitter shall operate in transmit mode with an unmodulated carrier, at its maximum rated output power. If unmodulated operation is not possible, the manufacturer shall specify the method of performance assessmen
...
